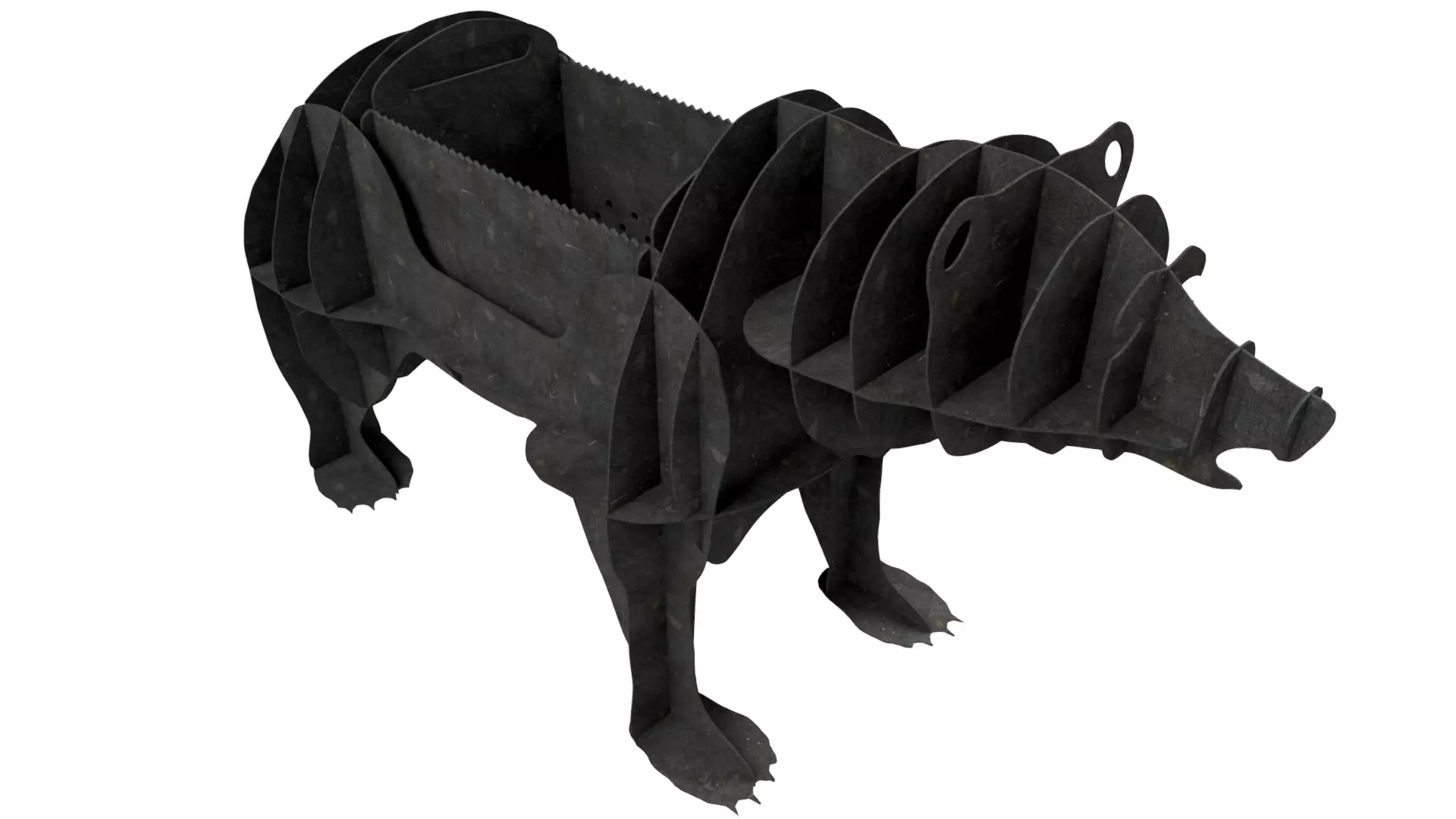

Characteristics of Bear grill (brazier):

Materials frame steel 2 mm , brazier steel 4 mm : Length 1780 mm, Width 775 mm, Height 1175 mm.

Height of the brazier level 828 mm

Size of the brazier 624x295x128 mm

The documentation package includes:

Set of cutting files *.dxf

3D Model Inventor 2018 (*.iam, *.ipt)

3D Model *.igs

3D Model *.sat

Instruction
