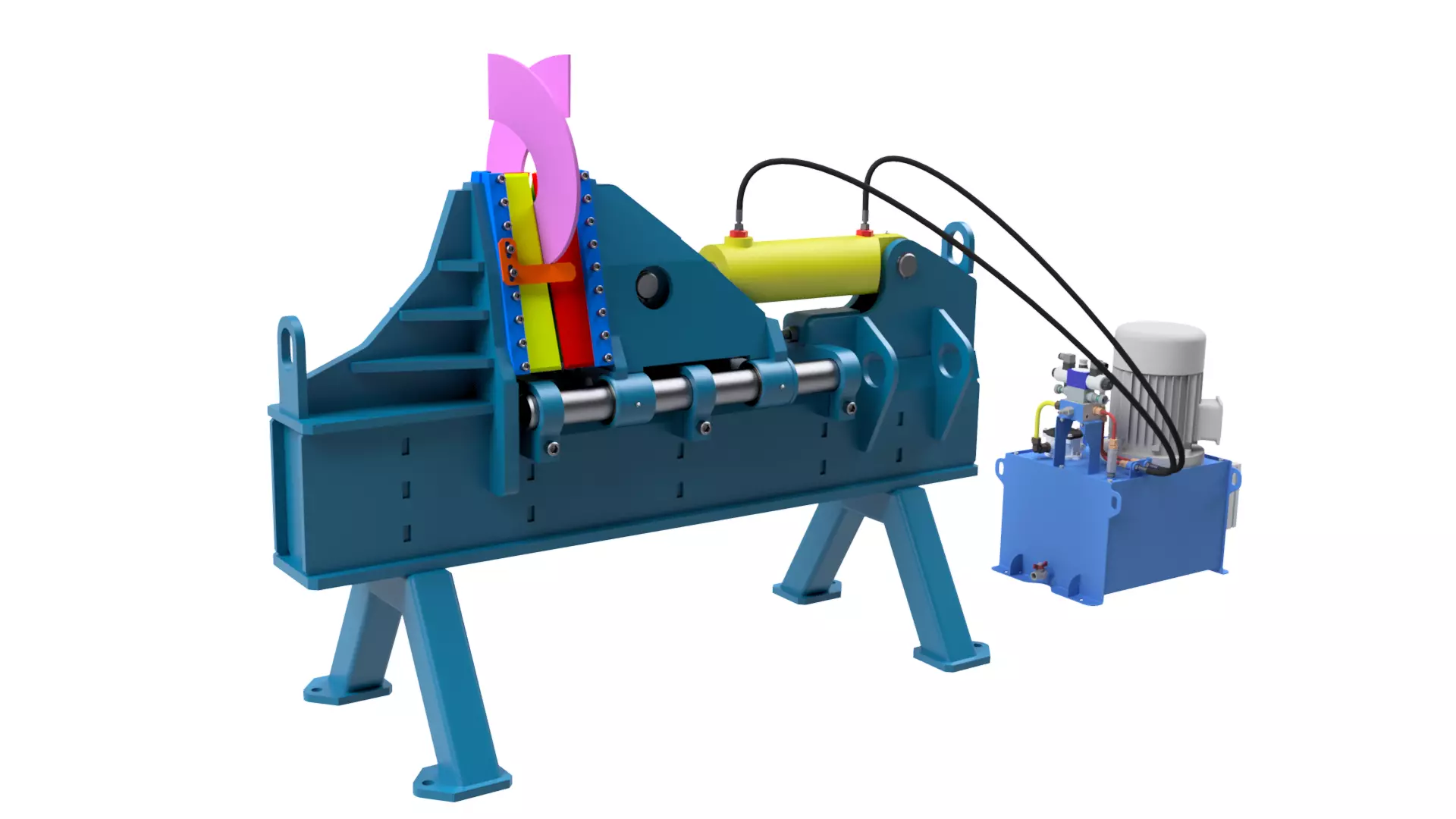

Auger Flight Forming Machine. Adaptive Parametric CAD Model of a Screw Flight Forming Machine.

For any questions regarding the machine, design documentation, 3D model, or possible modifications, please feel free to contact me.

Telegram / WhatsApp: +380 98 202 1488

I am open to reasonable offers, so the price is negotiable depending on the package and requirements. Feel free to contact me to discuss the details.

Adaptive parametric 3D setup model for a machine designed to manufacture screw flights for a wide range of applications, including:

• screw feeders and conveyors;
• screw presses;
• screw-type working elements;
• drilling augers;
• screw conveyors and cleaning equipment for handling and processing various materials.

The model is created as an adaptive parametric assembly, allowing the main geometric parameters to be modified quickly and enabling rapid adaptation of the design to the required dimensions.

Delivery Package: Adaptive parametric 3D assembly; 3D CAD models of all parts and subassemblies; Adaptive Parametric Tooling and Machine Setup Drawing for a Screw Flight Forming Machine.

Technical Specifications:

• Finished screw flight outside diameter: 900 max mm;
• Finished screw flight inside diameter: 70 min mm;
• Material thickness: 2–16 mm;
• Hydraulic cylinder forming force: 5–20 tons;
• Rated hydraulic system pressure: 20 MPa;
• Hydraulic cylinder bore diameter: 125 mm;
• Piston rod diameter: 70 mm;
• Cylinder stroke: 240 mm.

Machine Dimensions:

• Length: 1857 mm;
• Width: 750 mm;
• Height: 1247 mm.

The adaptive parametric 3D assembly was developed in Autodesk Inventor 2019.

The archive includes a video tutorial demonstrating how to use the adaptive parametric assembly.

Project documentation (a complete set of engineering documentation) and manufacturing drawings are not included in the delivery package.

A complete set of engineering documentation (assembly drawings, part drawings, technical specifications, and bills of materials) for manufacturing the machine is available as a separate product.
