Foscam Mount

Foscam Mount Free 3D print model

Description

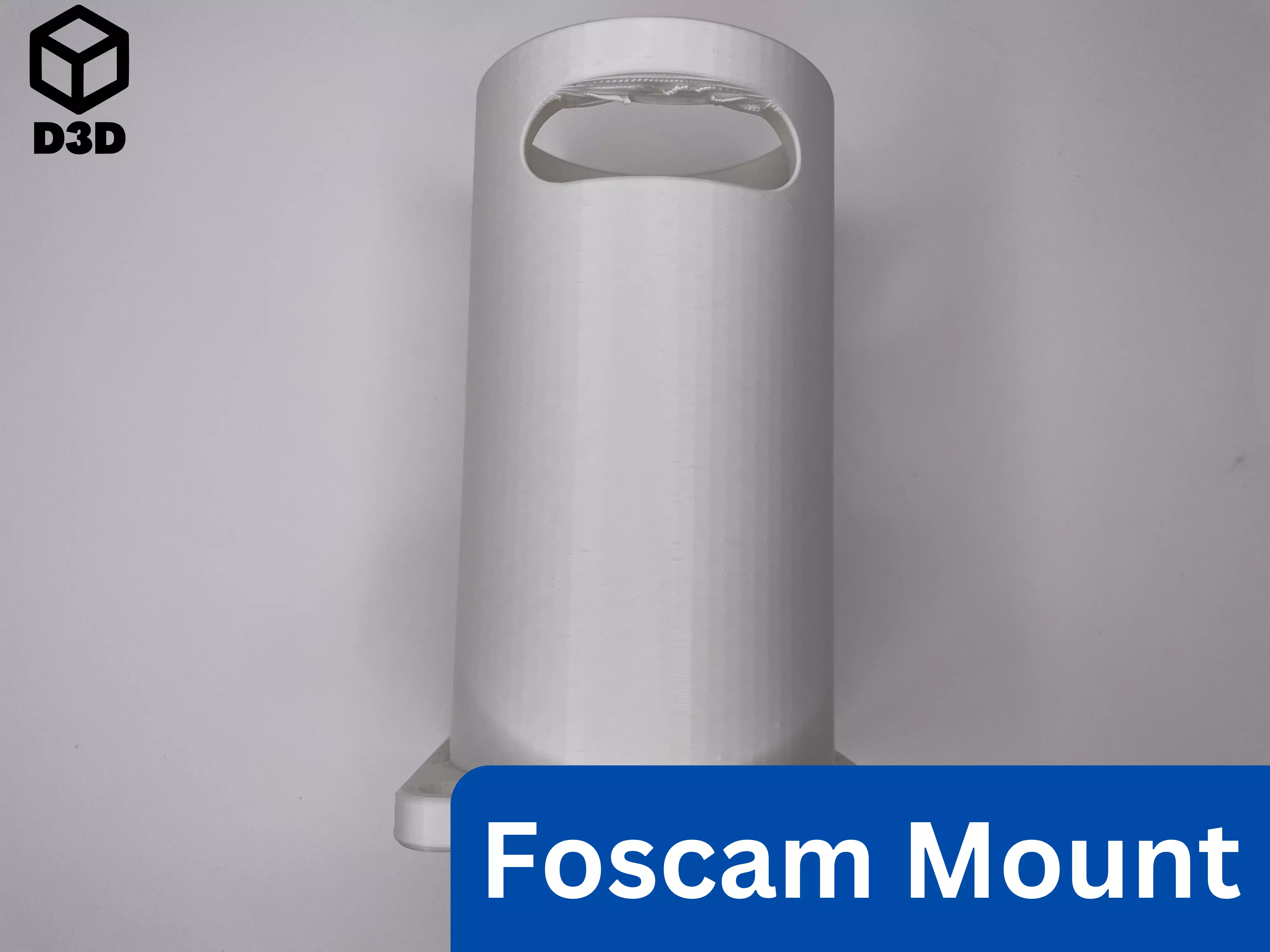

This is a mount for a Foscam R4S 4MP WiFi Home Security Camera. This mount boosts the camera to get a wider field of view. This mount has holes to allow for easy access to all the features of the camera well the camera is in the mount.

Print Instructions

  • Material: PLA or PETG
  • Supports: Yes
  • The lip of all the buttonholes will require supports because of the curved nature of the mount
  • Orientation: Place the bottom on the build plate

Assembly

  • Take the antenna off the camera
  • Take the nut off of the bolt that the antenna attaches to
  • Slide the camera into the mount with the protruding antenna mount matched up with the channel at the top of the camera mount
  • Twist the camera into position
  • Reattach the nut to the antenna bolt
  • Reattach the antenna
  • Plug in the power cable and the SD card
  • Screw the mount in (the mount has four holes that will take screws with a 5 mm diameter head and a 2.5 mm diameter shaft) (optional)

If you enjoy this model, please leave a like and a comment. Please contact me if you have any questions, concerns, or problems.
