ARCHI combines three rounded arches, shallow engraved lines and three matching J-shaped hooks in a compact wall-mounted key rack. The ivory and mustard presentation gives the design a warm, simple look for an entryway or hallway.

The set contains one backplate and three separate hooks. Each hook has two locating pins for alignment and requires adhesive bonding after a successful dry fit. Engraved details are real geometry, not textures.

DIMENSIONS

• Backplate: 185 x 63.5 x 6 mm.
• Overall assembled envelope: approximately 185 x 36.1 x 63.5 mm (width x depth x height).
• Each hook in supplied print orientation: 34 x 34.5 x 10 mm.
• Two wall-mounting holes: 4.8 mm diameter, spaced 152 mm center to center.
• Mounting screw-head recesses: 9 mm diameter and 2.5 mm deep.
• Hook locating pins: 4.2 mm diameter; matching holes: 4.8 mm diameter.
• Nominal pin radial clearance: 0.3 mm.
• Four printable pieces: one backplate and three identical hooks.

PRINTING AND ASSEMBLY

Print the backplate with its flat rear face on the build plate, using the supplied orientation. It was digitally sliced without supports. Print each hook on its broad side; supports are needed beneath the projecting locating pins. Check support placement and removal access in your slicer.

Suggested starting settings: 0.4 mm nozzle, 0.2 mm layers, 4 perimeters and 20% infill. Adjust for your printer and filament. Check that the shallow engraved lines and locating holes remain clear in the sliced preview.

Remove supports and dry-fit both locating pins of each hook into the backplate. Actual fit depends on printer tolerances and material. Bond both pins using an adhesive compatible with your filament and allow it to cure as directed by its manufacturer. The locating pins alone are not a locking joint.

Mount through the two wall holes using screws and anchors appropriate for your wall and the printed recesses. Mounting hardware and adhesive are not included. Use for lightweight keys only. The adhesive joints, printed hooks and wall attachment have not been load-tested; no load rating is claimed.

INCLUDED FILES

• Separate STL and 3MF print files for all four pieces, in print orientation.
• STEP and FreeCAD solid models.
• Blender product and studio scenes.
• OBJ with MTL, FBX and GLB exchange files.
• English and Turkish PDF guide.
• CAD rebuild source and file inventory.

The three hook files share the same geometry. CAD files contain final solids with a rebuild script rather than a fully editable feature-history tree. Printable files and OBJ coordinates use millimeters; Blender, FBX and GLB use meters.

MODEL AND PRINTING NOTES

The model and sliced paths have been digitally checked but have not been physically test-printed. Printed fit, support removal, adhesive bonding, mounting security and load capacity require a real print and installation test. High-resolution meshes are intended for printing and product visualization, not optimized low-poly game use. No UV texture set is included.

ABOUT THE IMAGES

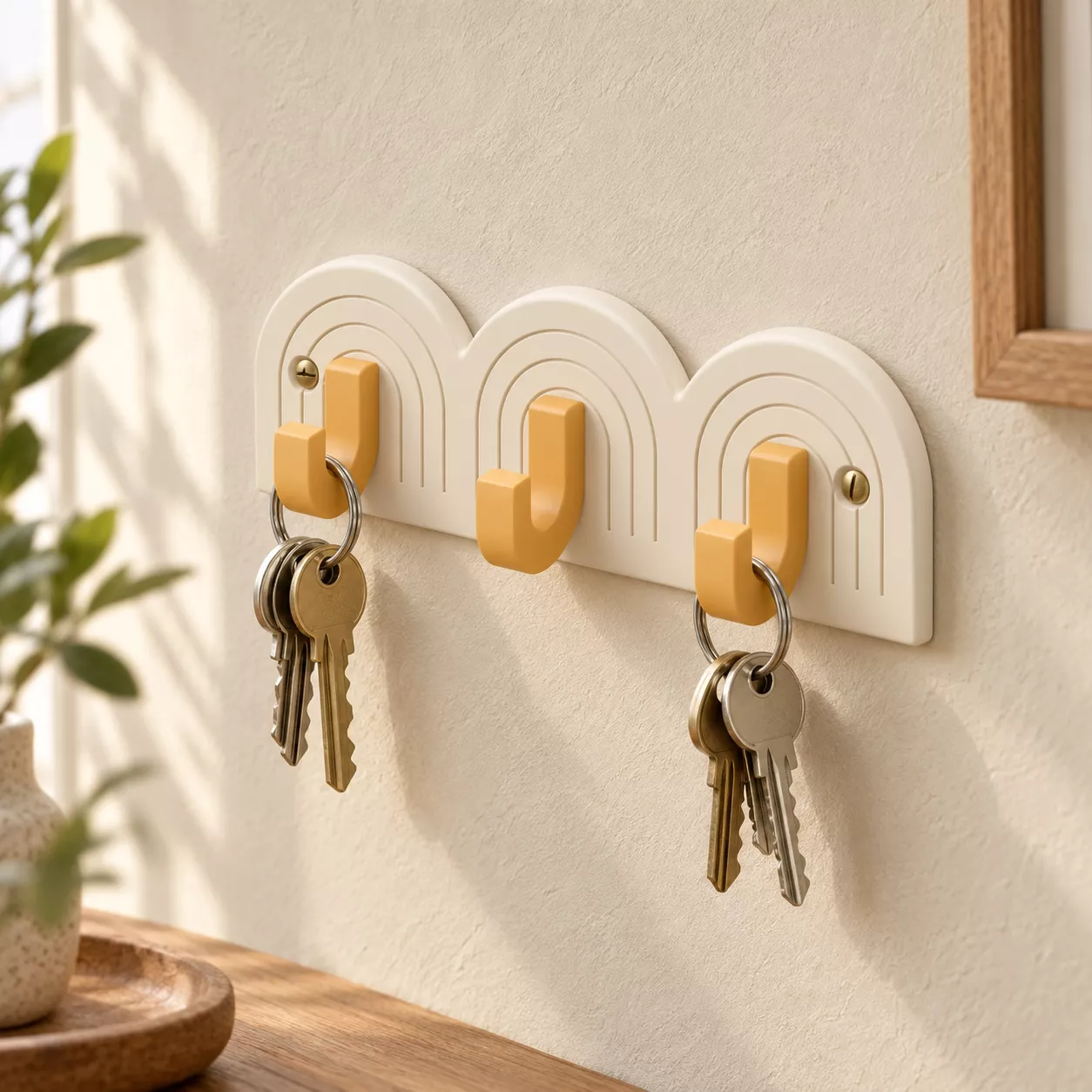

Studio, technical and clay images are renders of the supplied model. Lifestyle scenes are AI-generated illustrations and may differ from the supplied model in proportions, details, materials and colors. Images are not photographs of a physical print.

Colors and finishes are presentation materials; the printed result depends on your filament, printer and settings. Keys, key rings, screws, anchors, adhesive, furniture and decorative props are not included.

Digital files only. No physical product is supplied.
