SPROUT brings three rounded arches and contrasting removable collars to a compact plant propagation display. Three aligned tube seats support separately sourced glass tubes, keeping small plant cuttings arranged across a shelf, desk or windowsill.

DIMENSIONS

• Assembled stand: approximately 186 x 58 x 129.3 mm, excluding glass and plants.
• Base: 186 x 58 x 11 mm.
• Triple arch frame in supplied print orientation: approximately 174 x 122 x 32 mm.
• Each collar: approximately 28 x 28 x 11.2 mm.
• Five separate printable parts: one base, one frame and three collars.

GLASS TUBES AND USE

Designed around three nominal 20 mm outer-diameter x 150 mm long glass tubes, purchased separately. The collar bore is 21.2 mm. Tube dimensions, rim shape and manufacturing tolerances vary; check your actual tubes before printing the full stand. Glass tubes, water and plants are not included.

Insert each tube from above through its collar until its rounded bottom rests in the matching base seat. Use the glass tubes to contain water; the printed stand is not a water reservoir. Remove tubes for filling and cleaning. Check the assembled stand's stability with your own tubes, water and cuttings.

PRINTING AND ASSEMBLY

Print the base upright, the arch frame on its broad face and the collars flange-down, using the supplied orientations. The base and collars were digitally sliced without supports. The frame requires supports for the horizontal tube bores and registration tongues; allow internal supports and check removal access in your slicer.

Suggested starting settings: 0.4 mm nozzle, 0.2 mm layers, 4 perimeters and 20% infill. Adjust for your printer and filament.

Dry-fit the four frame tongues into the base and seat the three removable collars. Nominal side clearance is 0.3 mm at the frame/base and collar/frame joints. If needed, bond the frame tongues with adhesive compatible with your filament. Actual fit depends on the printer and material.

INCLUDED FILES

• Separate STL and 3MF print files for all five parts.
• STEP and FreeCAD solid models of the complete stand.
• Blender product and studio scenes.
• OBJ with MTL, FBX and GLB exchange files.
• English and Turkish PDF guide.
• CAD rebuild source and file inventory.

CAD files contain final solids; a rebuild script is supplied rather than a fully editable feature-history tree. Printable files and OBJ coordinates use millimeters. Blender, FBX and GLB use meters.

MODEL AND PRINTING NOTES

The model has been digitally checked but has not been physically test-printed. Printed fit, support removal, strength, stability and compatibility with real glass tubes require a physical test. No load rating is claimed.

High-resolution meshes are intended for 3D printing and product visualization. They are not optimized as low-poly game assets. No UV texture set is included.

ABOUT THE IMAGES

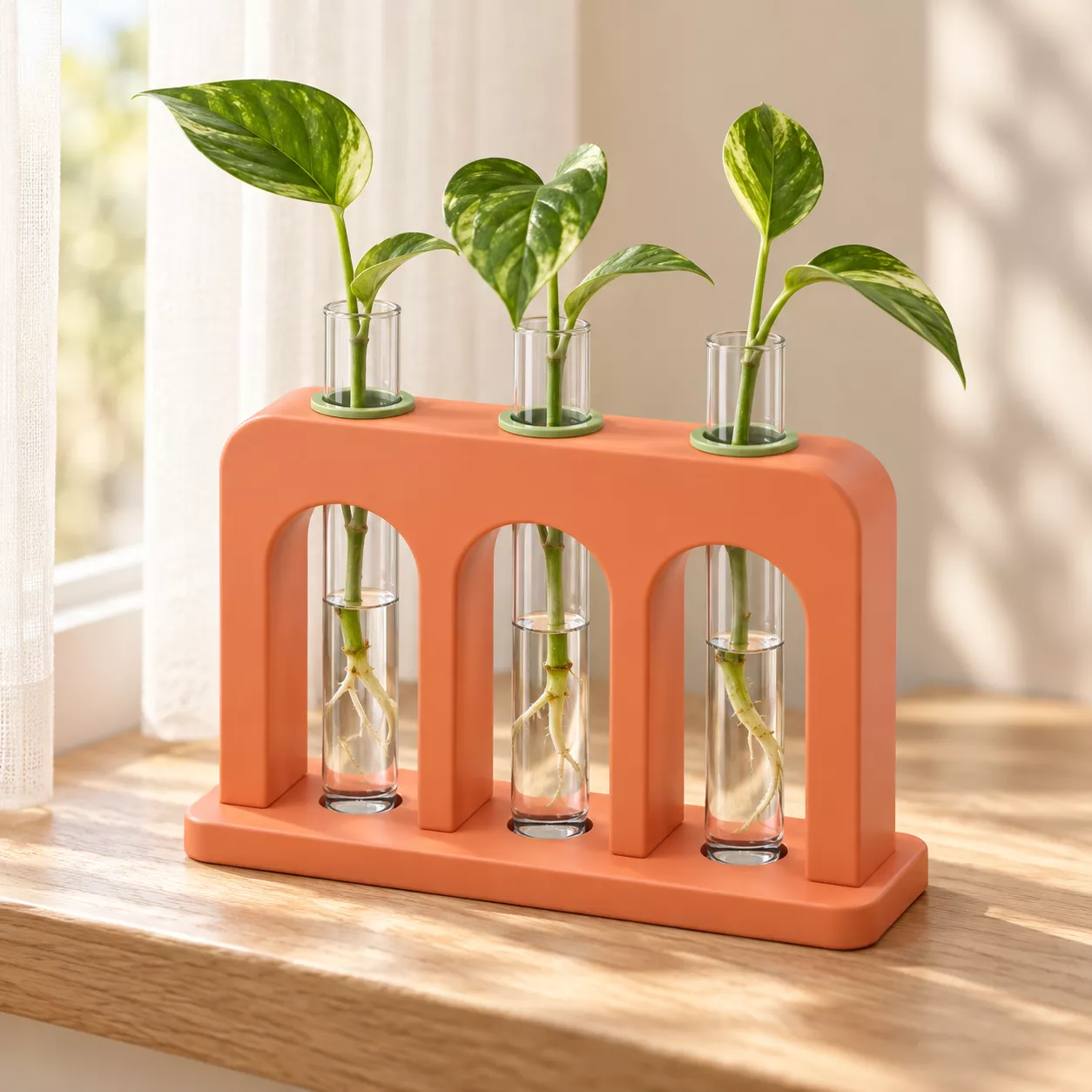

Studio, clay, technical and tube-placement images are rendered from the supplied stand model. The tube-placement scene uses nominal glass tube props for illustration. Lifestyle scenes are AI-generated illustrations and may differ from the supplied model in proportions, details, materials and colors. Images are not photographs of a physical print.

Glass tubes, plants, furniture and decorative props are not included. Colors and finishes are presentation materials; the printed result depends on your filament, printer and settings.

Digital files only. No physical product is supplied.
