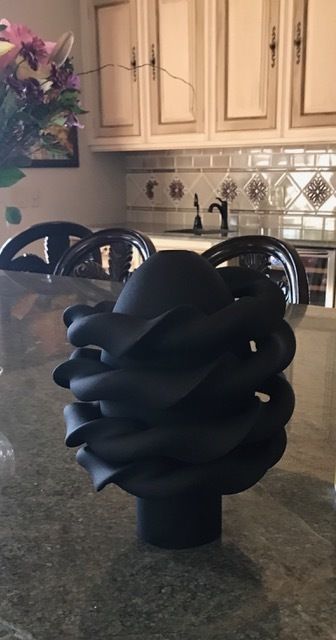

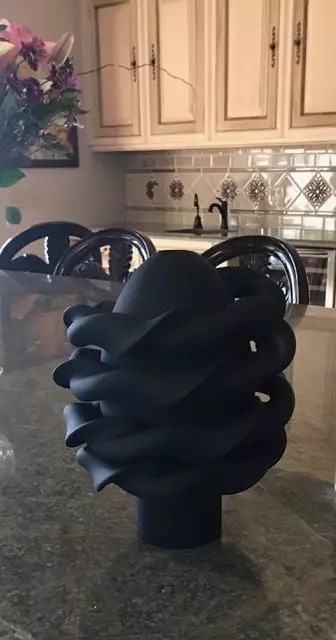

Flywheel Vortex Tube mk1 3D print model

*Warning: The object needs to be dynamically balanced and/or to have the motor mounted on supports due to a physical oscillation which occurs at high RPM. Should be handled by qualified professionals. *

This flwheel is designed to create a vortex in the contained water. This vortex sustains the rotational inertia by adhering to the inner surface thereby resisting the motion of being spun. When the flywheel is braked, the water moves centrifugally outward through the tubes and enters again tangentially to further sustain the vortex within the contained water. This allows for the flywheel to come to a complete stop and then for it to restart itself at a relatively high rotational speed using the aforementioned surface adhesion of the spinning water vortex. Put another way, this transmission of force is similar to the action of a Tesla turbine.

Inspired by Viktor Schauberger.

    This product has no reviews yet
    Flywheel Vortex Tube mk1
    $20.00
    All prices are exclusive of VAT
    Send your price offer to the author if you want to buy it at lower price.
    Editorial License
    The product can only be used in an editorial manner (educational, non-commercializable<br/> personal project, in newsworthy and of public interest events) and may not be used for any<br/> commercial, promotional, or merchandising purposes.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    3D model formats
    • Stereolithography (.stl)46 MB
    3D model details
    • Publish date2018-11-27
    • Model ID#1835183
