Viktor Schauberger Vortex Pipe

Viktor Schauberger Vortex Pipe 3D print model

Description

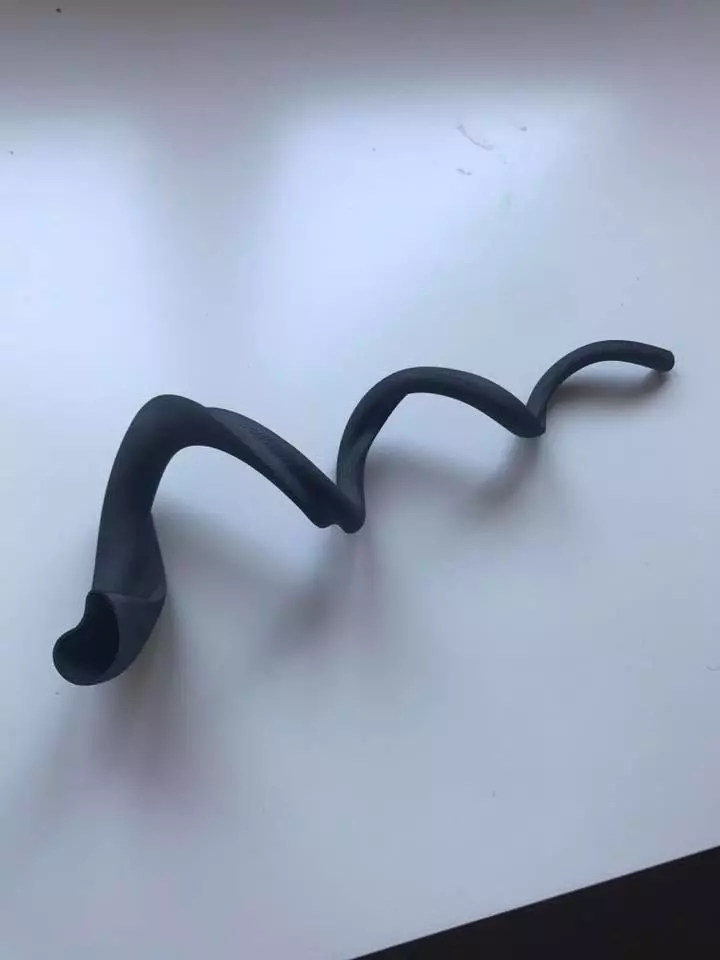

Here is a replication of the Whorl Pipe originally designed by the father of biomimicry and vortex research Viktor Schauberger. It is a implosion vortex based pipe for augmenting the flow characteristics of water. This model is designed closely around the Kudu antelope. The cross sectional shape was taken from Viktor's patent to exact dimensions. The narrowing of the cross sectional profile occurs at approximately the rate a hyperbolic funnnel decreases, exactly as Viktor described. The indented egg shape profile, constant throughout the tube, rotates oppositely to the spiral itself at about the same interval, which is biomimicry of the natural Kudu horn. This file will alow you to print it yourself if you have a printer, or you can take it to an online 3D printing service. For research purposes only.

Item rating
3 0
U
uzakins 2019-03-25 16:25:09 UTC
Recommended
Очень хорошая, качественно сделанная модель. Распечаталась без сбоев. Дизайнеру спасибо!
Viktor Schauberger Vortex Pipe
$28.00

Editorial No Ai License
Viktor Schauberger Vortex Pipe
$28.00

Editorial No Ai License
Response 91% in 3.9h

3D Model formats

Format limitations
  • Stereolithography (.stl)22.6 MB

3D Model details

  • Publish date2018-11-27
  • Model ID#1834920
  • Ready for 3D Printing
