The M433 is a 40mm low-velocity High-Explosive Dual-Purpose (HEDP) projectile used in under-barrel and standalone grenade launchers such as the M203 and M320. It was developed to give infantry a compact round that can both produce fragmentation effects against personnel and a shaped-charge effect against light armor.

This Pack Comes with 48 Files!

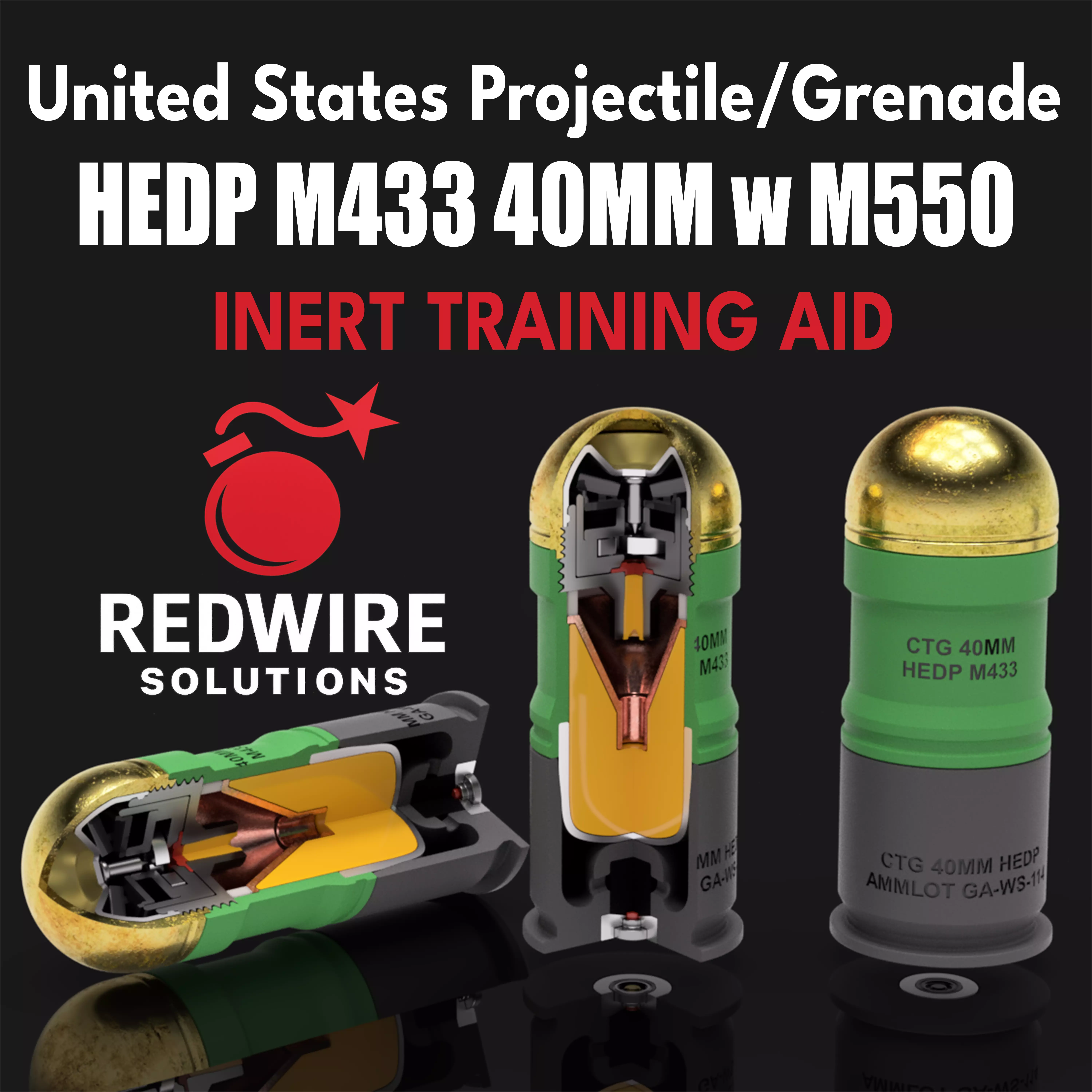

This is a high-fidelity 1:1 scale full and cutaway model of the M433 40mm HEDP grenade projectile with a M550-style PIBD fuze. — purpose-built for EOD, UXO, and ordnance identification training. The kit contains a full internal breakdown in inert form, with simple fuze train geometry, filler for maximum instructional value in a realistic, inert format.

Built for hands-on classroom or field use, this cutaway lets trainers and students safely explore the M433’s construction, function, and components without any energetic materials or functional firing train.

Features:

Full-scale (1:1) M433 40mm projectile — full and cutaway versions included.

M550 PIBD fuze geometry (non-functional replica only) for recognition and training.

All parts are inert replicas with no functional energetic components.

IMPORTANT SAFETY & LEGAL NOTES:

This product is an inert training aid only. It contains no energetic materials, no primers, no detonators, and no functional firing components.

Files are intended for educational, display, or simulation use only. Do not attempt to convert into a functional device.

DISCLAIMER: This is an inert training aid model only. It contains no energetic materials and is intended strictly for educational, display, or simulation purposes.

IMPORTANT: You are not permitted to sell, redistribute, or modify these files for resale. If you're interested in a commercial license or would like to make a custom request, please contact: Redwiresolutions.info@gmail.com

3D printing settingsOptional General-purpose adhesive (CA glue / epoxy)You will need 2 springs 2.5dia 8mm long .4 wire. and 2mm dia 5mm height .3 wire size.Use PLA+ and PETG as a support interface.
