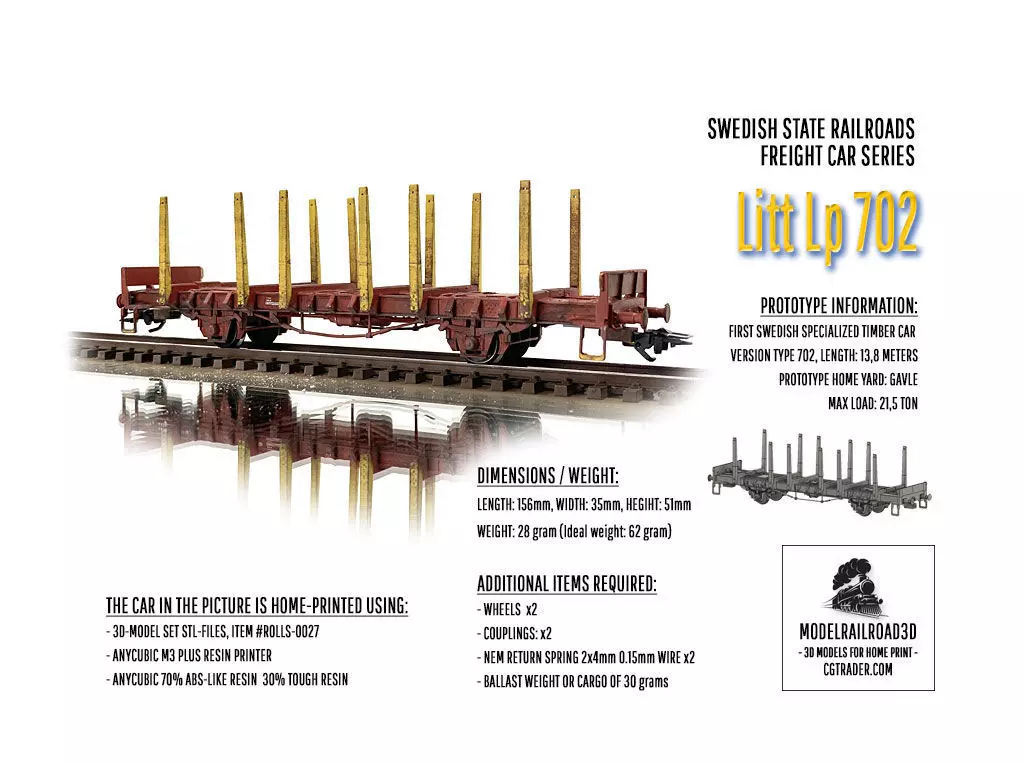

ROLLS-0031 Swedish SJ Litt Lp702 Stake Car H0-scale

ROLLS-0031 Swedish SJ Litt Lp702 Stake Car H0-scale 3D print model

Description

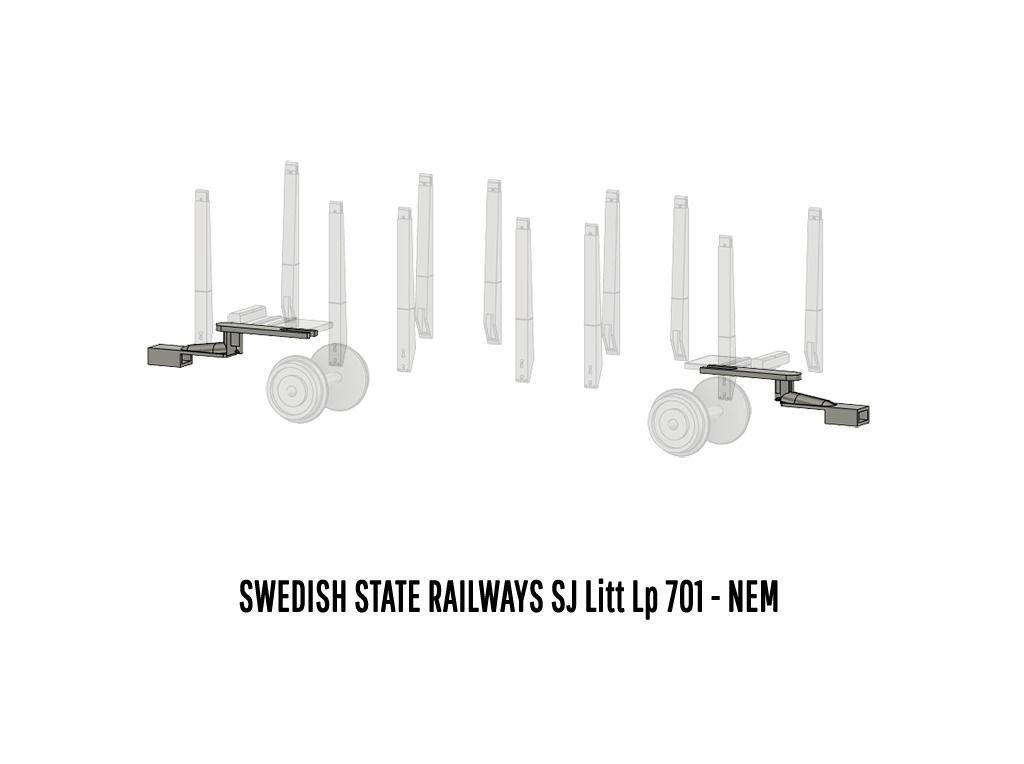

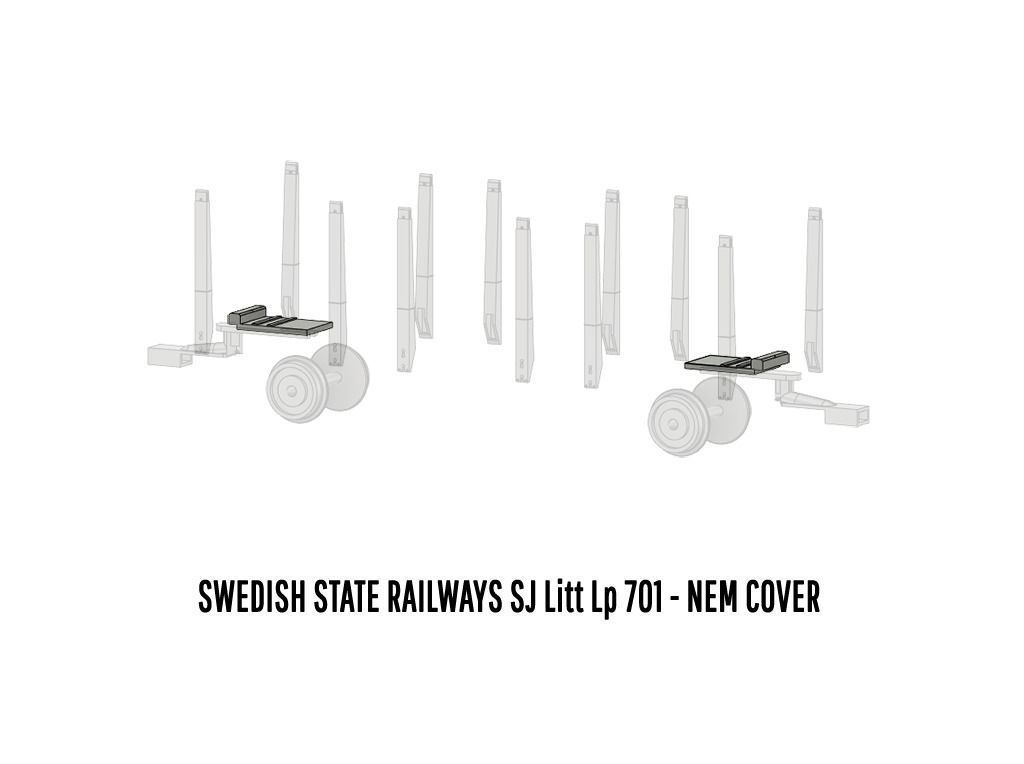

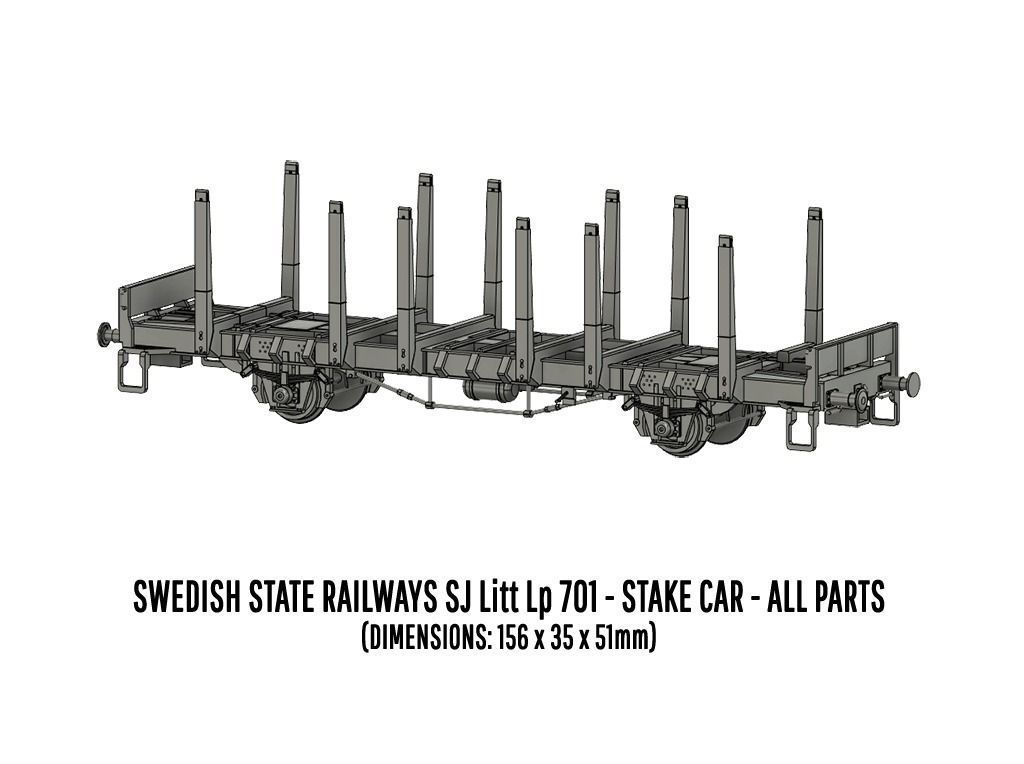

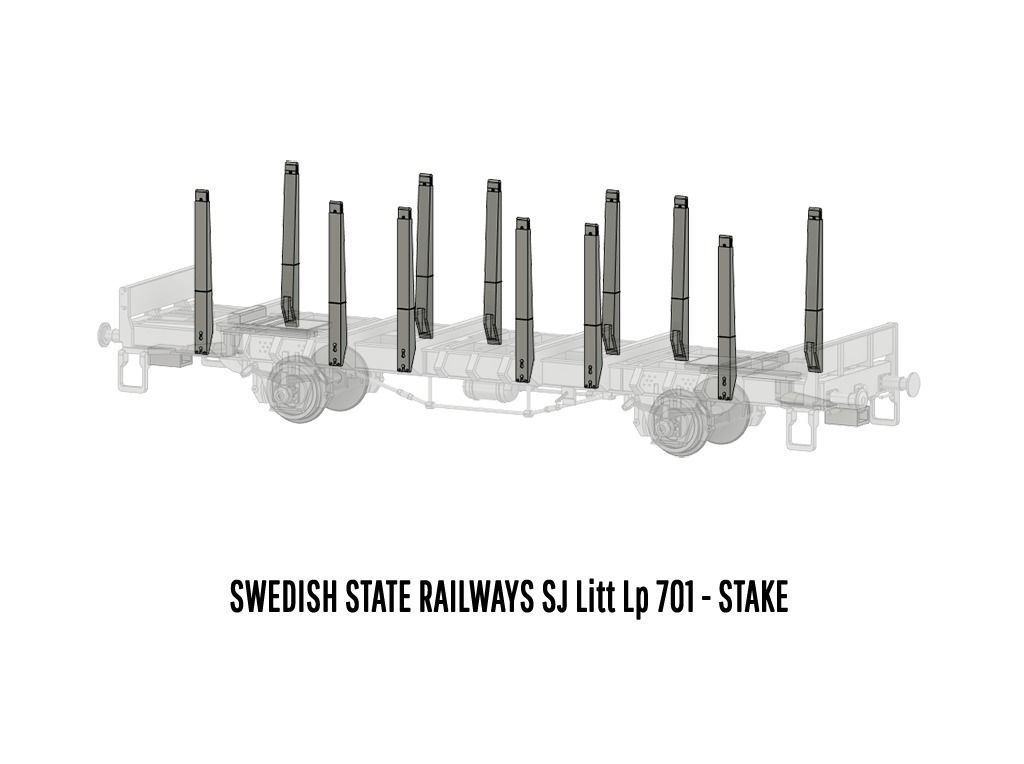

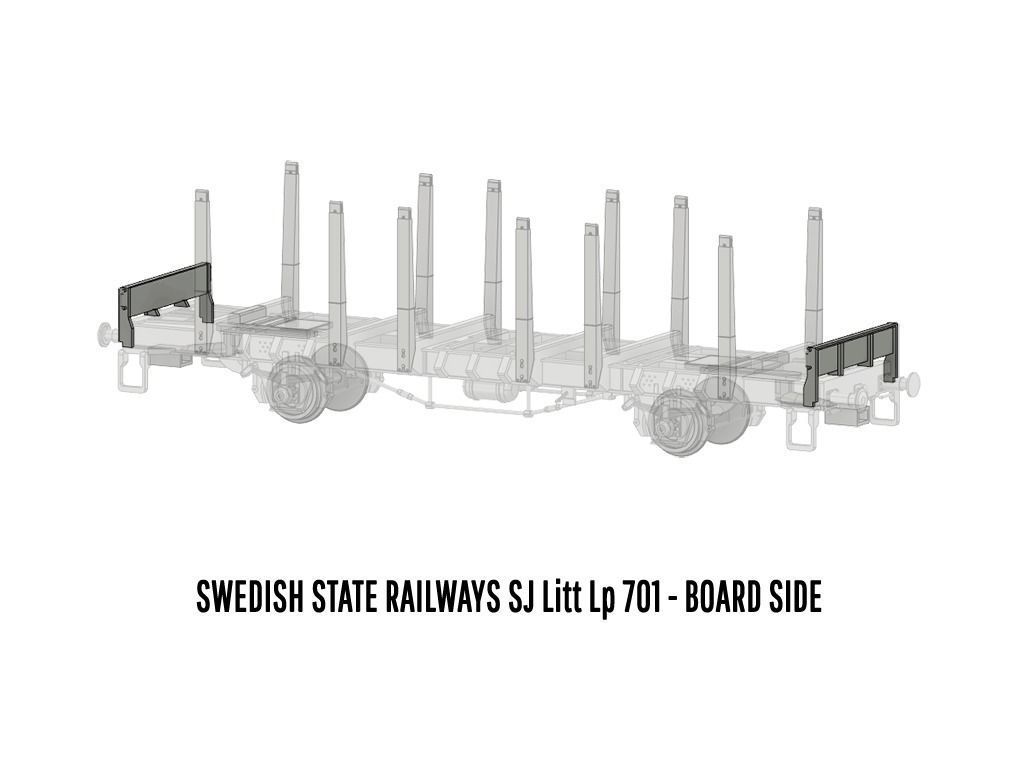

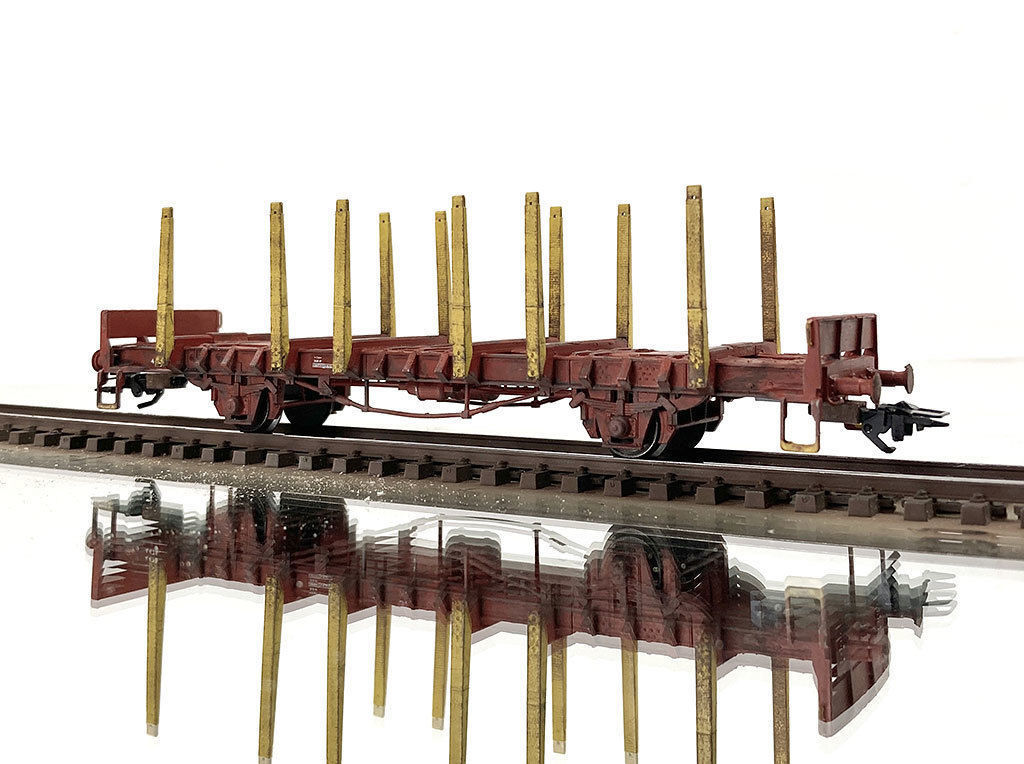

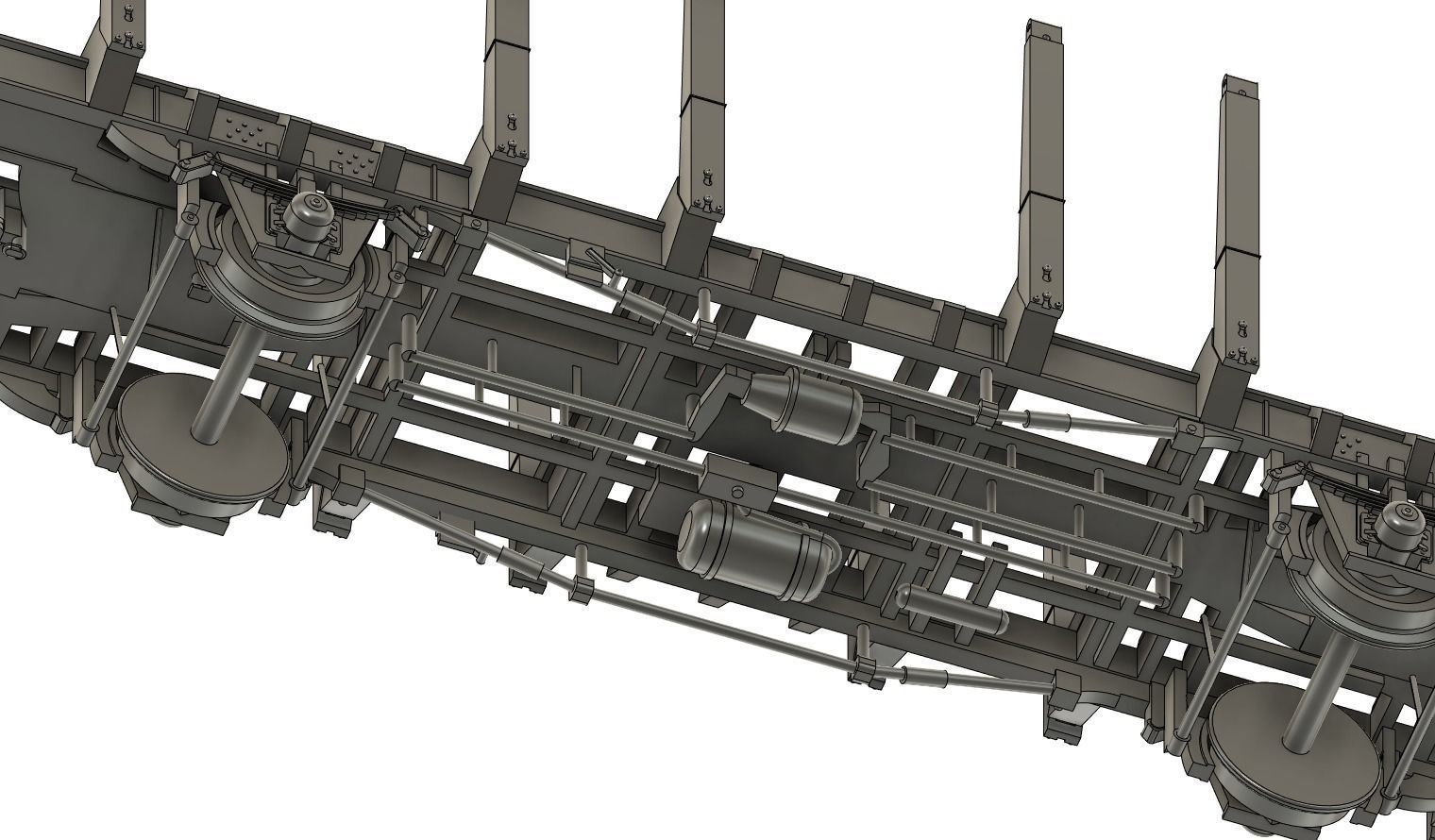

*** This 3D-set requires a minimum print surface length of 150mm of your resin 3D-printer*** Full set of STL-files to build a Swedish state railroad stake car Litt LP702 in H0-scale. Runs well on both 2- and 3-rail systems. The car is equipped with standard sized NEM-pockets, which allows for any NEM-couplings of your choise.

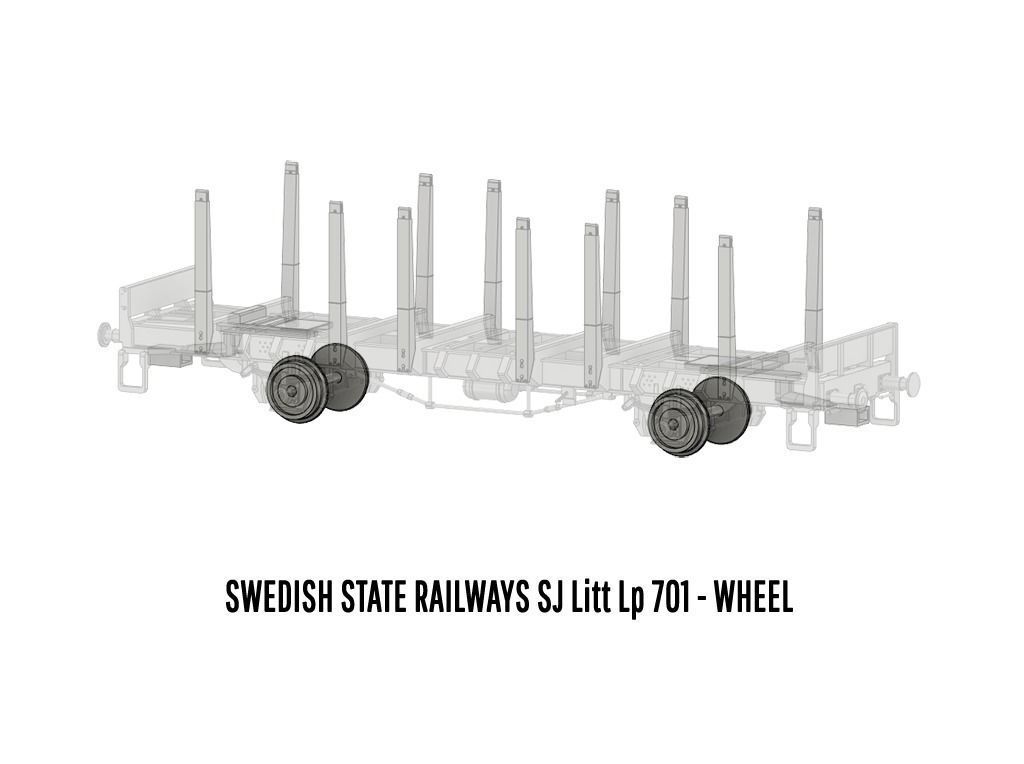

In addition you need: 2x wheel pairs (WHEEL DIAM: 10.3mm SHAFT LENGTH: 24.6mm) 2x NEM springs (size 2.0mm diam, 4.0mm length, 0.1 - 0.2mm wire diameter) 2x 15 gram metal plate (Copper or Lead / Tin) to be glued on the flatbed as ballast (max 21 x 25 x 1.5 mm).

Ready-to-print super detailed items set for H0-scale Model Railroad. The Print files (STL-format) with correct supports are included and all neccesary preparations are made to simplify print. Simply download, un-zip, slice and print. Enjoy!

The models are developed and test printed to verify function, detail and printability. Testing has been performed on a range of consumer grade 4k, 6k and 8k resin 3D-printers.

We recommend using 0.3mm layer thickness and one of the following resins for low warp, high strength and super detail:

  • Mix of 70% Anycubic ABS-like / 30% Anycubic Tough resin.

IMPORTANT GENERAL NOTE TO AVIOD WARPING / SCEWING:

  • WASHING: Wash all items clean from resin preferrably in a washing mashine 6-8 minutes (Anycubic Wash & Cure 2.0)
  • POST CURING: Leave all items to dry after wash properly. Preferrably over-night / 24h. All sides, including inside surfaces, MUST be exposed to the UV-light. Recommended time: 4 minutes.
  • Paint ALL the details immidiatly after post-curing using a primer. We recommend TAMAIYA Surface Primer Fine Gray. Do not use water based primers.

*The Editorial licence of course includes unlimited printing for your own Model Railroad. However, the 3D models provided in this set must NOT be used for commersial production or re-sale of the 3D-models.
