T
2025-05-12 07:39:55 UTCtrondresin
Nice model.
I will be skipping the coupling mechanism. Not required for large radius layouts.
Any good suggestions for a wheel source? Will need a lot to make 56 car train :-)
Useto navigate. Pressescto quit

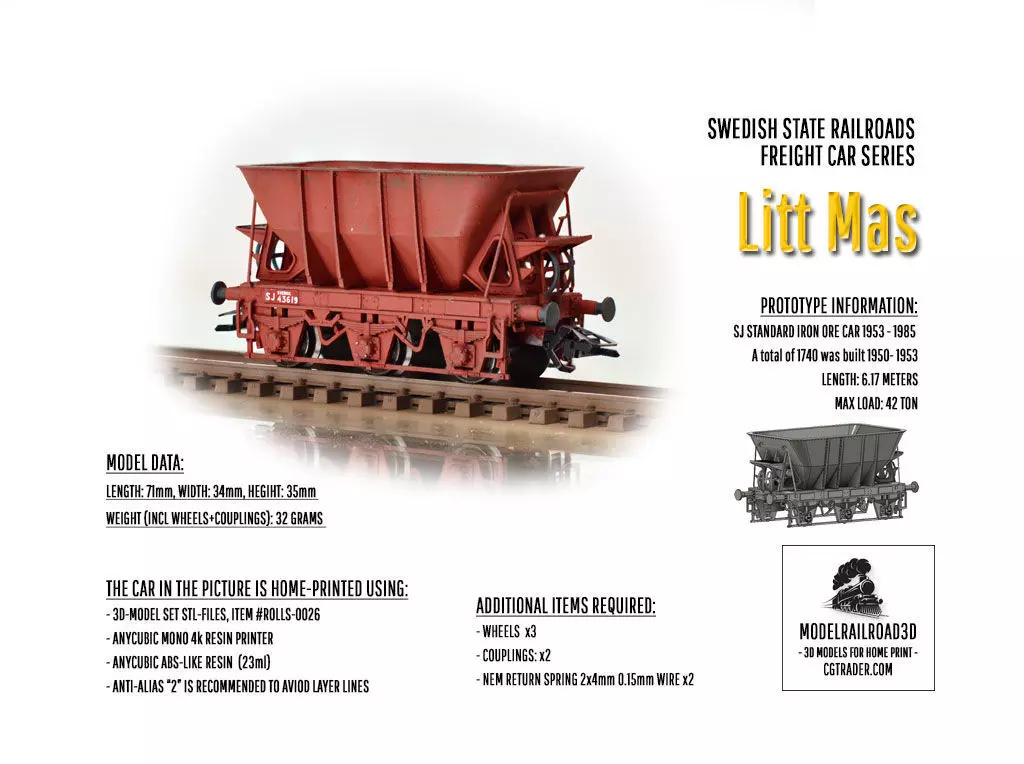

ROLLS-0026 Swedish Railways Iron Ore car Litt Mas H0-scale 3D print model
Description
Full set of STL-files to build a Swedish state railroad Iron ore car Litt Mas in H0-scale. 1740 units were built 1950-1953. In duty on Malmbanan in Lappland until 1985.Runs well on both 2- and 3-rail systems.The car is equipped with standard sized NEM-pockets, which allows for any NEM-couplings of your choise.In addition you need: 3x wheel pairs (WHEEL DIAM: 10.3mm SHAFT LENGTH: 24.6mm)2x NEM springs (size 2.0mm diam, 4.0mm length, 0.1 - 0.2mm wire diameter)
Ready-to-print super detailed items set for H0-scale Model Railroad. The Print files (STL-format) with correct supports are included and all neccesary preparations are made to simplify print. Simply download, un-zip, slice and print. Enjoy!The models are developed and test printed to verify function, detail and printability. Testing has been performed on a range of consumer grade 4k, 6k and 8k resin 3D-printers.
We recommend using:Layer thickness: 0.03mm
Resins for low warp, high strength and super detail:
- Mix 70% Anycubic ABS-like PLUS resin / 30% Anycubic Tough resin
IMPORTANT GENERAL NOTE TO AVIOD WARPING / SCEWING:
- WASHING: Wash all items clean from resin preferrably in a washing mashine 6-8 minutes (Anycubic Wash & Cure 2.0)
- POST CURING: Leave all items to dry after wash properly. Preferrably over-night / 24h. All sides, including inside surfaces, MUST be exposed to the UV-light. Recommended time: 4 minutes.
- Paint the details immidiatly after post-curing using a primer. We recommend TAMAIYA Surface Primer Fine Gray.
*The Editorial licence of course includes unlimited printing for your own Model Railroad. However, the 3D models provided in this set must NOT be used for commersial production or re-sale of the 3D-models.
I
2024-05-06 08:42:56 UTCionescustefan92
My print was made using anycubic standard(was little bending) is not perfect but was successful
W
2023-12-09 01:03:21 UTCwootha
My print was made using Sirayatech Build/Tenacious 90/10 mix, and this was very successful.
K
2023-08-18 18:35:20 UTCkarlu
Good job
G
garioch2
Highly detailed, excellent model - though my printing software nags about too few supports. First print failed so I chose to let my printing software add supports during slicing and then it worked
K
kent-berger
I haven't made any proper prints yet, but after the support has convinced me that everything is in order, I can state that any problems lie with me.
W
wootha
11/10. This model is superb! The detail is sharp, everything fits perfectly, and above all the instructional video is clear and detailed. There are no load inserts or decals included, but the car itself is perfect. Construction is straightforward, and key points are emphasized in the video, such as ensuring the pins that hold the NEM coupler pockets are filed down enough to let the floor sit completely flat. Very important! Overall, top product. I have already made three prints and will be buying more designs from this designer!
S
serasm
Intresting model! I have converted the drawings to 1:32 and the details looks good! Will be intresting when I have done the printing!
L
larsasplund84new
Printed this wagon on my old anycubic photon mono. Works fine. Good model and I am looking forward to more small wagons for old cheap resin printer. One third of my prints got wrong. Should be my printers fault or not right tools to take away support.
