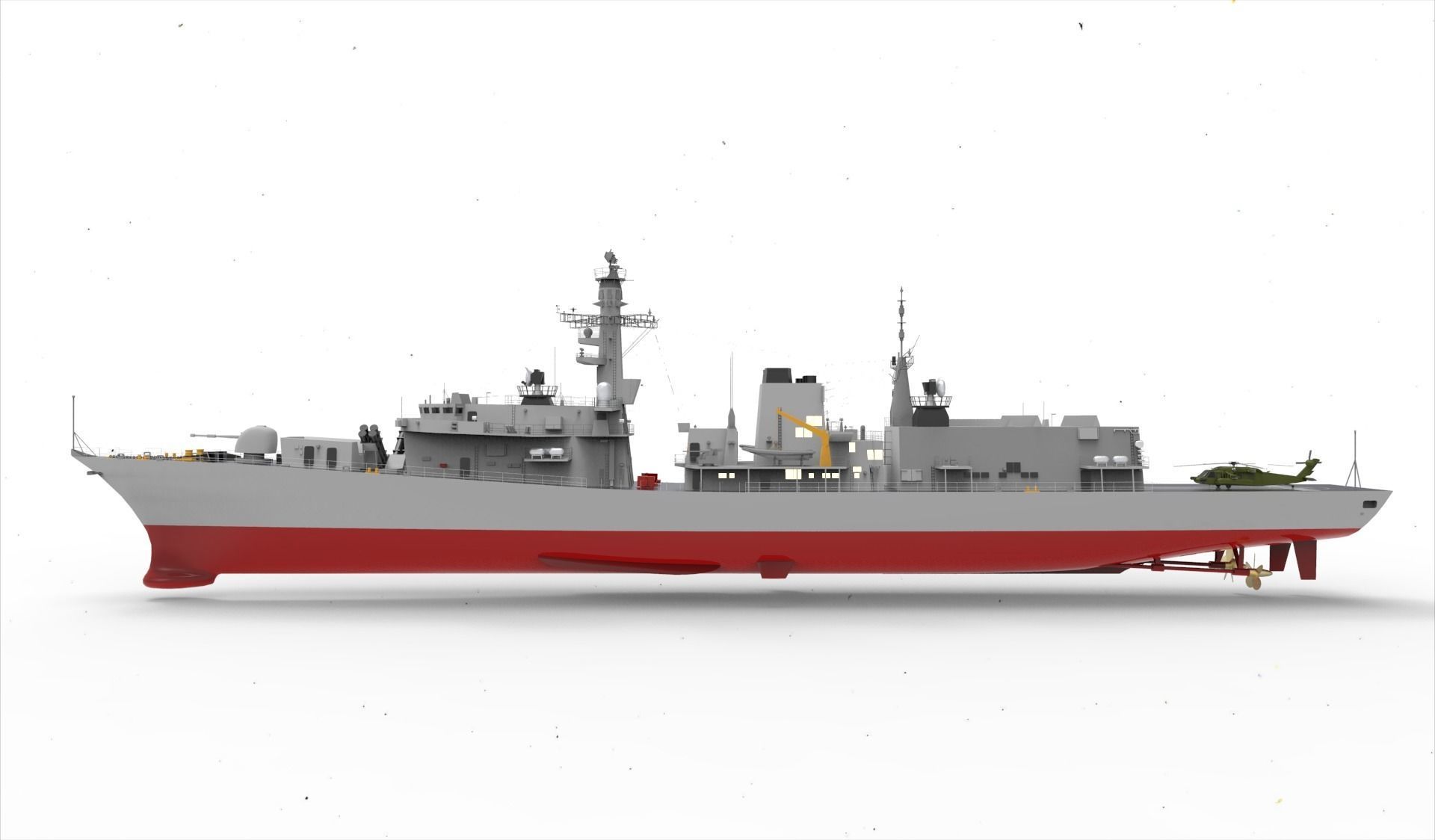

Frigate type 23

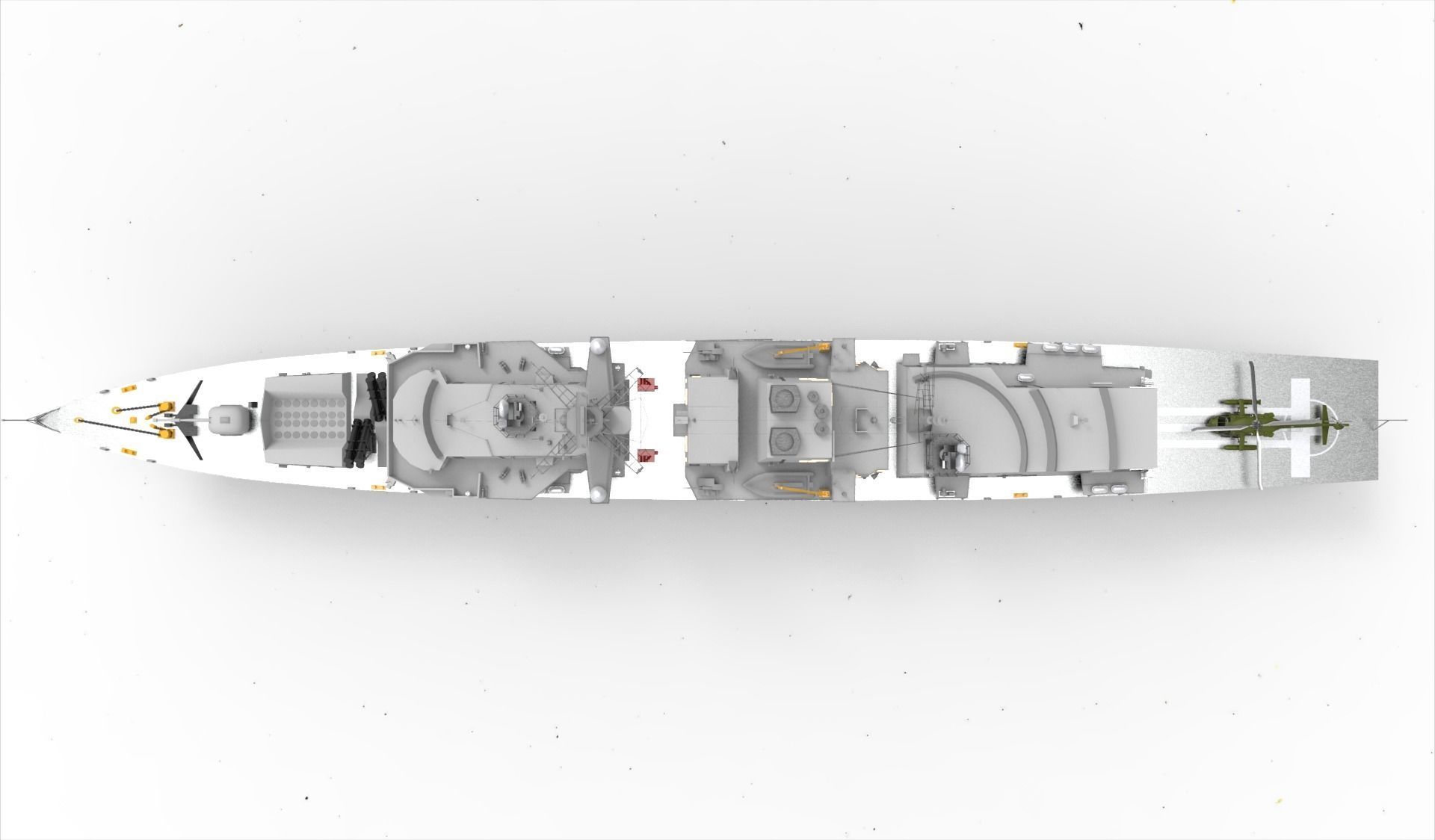

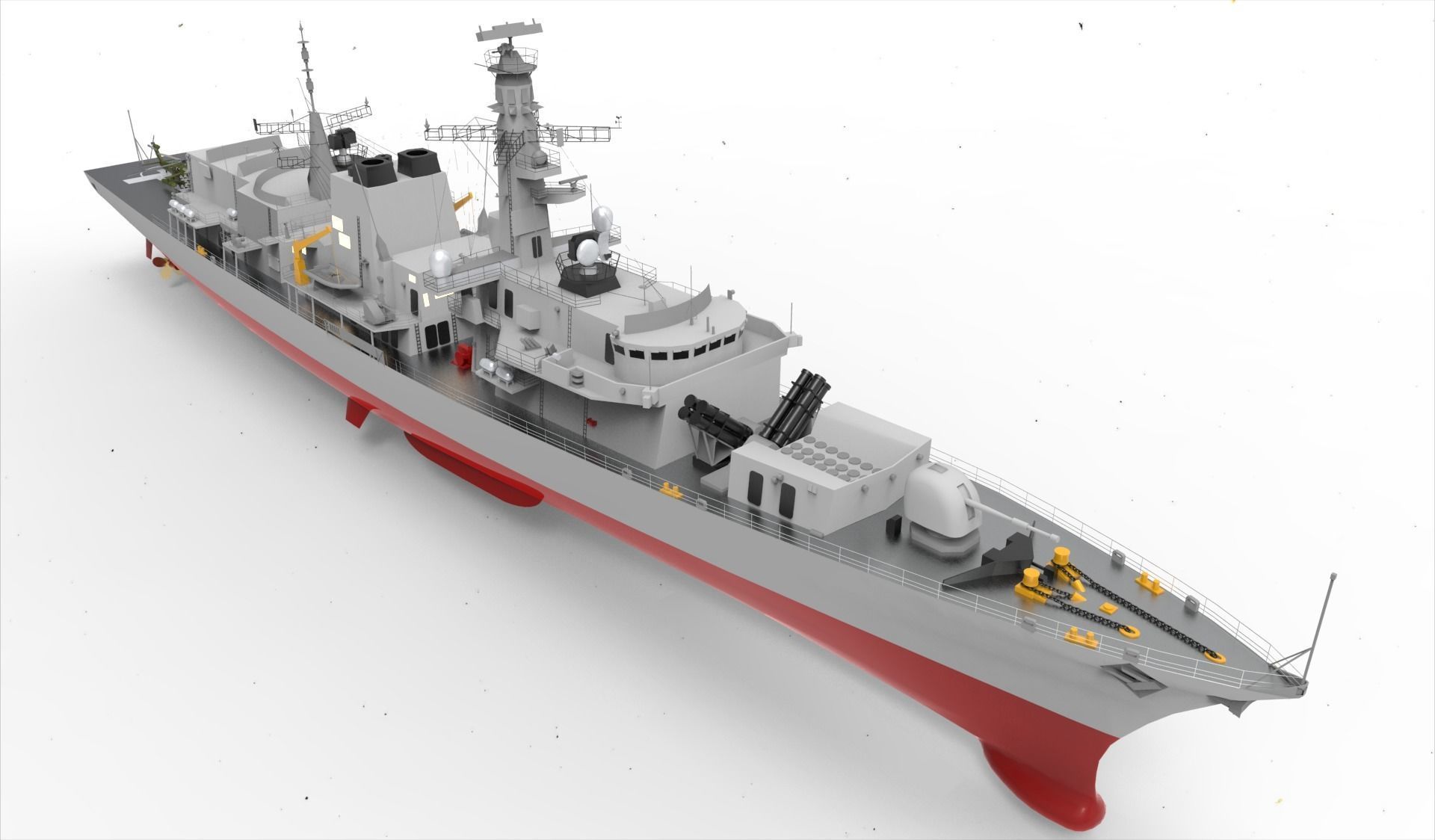

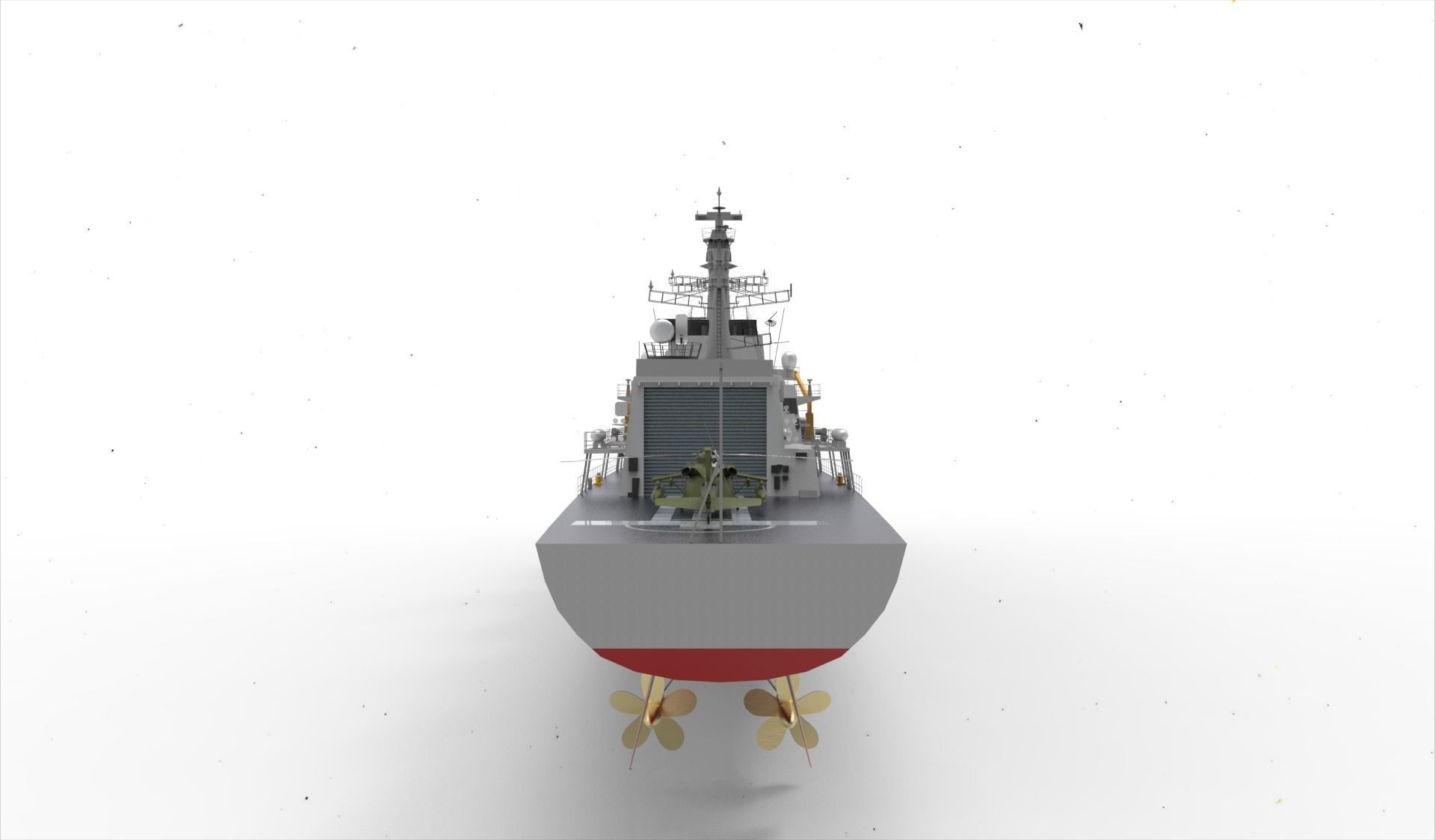

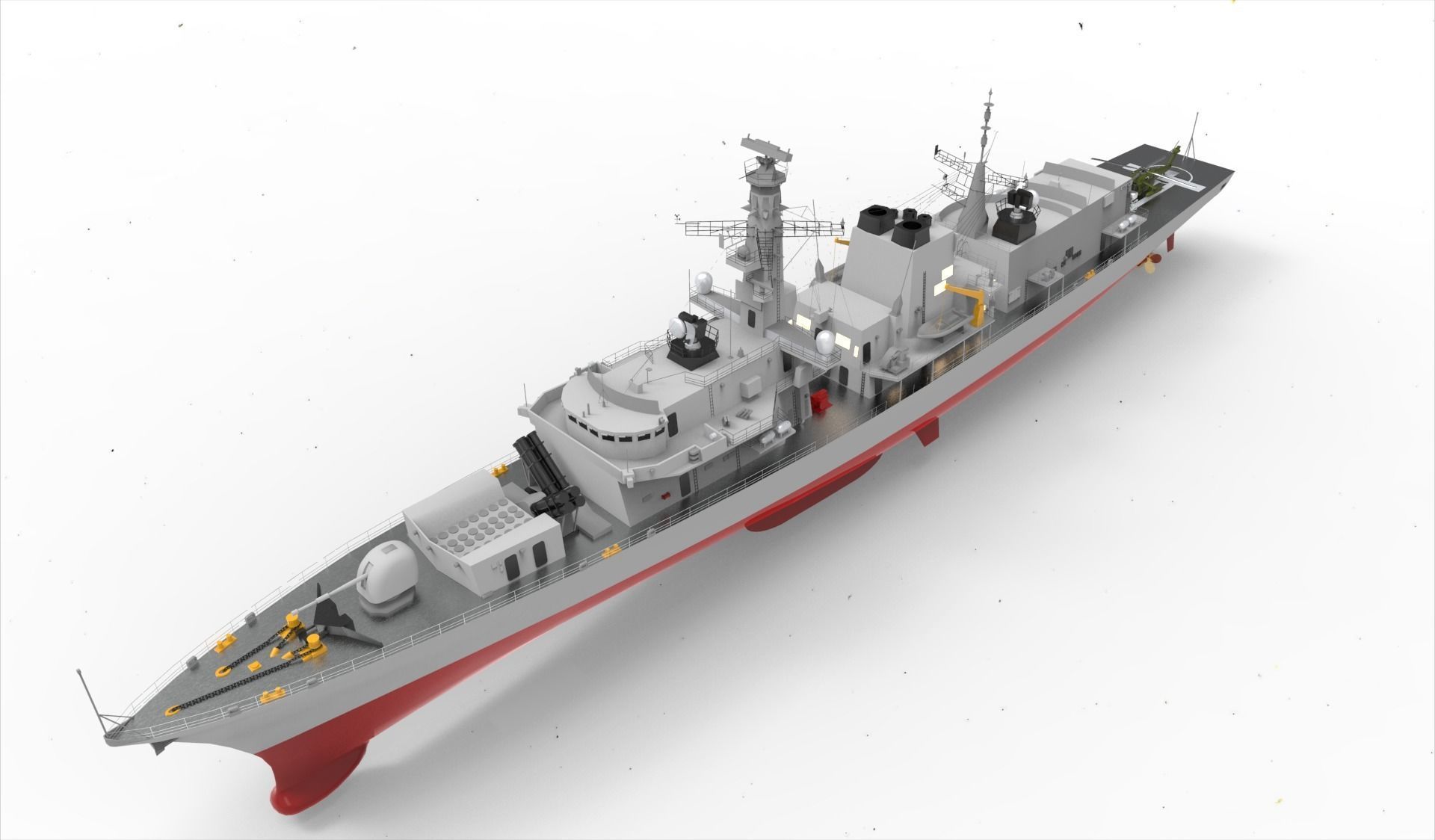

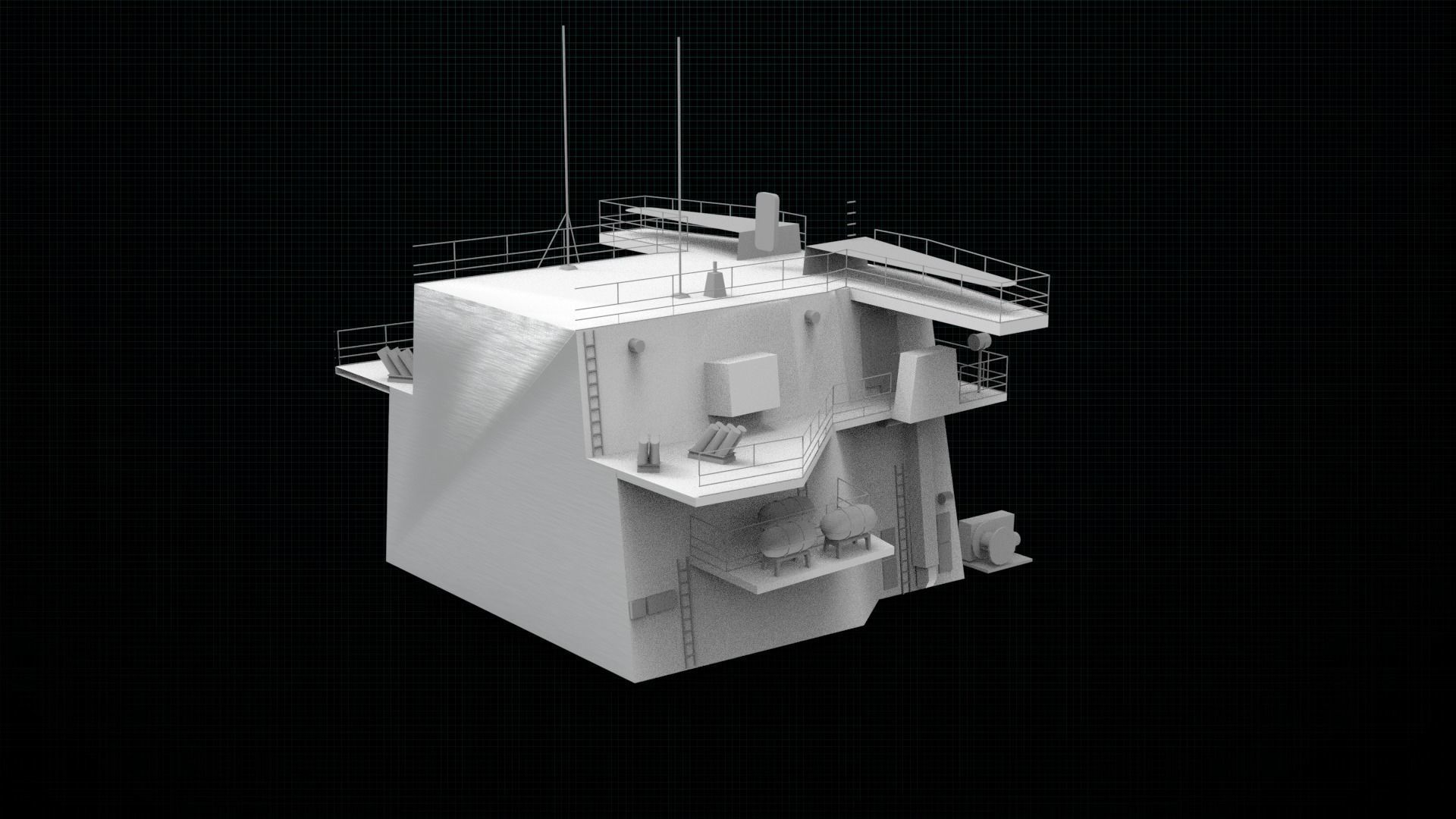

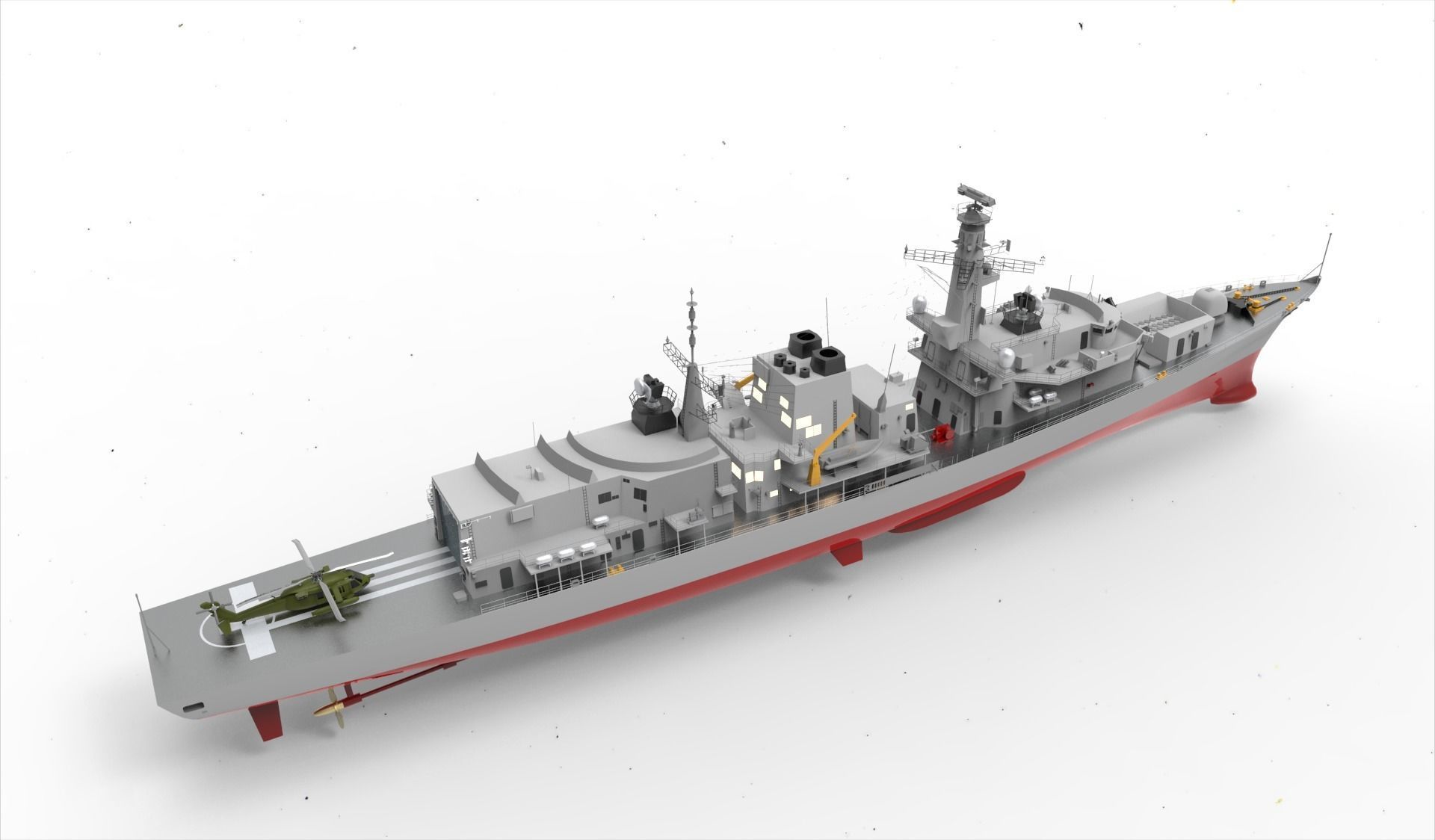

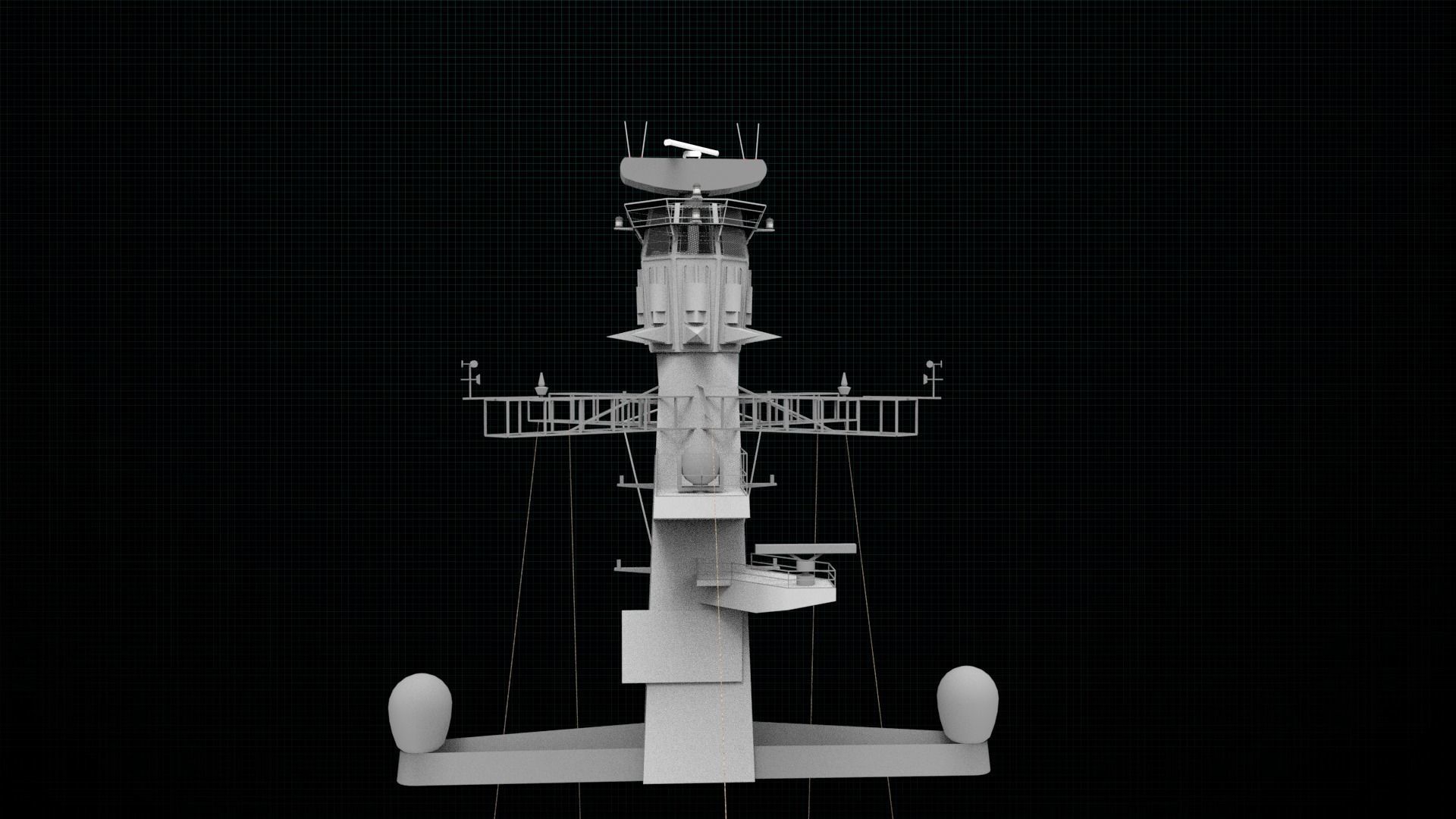

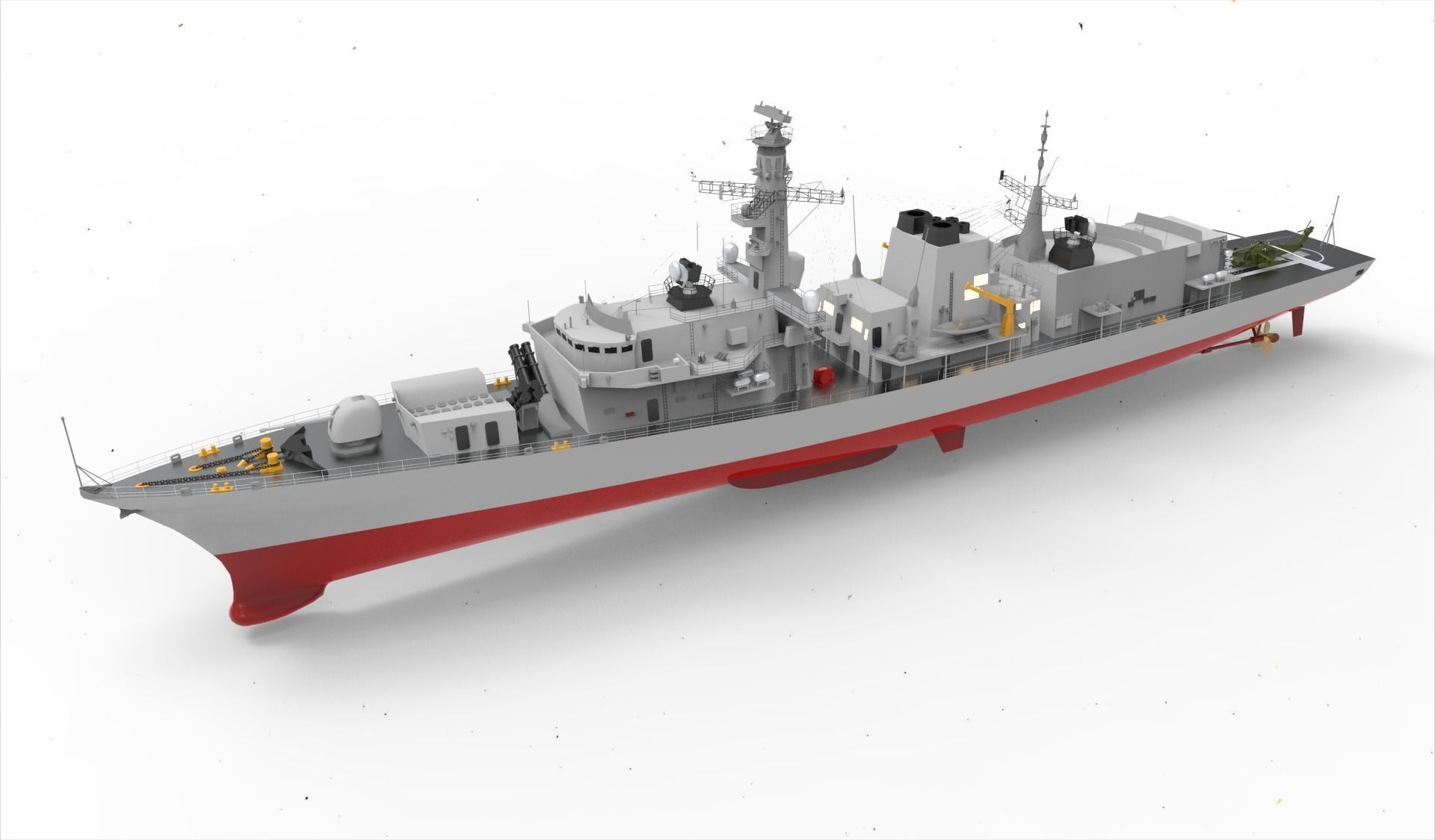

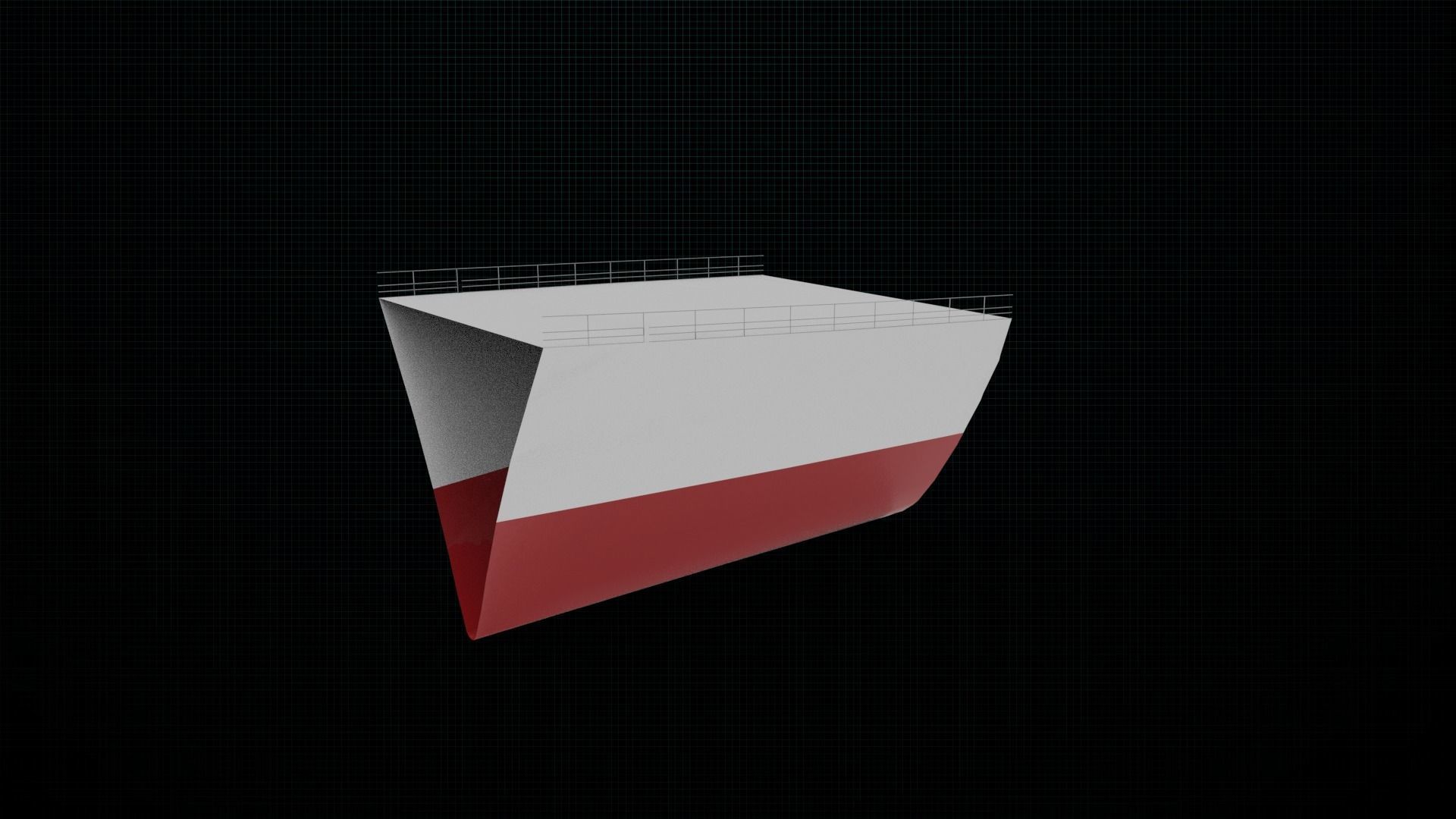

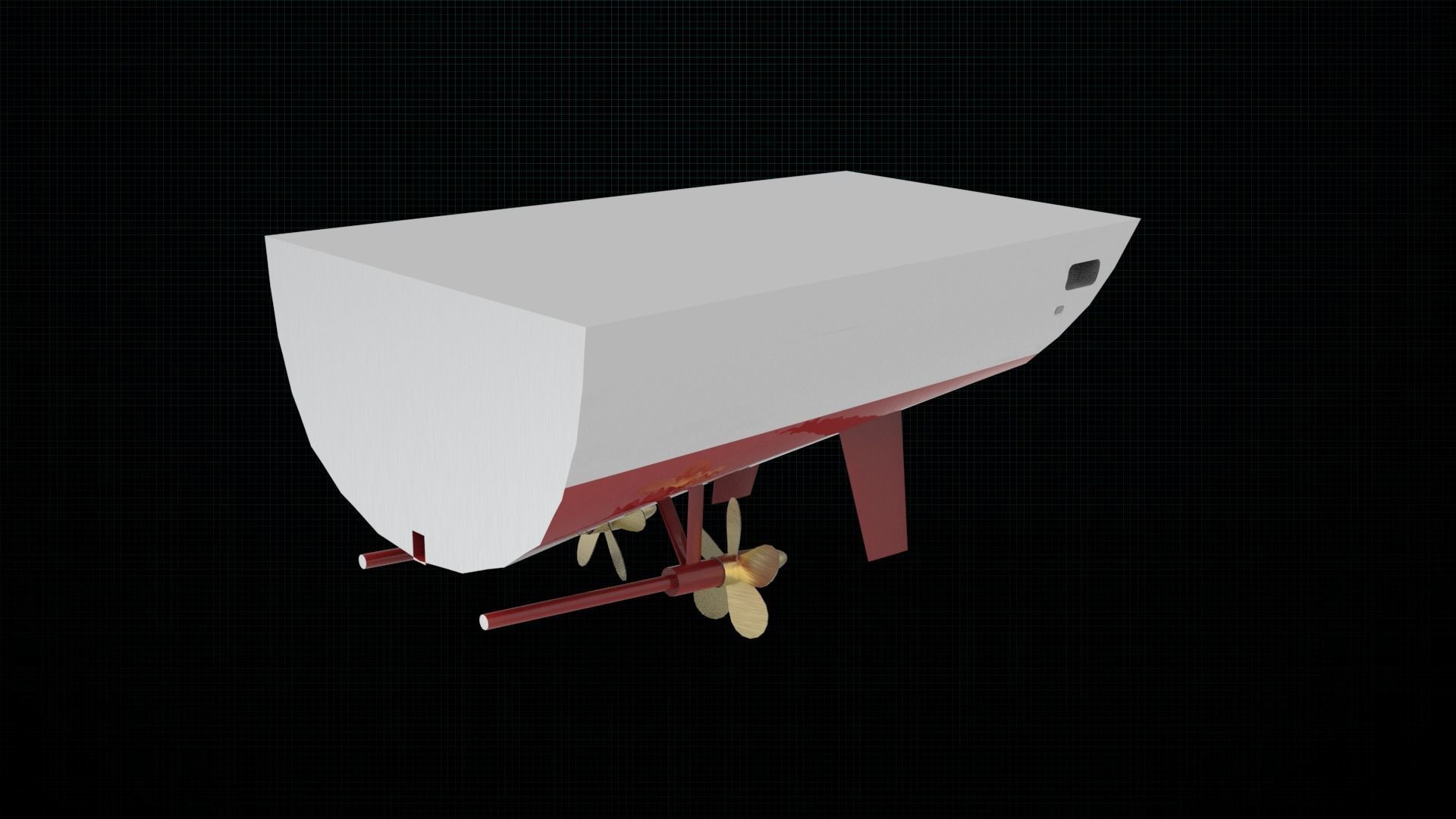

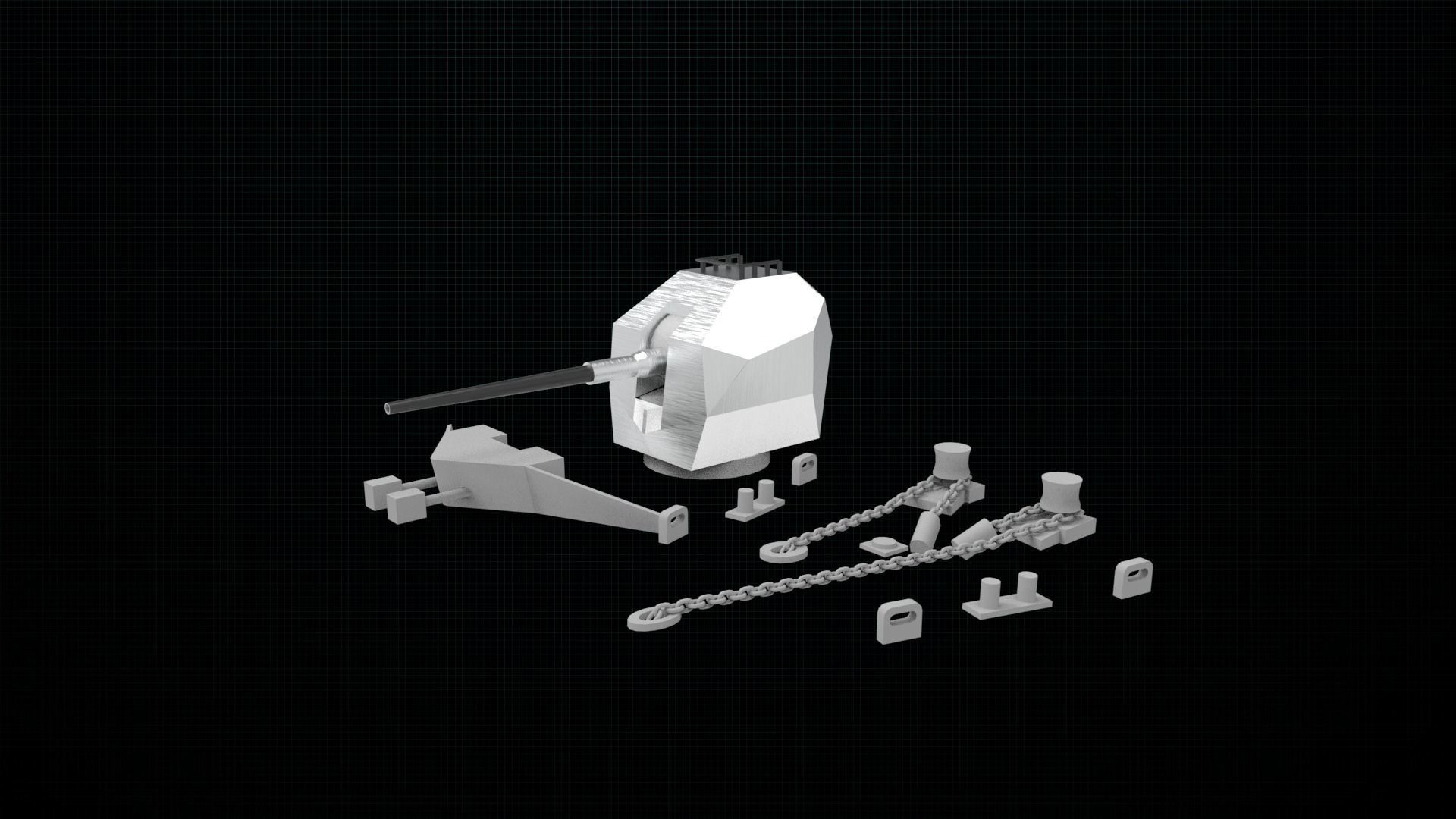

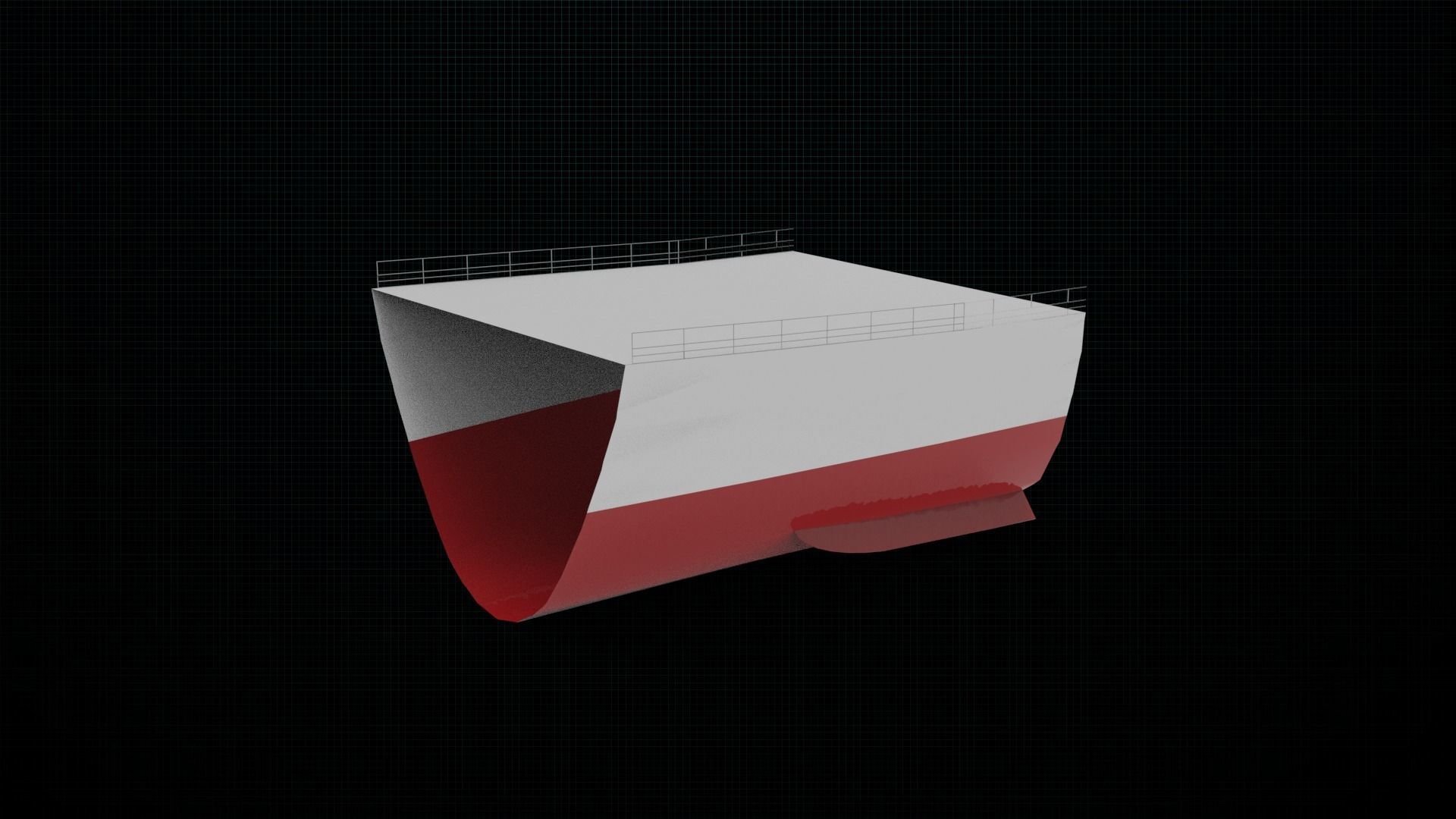

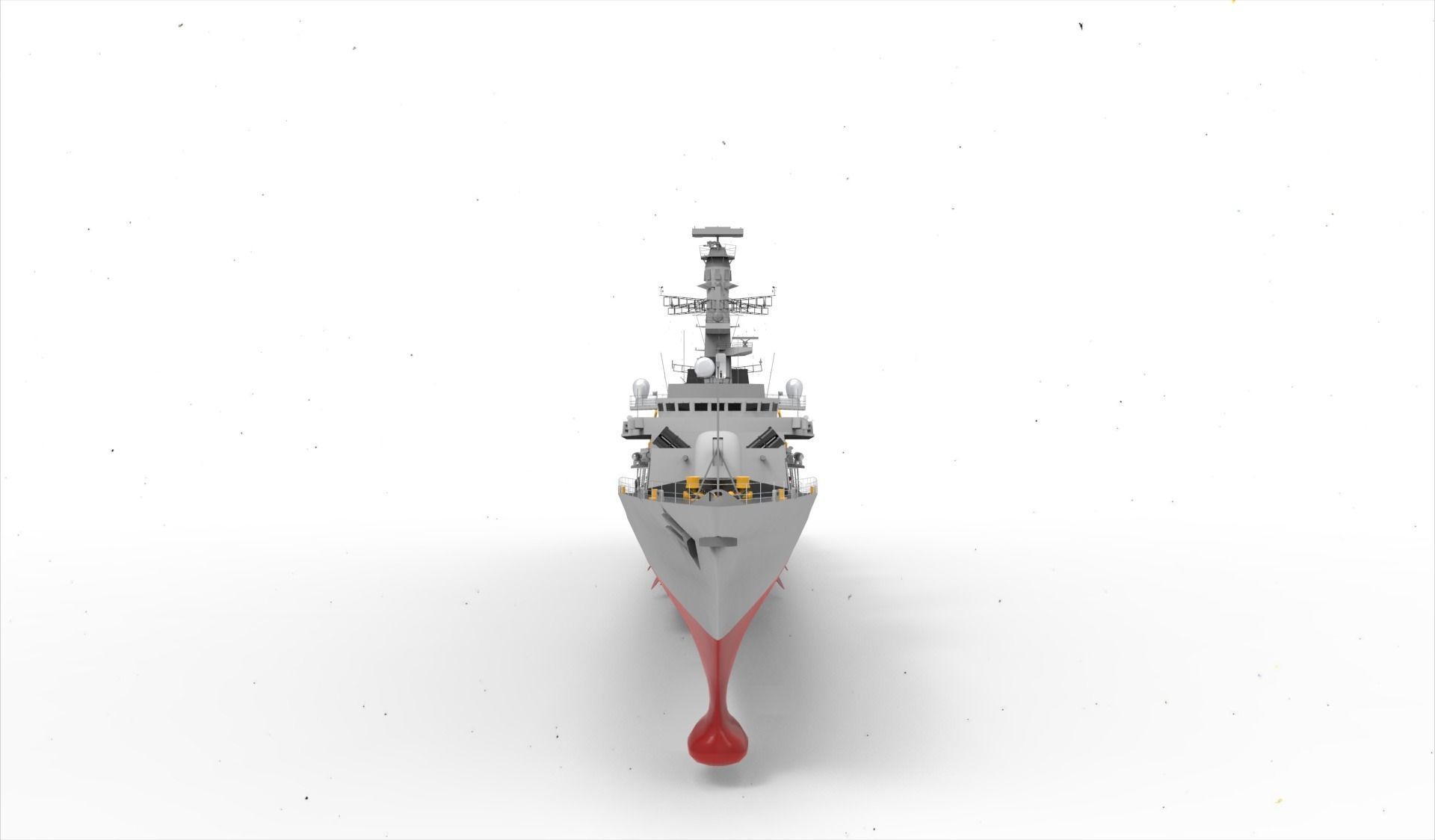

Frigate type 23 3D print model

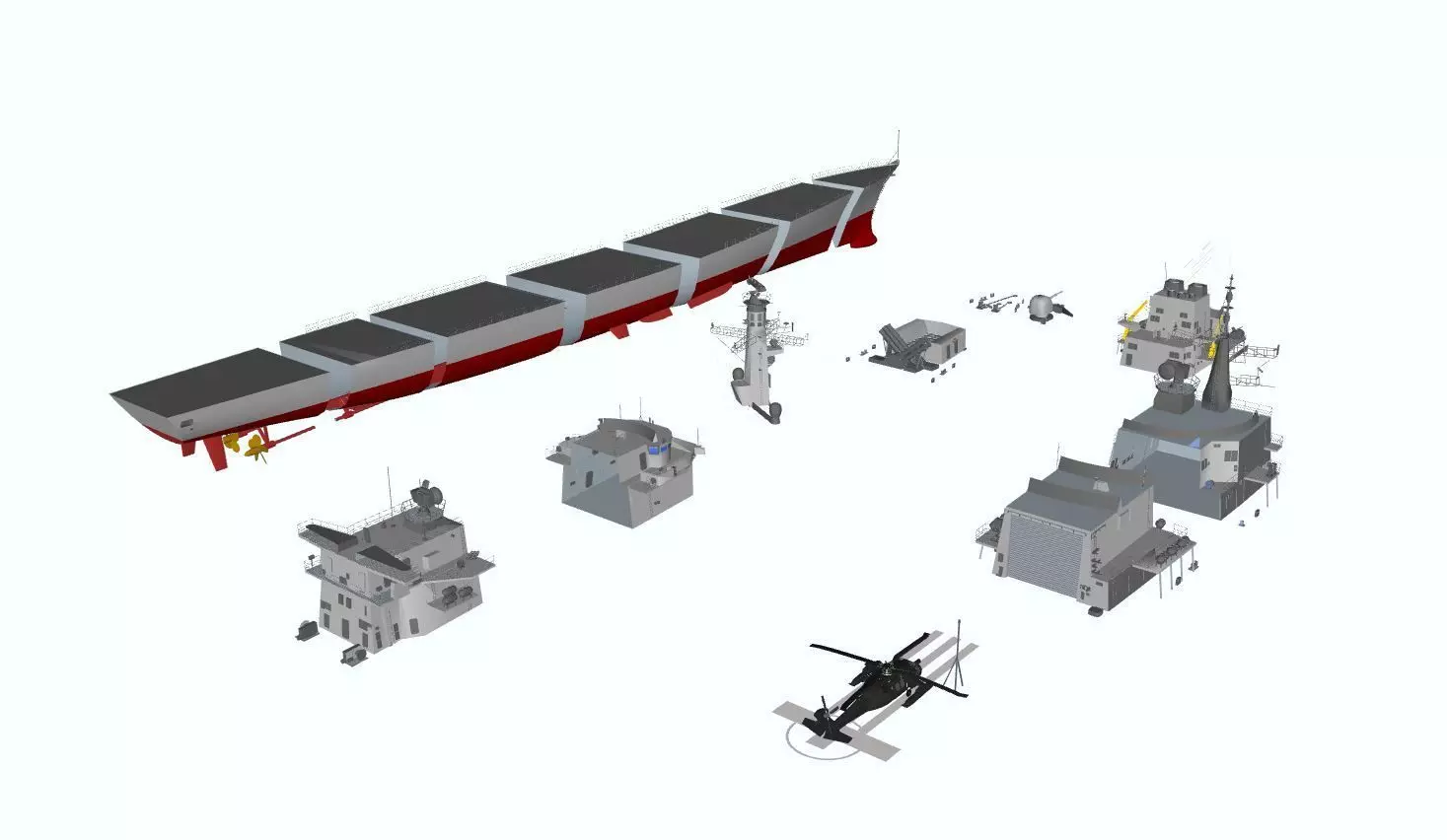

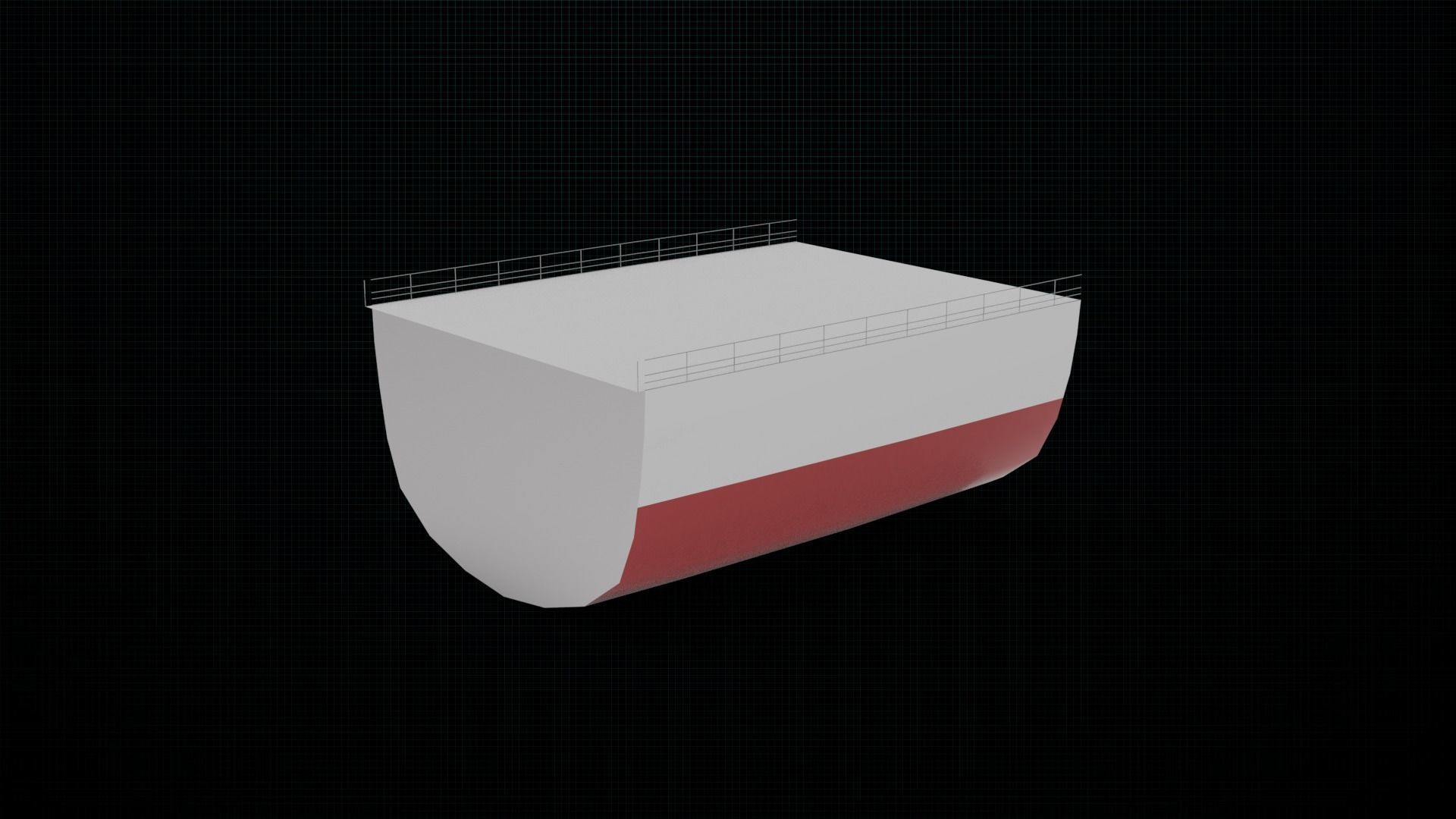

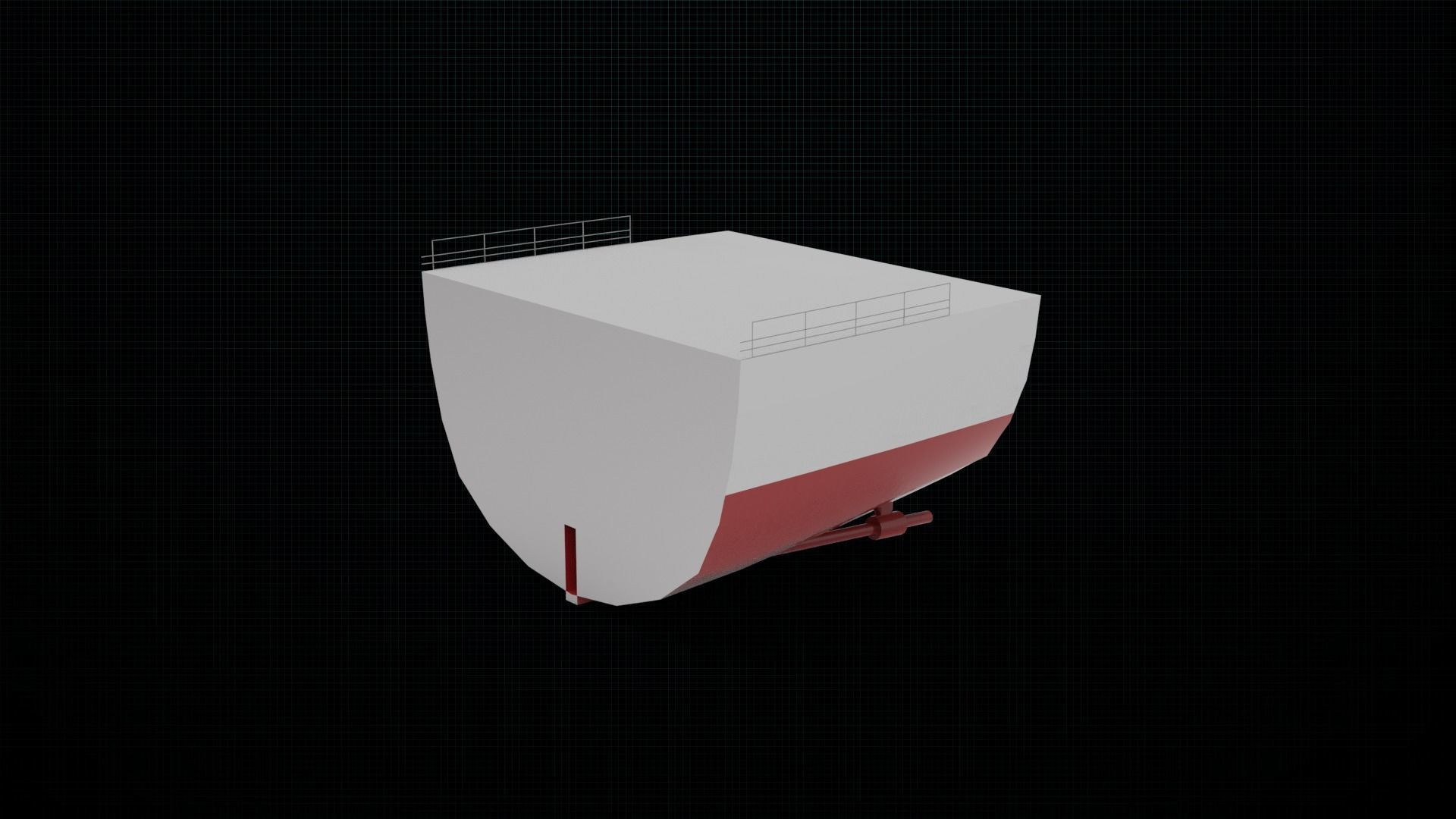

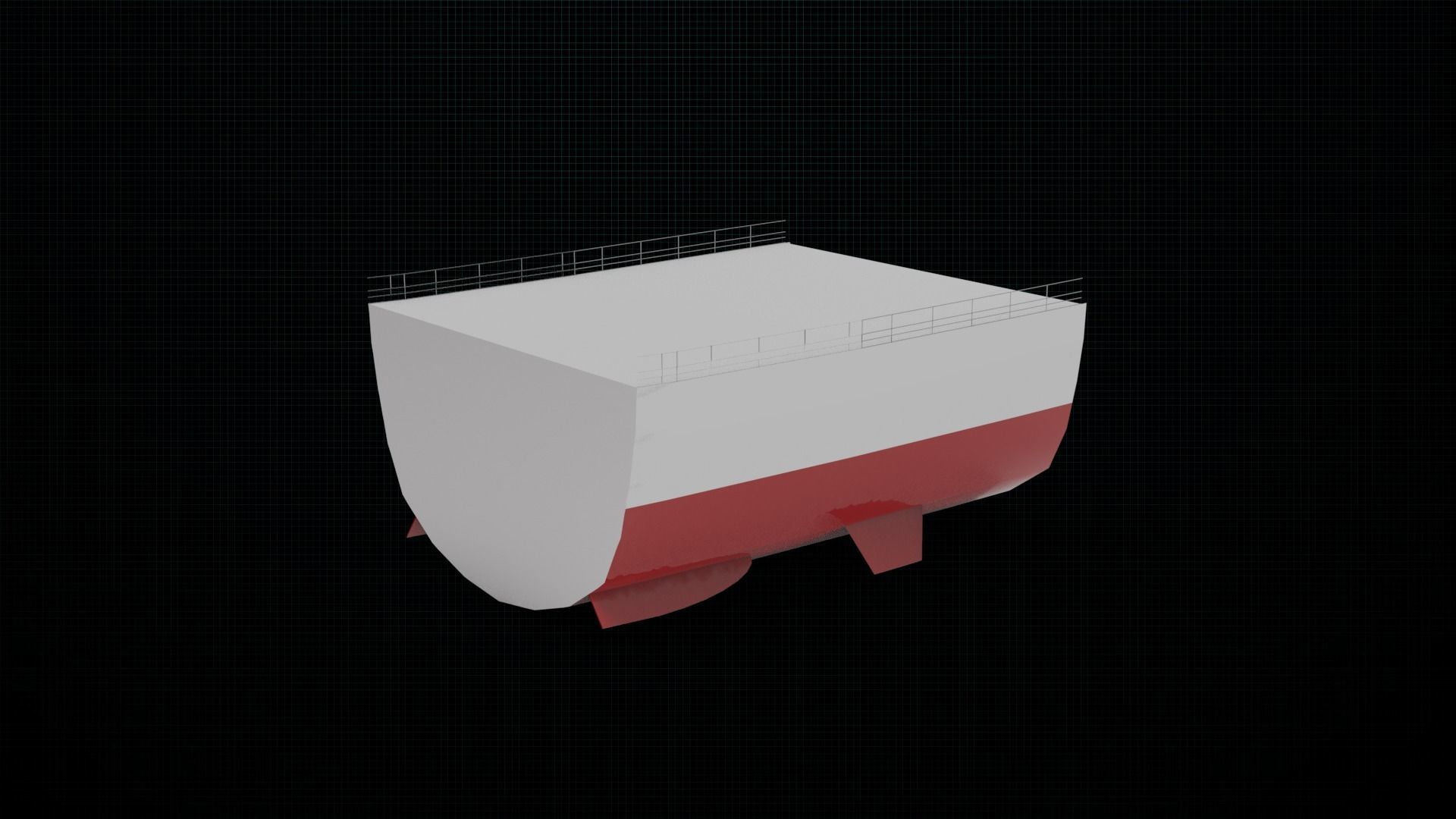

this model frigate type 23 scale 1:96 with part support 3d printed STL file

for size 200x200x200 UP

Type: Anti-submarine warfare frigate Displacement: 4,900 t (4,800 long tons; 5,400 short tons)[1] Length: 133.0 m (436 ft 4 in) Beam: 16.1 m (52 ft 10 in) Draught: 7.3 m (23 ft 11 in) Propulsion: CODLAG: 4 × 1,510 kW (2,025 hp) Paxman Valenta 12CM diesel generators (Non-PGMU ships) 4 × 1,650 kilowatts (2,210 shp) MTU 12V4000 M53 diesel generators (PGMU ships) 2 × GEC electric motors delivering 2,980 kW (3,996 hp) each 2 × Rolls-Royce Marine Spey SM1C delivering 12,750 kW (17,098 hp) Speed: list error: list (help) In excess of 28 knots (52 km/h; 32 mph) HMS Sutherland achieved 34.4 knots (63.7 km/h; 39.6 mph) during high-speed trials in November 2008 Range: 7,500 nmi (14,000 km) at 15 kn (28 km/h) Boats & landing craft carried: 2 × Pacific 24 RIBs Complement: 185 (accommodation for up to 205) Electronic warfare & decoys: UAF-1 ESM or UAT Mod 1 Seagnat Type 182 towed torpedo decoy Surface Ship Torpedo Defence Armament: Anti-air missiles: 1 × 32-cell Sea Ceptor GWS 35 Vertical Launching System (VLS) canisters for 32 missiles (1–25+ km)[2] (replacing original Sea Wolf SAM) Anti-ship missiles: 2 × quad Harpoon launchers Anti-submarine torpedoes: 2 × twin 12.75 in (324 mm) Sting Ray torpedo tubes Guns: 1 × BAE 4.5 inch Mk 8 naval gun 2 × 30 mm DS30M Mk2 guns, or, 2 × 30 mm DS30B guns 2 × Miniguns 4 × General-purpose machine guns Aircraft carried: 1 × Wildcat HMA2, armed with: 2 × anti submarine torpedoes (Martlet and Sea Venom ASM to be fitted in 2021/22) or 1 × Westland Merlin HM2, armed with; 4 × anti submarine torpedoes Aviation facilities: Flight deck Enclosed hangar

Item rating
0 0
Frigate type 23
$56.99

Royalty Free License
Frigate type 23
$56.99

Royalty Free License
Response 88% in 3.7h

3D Model formats

Format limitations
  • Stereolithography (.stl) (5 files)13.5 MBVersion: printed
  • High-Res Renderings 4.3 MB
  • KeyShot (.bip, .ksp)4.3 MB

3D Model details

  • Publish date2022-01-02
  • Model ID#3332237
