Frigate Type 23 Anti Submarine

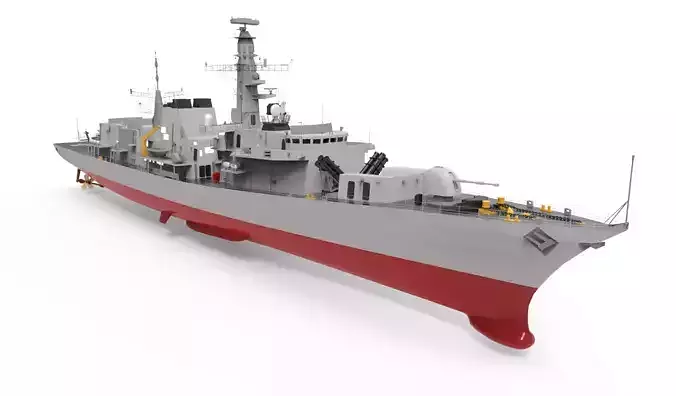

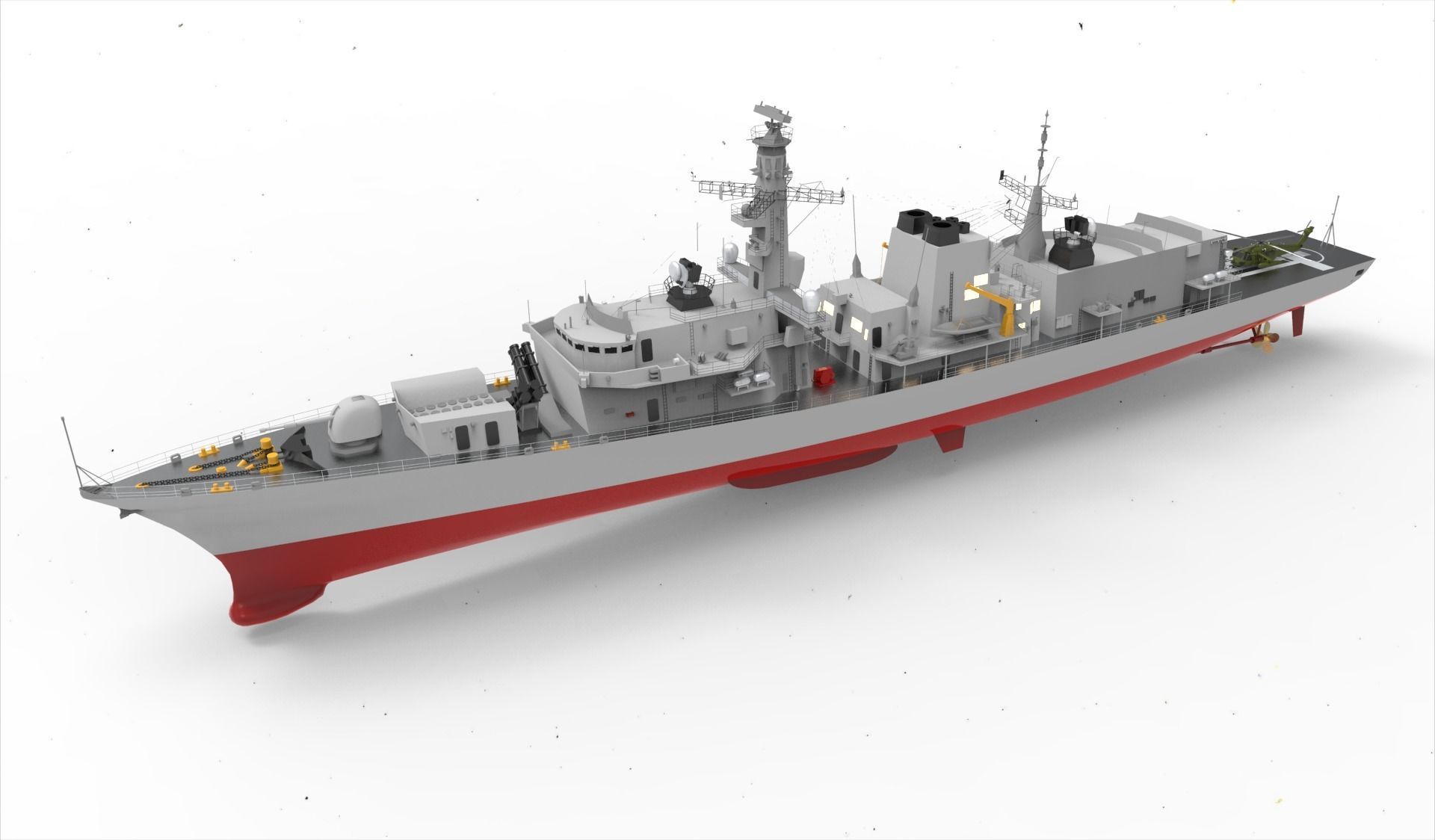

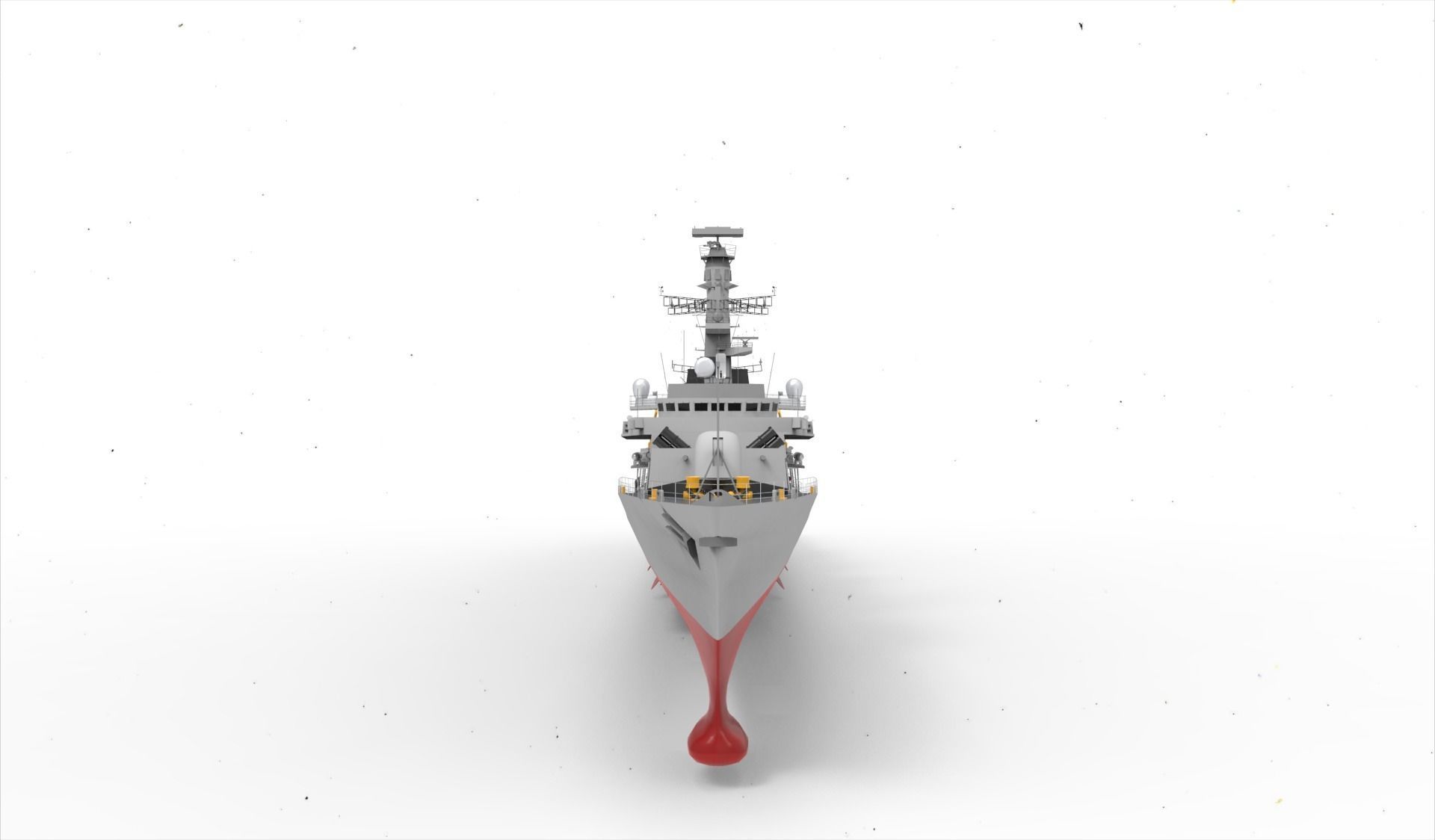

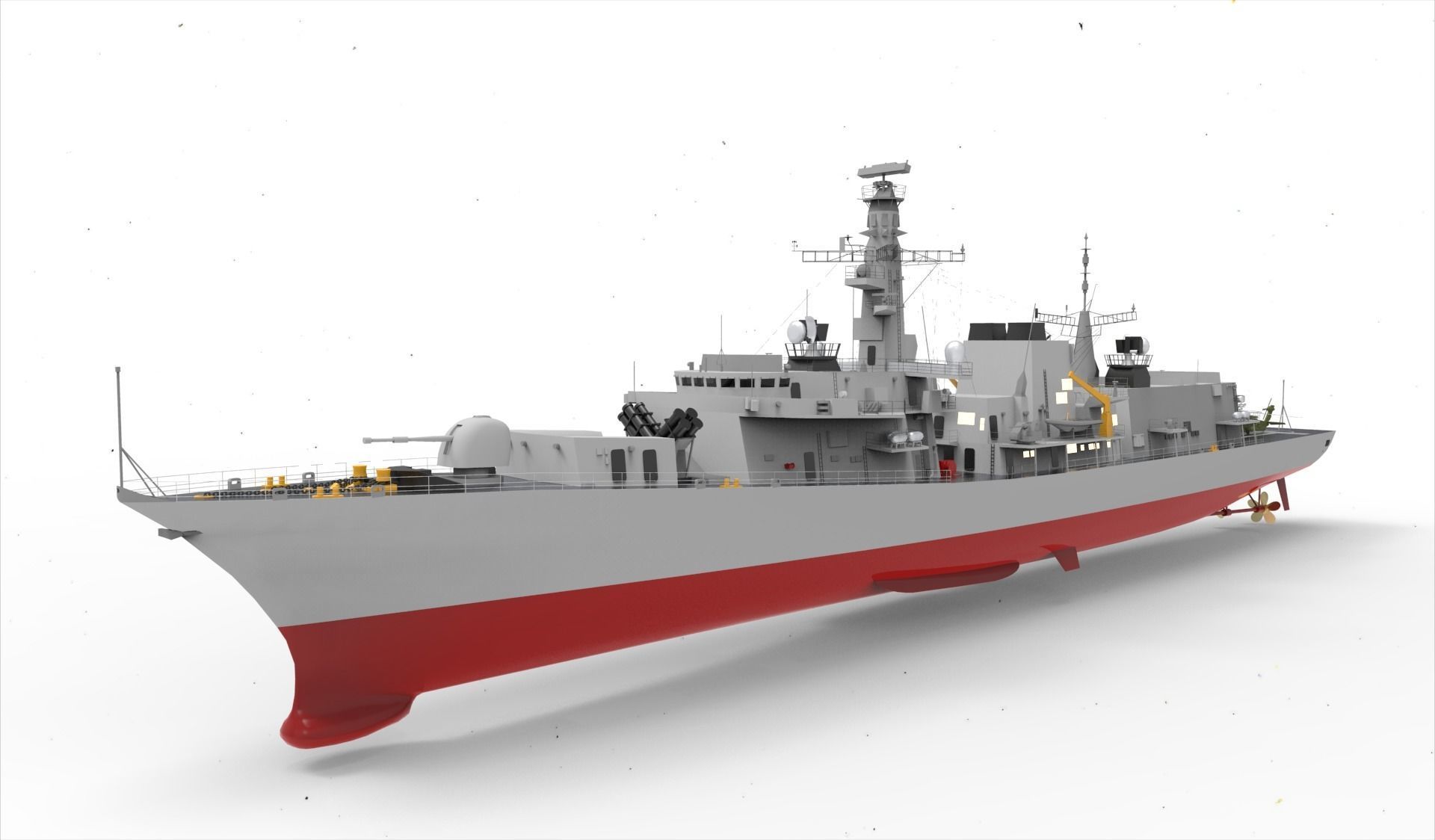

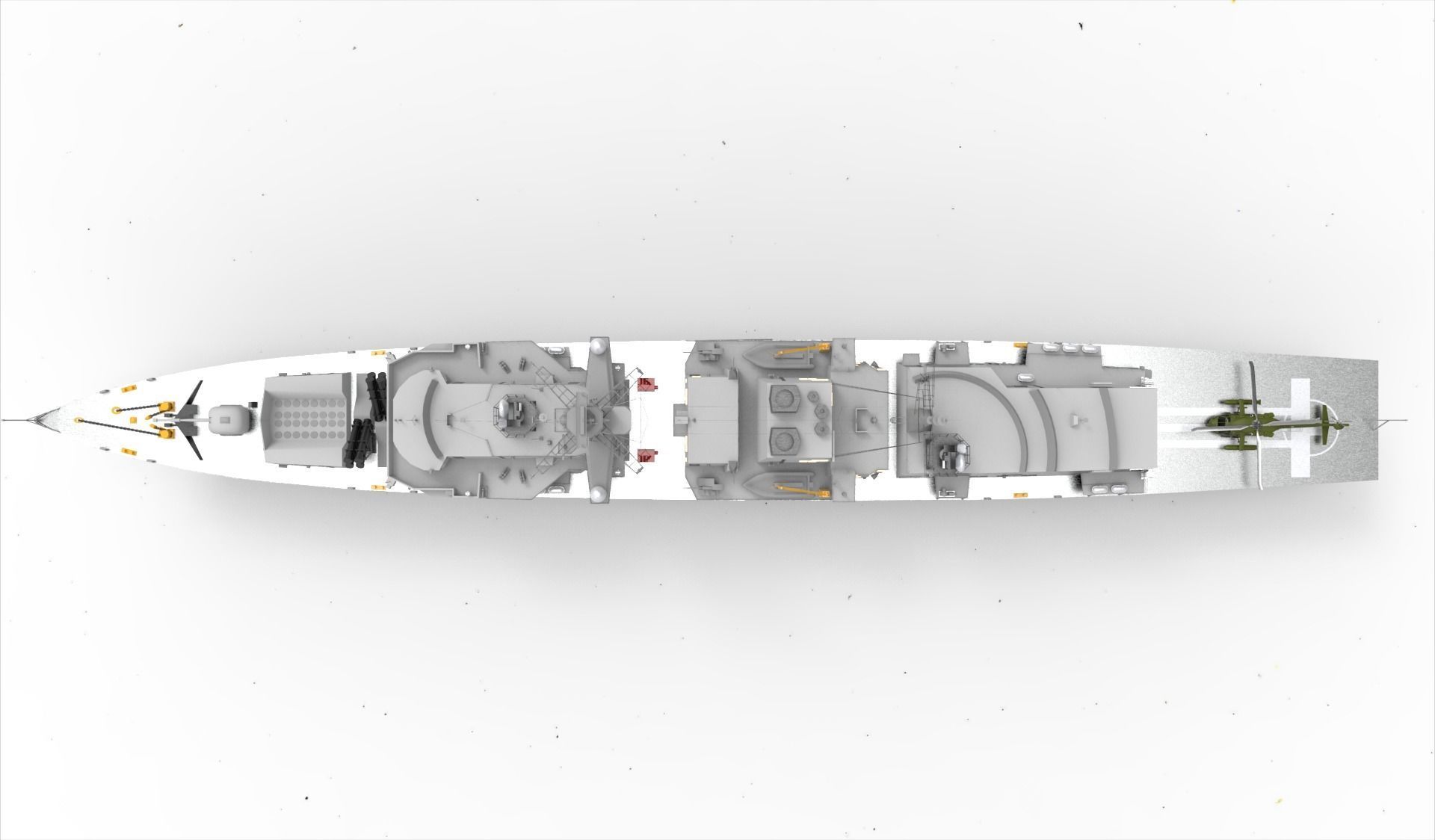

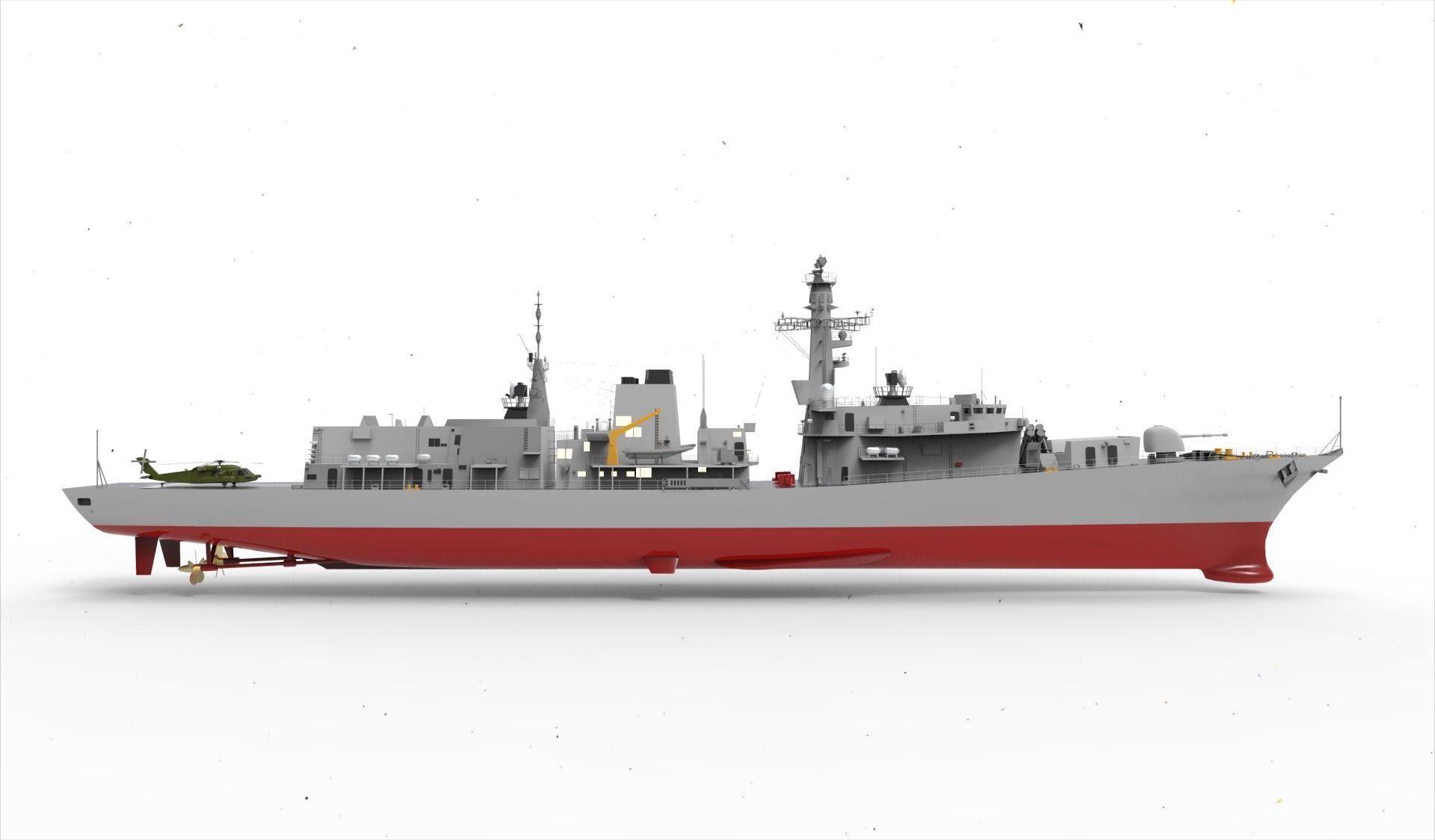

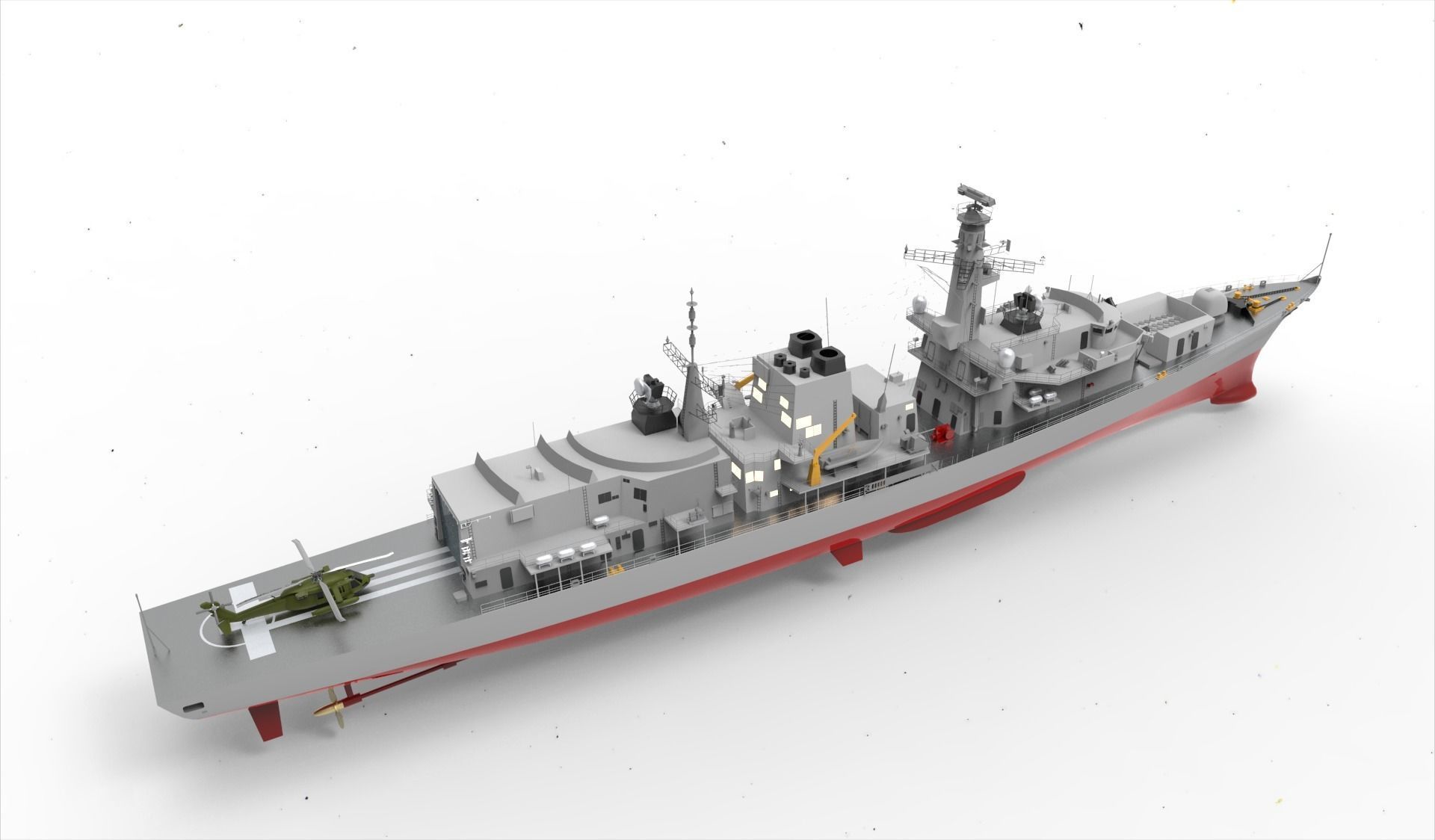

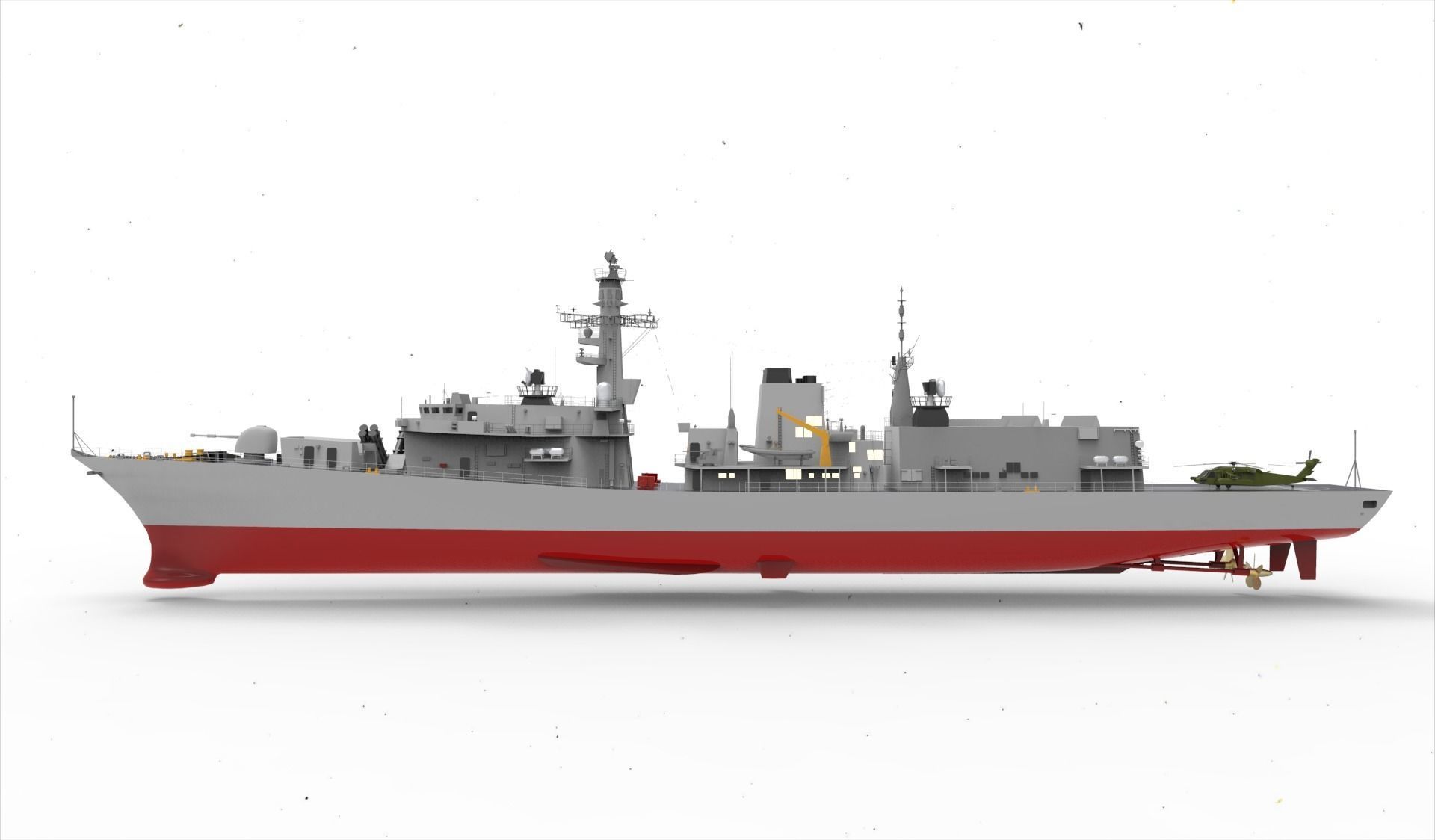

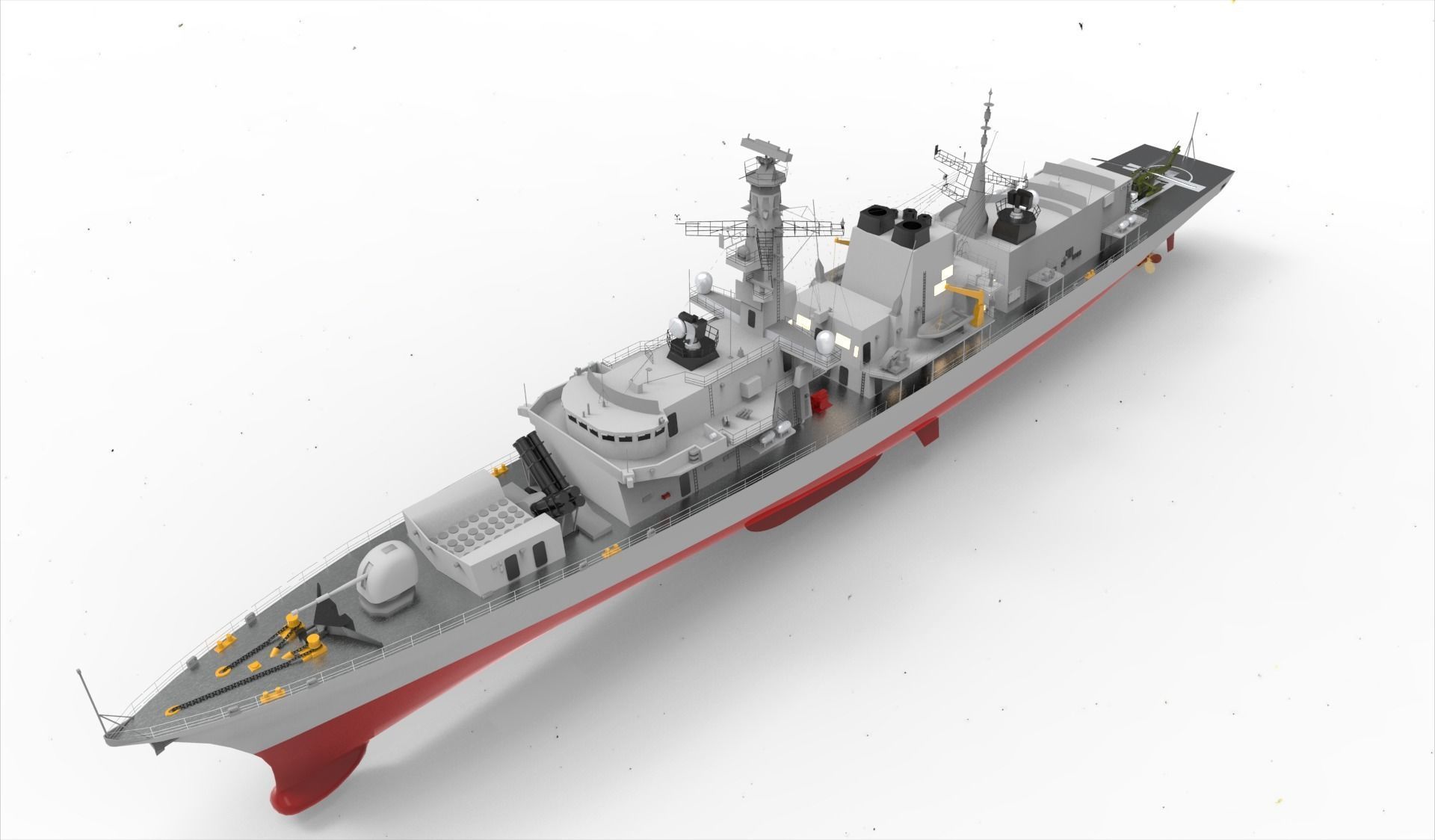

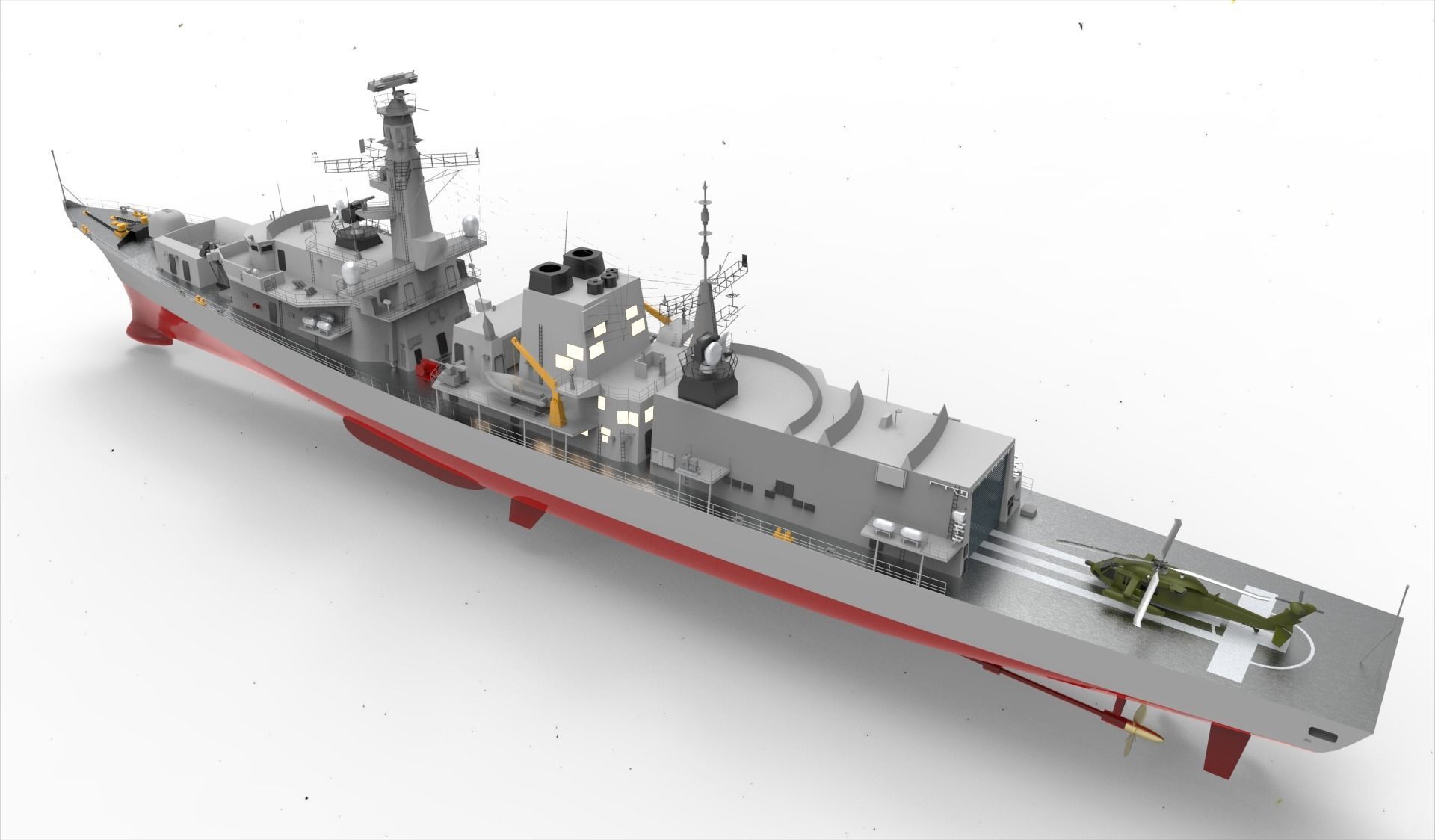

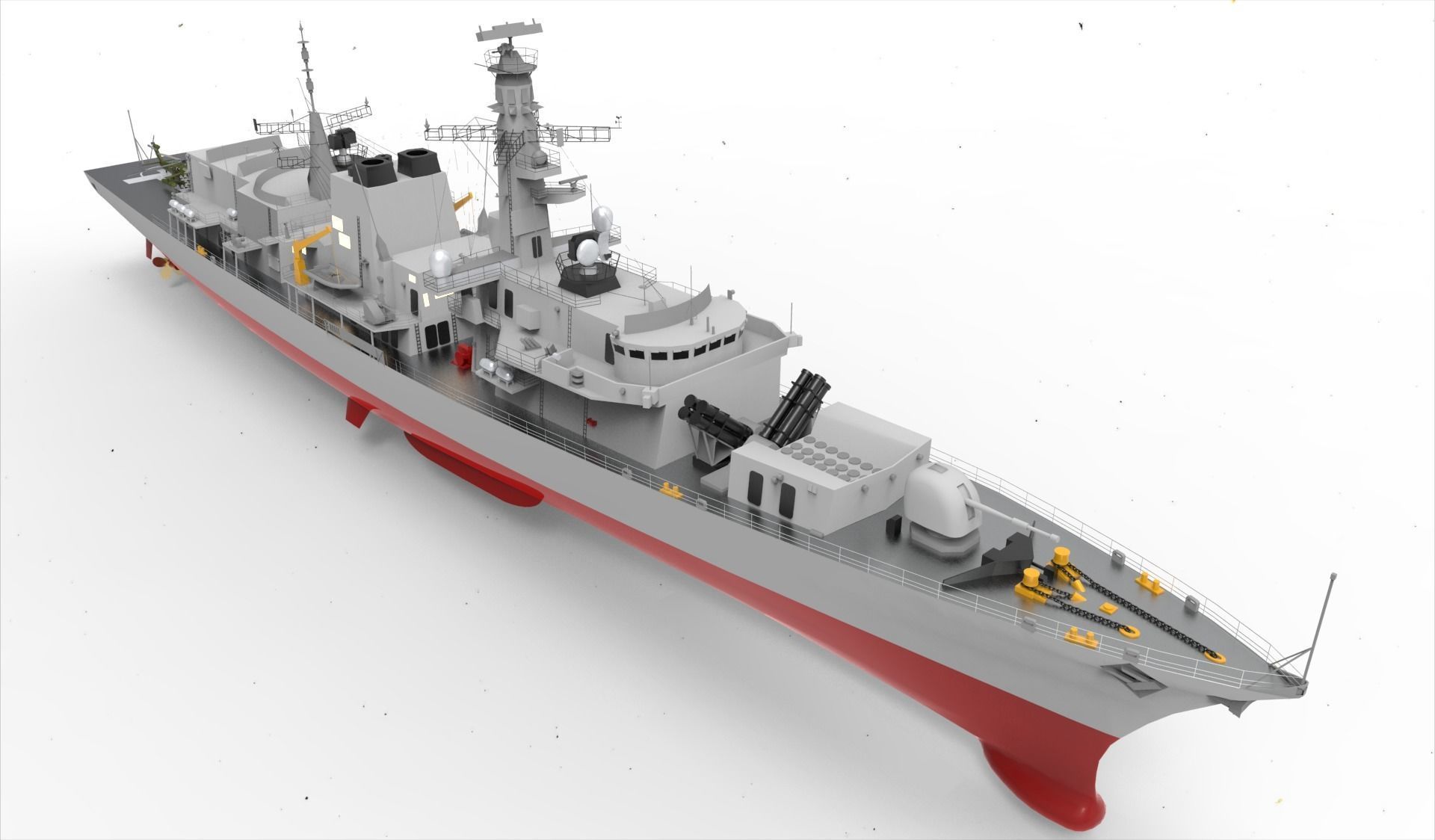

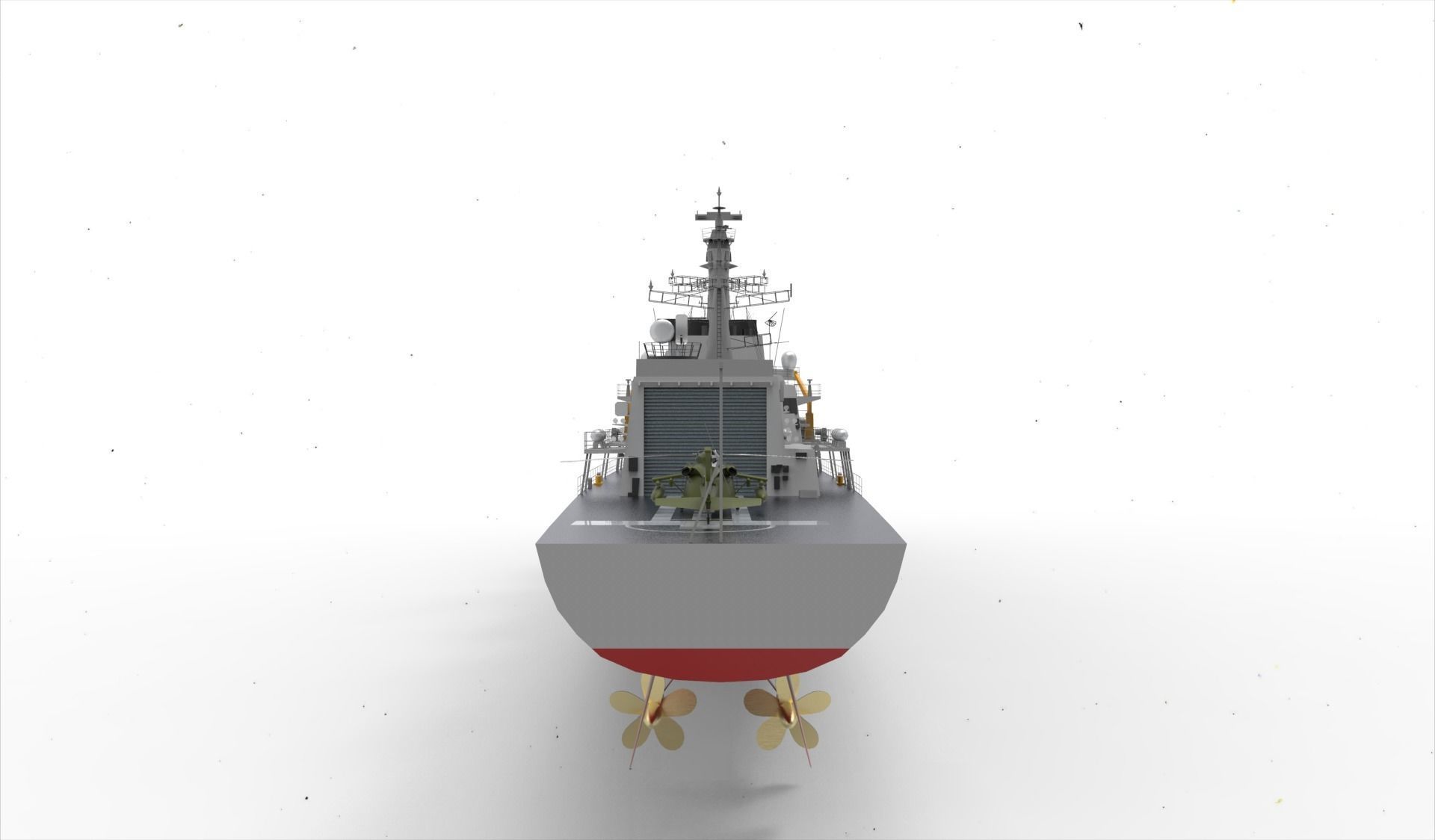

Frigate Type 23 Anti Submarine 3D model

Description

Type: Anti-submarine warfare frigate Displacement: 4,900 t (4,800 long tons; 5,400 short tons)[1] Length: 133.0 m (436 ft 4 in) Beam: 16.1 m (52 ft 10 in) Draught: 7.3 m (23 ft 11 in) Propulsion: CODLAG: 4 × 1,510 kW (2,025 hp) Paxman Valenta 12CM diesel generators (Non-PGMU ships) 4 × 1,650 kilowatts (2,210 shp) MTU 12V4000 M53 diesel generators (PGMU ships) 2 × GEC electric motors delivering 2,980 kW (3,996 hp) each 2 × Rolls-Royce Marine Spey SM1C delivering 12,750 kW (17,098 hp) Speed: list error:
list (help) In excess of 28 knots (52 km/h; 32 mph) HMS Sutherland achieved 34.4 knots (63.7 km/h; 39.6 mph) during high-speed trials in November 2008 Range: 7,500 nmi (14,000 km) at 15 kn (28 km/h) Boats & landing craft carried: 2 × Pacific 24 RIBs Complement: 185 (accommodation for up to 205) Electronic warfare & decoys:
UAF-1 ESM or UAT Mod 1 Seagnat Type 182 towed torpedo decoy Surface Ship Torpedo Defence Armament:
Anti-air missiles: 1 × 32-cell Sea Ceptor GWS 35 Vertical Launching System (VLS) canisters for 32 missiles (1–25+ km)[2] (replacing original Sea Wolf SAM) Anti-ship missiles: 2 × quad Harpoon launchers Anti-submarine torpedoes: 2 × twin 12.75 in (324 mm) Sting Ray torpedo tubes Guns: 1 × BAE 4.5 inch Mk 8 naval gun 2 × 30 mm DS30M Mk2 guns, or, 2 × 30 mm DS30B guns 2 × Miniguns 4 × General-purpose machine guns Aircraft carried:
1 × Wildcat HMA2, armed with: 2 × anti submarine torpedoes (Martlet and Sea Venom ASM to be fitted in 2021/22) or 1 × Westland Merlin HM2, armed with; 4 × anti submarine torpedoes Aviation facilities:
Flight deck Enclosed hangar

Hafcoy
Hafcoy 2023-10-17 17:34:44 UTC
Wow amazing picture. I think you are professional design for ship
M
maryamarrumi 2023-09-21 18:03:20 UTC
"I'm speechless. The level of detail in this 3D design is astonishing."
Item rating
3 2
B
bellstephen8 2024-02-02 12:52:04 UTC
Not Recommended
All one piece item and Cura Slicer program detected errors. This is not a model ready for print, very dissapointing!
V
ve4sw 2023-04-17 23:51:26 UTC
Not Recommended
Absolutely useless stl file. Expect an immediate refund!
M
MoodyMek80 2022-12-23 11:08:47 UTC
Recommended
Very good, comprehensively researched and detailed model
Frigate Type 23 Anti Submarine
$33.99

Royalty Free License
Frigate Type 23 Anti Submarine
$33.99

Royalty Free License
Response 63% in 17.9h

3D Model formats

Format limitations
  • Stereolithography (.stl)63.4 MB
  • Autodesk FBX (.fbx)63.4 MB
  • OBJ (.obj, .mtl)63.4 MB
  • glTF (.gltf, .glb)63.4 MB
  • 3D Studio (.3ds)63.4 MB
  • Marvelous Designer (.zpac, .avt, .pos, .ZPrj)63.4 MB
  • Sketchup (.skp)63.4 MB
  • KeyShot (.bip, .ksp)63.4 MB
  • AutoCAD (.dwg)63.4 MB
  • DXF (.dxf)63.4 MB
  • Collada (.dae)63.4 MB

3D Model details

  • Publish date2021-05-13
  • Model ID#3036765
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
