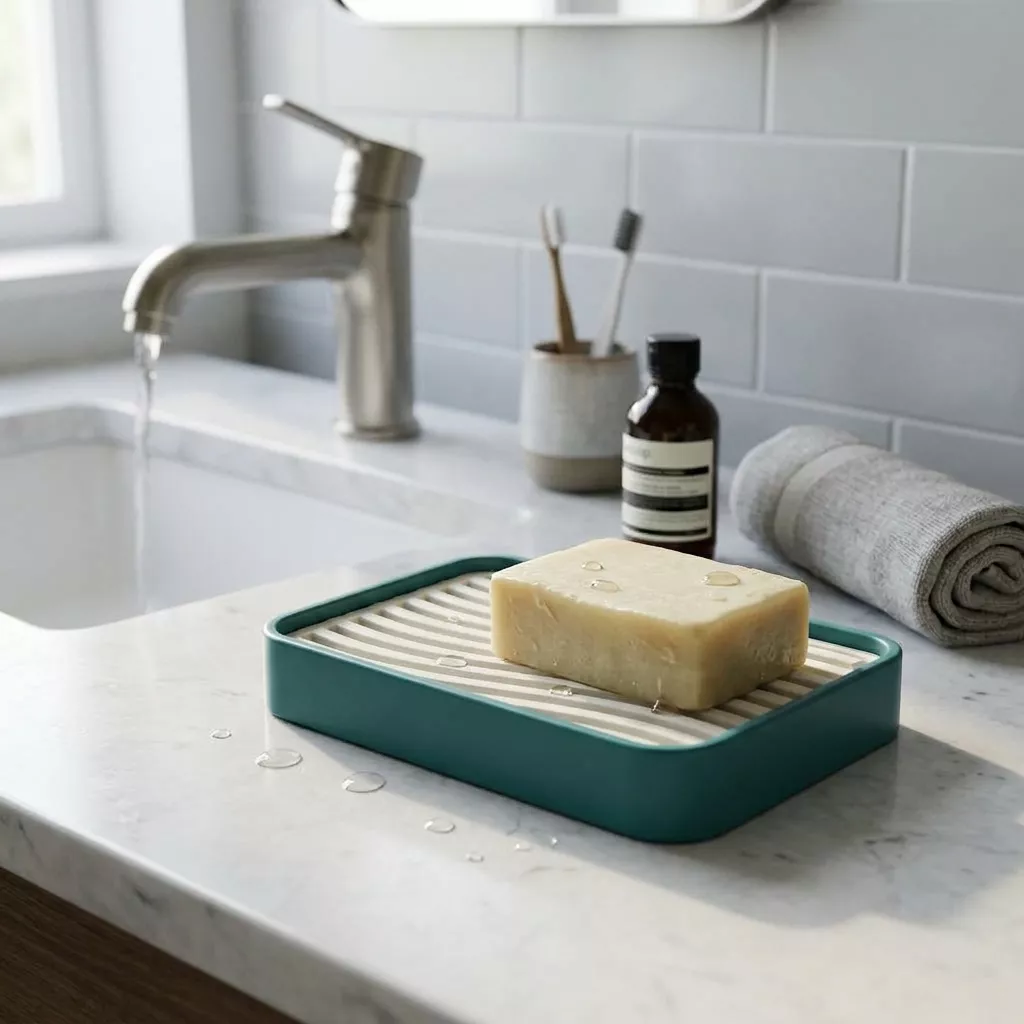

FLOW pairs a rounded catch tray with a removable wave-pattern insert. Open gaps between the flowing slats let water pass into the tray below, while a corner notch gives you access to lift the insert for cleaning. The teal and ivory presentation brings a simple two-tone look to a bathroom counter or washbasin area.

The set contains two separate printable parts. Print the tray and insert in your chosen colors and place the insert on the tray's internal ledge; no glue is required.

DIMENSIONS

• Overall assembled size: 130 x 90 x 20 mm.
• Removable insert: approximately 122.6 x 82.6 x 4 mm.
• Nominal side clearance: 0.5 mm.
• Tray floor thickness: 3.2 mm.
• Insert underside sits 12 mm above the base, leaving 8.8 mm of space above the tray floor.
• Two printable parts: one catch tray and one wave insert.

PRINTING AND USEPrint both pieces flat, with their bases on the build plate, using the supplied orientations. Both parts were digitally sliced without supports. Suggested starting settings: 0.4 mm nozzle, 0.2 mm layers, 4 perimeters and 20% infill. Adjust these settings for your printer and filament, and check that the drainage gaps remain open in your slicer preview.

Dry-fit the insert on the internal ledge. The corner notch allows access for lifting it out. Actual fit depends on your printer and material; remove any burrs before use.

Water passes through the insert into a closed catch tray. There is no outlet to a sink: lift the insert, empty the collected water and clean both parts regularly. Check the printed tray for leaks on a washable surface before placing it on furniture. Choose a filament suitable for your intended wet-use conditions and follow its manufacturer's care guidance. Watertightness, drainage performance and long-term moisture resistance have not been physically tested.

INCLUDED FILES

• Separate STL and 3MF print files for the tray and insert.
• STEP and FreeCAD solid models.
• Blender product and studio scenes.
• OBJ with MTL, FBX and GLB exchange files.
• English and Turkish PDF guide.
• CAD rebuild source and file inventory.

CAD files contain final solids, with a rebuild script rather than a fully editable feature-history tree. Printable files and OBJ coordinates use millimeters; Blender, FBX and GLB use meters.

MODEL AND PRINTING NOTESThe model and sliced paths have been digitally checked but have not been physically test-printed. Printed fit, surface quality, strength, grip, cleaning and suitability for your intended use require a real print test. No waterproof or heat-resistance rating is claimed.

High-resolution meshes are intended for printing and product visualization; they are not optimized as low-poly game assets. No UV texture set is included.

ABOUT THE IMAGESStudio, technical and clay images are renders of the supplied model. Lifestyle scenes are AI-generated illustrations and may differ from the supplied model in proportions, details, materials and colors. Images are not photographs of a physical print.

Colors and finishes are presentation materials; the printed result depends on your filament, printer and settings. Soap, water, towels, fixtures, furniture and decorative props are not included.

Digital files only. No physical product is supplied.
