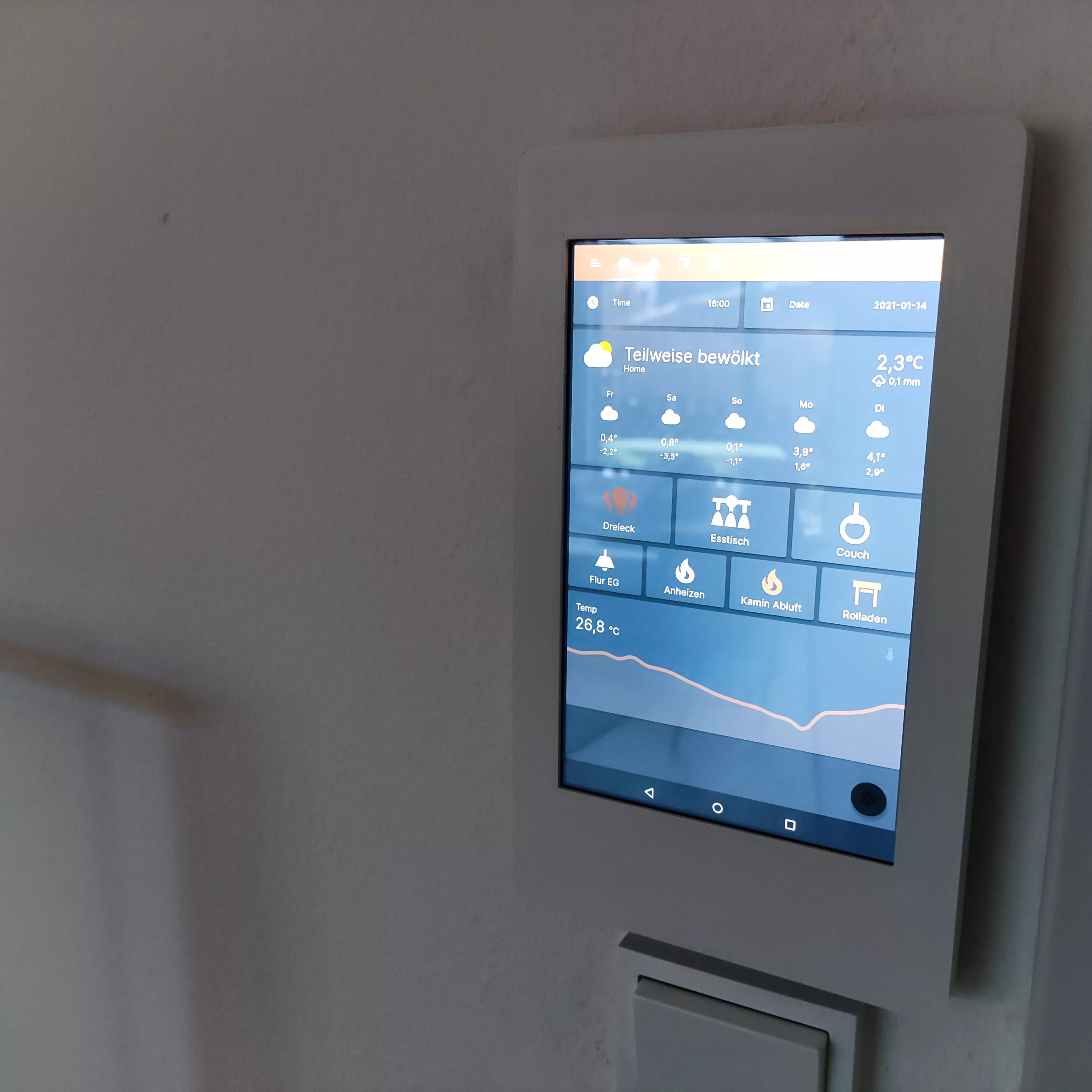

These are Files for the following tablets to wall mount them:
they enable wallmounting with a middle cutout for 68mm drywall electrical installation box to house a charger.
The frames have 4 countersunk holes for common drydall / wood screws.
The covers are just pushed on the frame and are removeable for tablet maintenance.
Can be mounted either vertically or horizontally.
All the frames follow the same basic principle shown in the render, Tabs has a slightly bigger window to accomodate the physical button.
If you need a frame for a different tablet please contact me here directly.
Optimized for FDM 3d Printing, no supports, 0.2mm layer height, 20% infill.
For connection you need a small 90° angled usb connector, straight plugs dont have enough space.
F.e. this one: https://www.amazon.de/-/en/gp/product/B072C51J4W/ref=ppx_yo_dt_b_asin_title_o08_s00?ie=UTF8&psc=1
