Homeassitant Sonoff Basic BME280 Dallas flush box mount

Homeassitant Sonoff Basic BME280 Dallas flush box mount 3D print model

Homeassitant Sonoff Basic BME280 / Dallas flush box mount

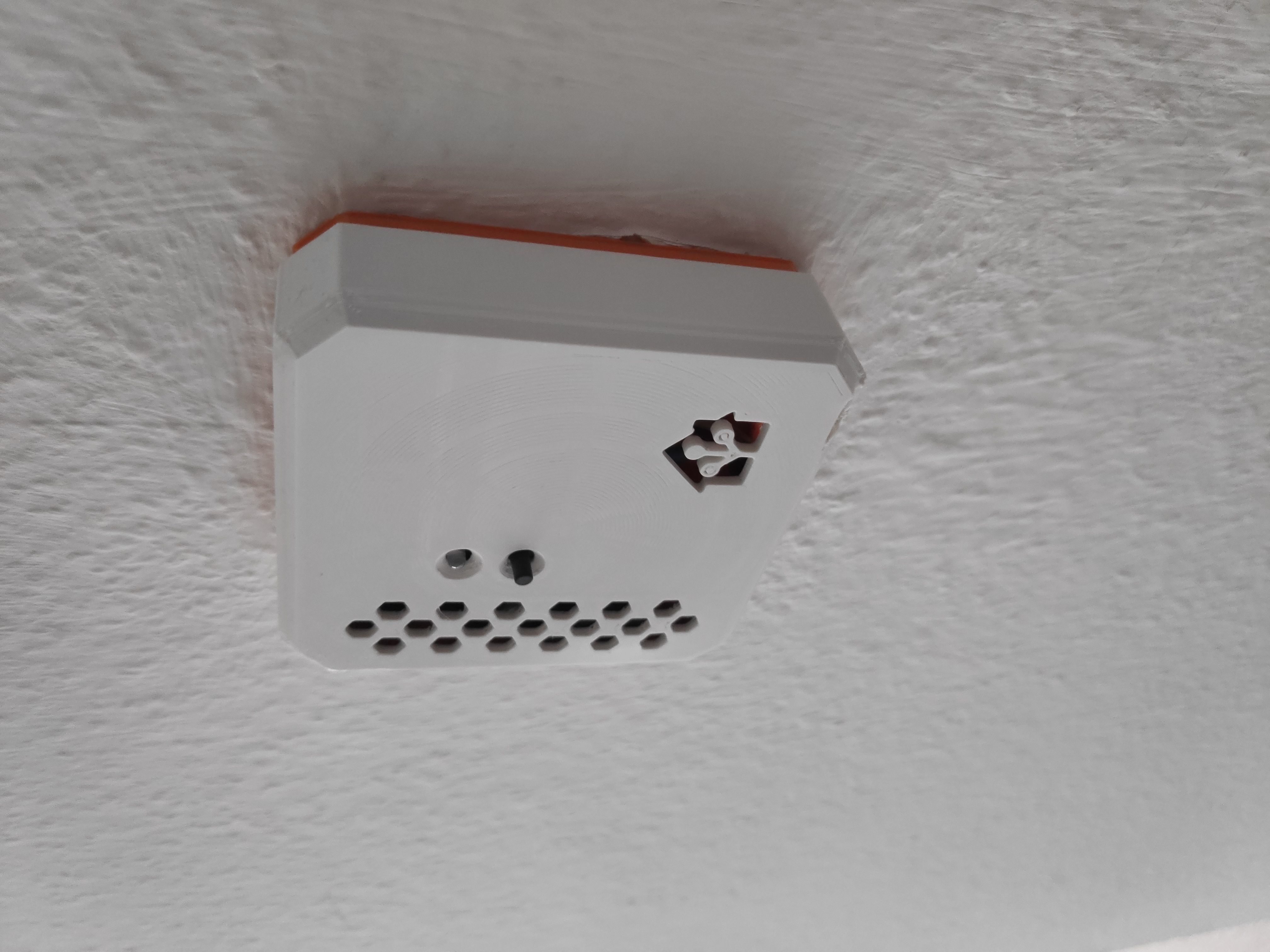

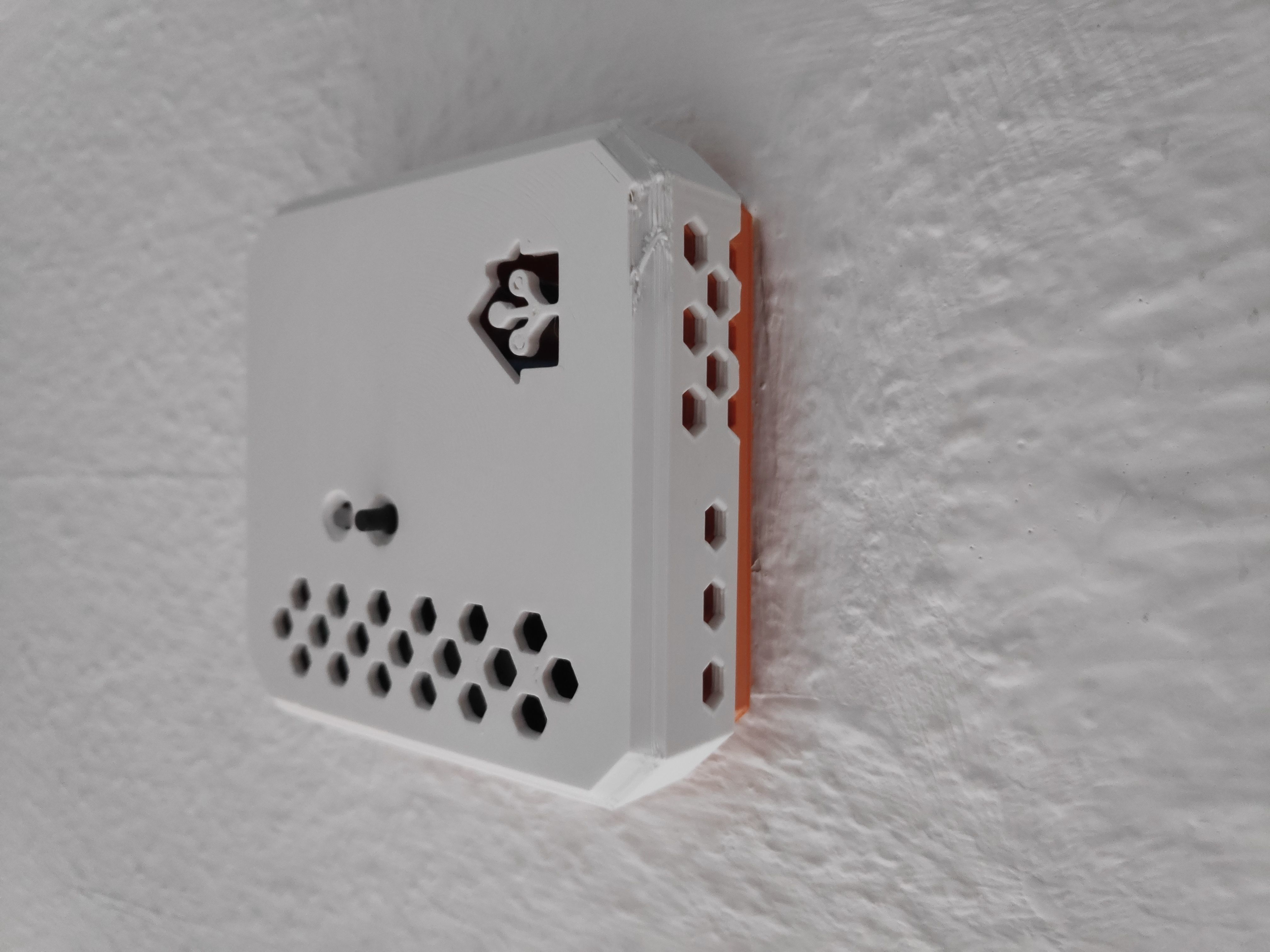

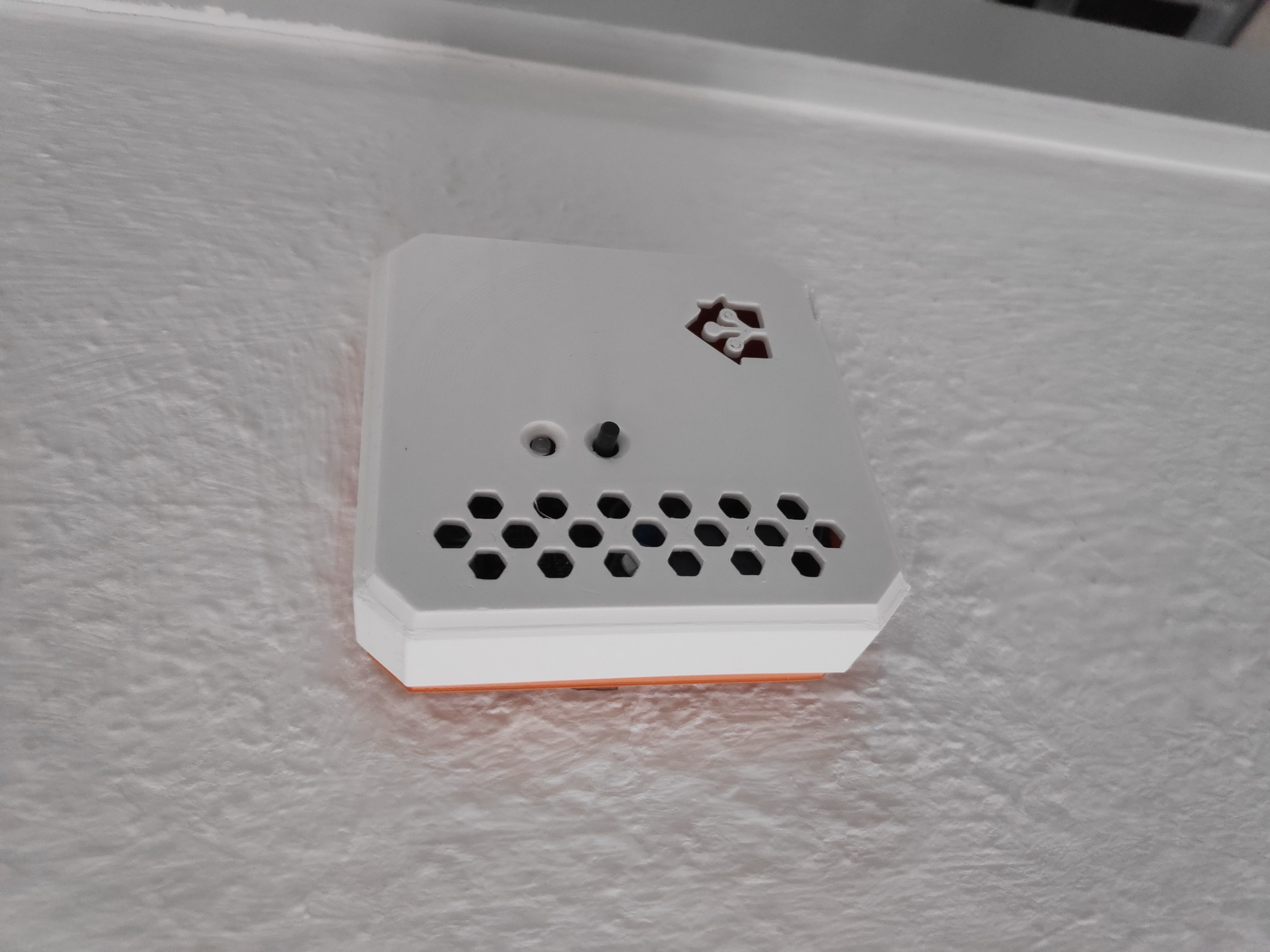

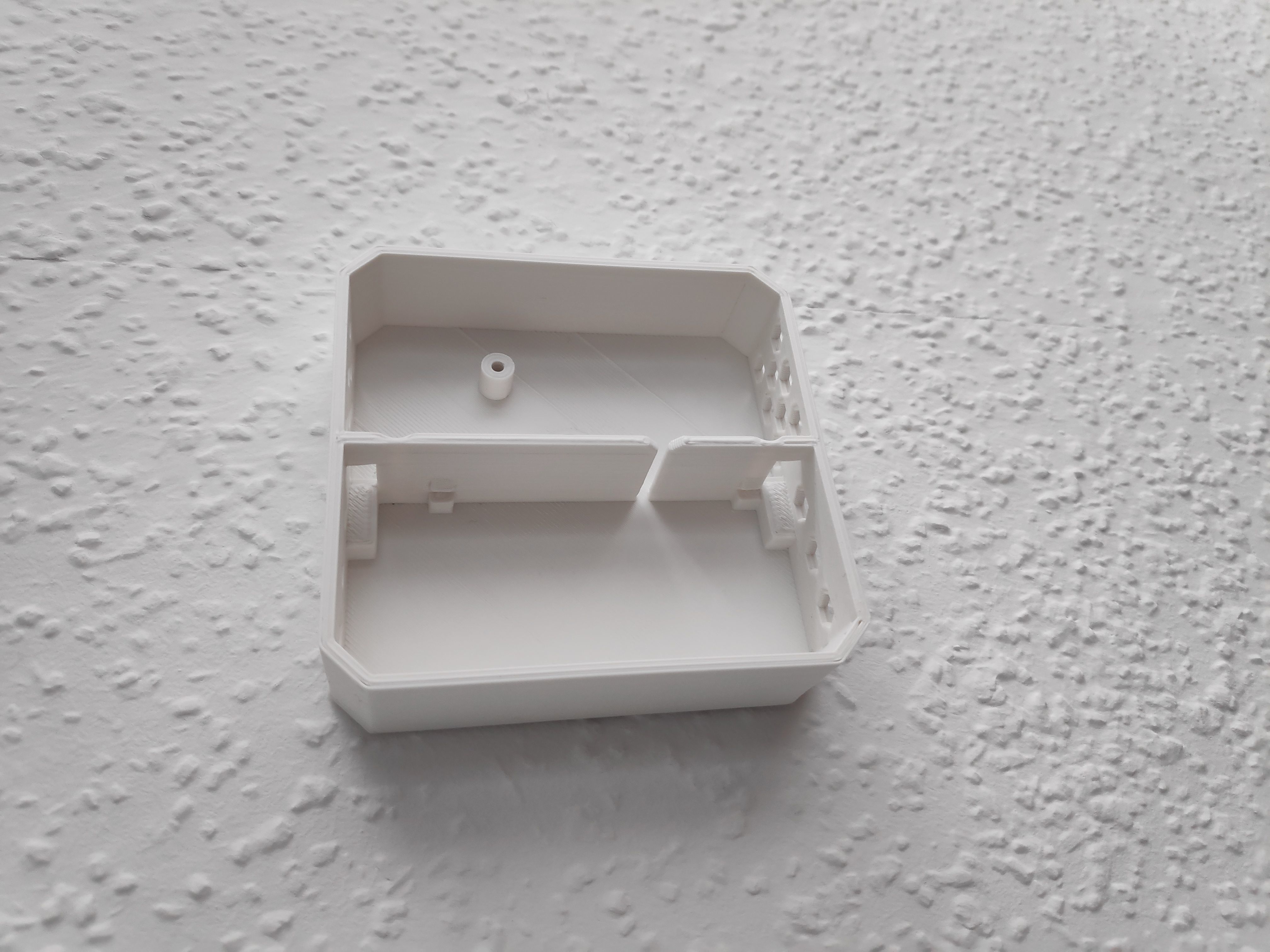

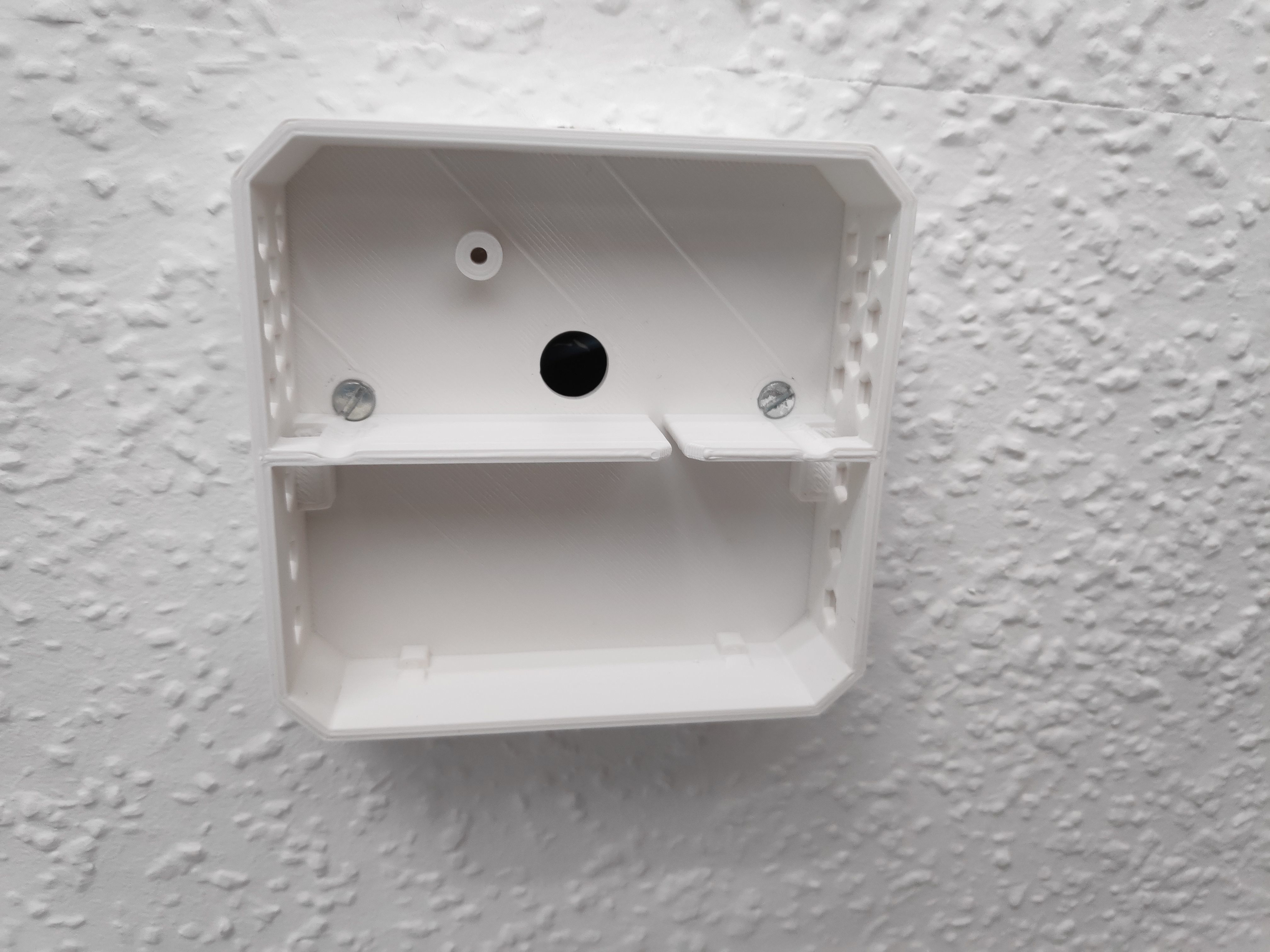

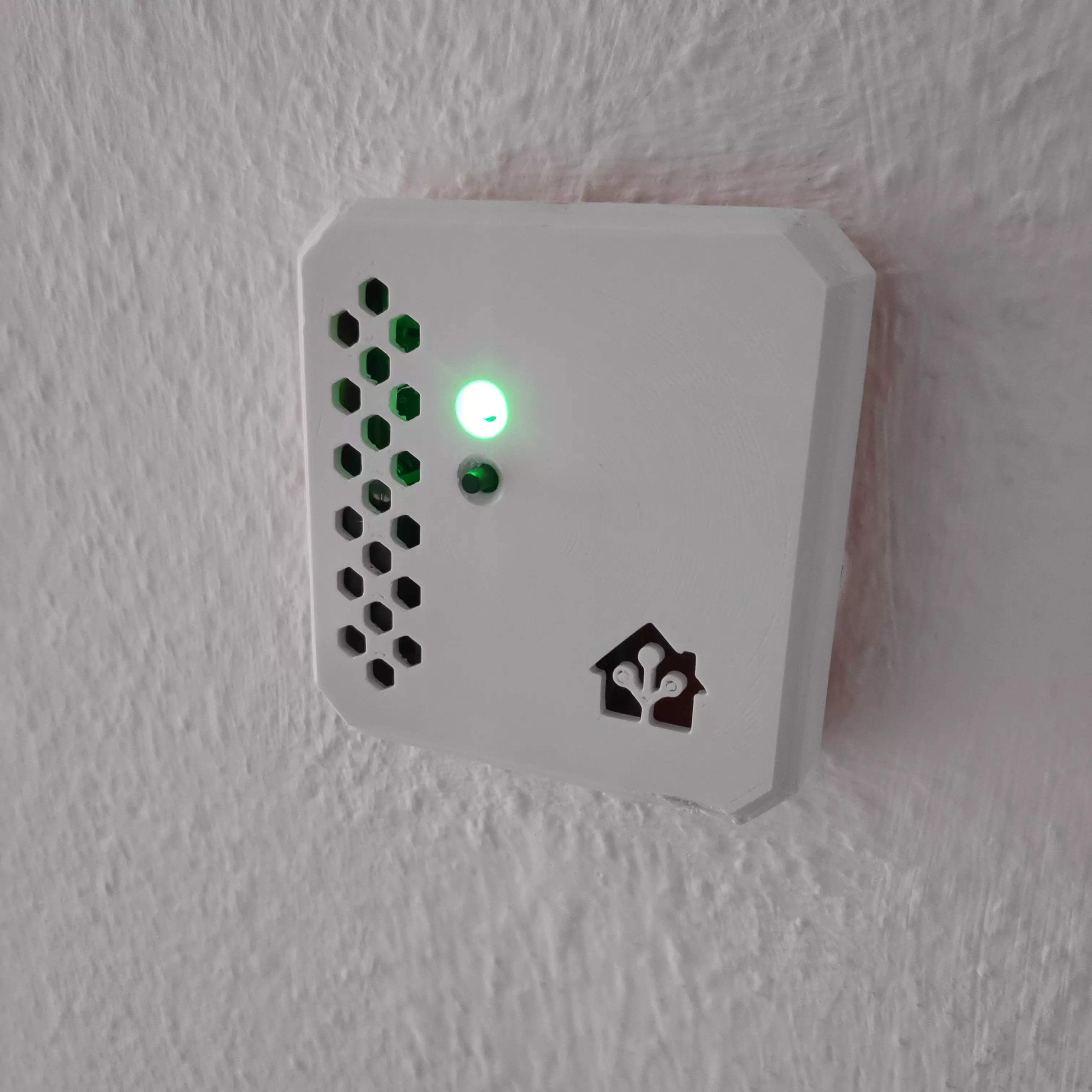

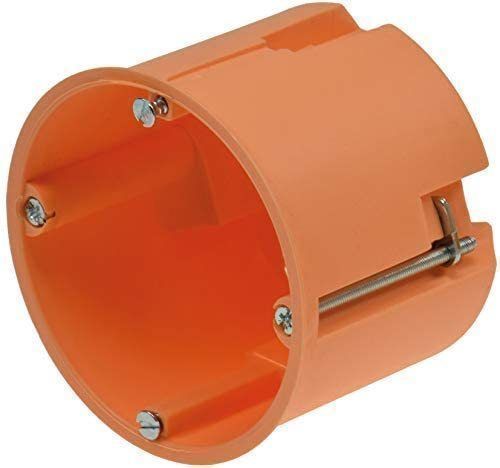

The case has appropriate holes for standard 68mm flush boxes.

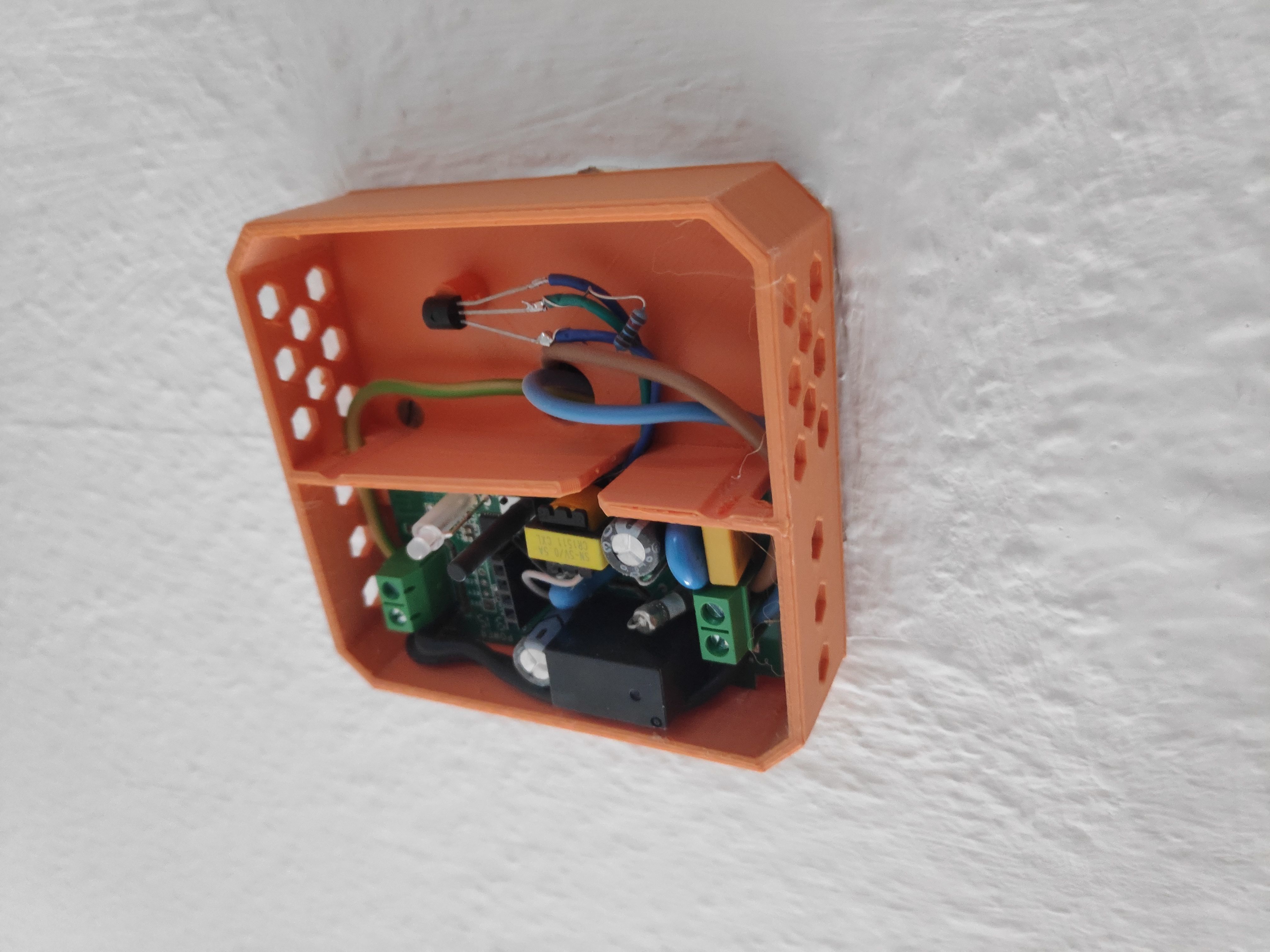

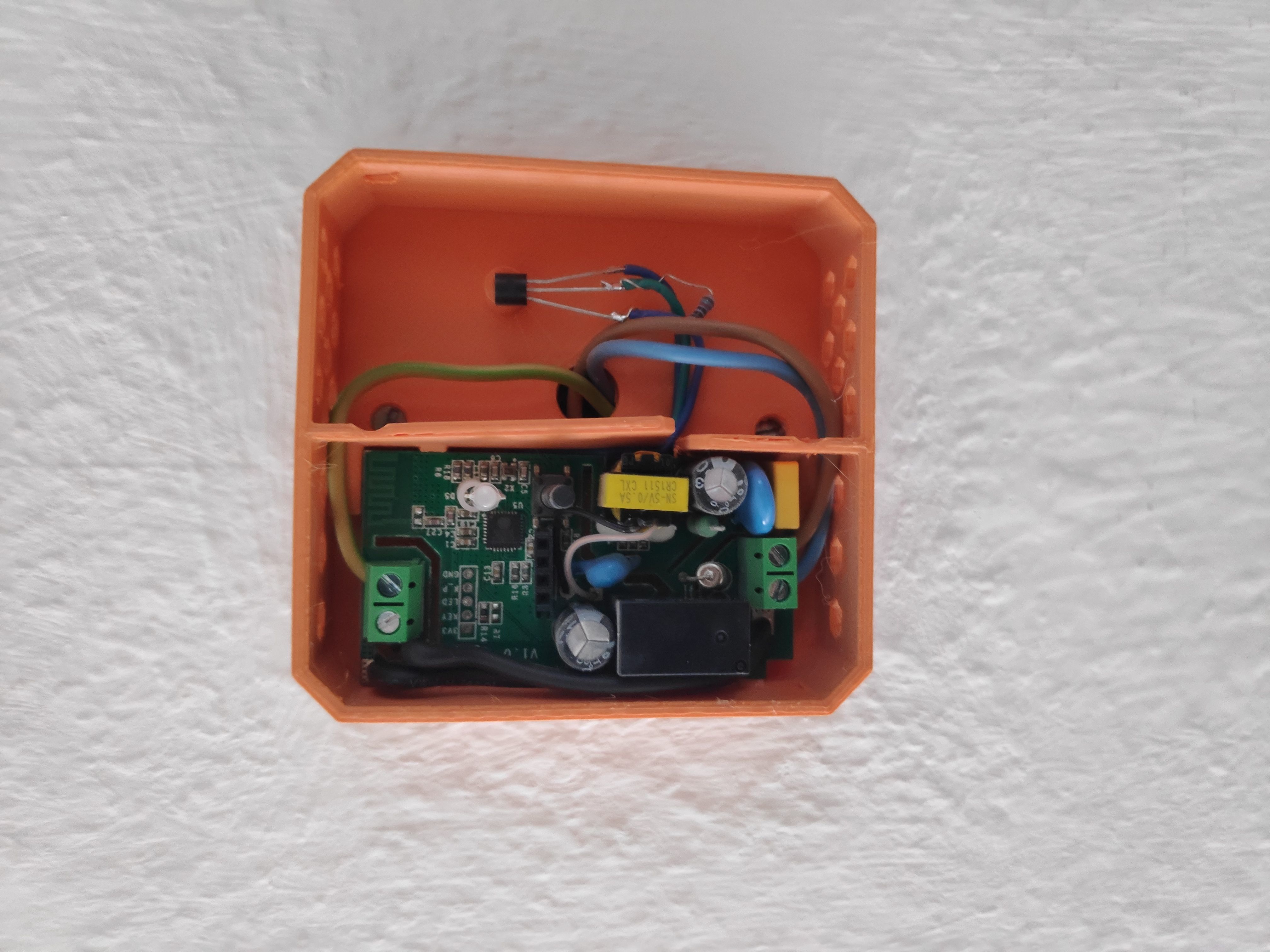

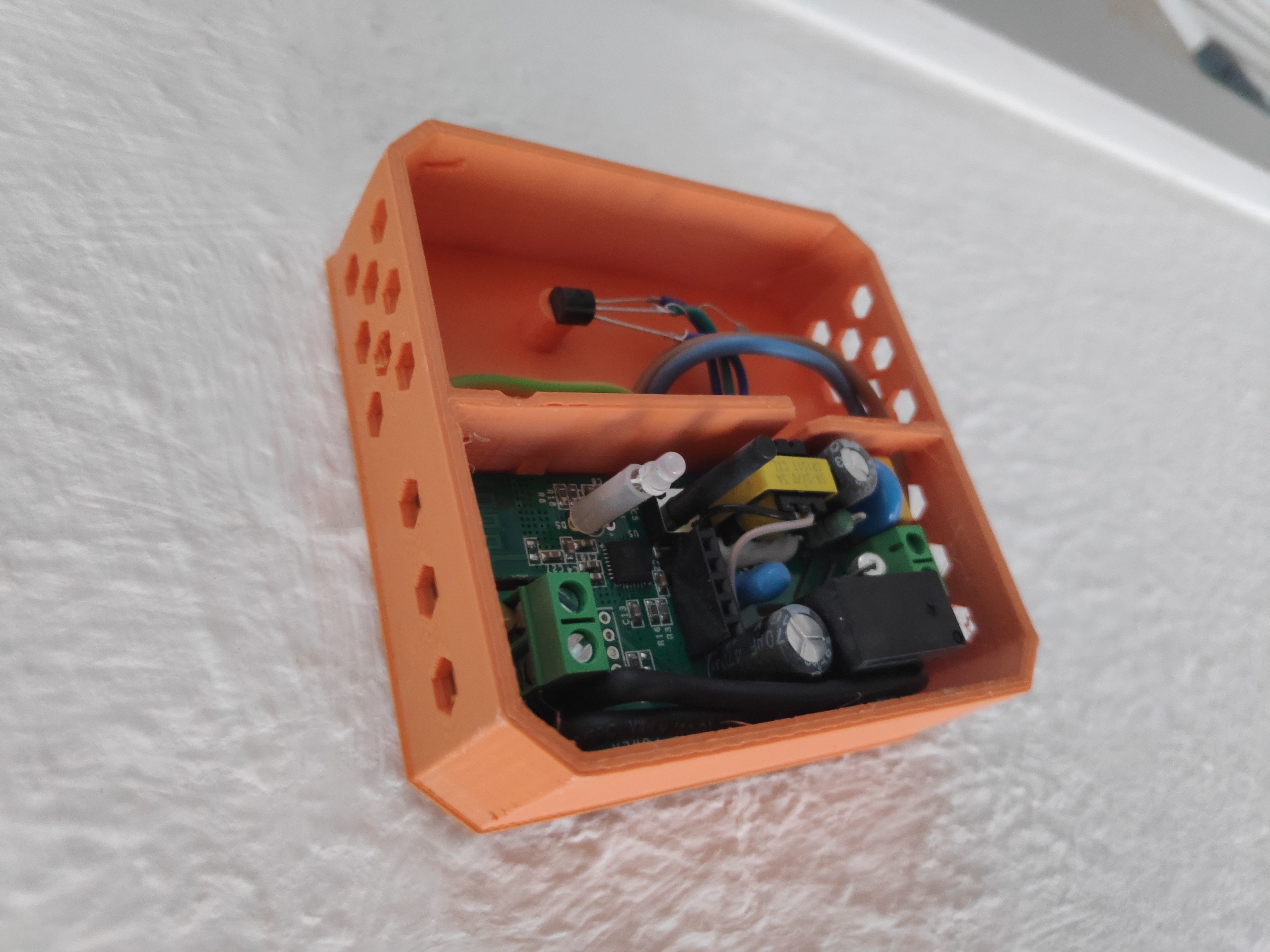

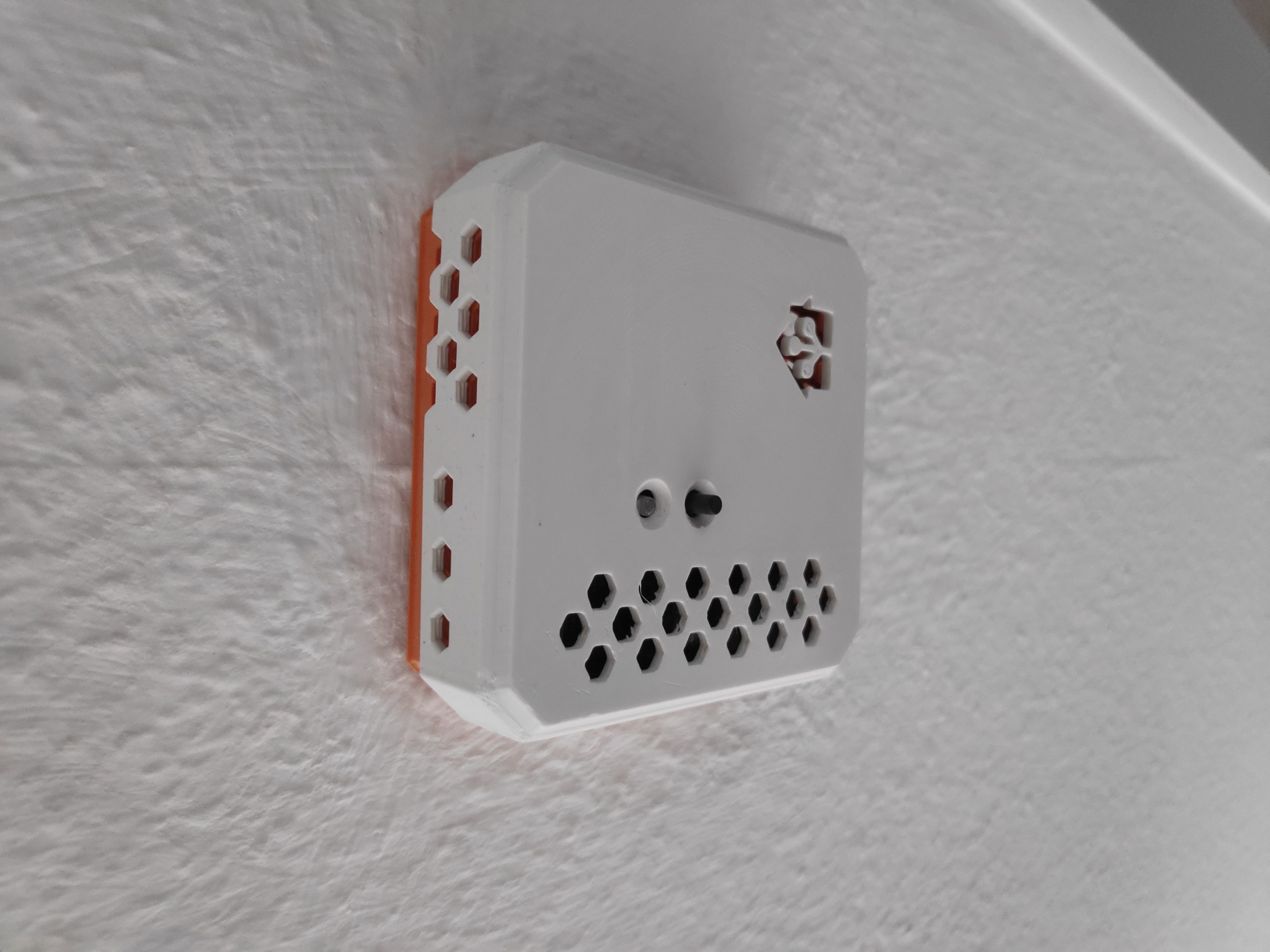

Housing for Sonoff basic and a sensor of your choice.

Sensor is physically seperated and well ventilated to give accurate readings.

This can be used to switch electrical appliances f.e. lights or in my case electrical heating.

Optimized for FDM 3D Printing, no supports needed, 0.4 Nozzle / 0.2 layer height / 20% Infill

To use a Sensor with a Sonoff Basic you need to flash it with ESPHome for example:

ESPHome configuration example:

esphome: name: xxx platform: ESP8266 board: esp01_1m

wifi: ssid: xxx password: xxx

Enable logging

logger:

Enable Home Assistant API

api:

ota:

dallas:

  • pin: GPIO2

sensor:

  • platform: dallas address: xxx name: xxx filters:
    • offset: -2.8 id: temp

binary_sensor:

  • platform: gpio pin: number: GPIO0 mode: INPUT_PULLUP inverted: True name: xxx on_press:
    • switch.toggle: fakebutton

switch:

  • platform: template name: xxx optimistic: true id: fakebutton turn_on_action:
    • switch.turn_on: relay
    • light.turn_on: led turn_off_action:
    • switch.turn_off: relay
    • light.turn_off: led
  • platform: gpio id: relay pin: GPIO12

output:

  • platform: esp8266_pwm id: basic_green_led pin: number: GPIO13 inverted: True

light:

  • platform: monochromatic name: Sonoff Basic Green LED output: basic_green_led id: led
