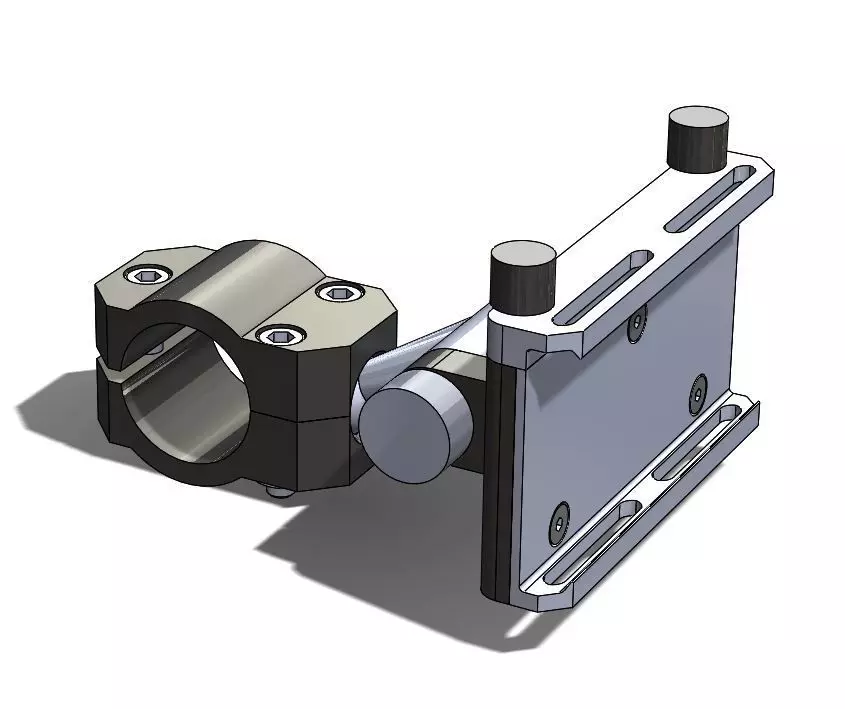

Mountain bike Advanced phone holder 3D print model

This new project has been created to realize an easily mountable smartphone or GPS navigator support for the handlebars of any mountain bike or motorcycle. Thanks to its 31.8 mm diameter fastening, the support can be mounted on most standard handlebars available on the market, both on the handlebar (horizontal) and on the front stem (vertical). The minimum width of the smartphone stand is 50mm and is adjustable up to a maximum width of 80mm for phones up to 6.0". The files are in STL and STEP format and are ready to be printed in plastic with any 3D printer.

The downloadable plastic kit includes 8 files:

1. Bar Holder Bottom
2. Bar Holder Top
3. Main Holder Bottom
4. Main Holder Top
5. Middle Knob
6. Middle Support
7. Sphere Holder
8. Top Knob

Once you download and print the plastic parts, you need the following mechanical components to assemble the complete support:

• No.3 hexagon socket head screw M6x30 mm
• No.4 nut M6
• No.1 hexagon head Screw M6x65 mm
• No.2 hexagon head screw M5x50
• No.3 countersunk screw M4x8mm
• No.3 nut M4
