Desktop smartphone stand 3D print model

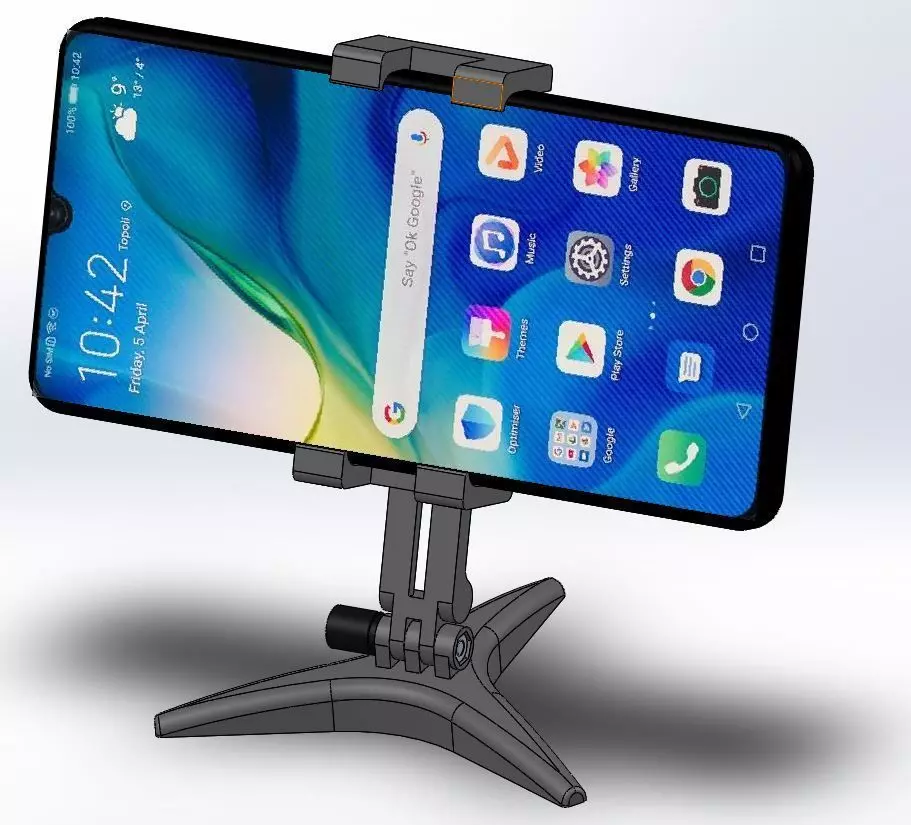

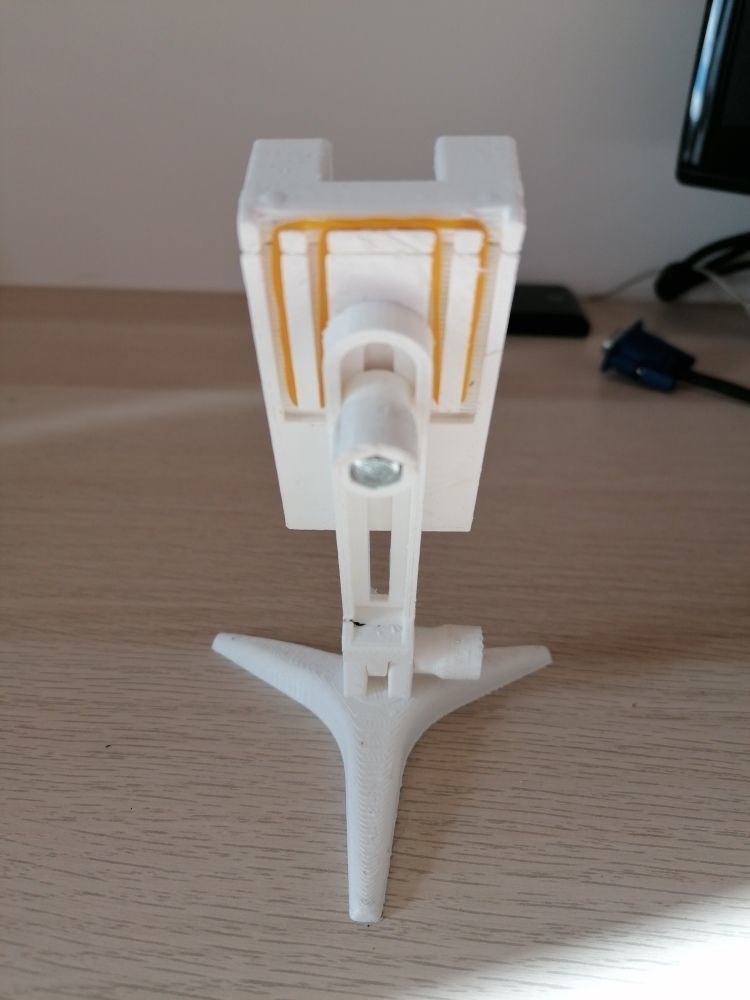

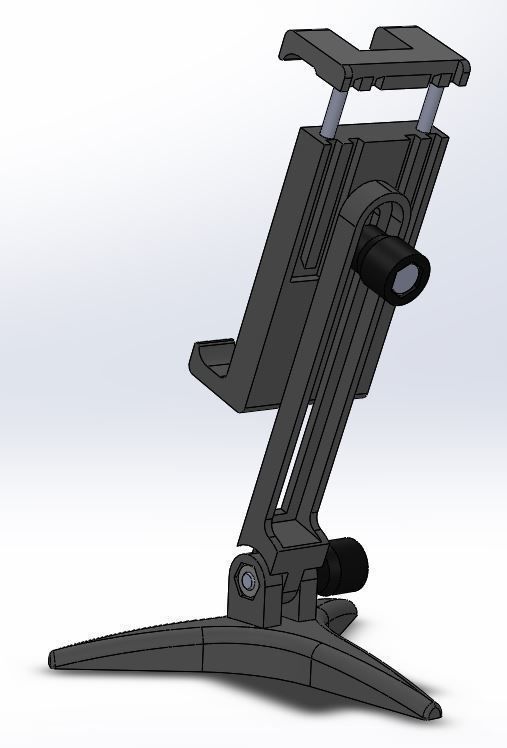

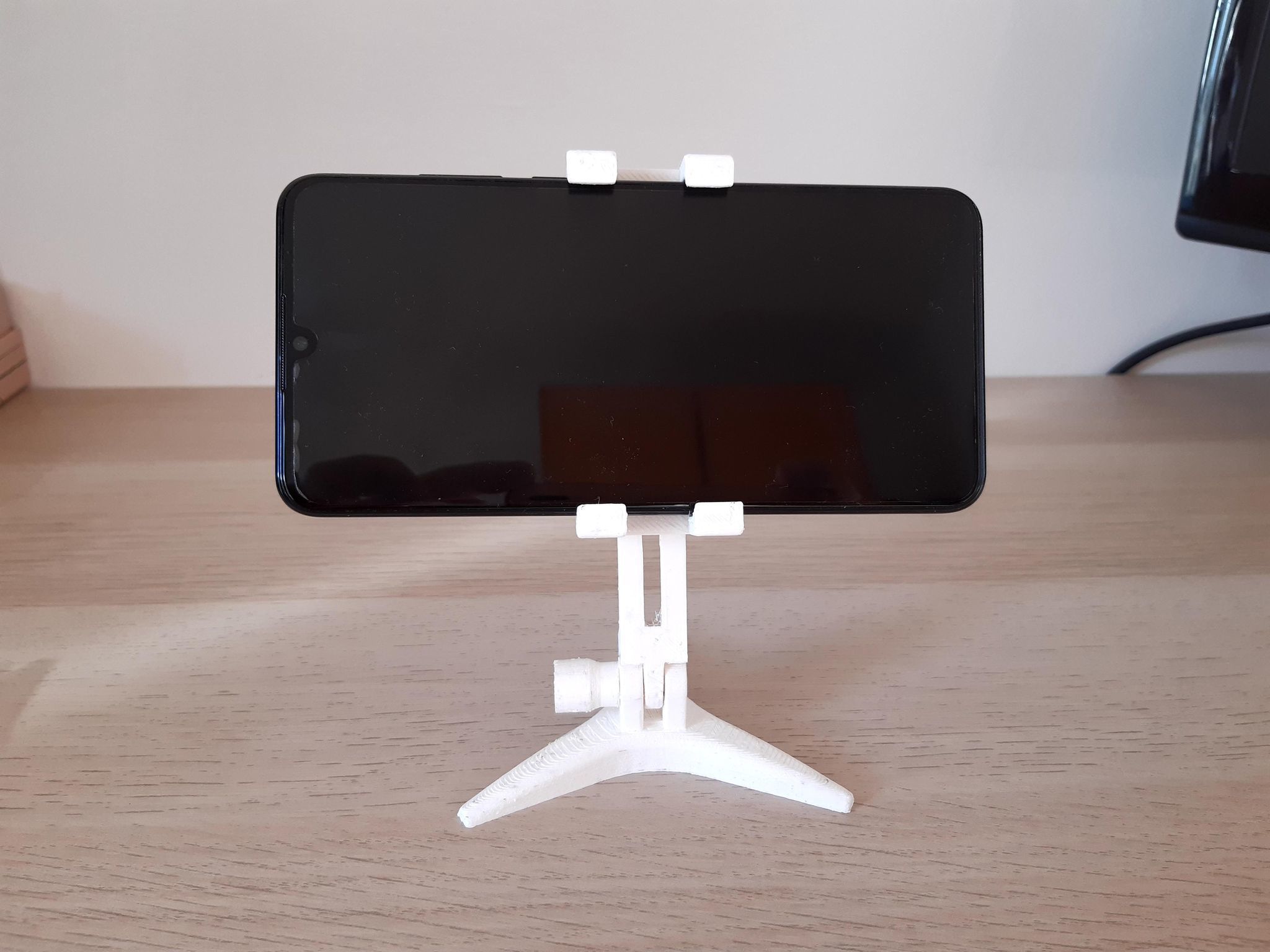

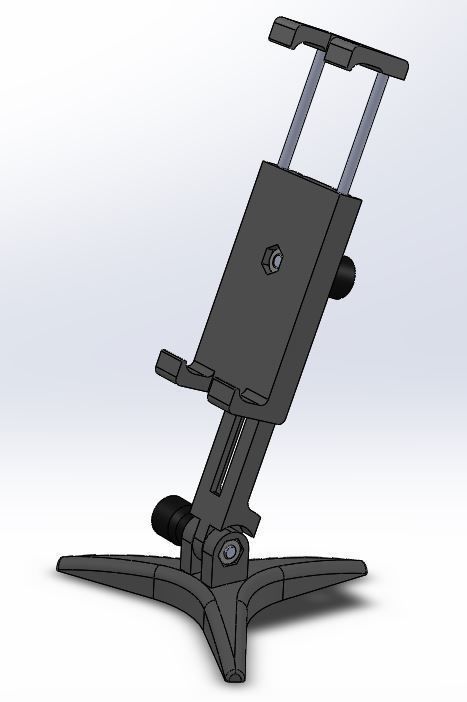

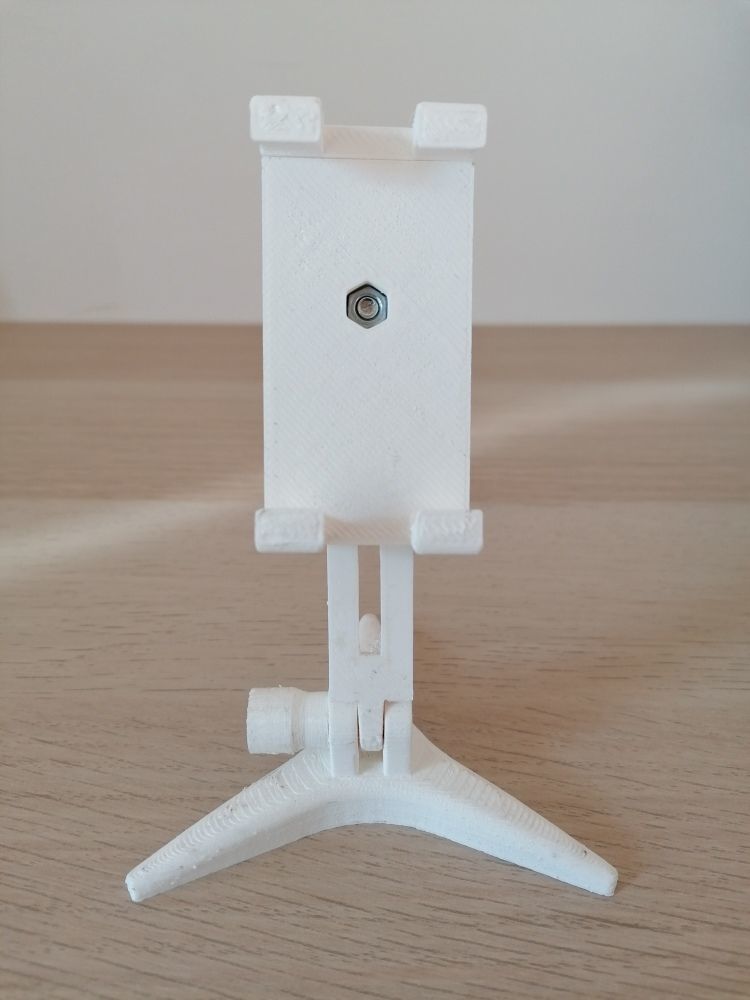

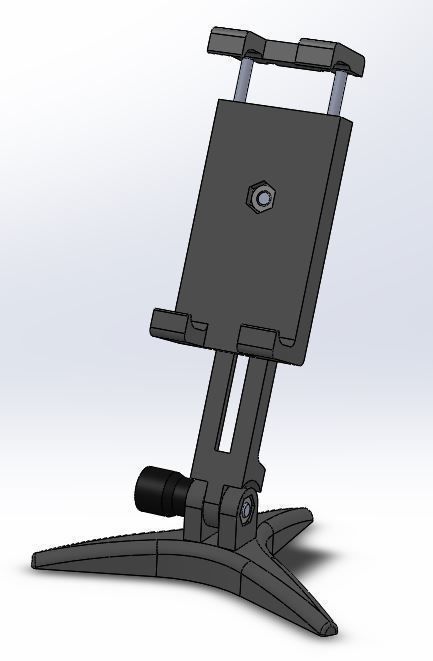

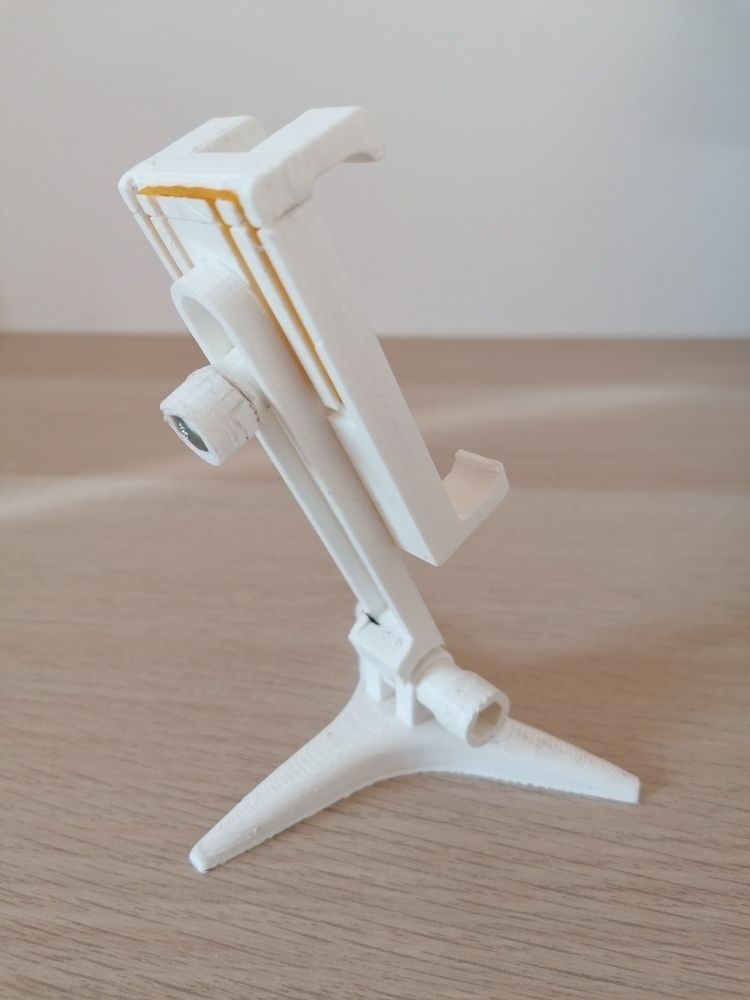

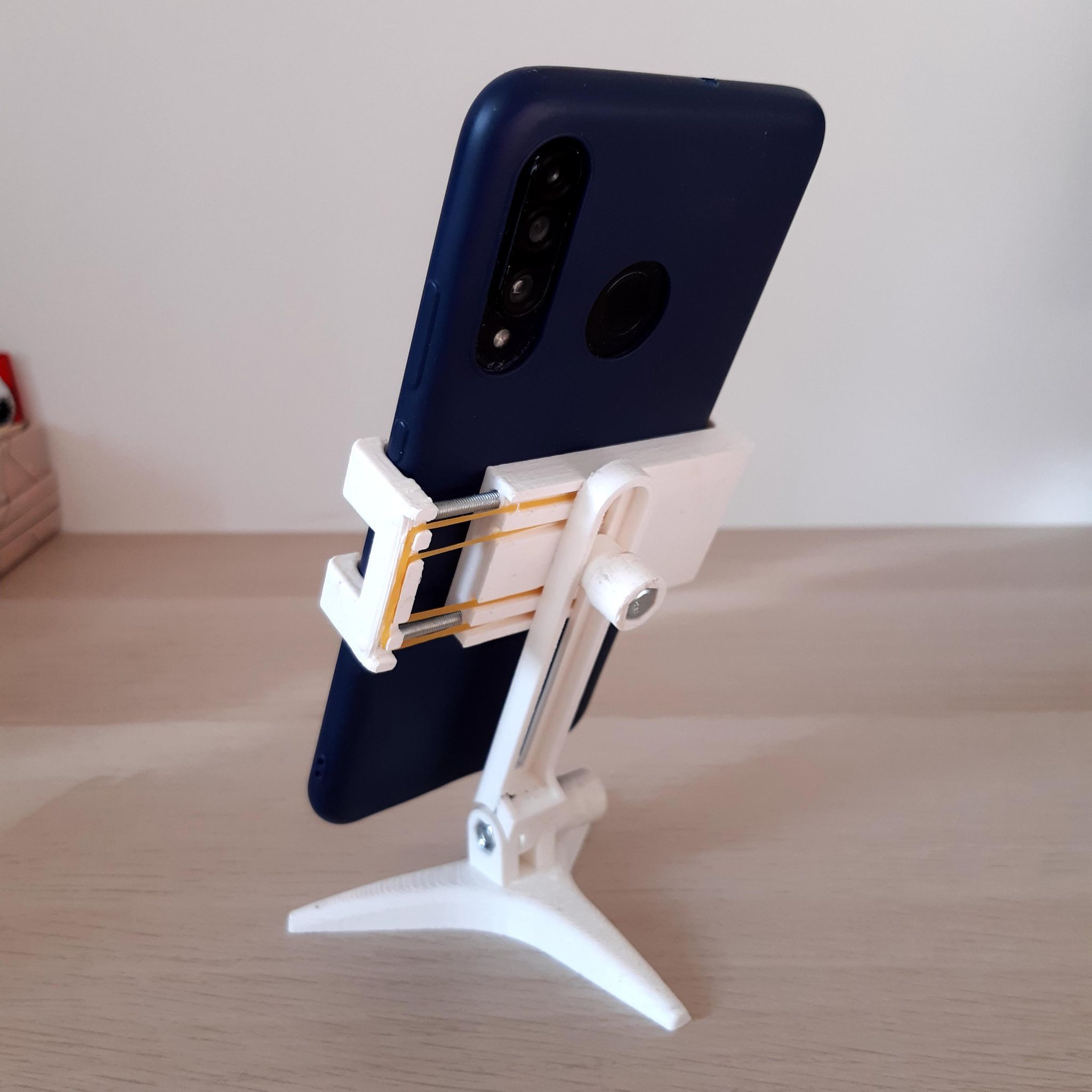

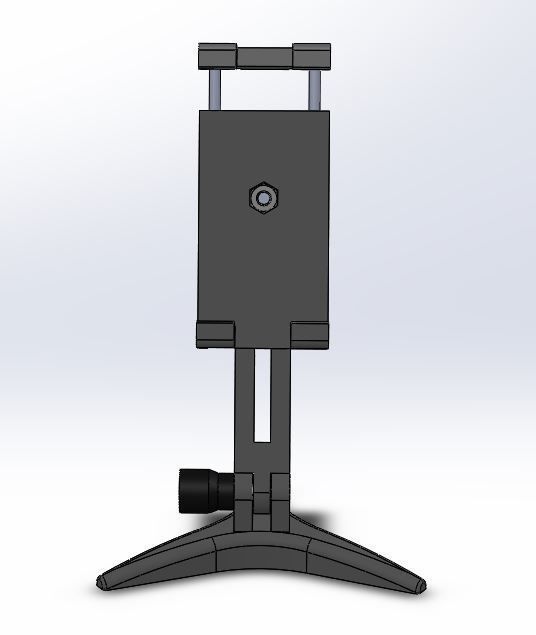

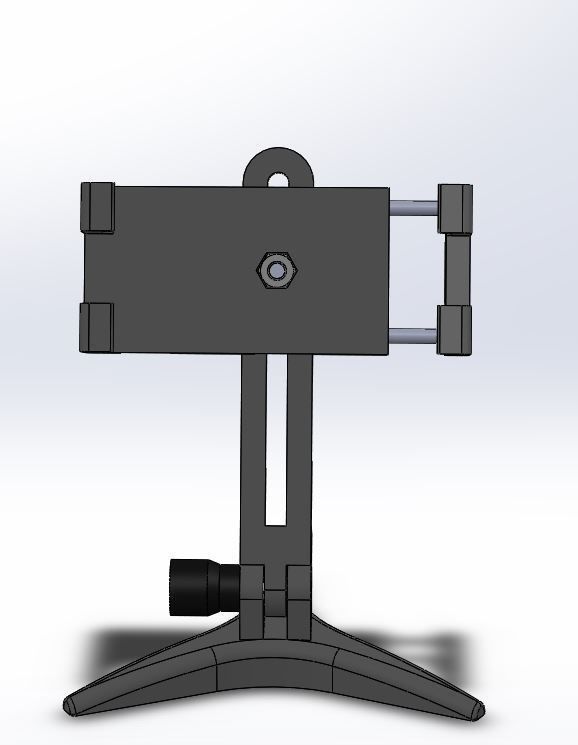

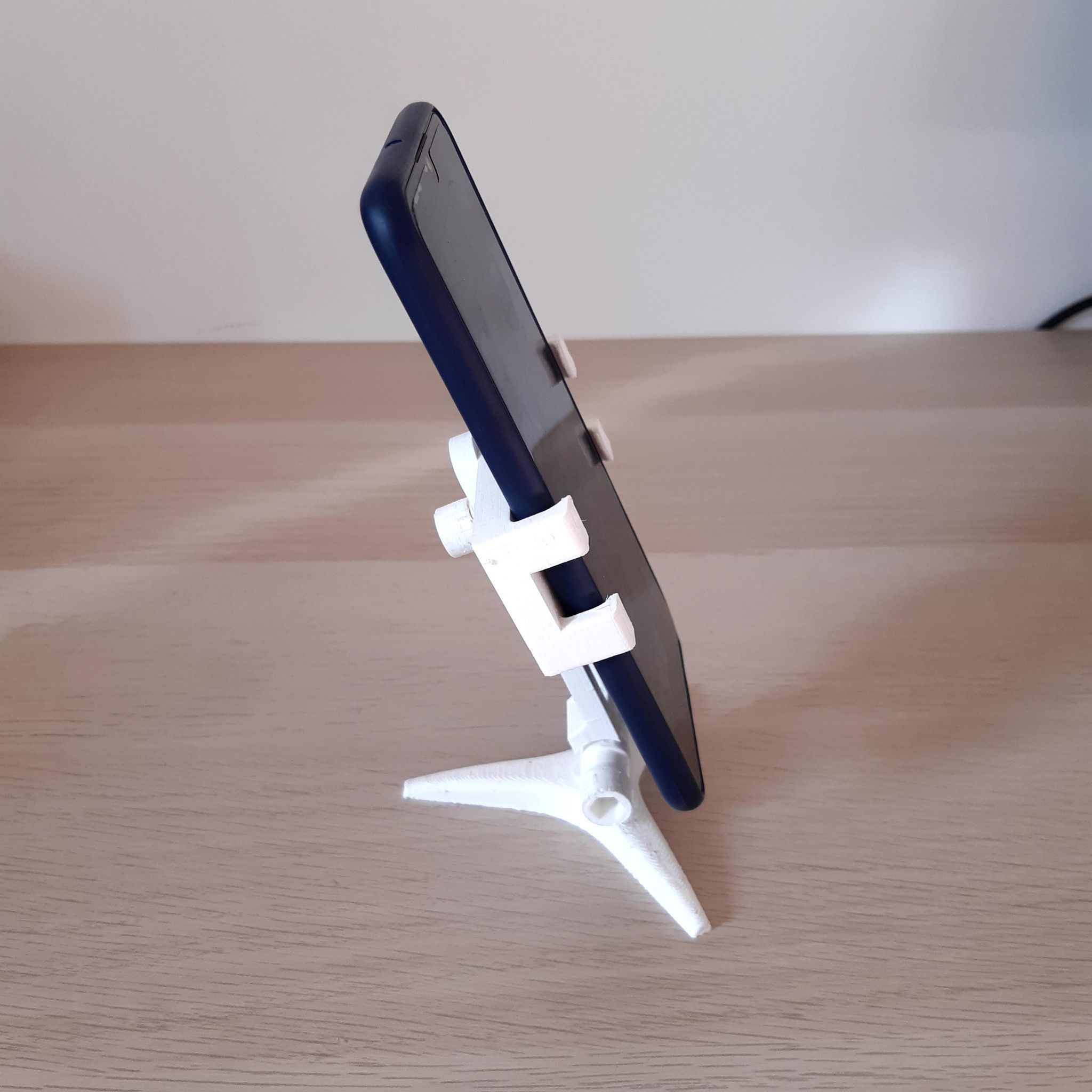

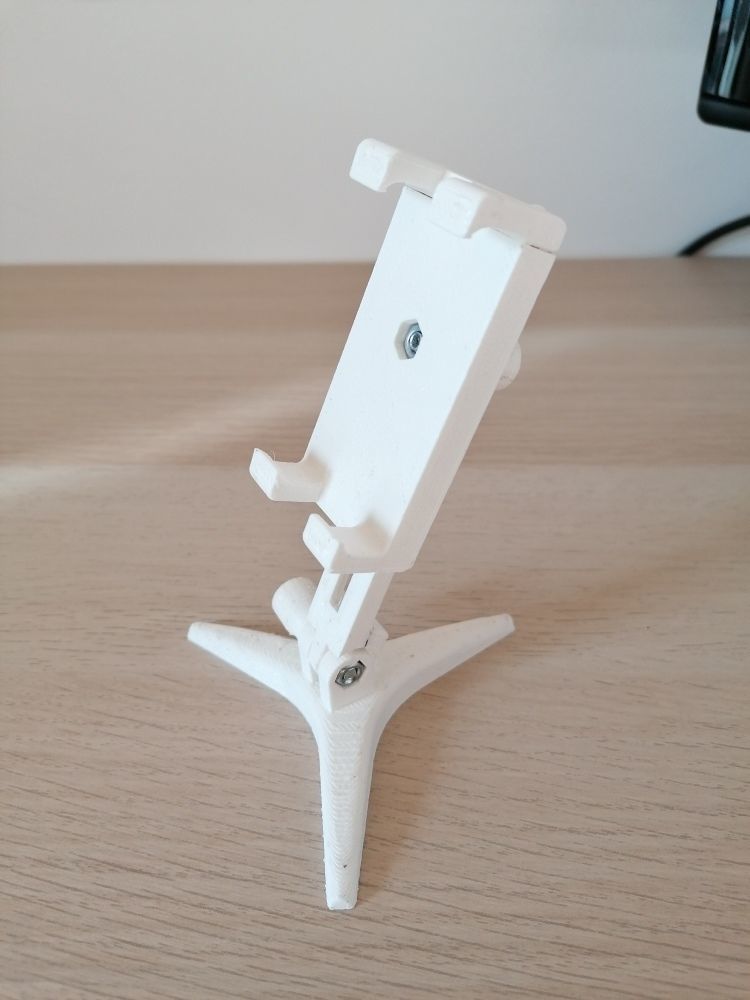

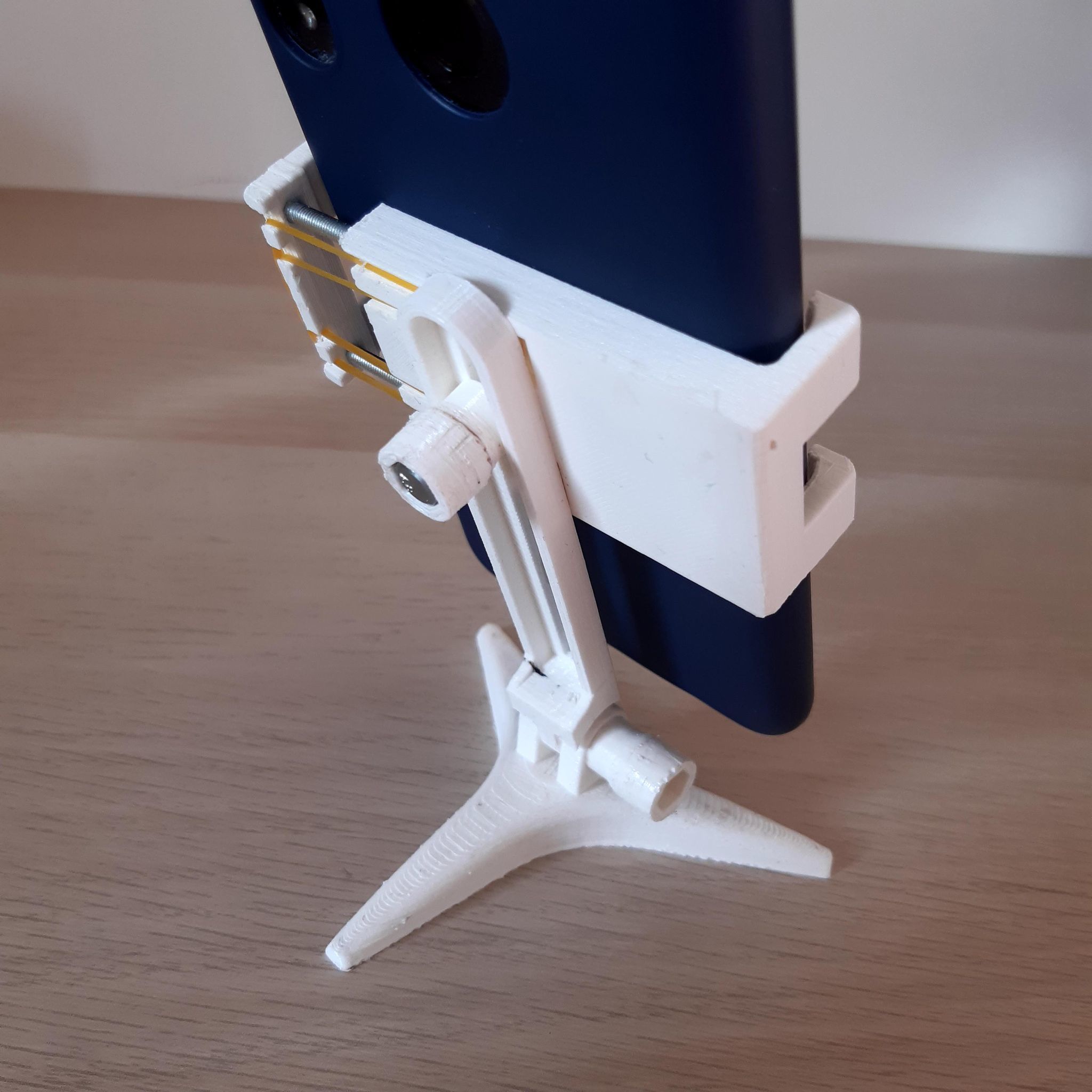

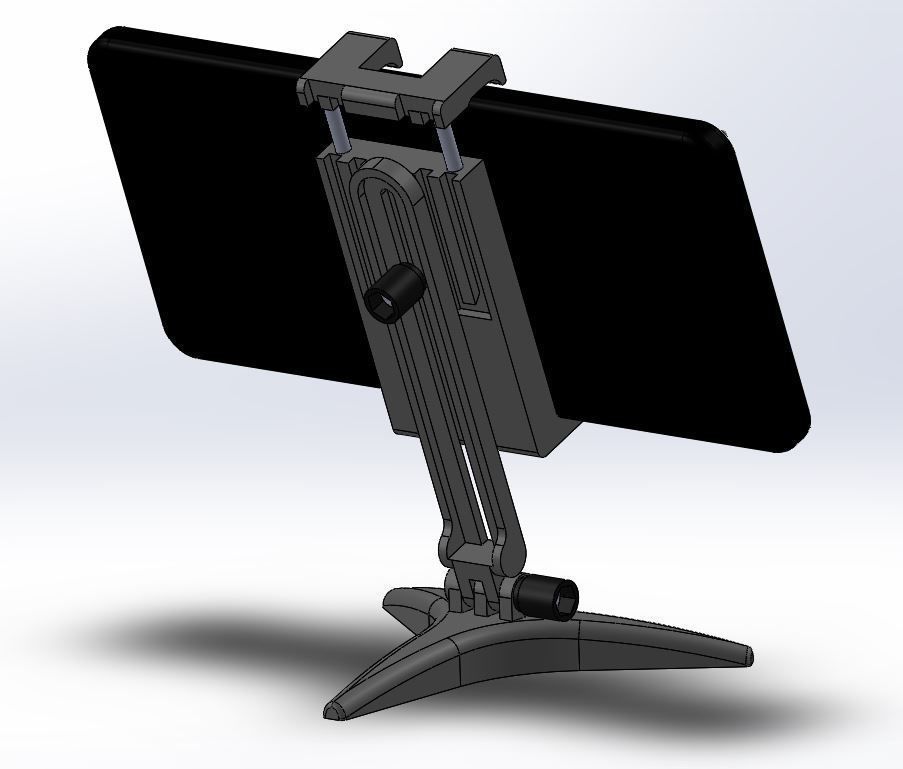

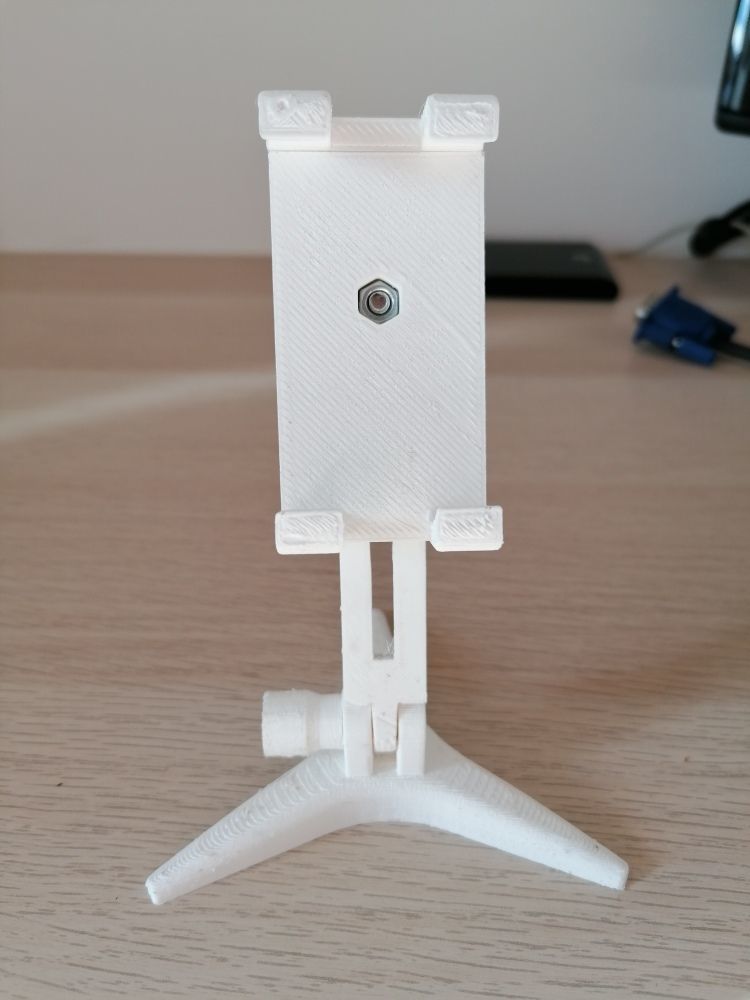

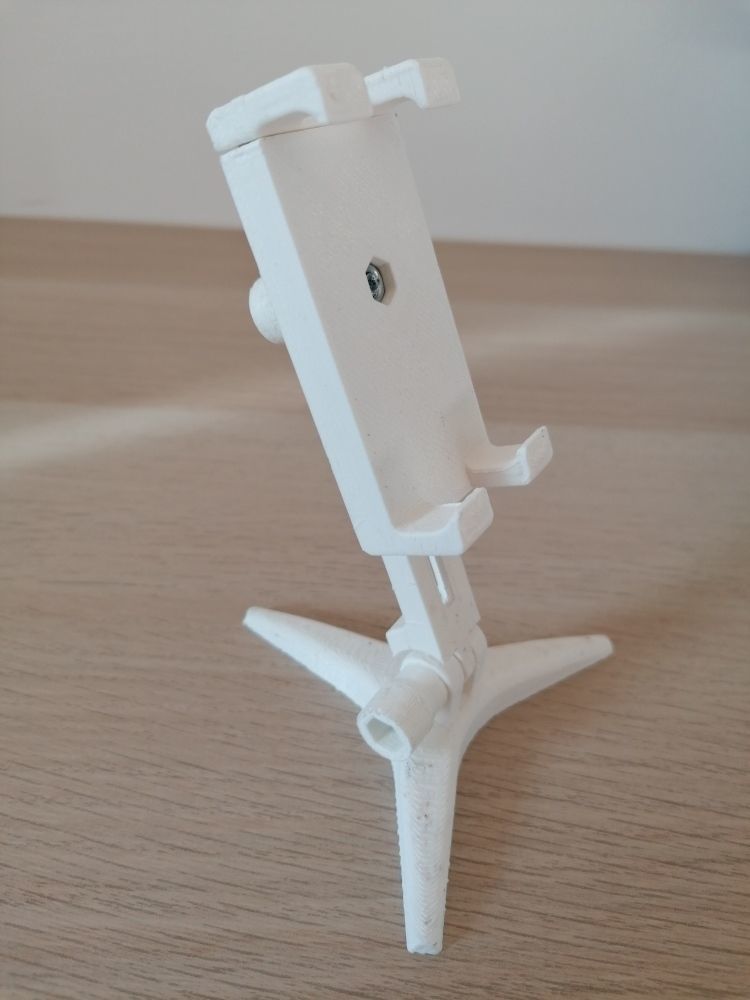

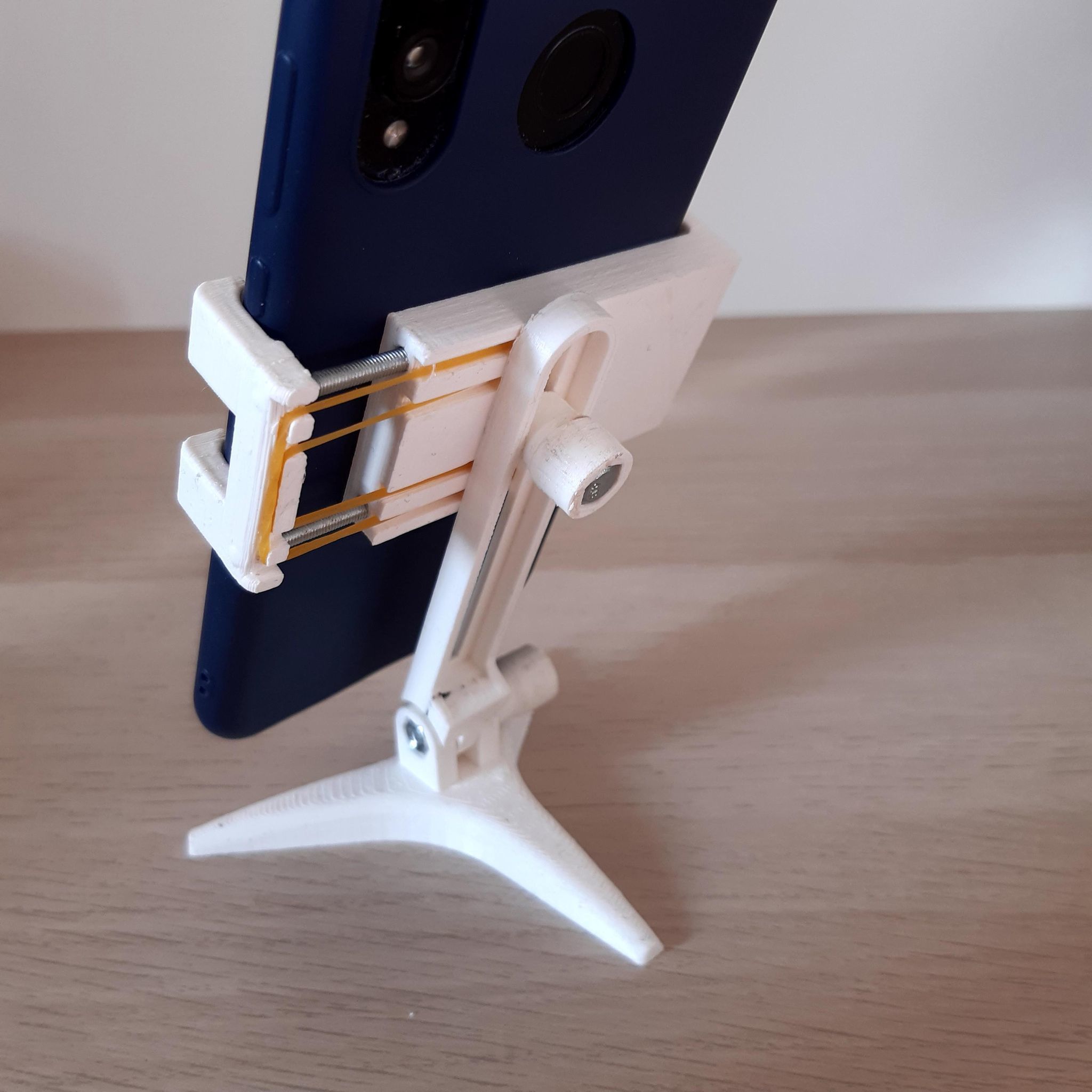

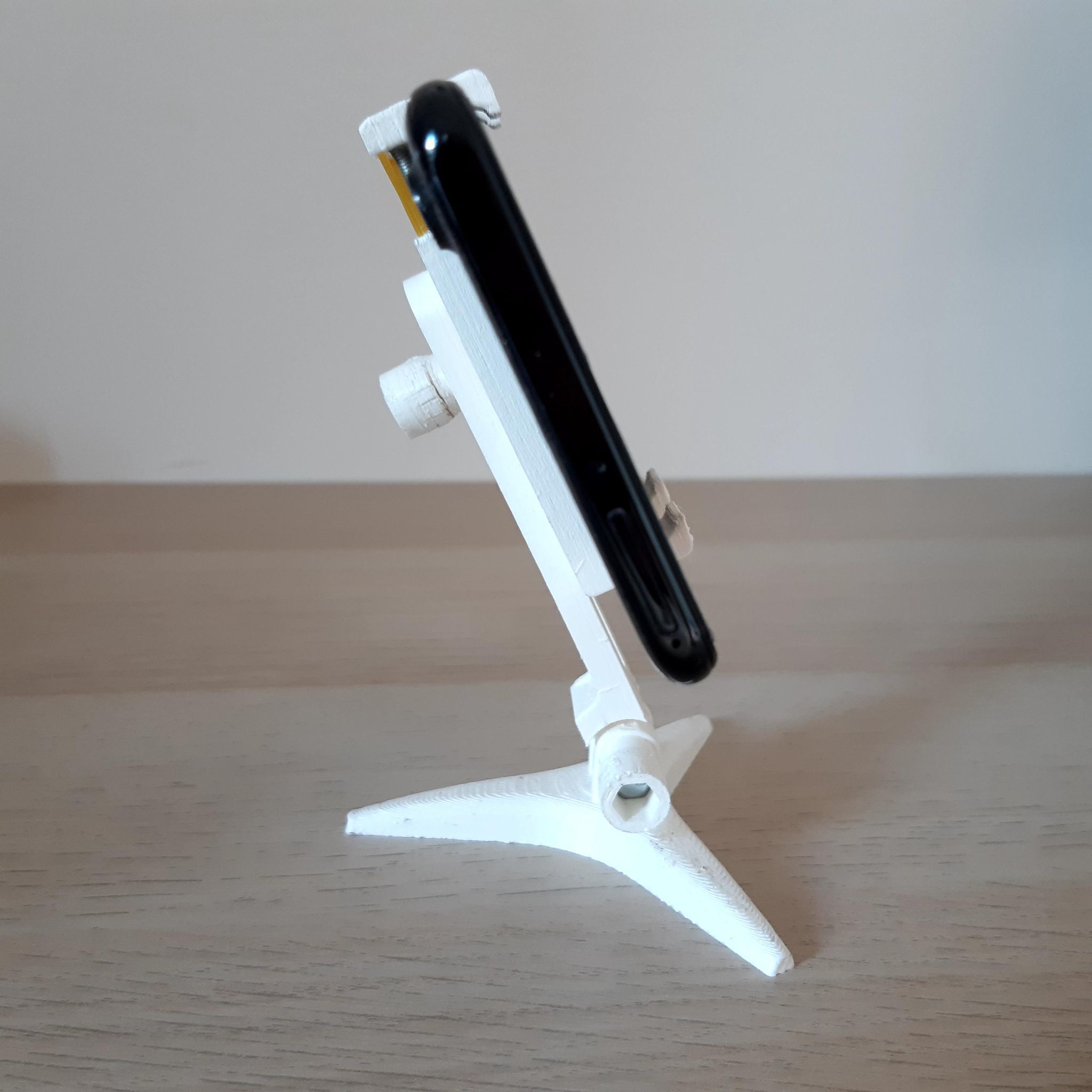

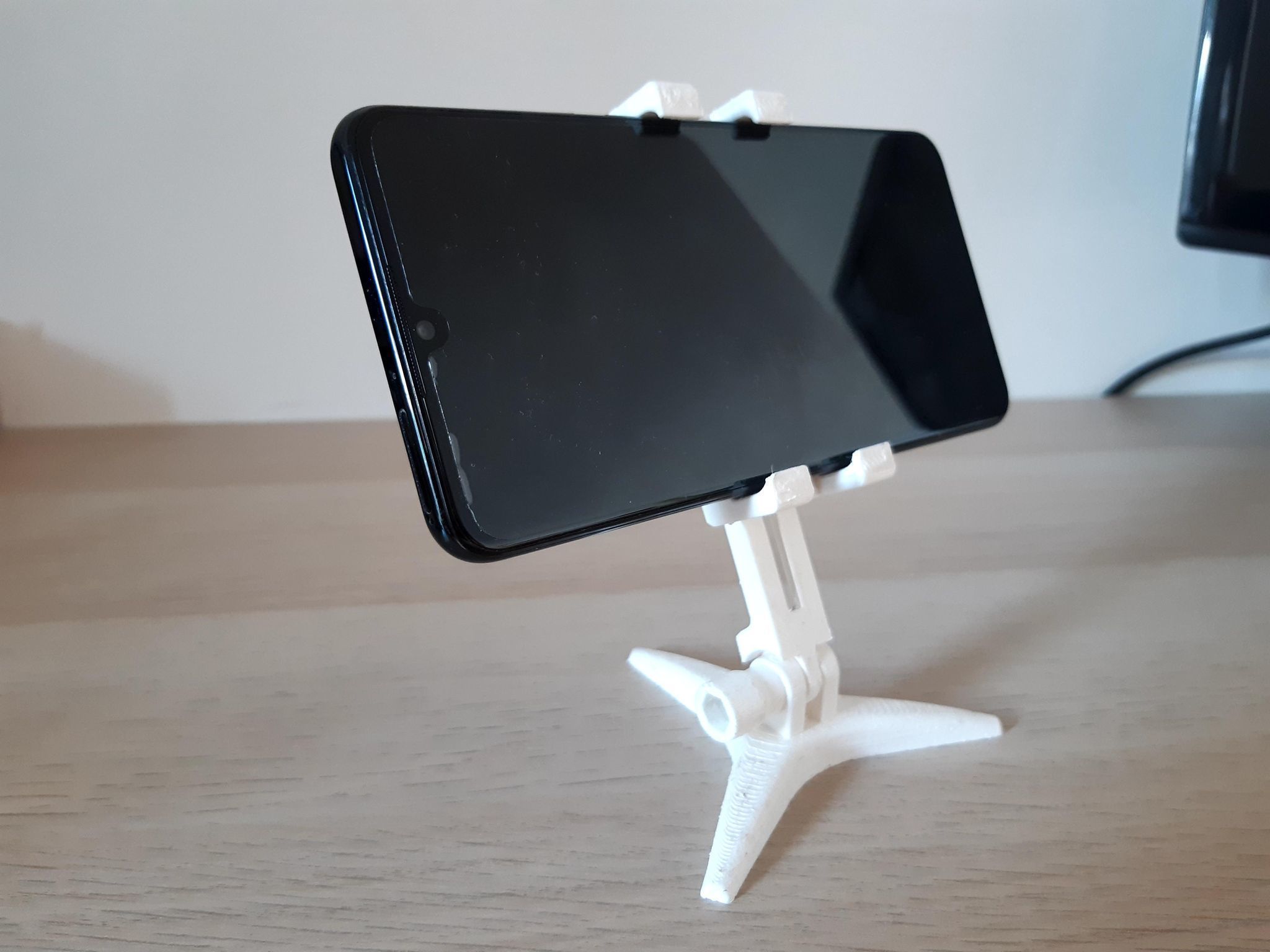

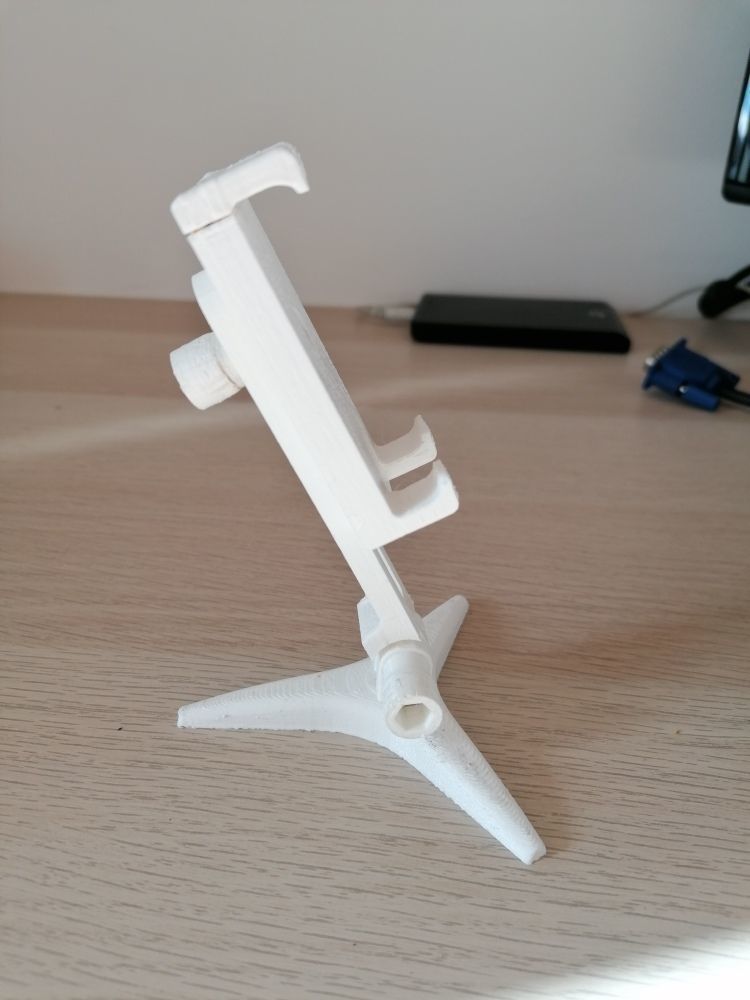

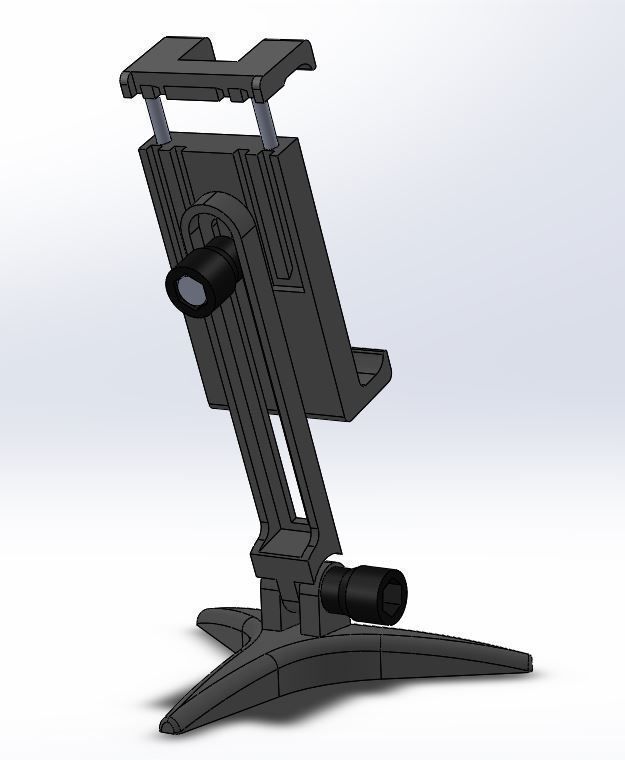

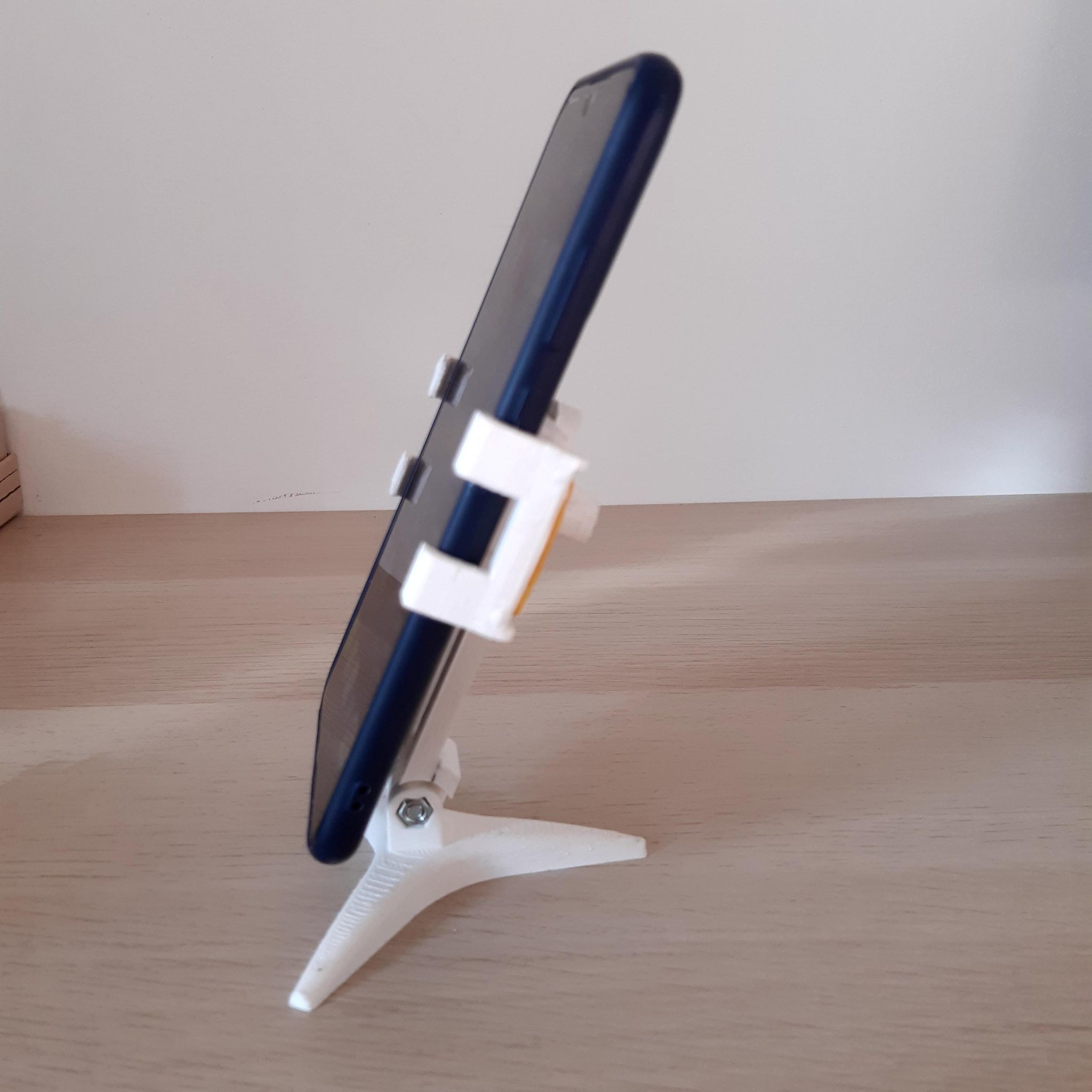

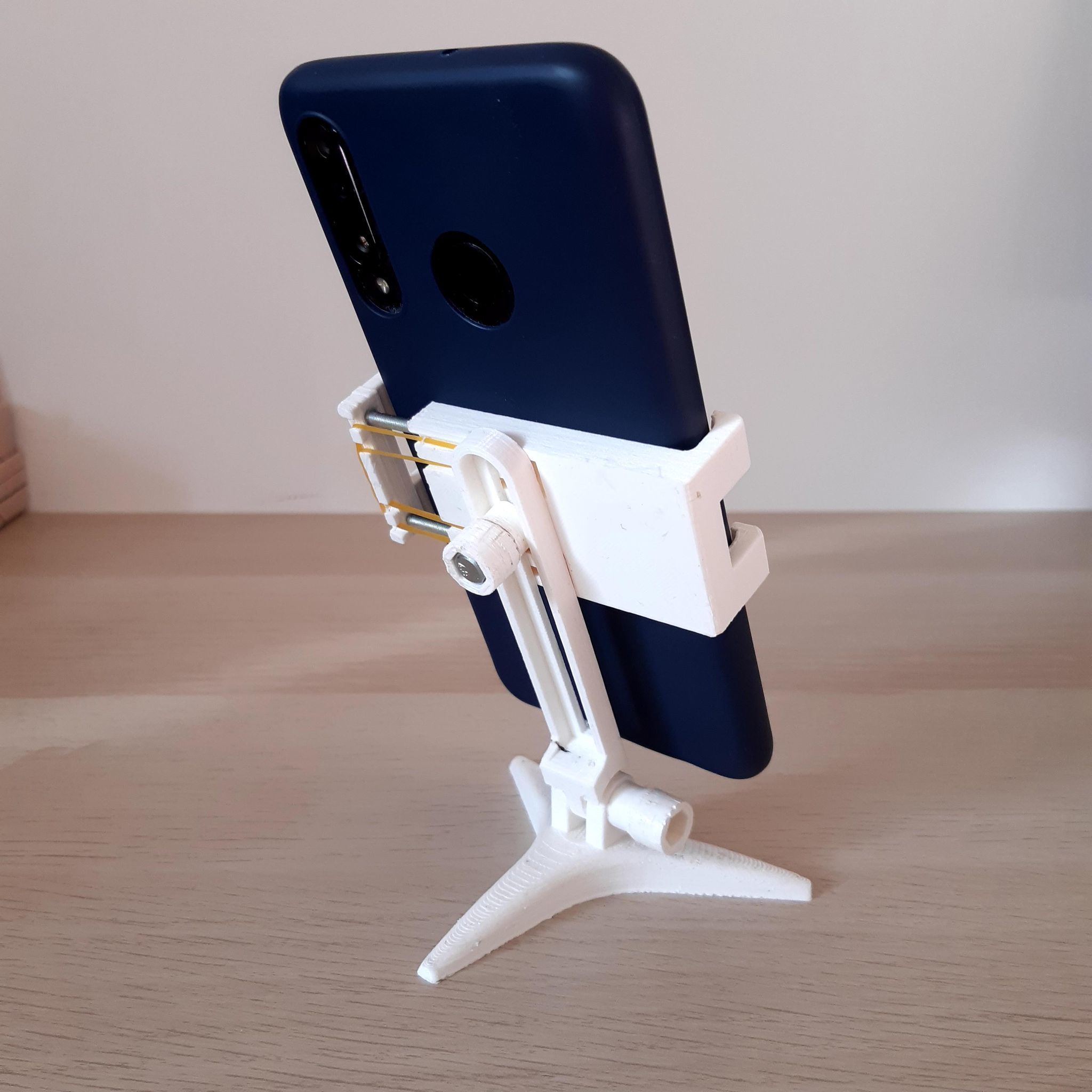

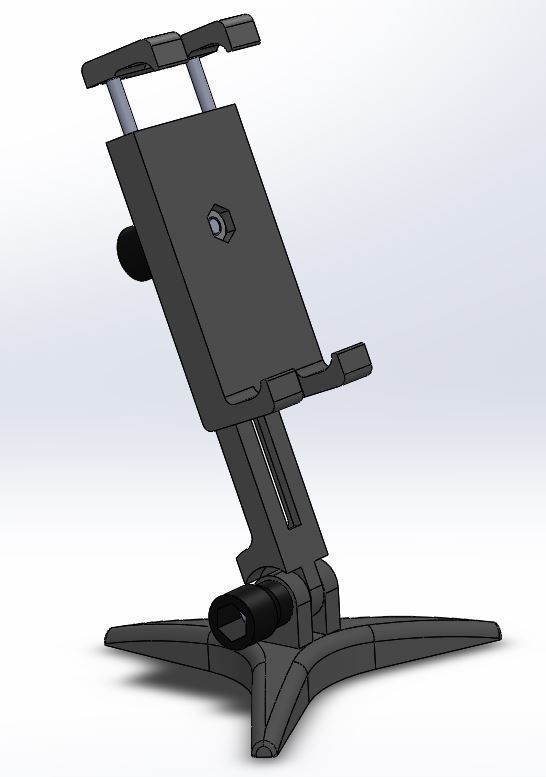

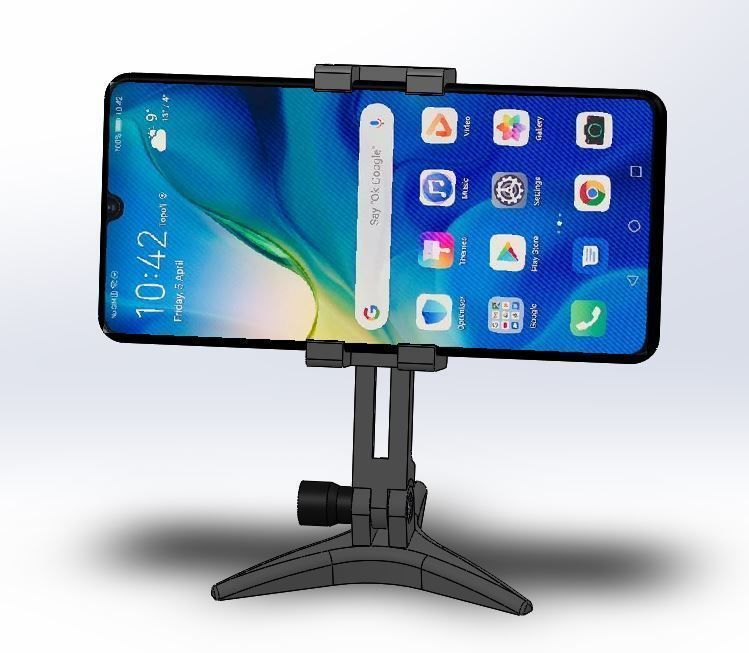

The project makes it possible to create a simple and convenient desktop stand for smartphones up to 7 "in size. Thanks to the ability to rotate 360 °, the smartphone can be oriented both horizontally and vertically. Furthermore, thanks to a screw knob it is possible to slide the support and also adjust its height. The arm on which the support is mounted can rotate 180 °, this also allows you to adjust the inclination for a more comfortable viewing of the screen.

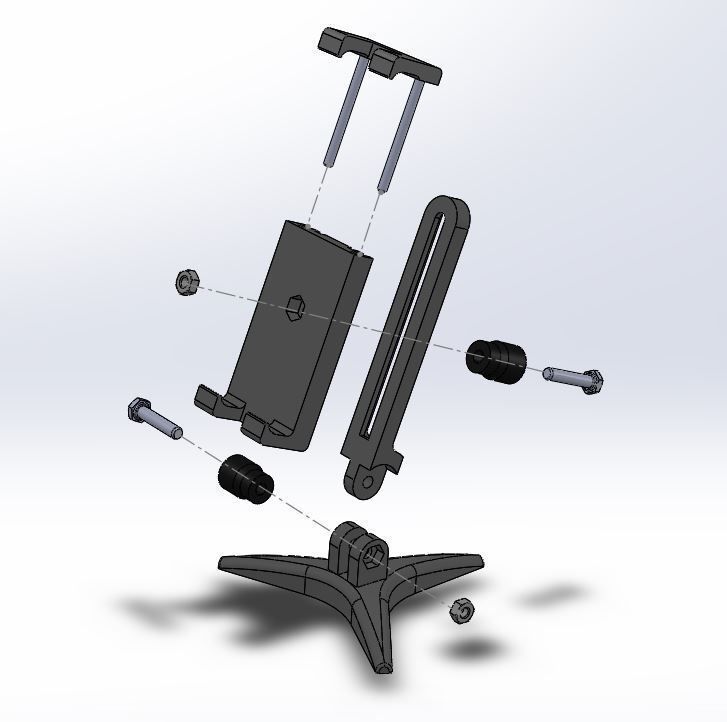

The parts to be 3D printed are listed below:

BaseBracketNobNob2PHONE HOLDER 001PHONE HOLDER 002

To complete the assembly you need these commercial parts:

No.2 - M4 x 20 mm Exagonal screws

No.2 - M4 bolts

No. 1 - Rubber band3D printing settings

For a best printer quality the parts should be printed with the settings below:

First layer height: 0.21 mm

Layers height: 0.14 mm

Infill: 15%

Supports: no supports required
