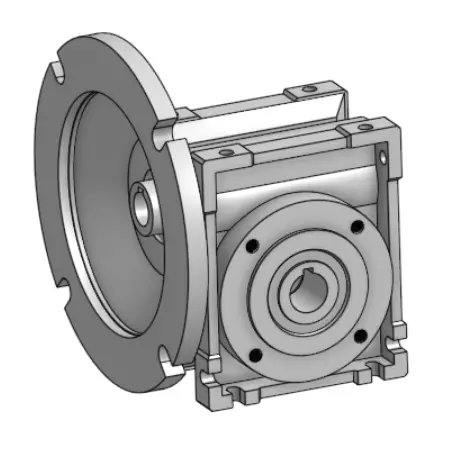

High-quality, dimensionally accurate 3D model of a Flexible-Mount Right-Angle Speed Reducer designed for Face-Mount AC Motors. This model is ideal for industrial animations, engineering visualization, machinery design prototyping, and educational purposes. The design is based on standard NEMA 56C motor frame specifications.

Technical Specifications (Real-World Counterpart)

Motor Frame Compatibility: NEMA 56C

Speed Ratio: 60:1

Max Output Torque: 319 in-lbf @ 1,750 rpm

Max Output Speed: 60 rpm

Max Input Speed: 3,500 rpm

Max Input Power: 0.26 hp

Input Shaft Diameter: 5/8"

Output Shaft Diameter: 3/4"

Shaft Center-to-Center Distance: 1.57"

Overall Dimensions (L x W x H): 5x 6.5 x 6.75"

Radial Load Capacity: 549 lb.

Model Details

Geometry: Clean topology, suitable for close-up rendering.

Scale: Modeled in real-world scale.

Included File Formats: STEP, .IGES, .OBJ, .PARASOLID, .3MF, .STL, .JT

Typical ApplicationsPerfect for populating CAD assemblies or scenes involving conveyor systems, automation equipment, packaging machinery, and general power transmission setups.
