Modular Bent Toroidal Lifter - Concept.

Metal Spherical Mass projected through a bent toroidal form fixed inside a spinning drum powered from the side or from the axles. Multiple spherical masses located at both lower points, forced up through cylindrical rotation.

All masses including the torii and Metal Spheres are balanced related to the central axis, AND each other. some serious symmetry is needed here. The sphere is pushed up yet falls down freely, depending on orientation of both apparatus and metal sphere.

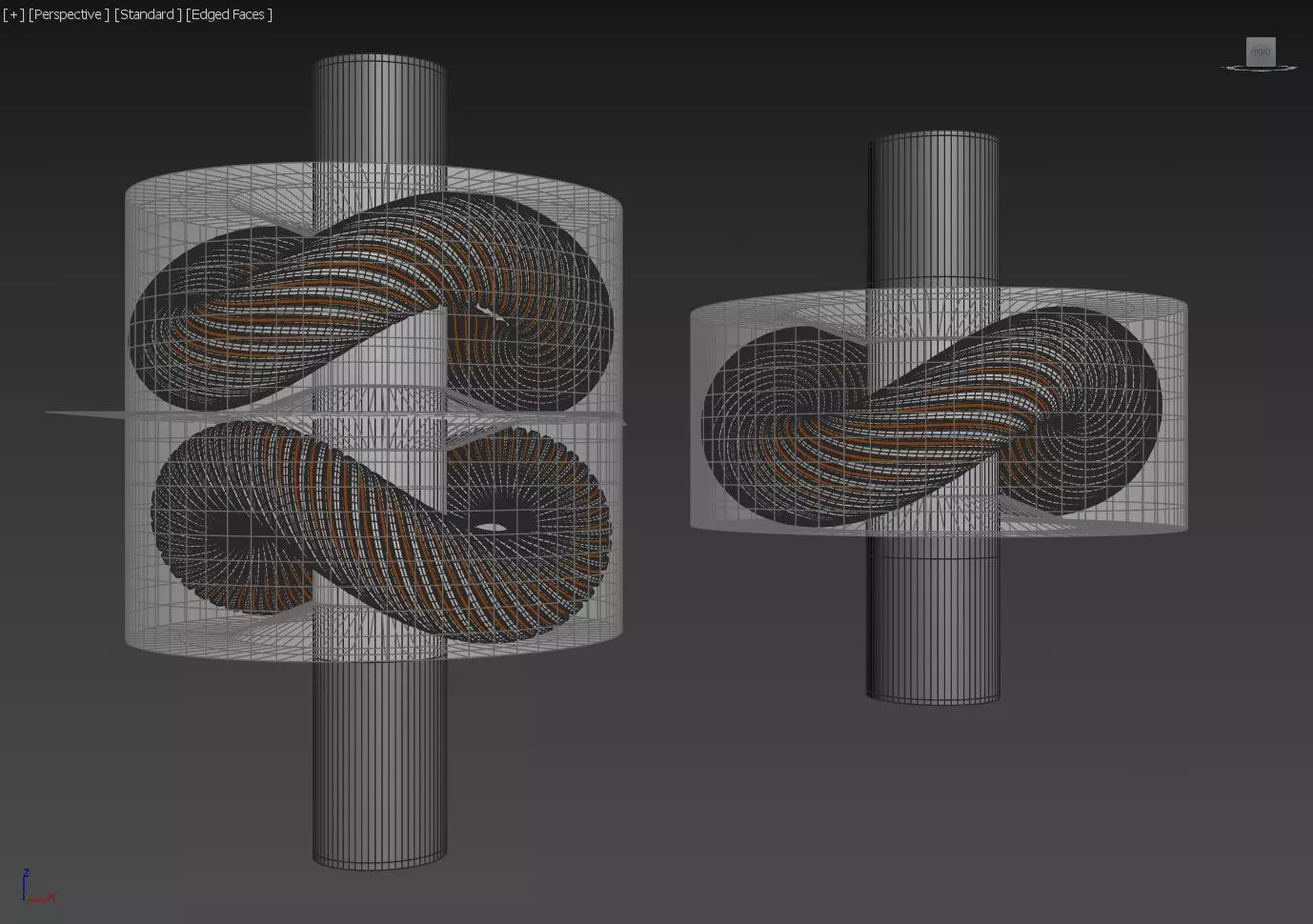

Multiple 3D printable experimental, complemental parts. one is the bent anti torus, the single form with the bent torus form Boolean removed from it.the other is two halves with the bent torus removed from the form, so it becomes more modular and adaptable. a sphere could now be placed inside to then turn the rotor with the complimentary axle.

i have added the booleaned bent toroidal form that it can also be 3D printed and added inside the two halves, or justadd copper coils inside the twisted toroidal forms in its anti space. perhaps we can force a metal sphere through the bent toroidal lform very, very fast, on top of spinning it, forcing the metal sphere, up and down in its place, or fully rotating the mass.

i have added a couple of axle lengths, so that multiple halves could be placed in tandem, working synchronously, or if we fix them with a turn or different angle between units we can get a hardware Matic timing in the ups and downs. added a couple of gif animation files for the eyes pleasure.

Experiment with Powering the Gyro Drum from the sides, or use the axles for full rotation. Power the coils to move the Spherical Mass internally, mass displacement. power when moving up, then letting the sphere fall by gravity, perhaps creating a humming sound.all toroidal mass perfectly balanced in relation to its central axis, and to each other.
