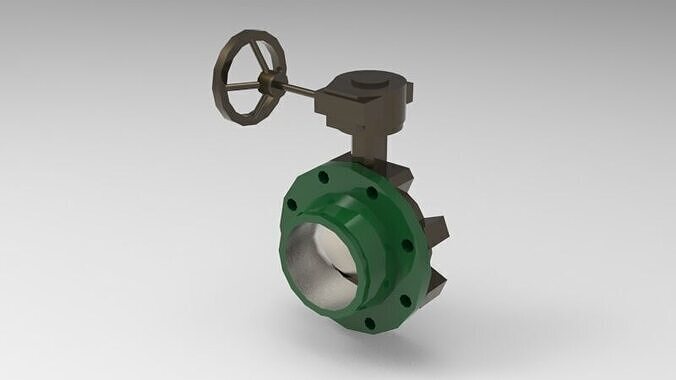

gear operated butterfly valve 3D print model

A gear operated butterfly valve is a type of quarter-turn valve that uses a gearbox mechanism to control the rotation of a disc mounted on a shaft, which regulates the flow of fluid through a pipeline. The gear operator allows for easier and more precise operation, especially in larger valve sizes or high-pressure systems, by reducing the manual effort needed to open or close the valve. Butterfly valves are compact, cost-effective, and commonly used in water treatment, HVAC, chemical, and industrial process applications due to their quick shut-off capability and minimal pressure drop.
