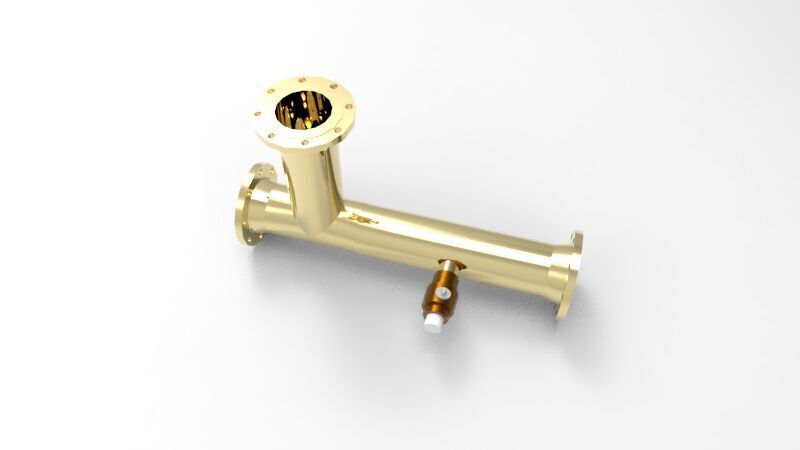

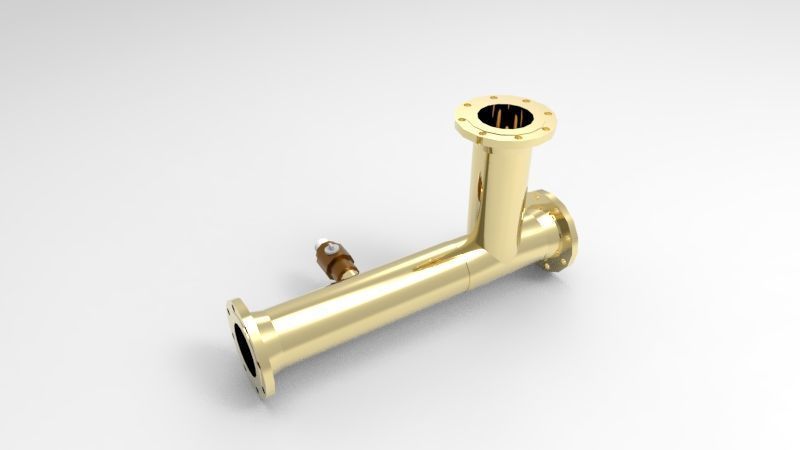

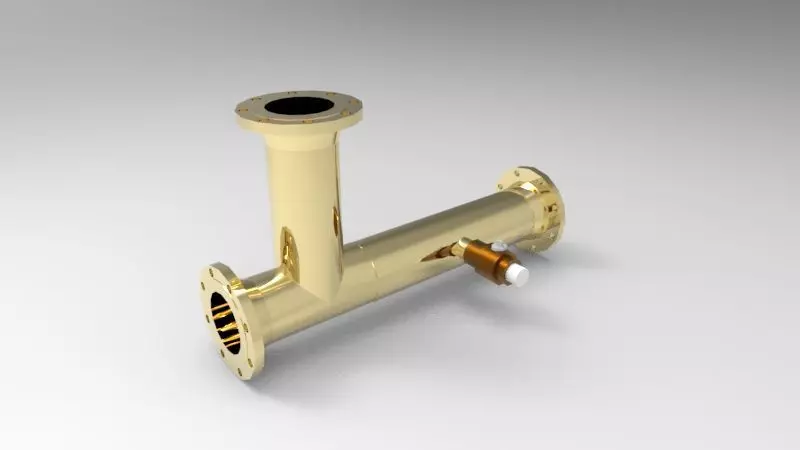

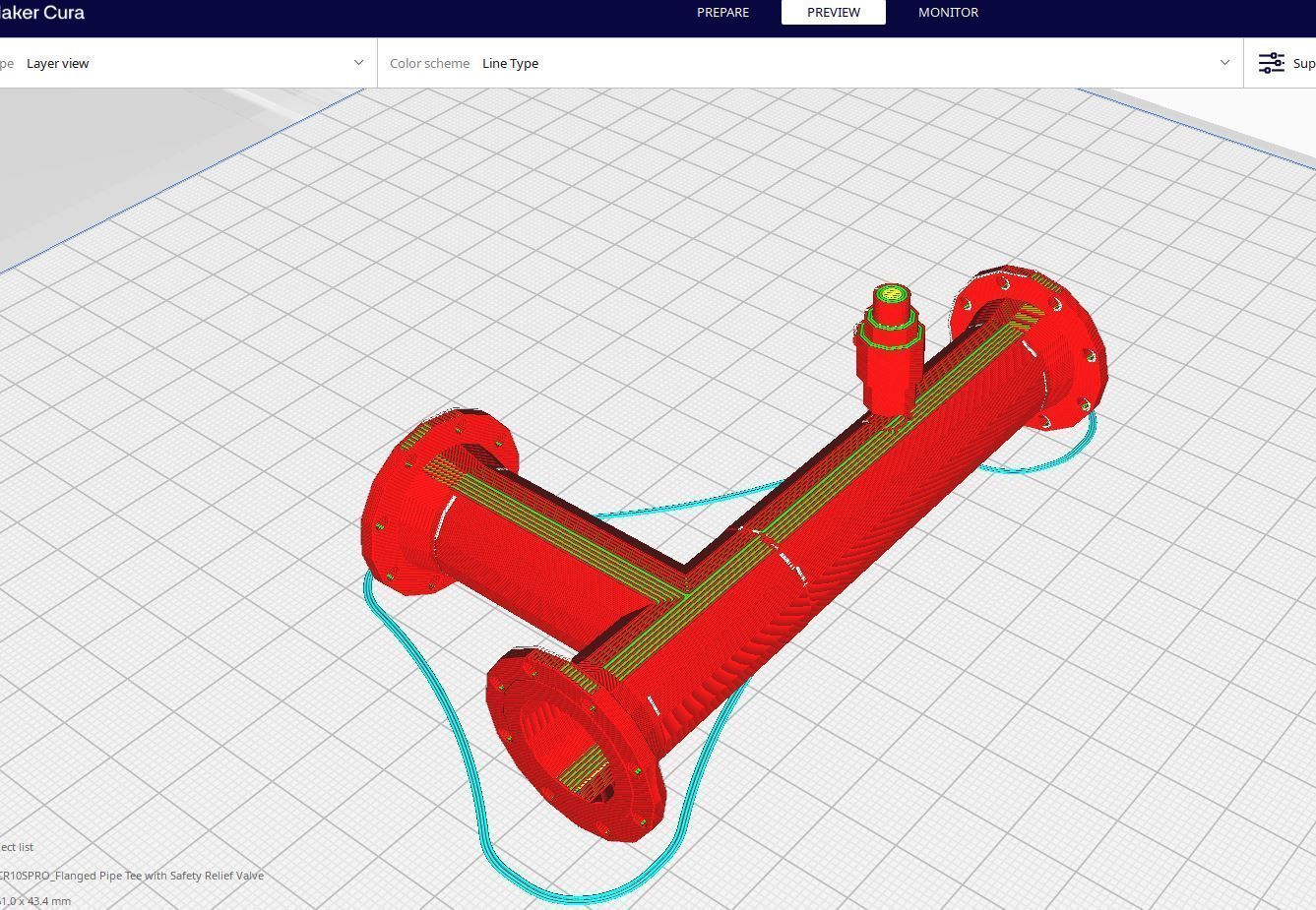

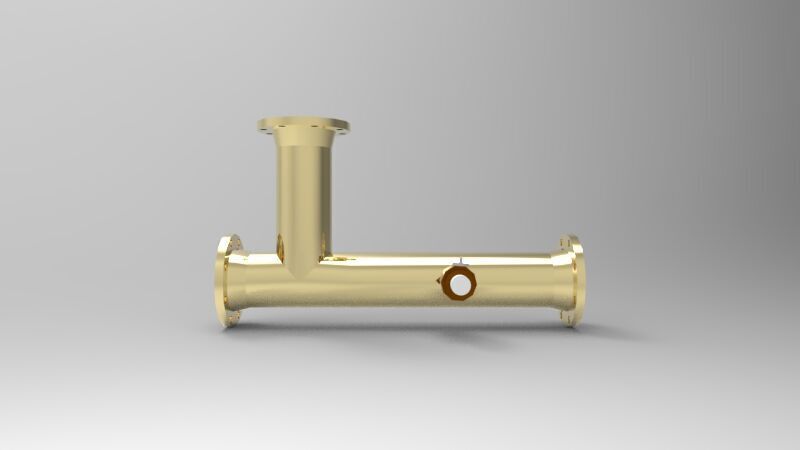

Flanged pipe tee with safety relief 3D print model

A flanged pipe tee with safety relief is a specialized pipe fitting that combines a tee joint—used to split or combine flow in a pipeline—with a flanged connection for secure bolting and a safety relief valve outlet to manage excess pressure. This configuration is essential in pressurized systems where overpressure conditions could lead to equipment failure or safety hazards. The tee directs flow through three paths, while the relief valve (typically installed on the branch outlet) automatically vents fluid or gas when pressure exceeds a set limit. Common in industries like oil and gas, chemical processing, and power generation, this component supports both fluid distribution and system protection.
