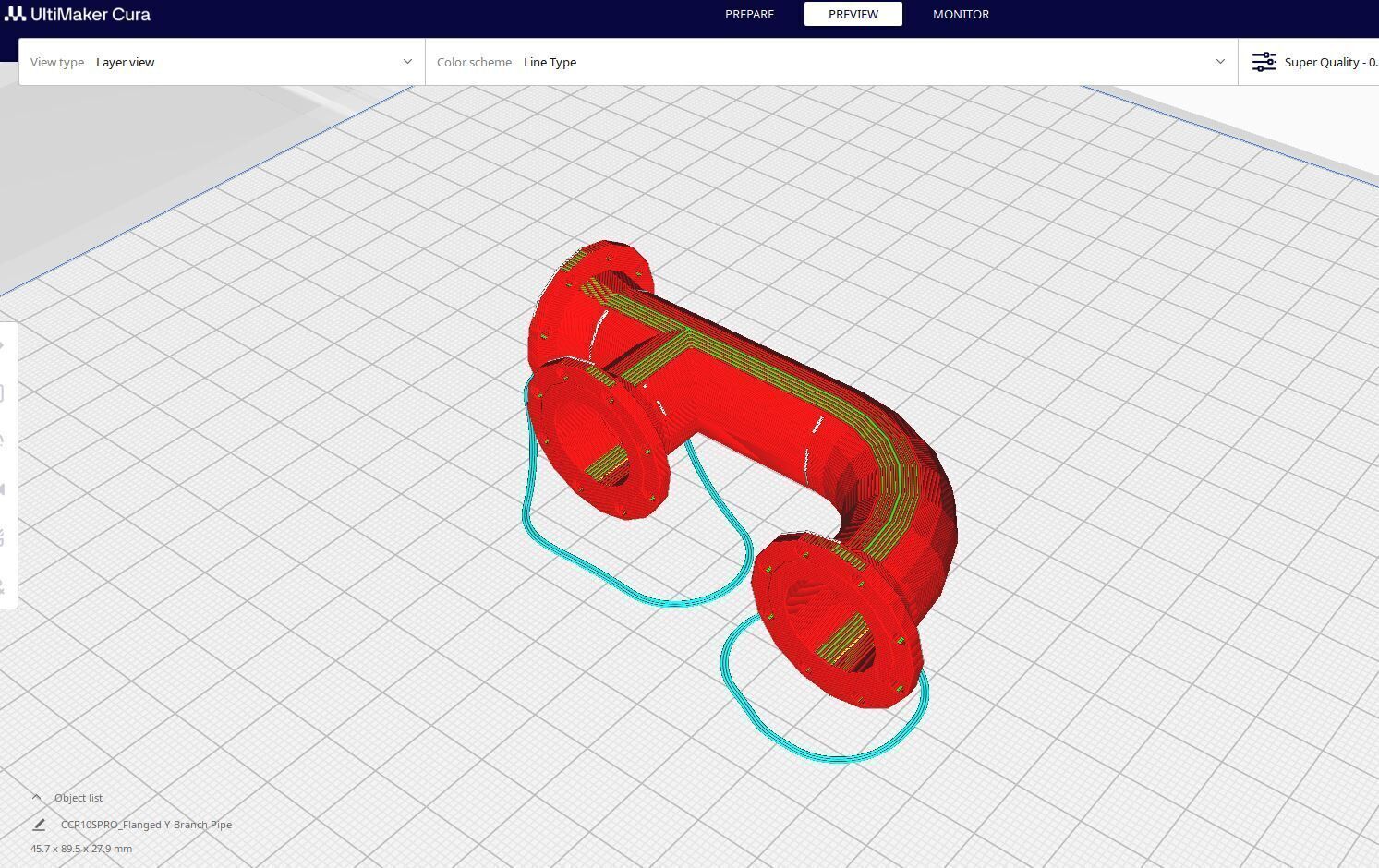

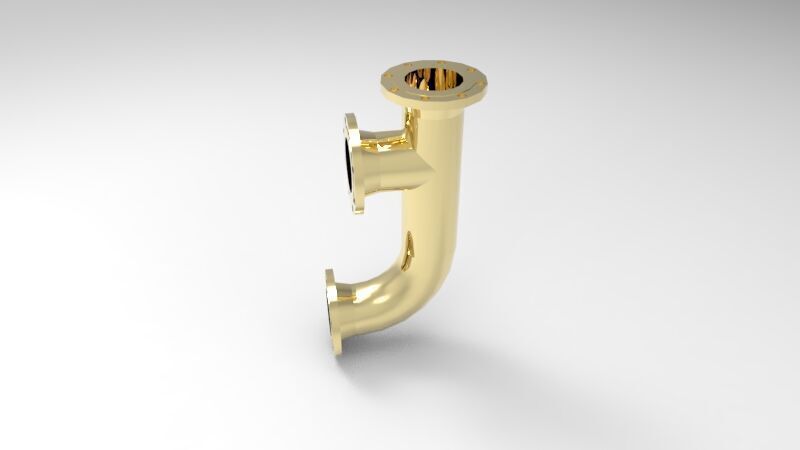

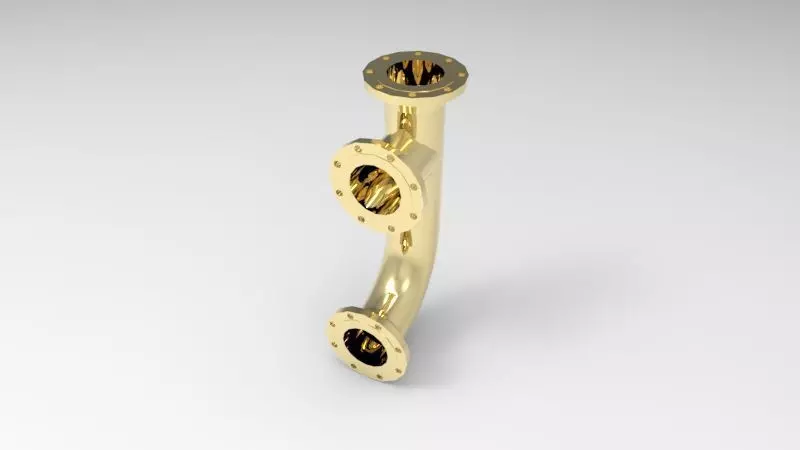

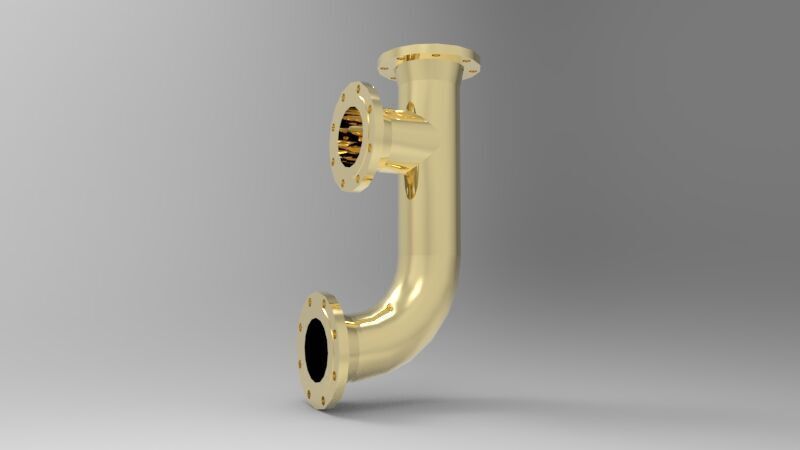

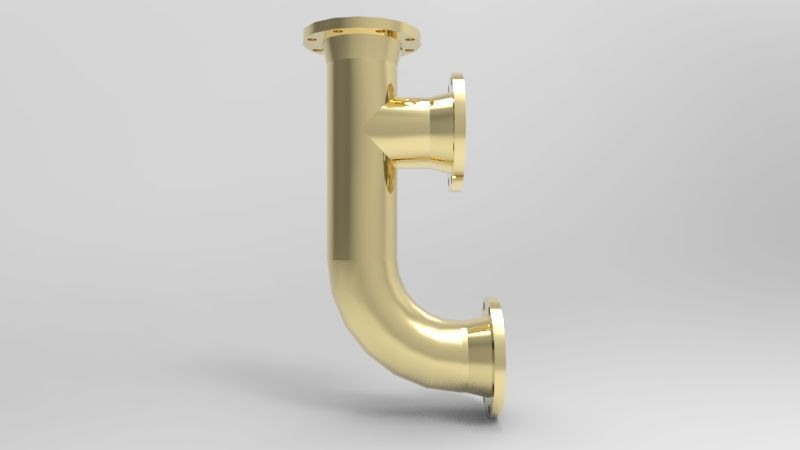

Flanged Y-branch pipe 3D print model

A flanged Y-branch pipe is a pipe fitting designed to split or merge flow at a Y-shaped angle, typically 45 degrees, with flanged ends for secure, bolted connections to other pipeline components. This fitting allows for smoother flow transitions compared to standard T-joints, reducing turbulence and pressure loss in the system. Commonly used in fluid handling systems, chemical processing, HVAC, and industrial drainage, flanged Y-branch pipes are built from materials like carbon steel, stainless steel, or PVC, depending on the application and fluid type. The flanged design ensures ease of installation, maintenance, and leak-tight performance in high-pressure or corrosive environments.
