Specs
- -Length : 530 mm
- -Wingspan : 900 mm
- -Airfoil : Naca4412
- -Print Weight : 350-420 gram
- -Flying Weight : 650-700 gram
- -Wing Area : 15,8 dm2
- -Wing Loading : 41 g/dm2
Electronics:
- -30A ESC
- -6x2 Propeller
- -2 X 9gram Servo
- -2205 2300Kv Brushless Motor
- -3-6s 1500-2200 mAh Lipo
- -Minimum 3ch Transmitter and Receiver
- -FPV System
- -12mm carbon tube 640 mm
- -all screws m3- You can use screws or magnets for cover mounting.

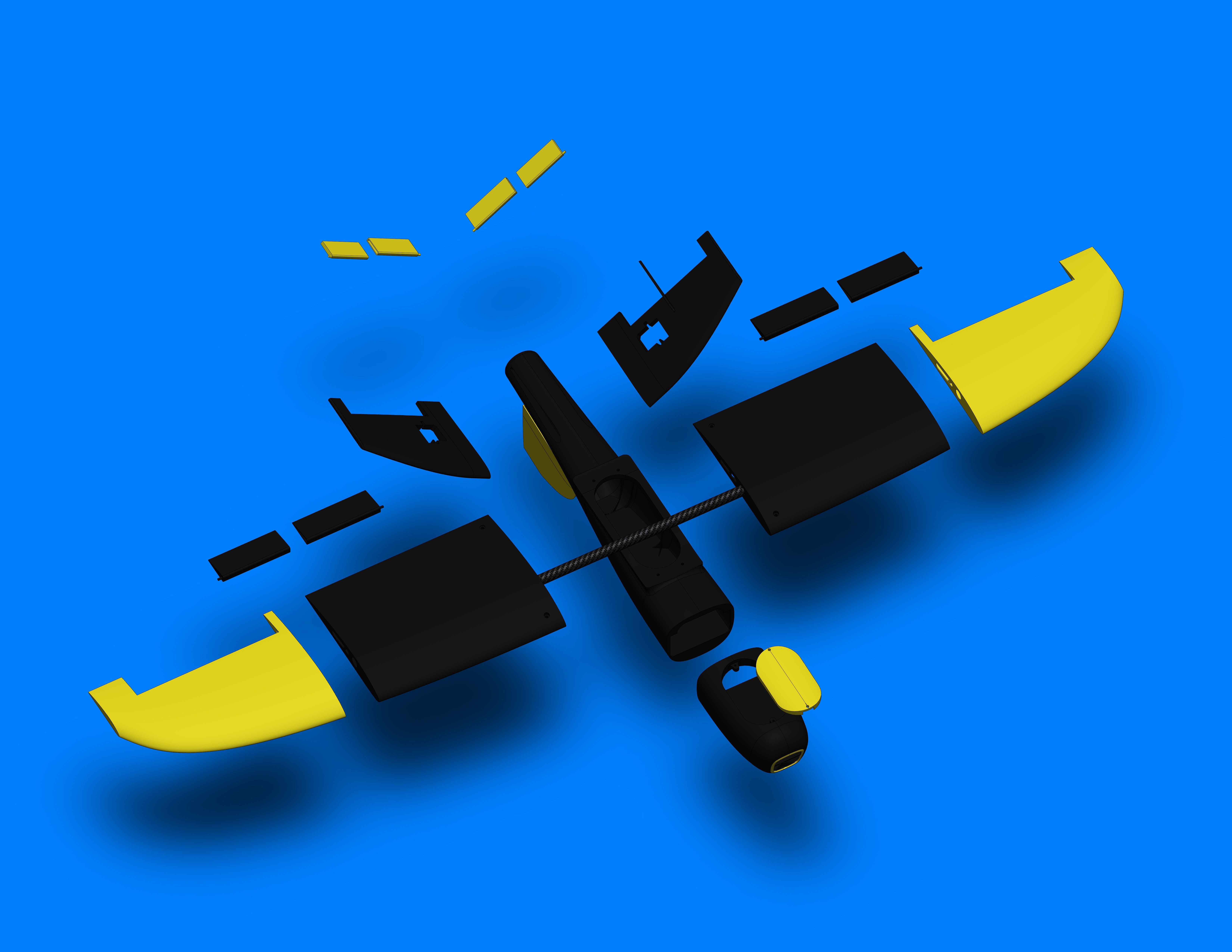

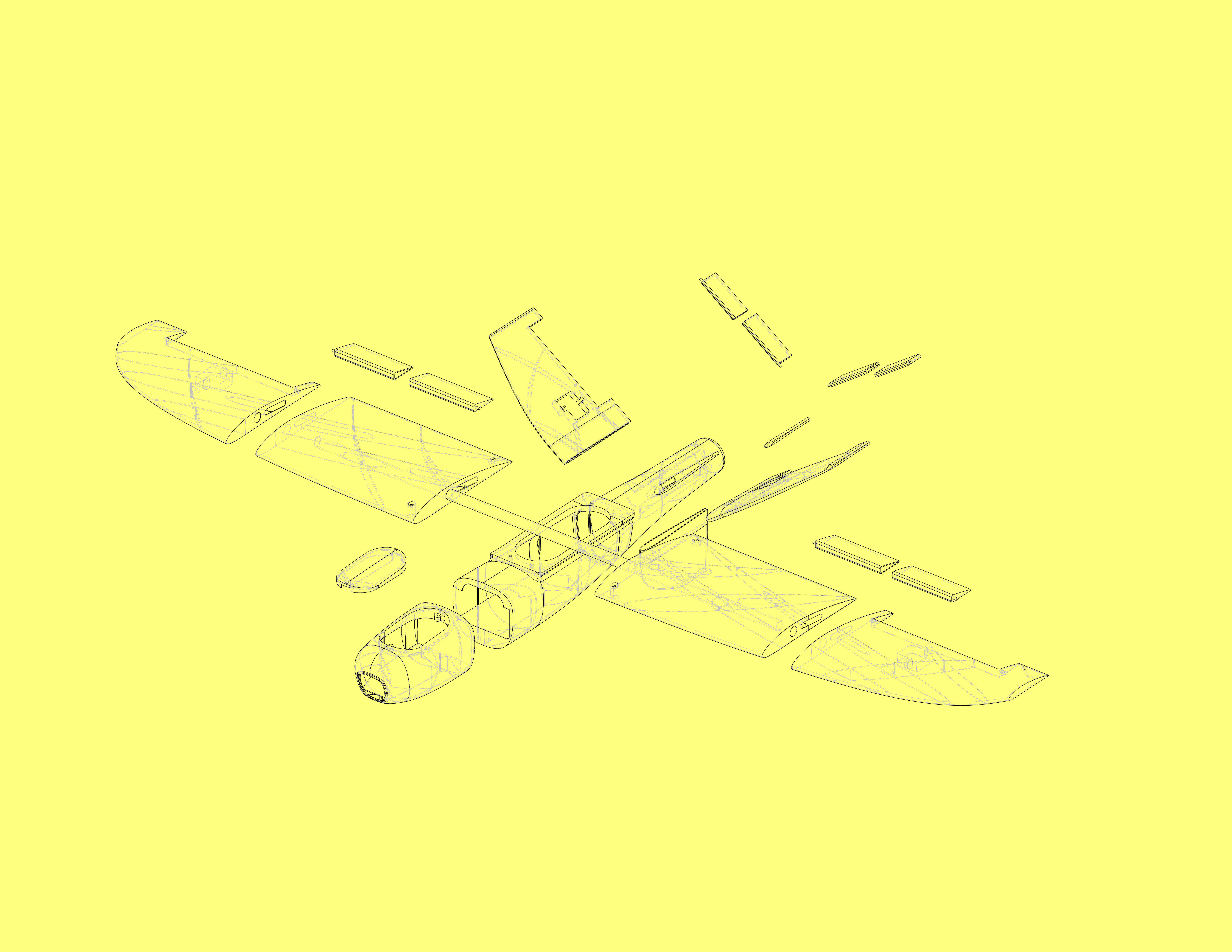

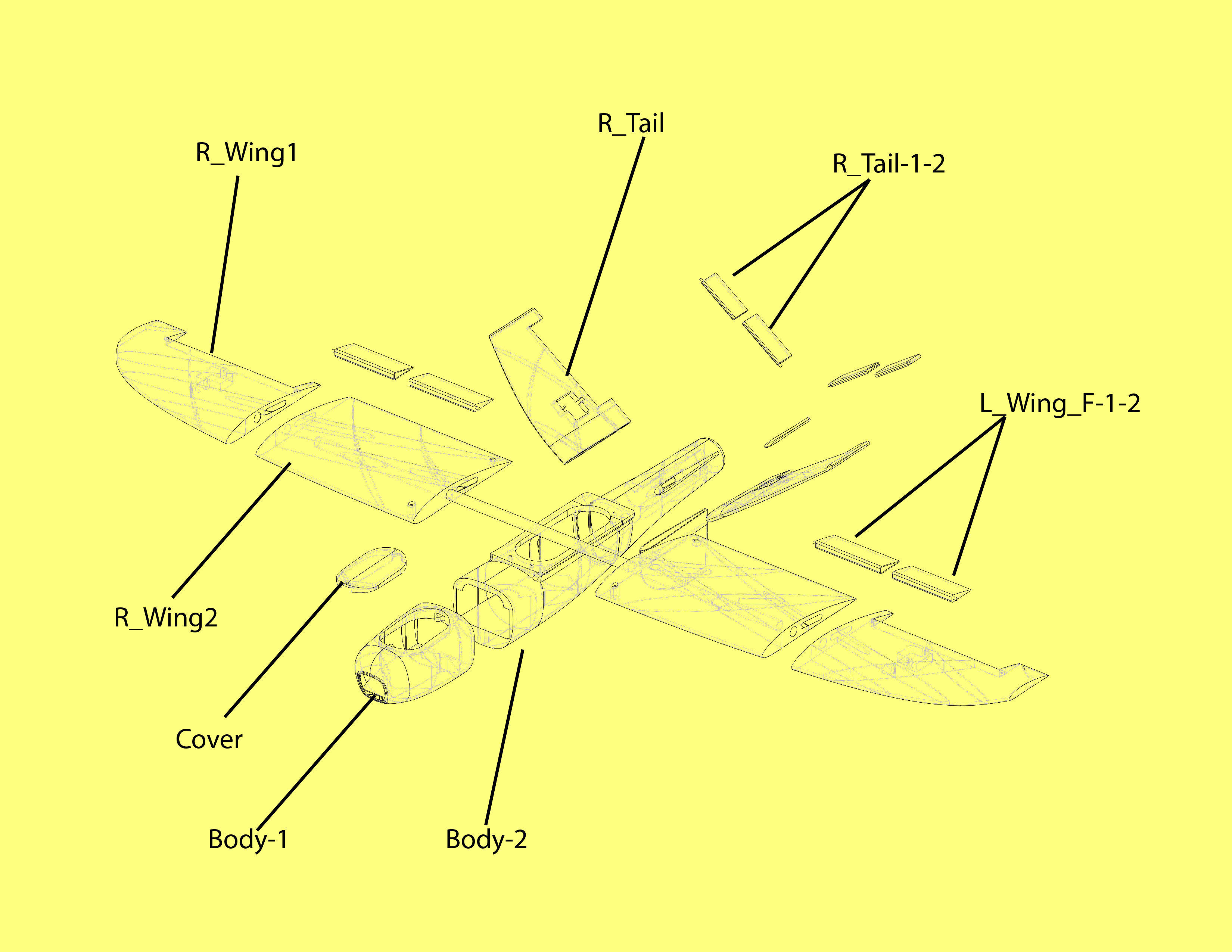

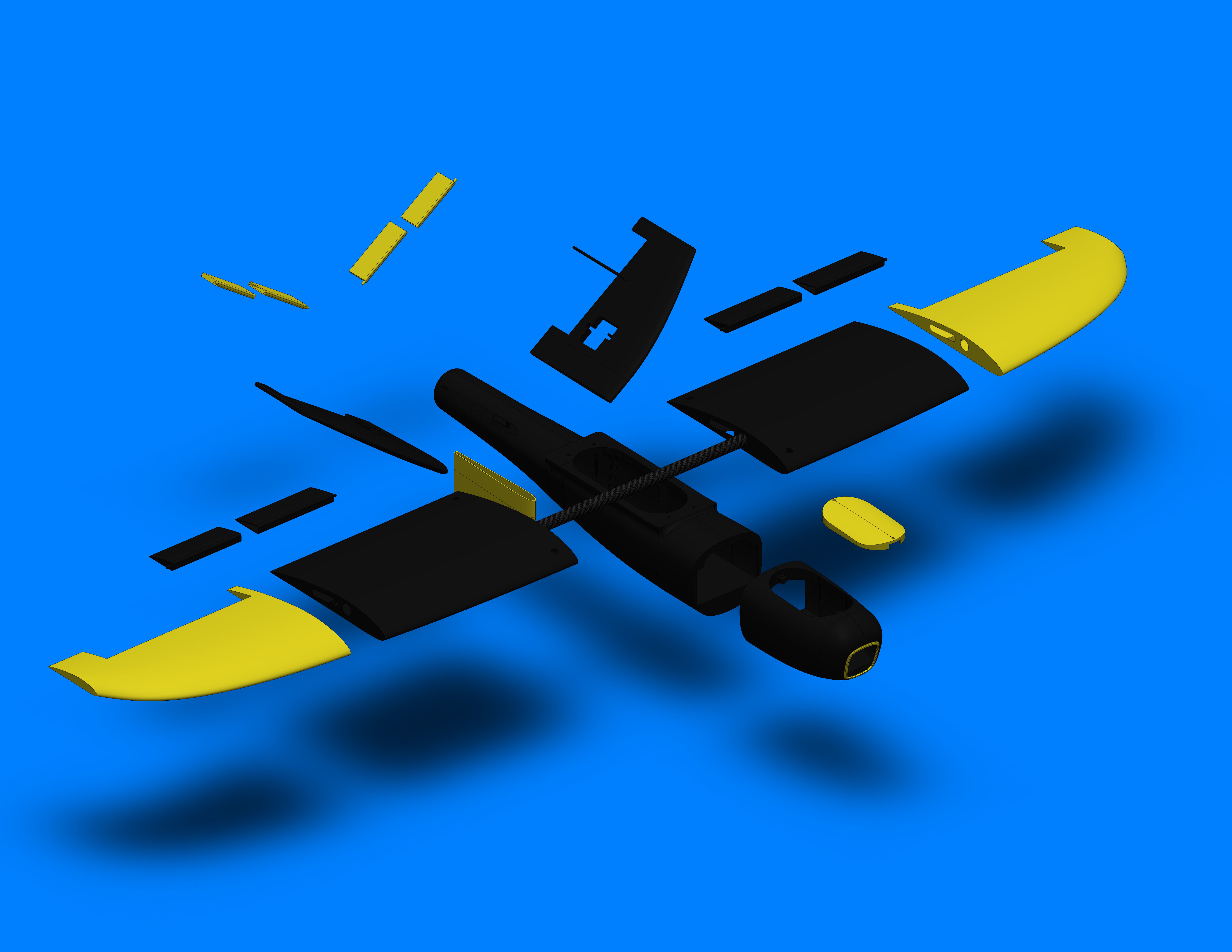

All parts are designed to be glued, the activator fast adhesive you need
All design belongs to me and it is strictly forbidden to share it with third parties without permission, all rights that may arise from this are reserved.
Please feel free to message us if you have any requests.
Definitely do not print with pla filament, after the first flight, the body of the plane will probably be warped, so you should definitely use pet-g or special filaments for planes.
--0,4 nozzle
--0,2 Layer Height
--PETG
--Heated Bed
--Minimum 180x180x180 mm Bed Size
