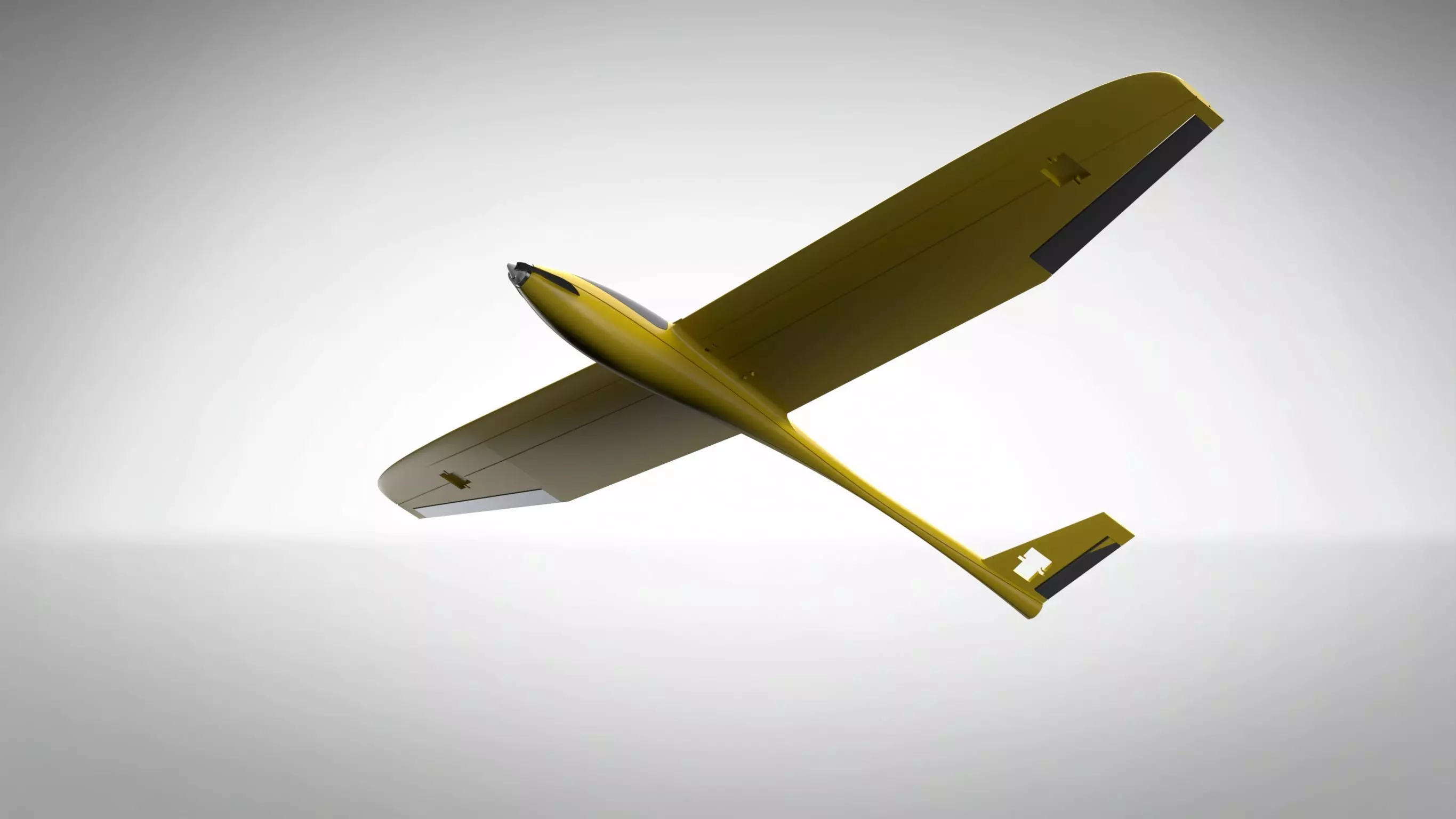

GLIDER RC PLANE 3D print model

Glider Rc Plane

Specs

-Length : 750 mm -Wingspan : 1500 mm -Airfoil : PK-91-A -Print Weight : 850 gram -Flying Weight : 1200 gram -Wing Area : 24.75 sq.dm -Wing Loading : 40 g/dm2

Electronics:

-40A ESC -10*6 folding props -4 X 9gram Servo ( Emax metal gear ) -2212~2218 motor(900~1,100kv) -3-4S 1500-2200 mAh Lipo -Minimum 3ch Transmitter and Receiver -FPV System

-all screws m3 -m3 screws 20mm 4x -m3 screws 10mm 2x ( for conapy2 ) -magnet circle 10mm 2x

You can use screws or magnets for cover mounting.

All parts are designed to be glued, the activator fast adhesive you need

All design belongs to me and it is strictly forbidden to share it with third

parties without permission, all rights that may arise from this are

reserved.

Please feel free to message us if you have any requests

Body design is made in a way that can be mounted according to the 1.75 mm diameter filament. In order to increase the strength, you can place and stick a 1.75mm diameter filament into these channels. pleasant flights

3D PRINTING SETTINGS Definitely do not print with pla filament, after the first flight, the body

of the plane will probably be warped, so you should definitely use pet-g or

special filaments for planes.

--0,4 nozzle --0,2 Layer Height --PETG-LW PLA --Heated Bed --Minimum 190x190x190 mm Bed Size
