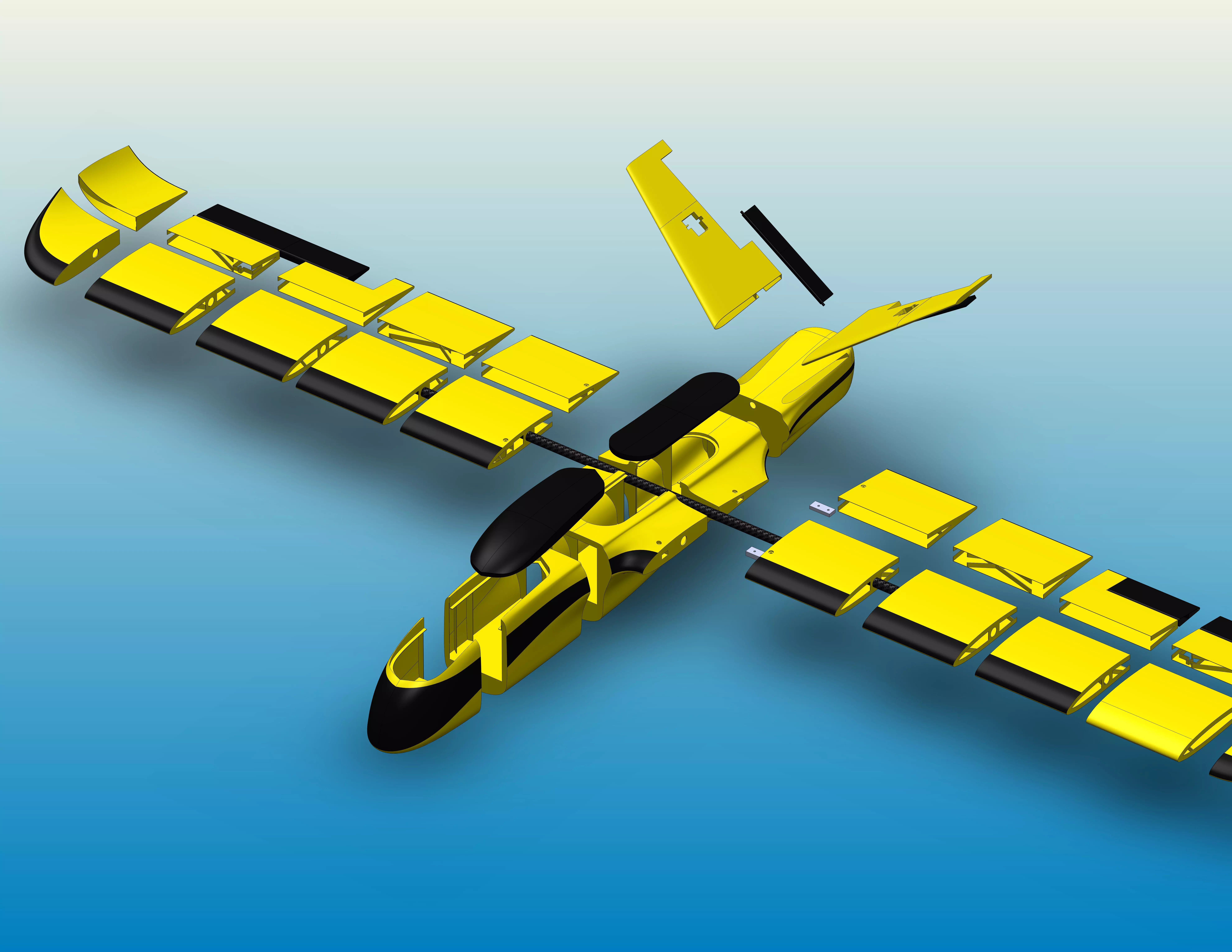

RC PLANE, Big Whale

Specs

• -Length : 935 mm
• -Wingspan : 1740 mm
• -Airfoil : NACA4412
• -Print Weight : 1400 gram
• -Flying Weight : 2000-2150 gram
• -Wing Area : 47.3 sq.dm
• -Wing Loading : 45 g/sq.dm

Electronics:

• -40A/60A ESC
• -11x5,5 APC Propeller
• -4 X 9gram Servo
• -X2820-1100KV Brushless Motor( max thrust 3060gr on 14,8v)
• -3-6s 2200/4500 mAh Lipo
• -Minimum 3ch Transmitter and Receiver
• -FPV System
• -15mm carbon tube 1000 mm
• -8x m3 screw and nut

All design belongs to me and it is strictly forbidden to share it with third parties without permission, all rights that may arise from this are reserved.

3D PRINTING SETTINGS

• 0,4 nozzle
• 0,2 Layer Height
• PETG
• Heated Bed

• Minimum 200x200 mm Bed Size

• Definitely do not print with pla filament, after the first flight, the body of the plane will probably be warped, so you should definitely use pet-g or special filaments for planes.
