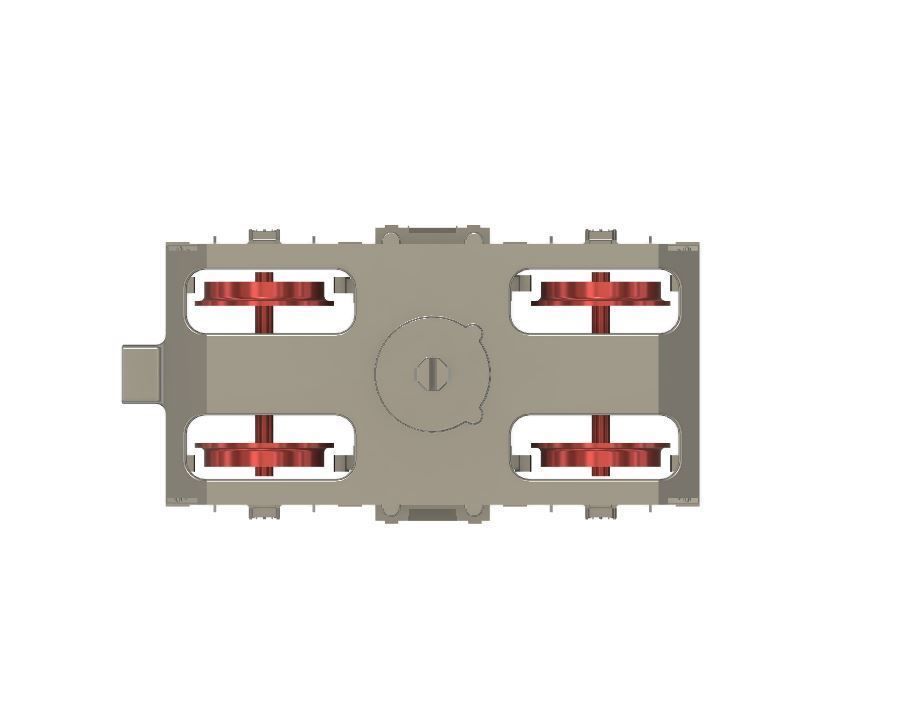

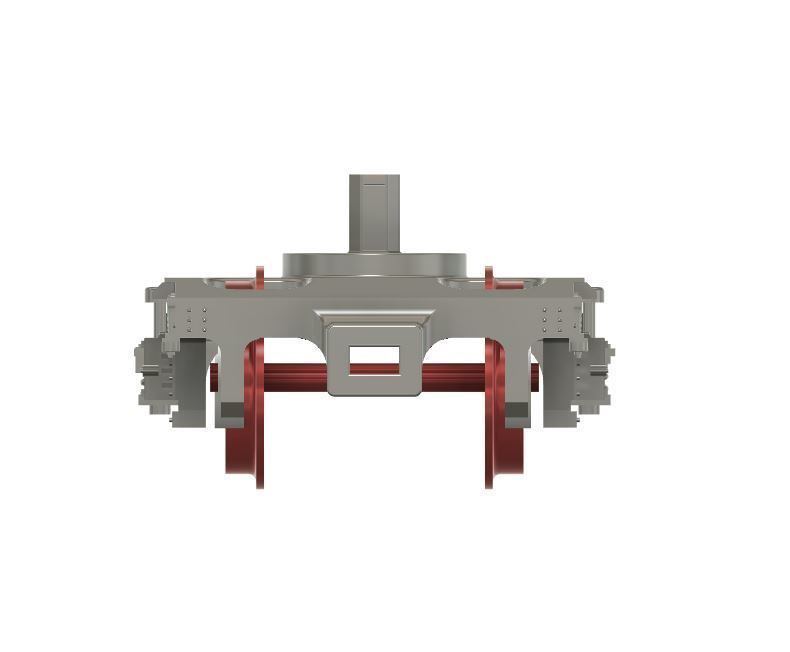

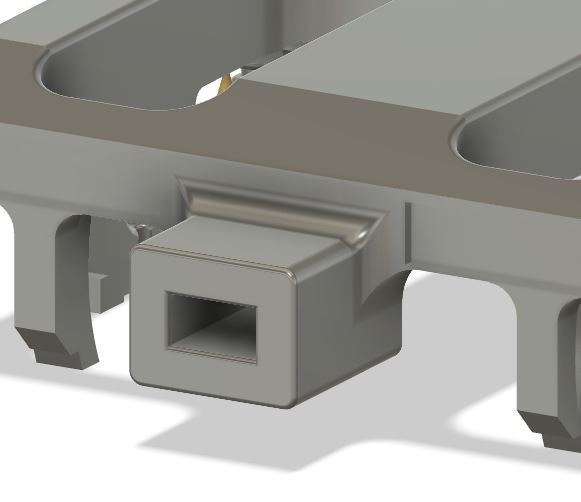

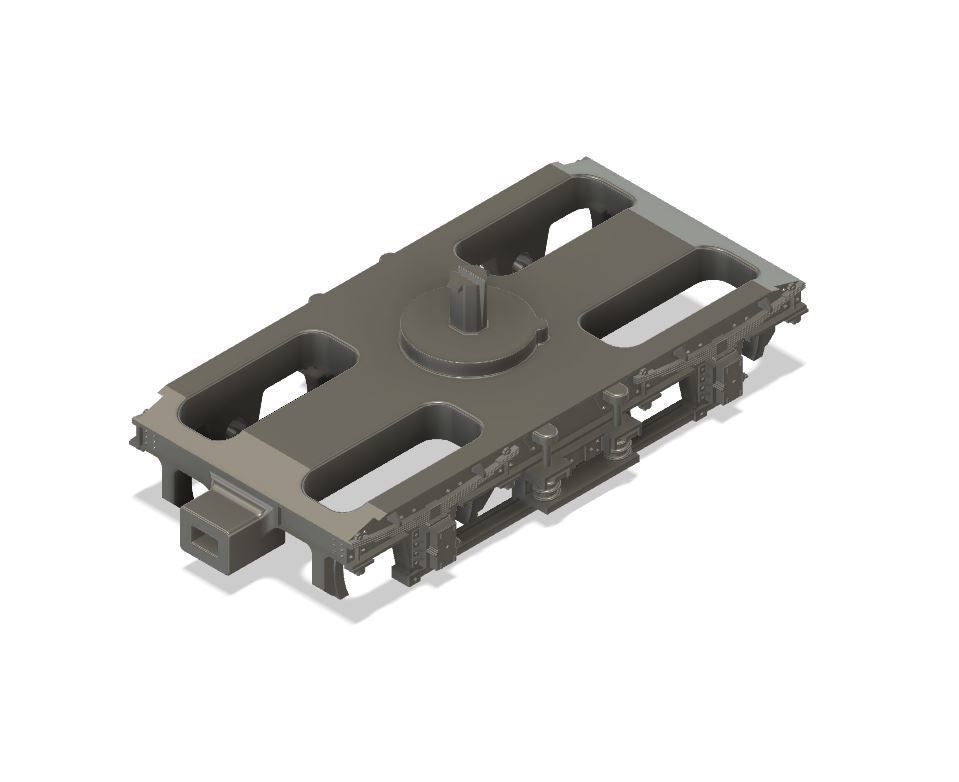

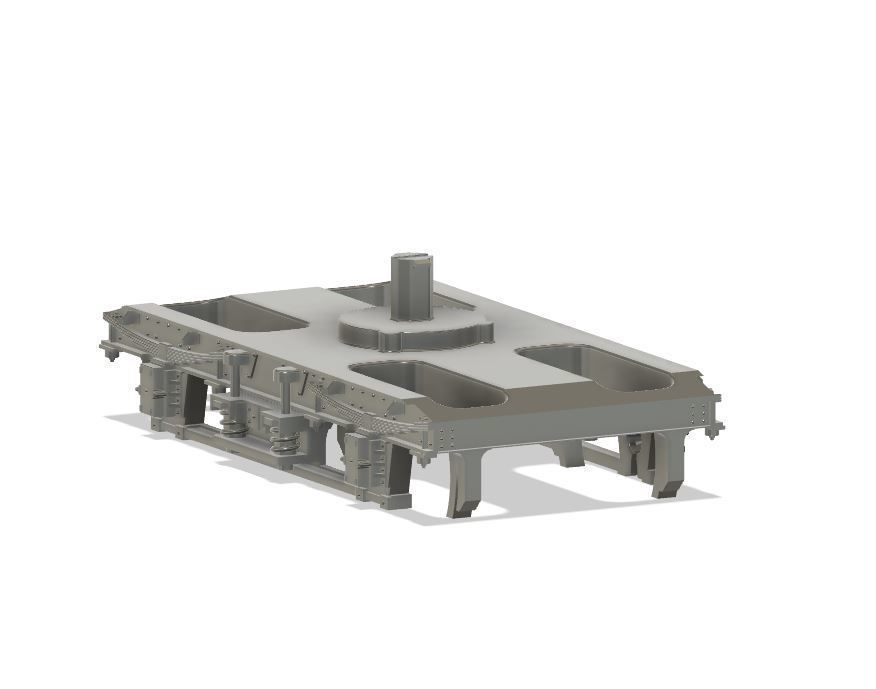

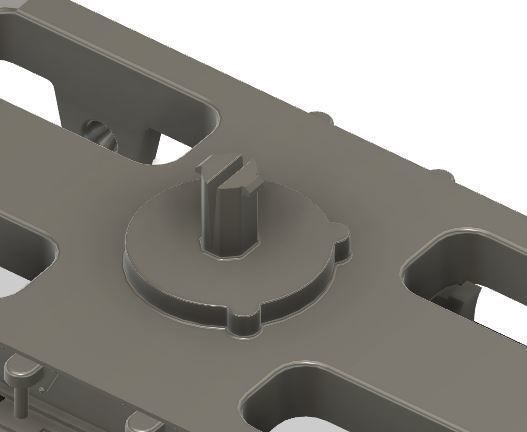

Designed for older Lima Coaches to replace existing bogie with a version that has a NEM socket.This is a very similar design to my Hornby MK1 bogie but with a different fitting to the body of the coach.

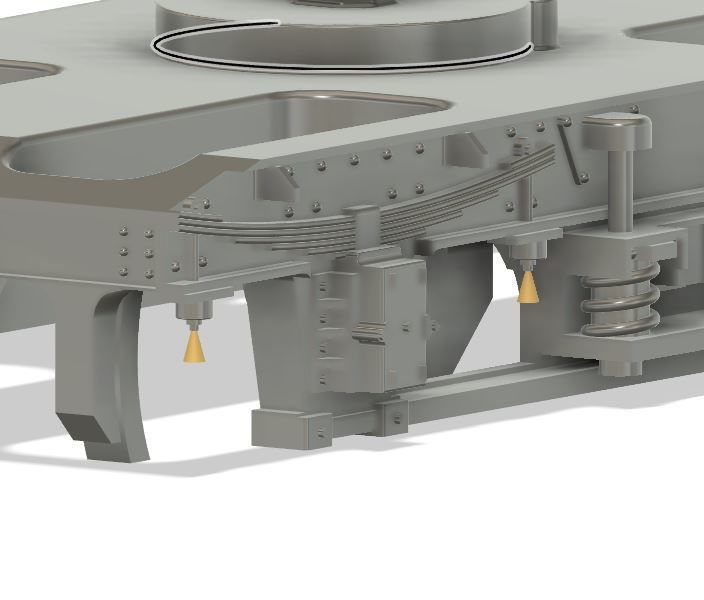

The bogie has been designed considering strength against accuracy. If I had produced bogie 100% accurate it wouldn't be strong enough to use, so hopefully I have got a good balance between strength and accuracy.The bogie has been designed to replace the bogie on a Lima MK1 coach but will fit other Lima coaches with the same bogie design.I designed it for printed it at 35deg X and 35deg Y when setting it up for printing, but please only use this as a suggestion as you might feel it needs to be printed differently.

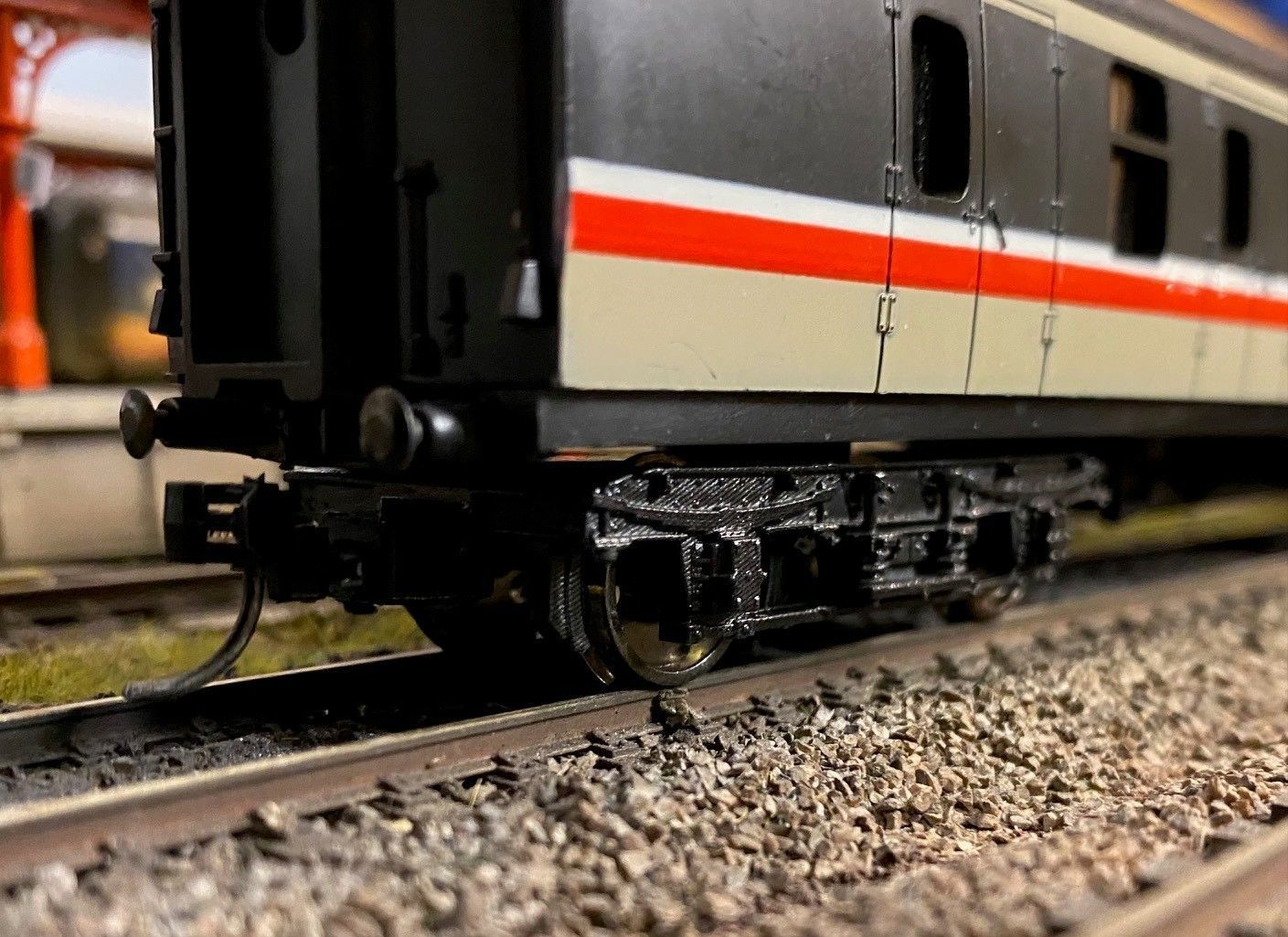

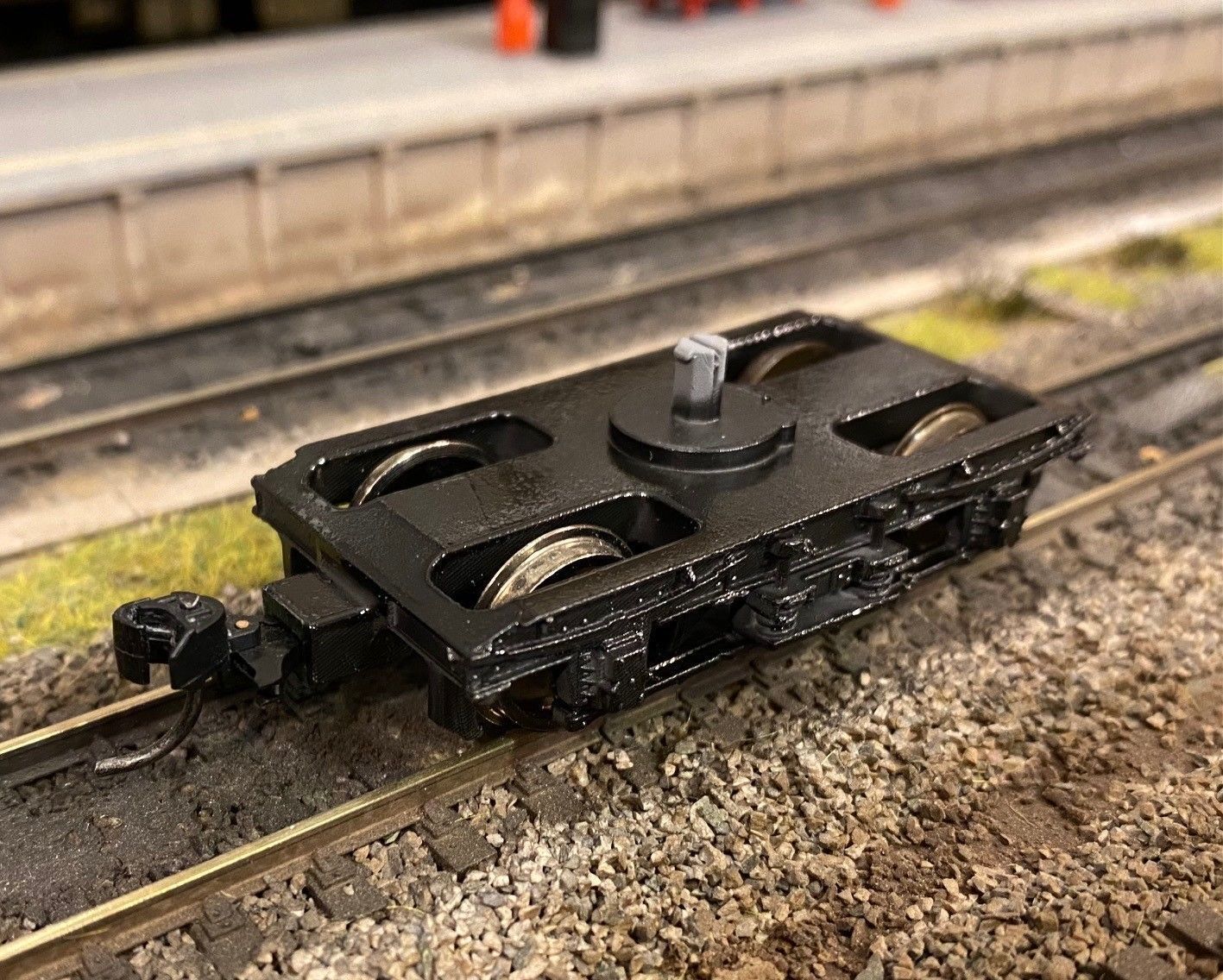

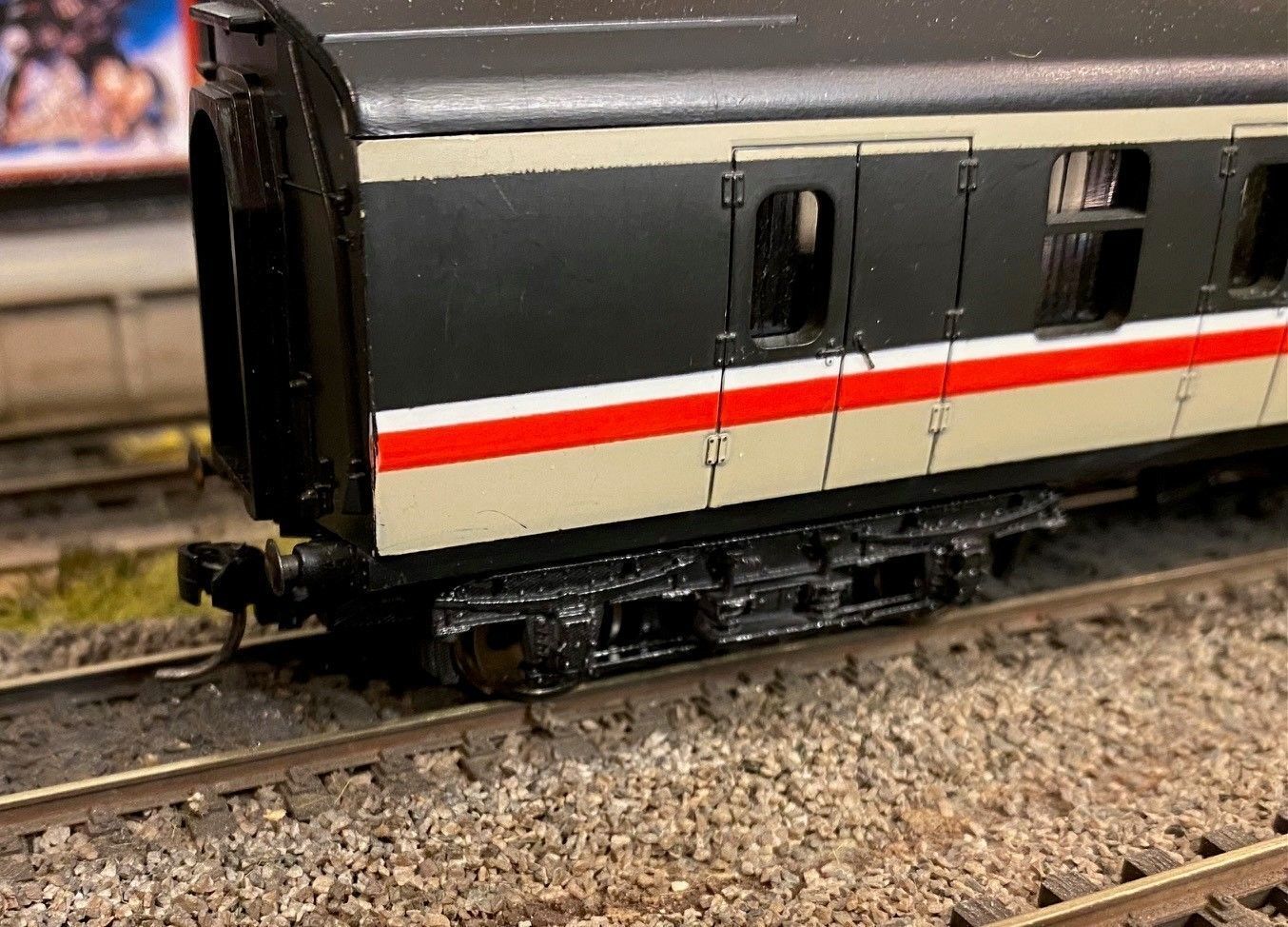

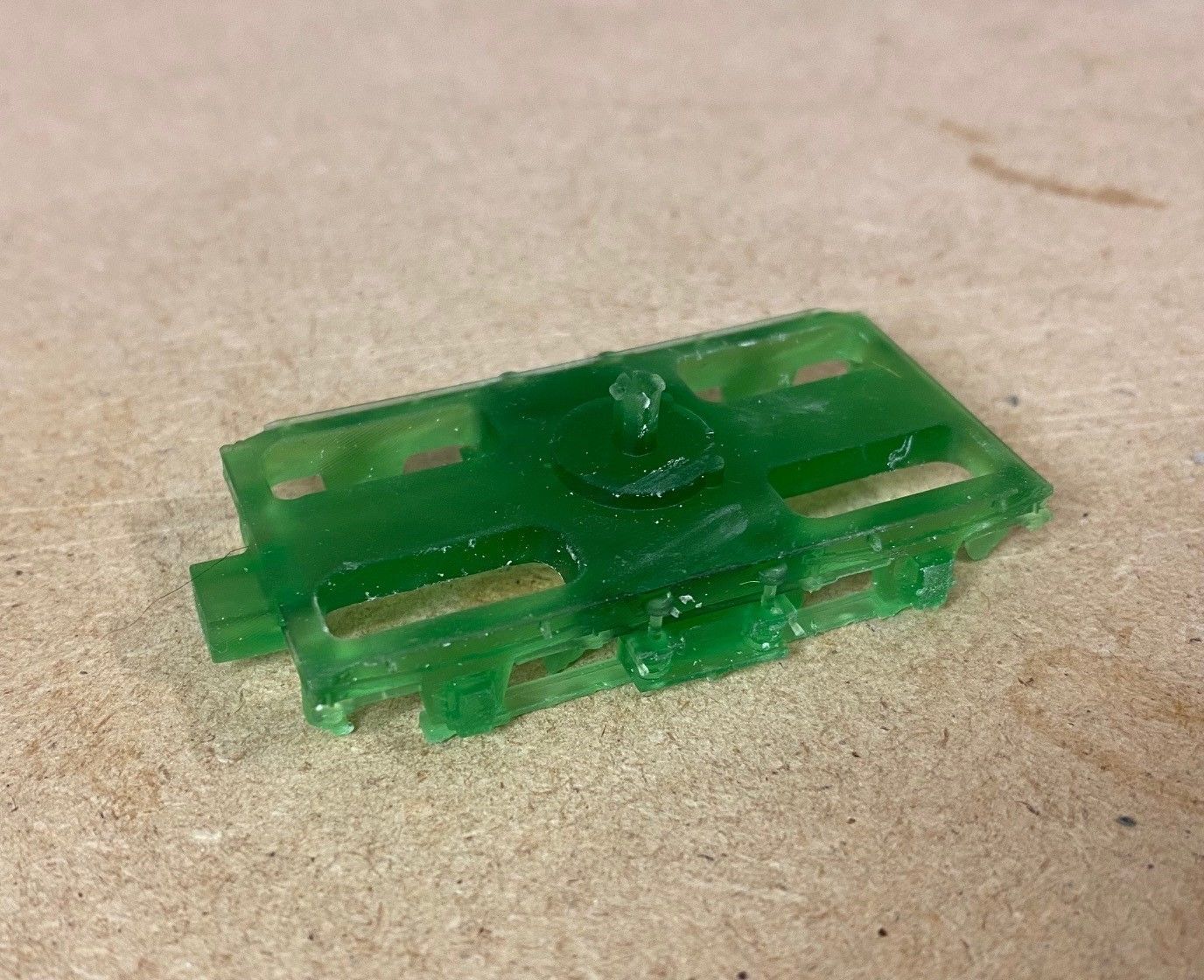

Example in photos was printed on an AnyCubic Photon 3D Resin PrinterRecommend soaking in IPA after printing to help remove resin in holes where wheels go, once fully cured these holes may need to be drilled out slightly to enable free running.Also some filing maybe required after printing to remove printing supports.

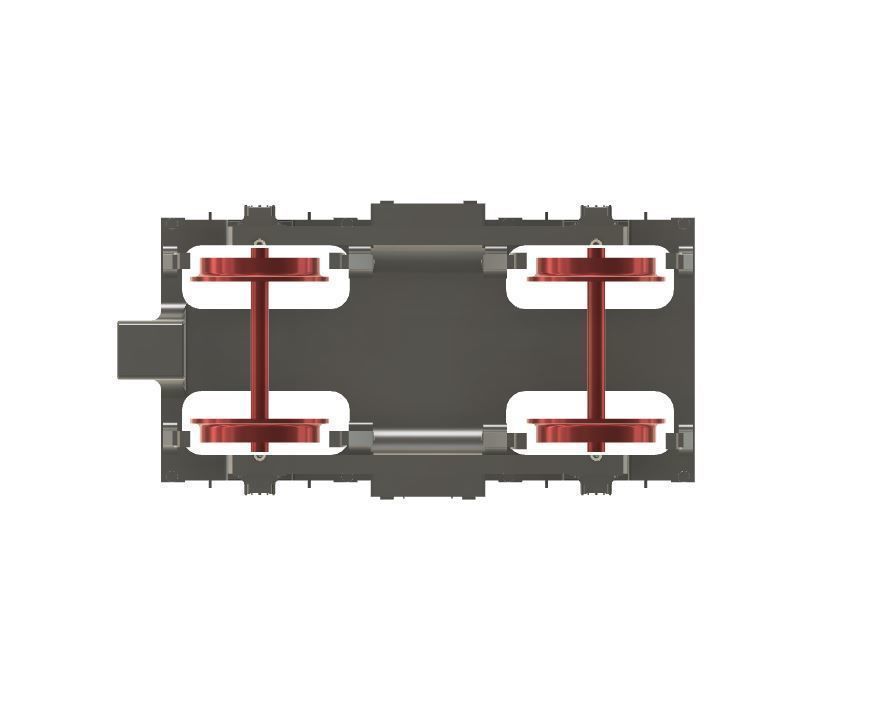

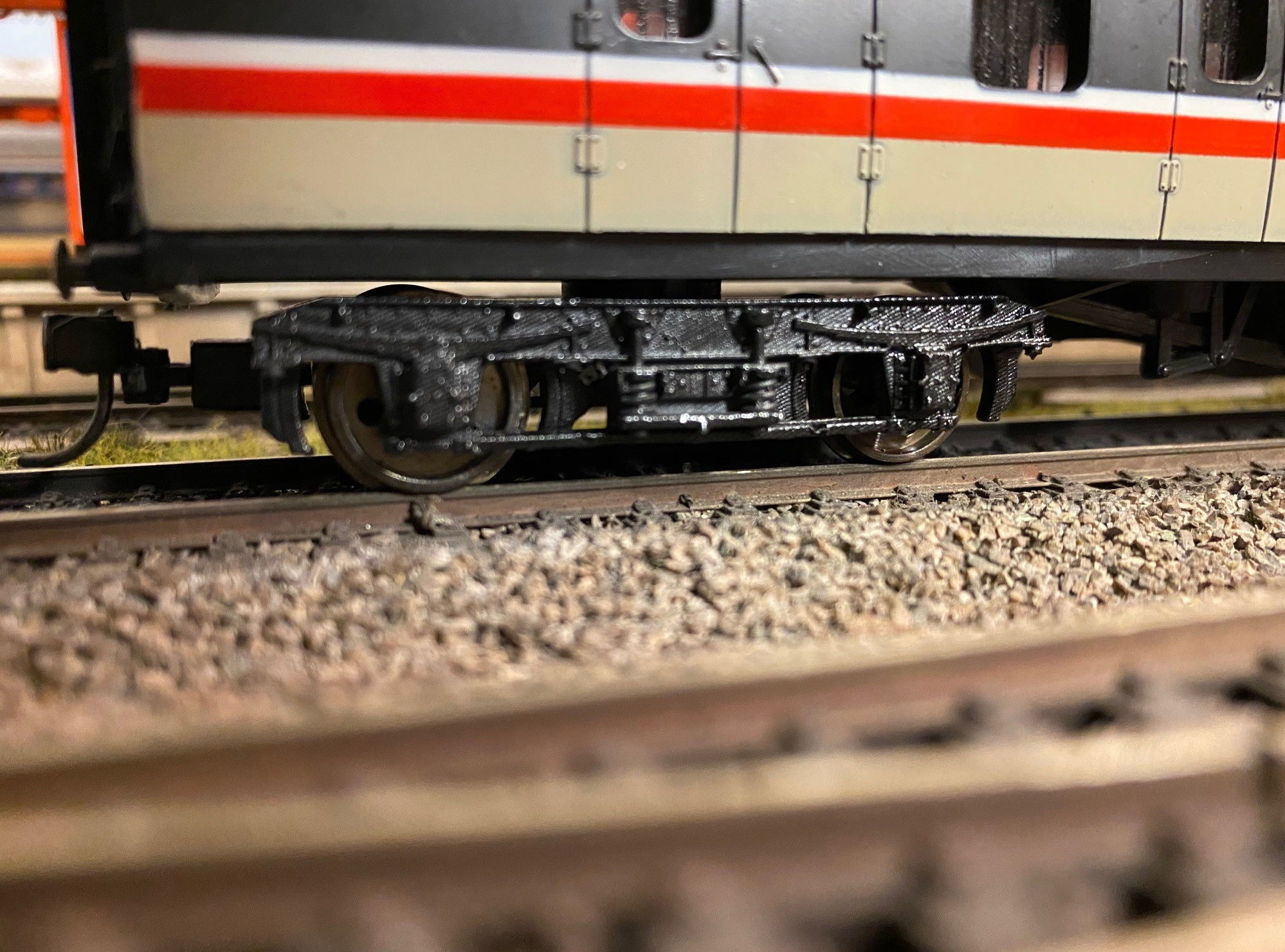

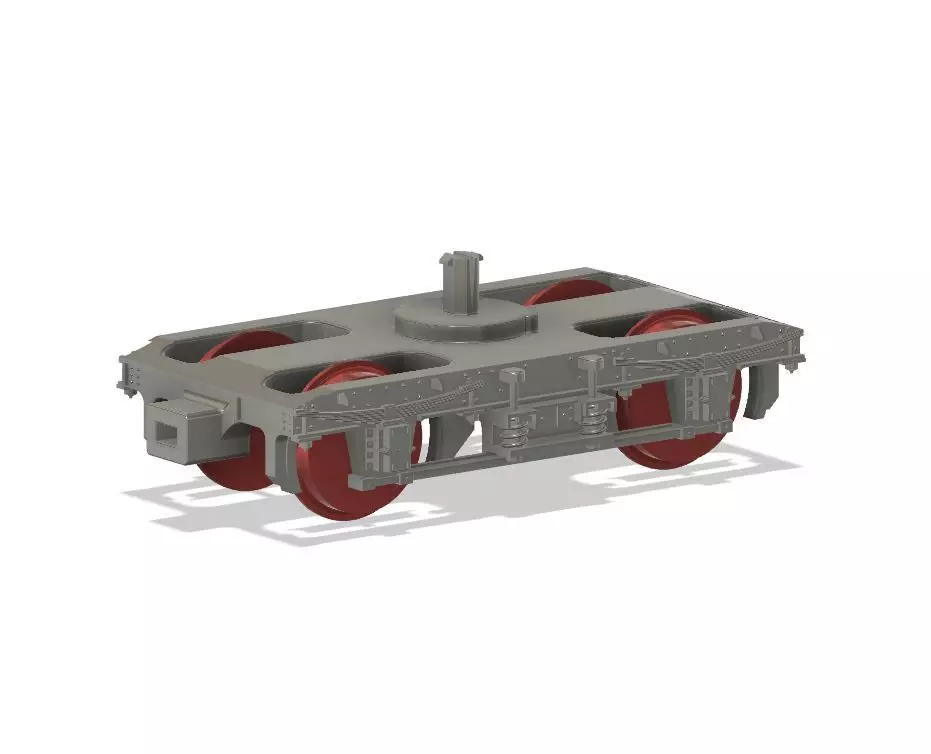

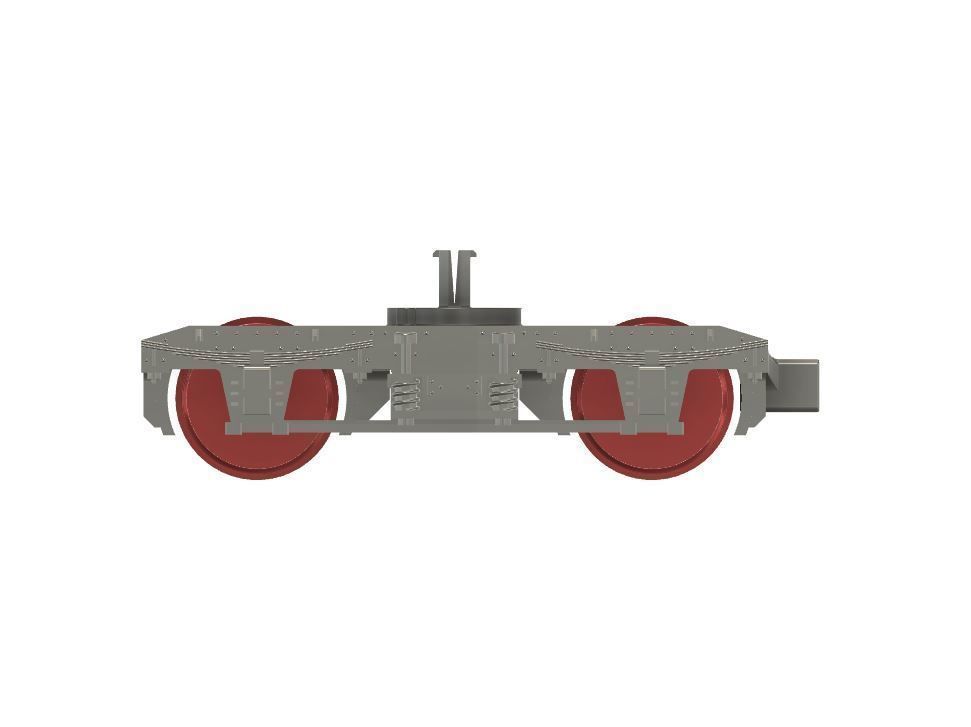

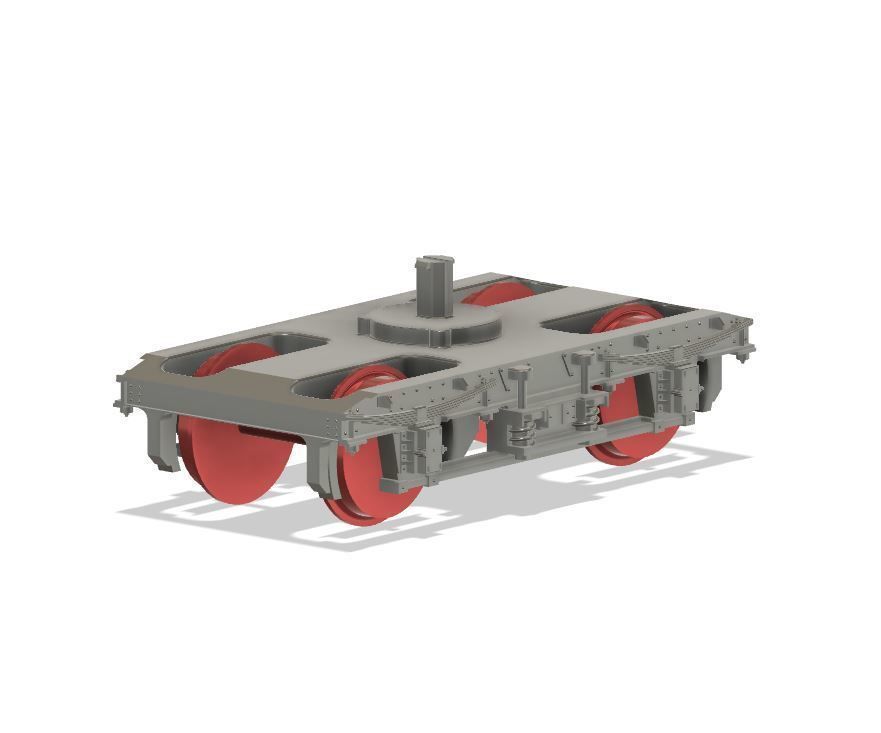

The wheels shown in photos are for reference use only and not included.12.6mm replacements metals wheels are recommended.Kadee Coupling used in photo is a No18

This might be ushttps://www.micromark.com/HO-Truck-Tuner_2eful
