Ruler lifting device

Ruler lifting device 3D print model

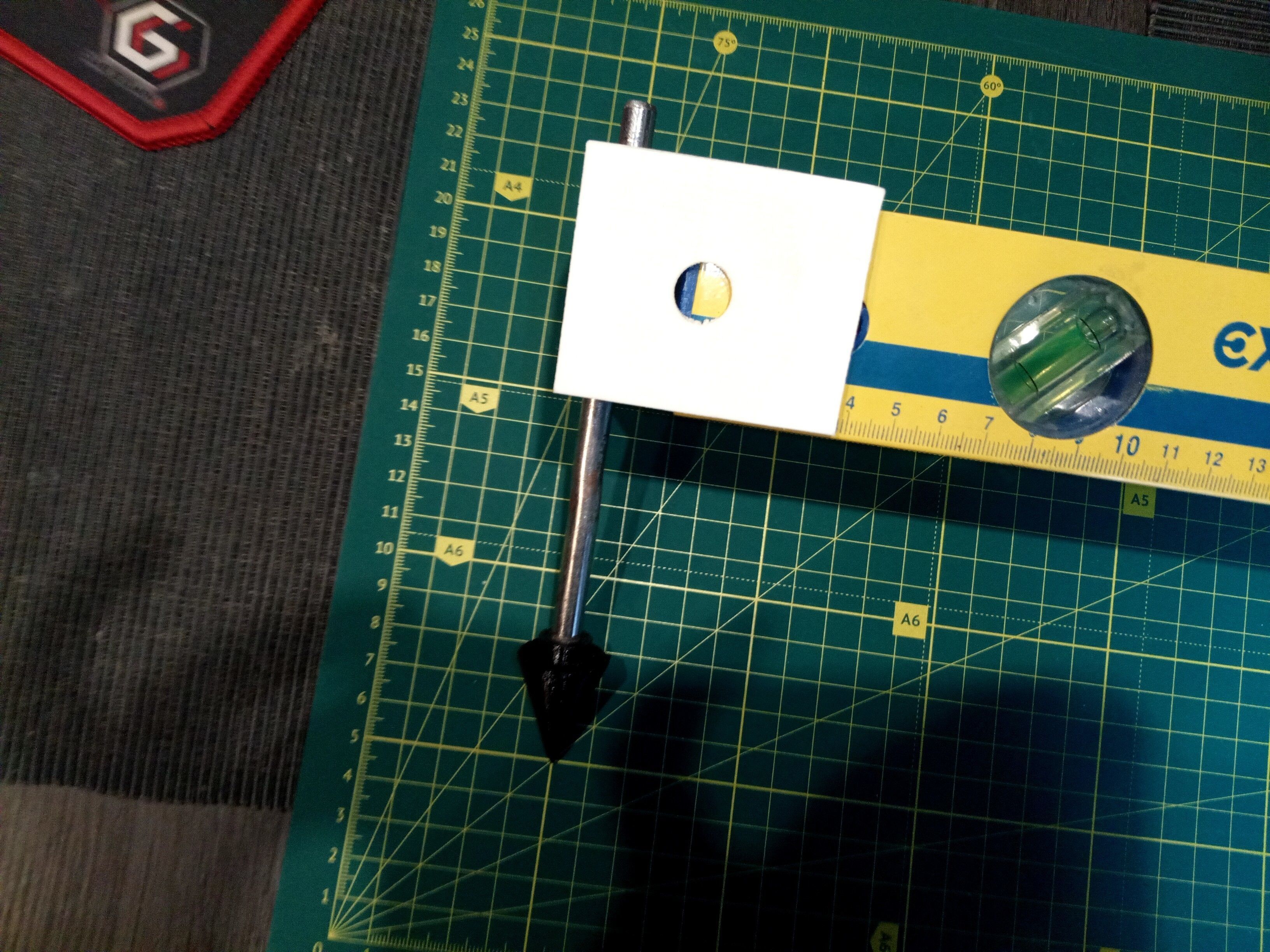

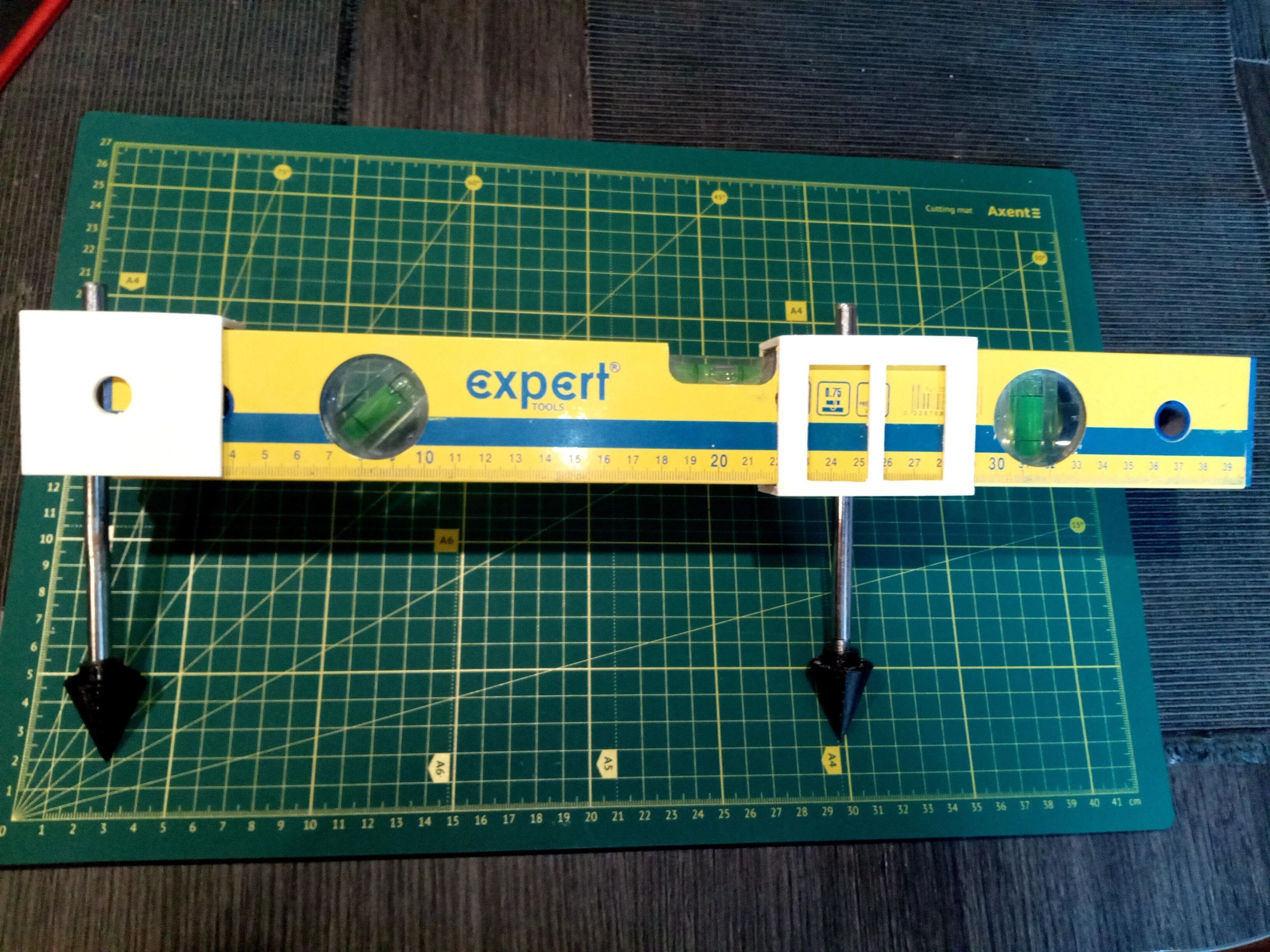

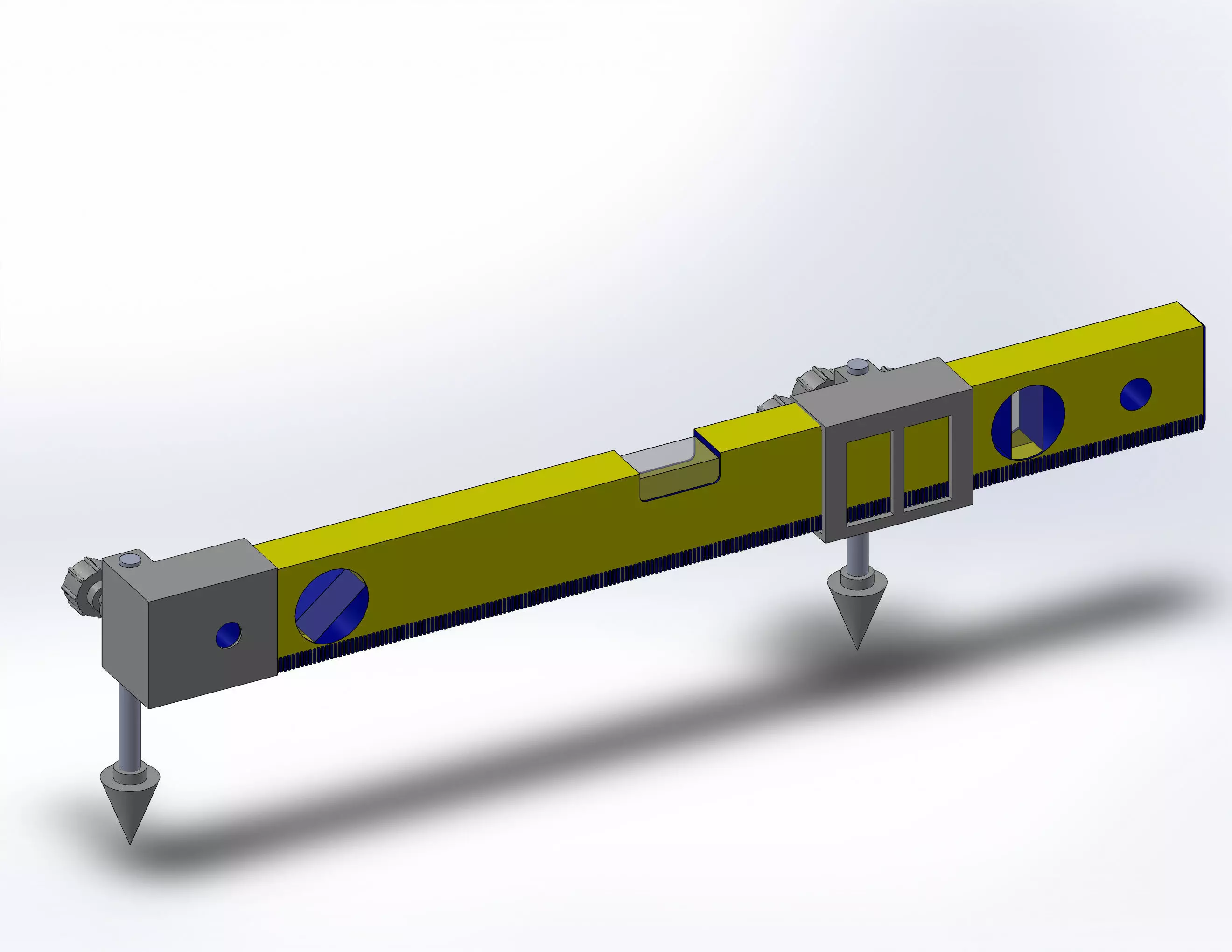

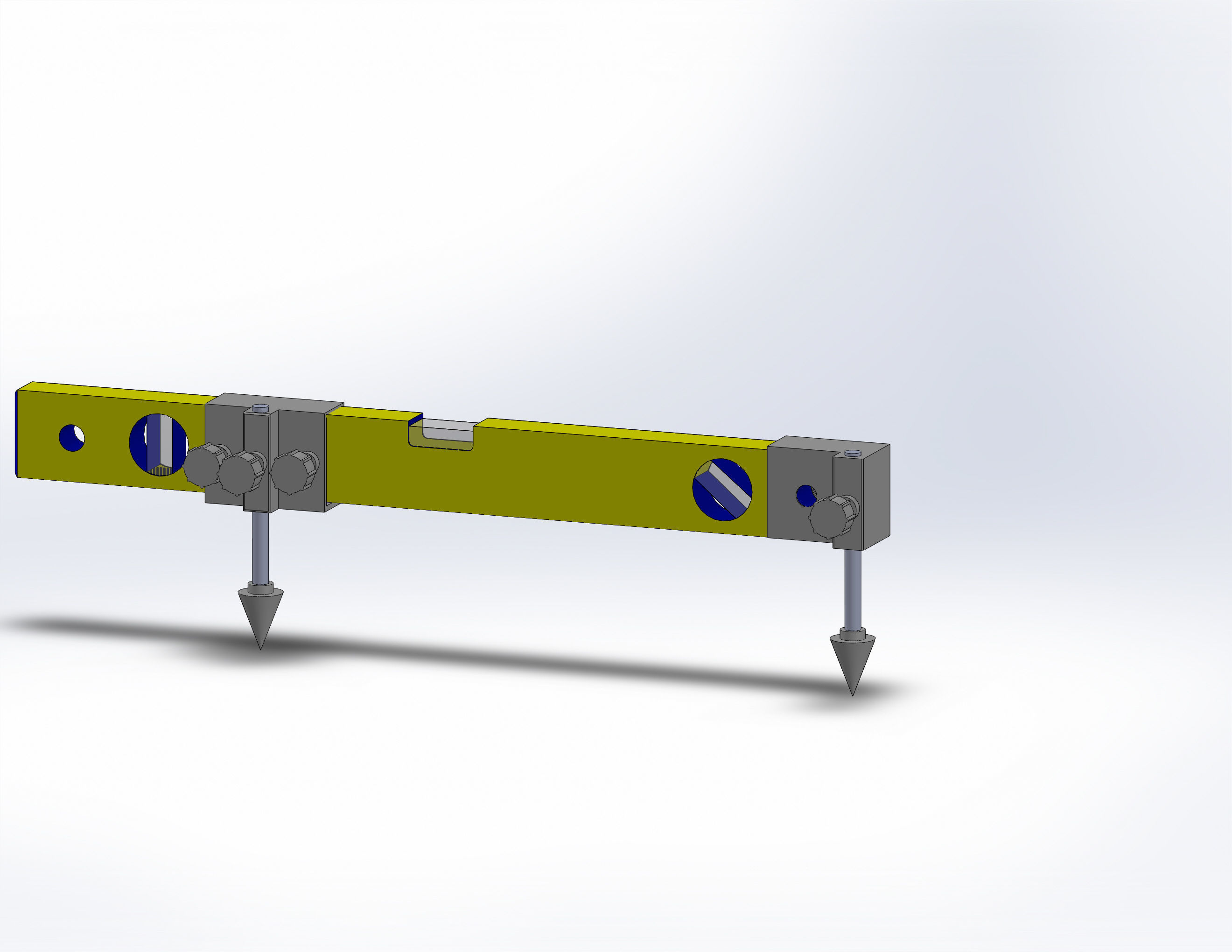

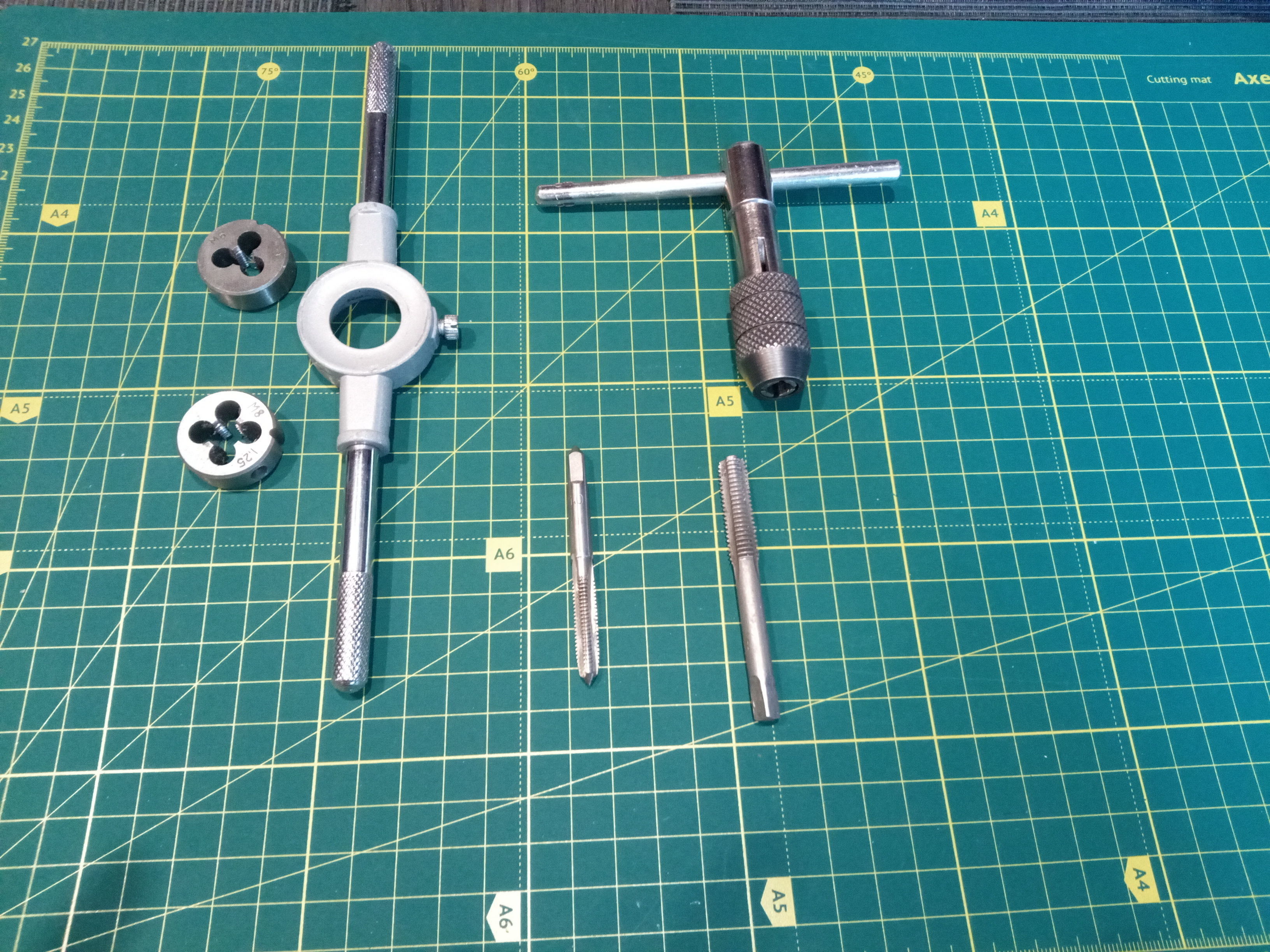

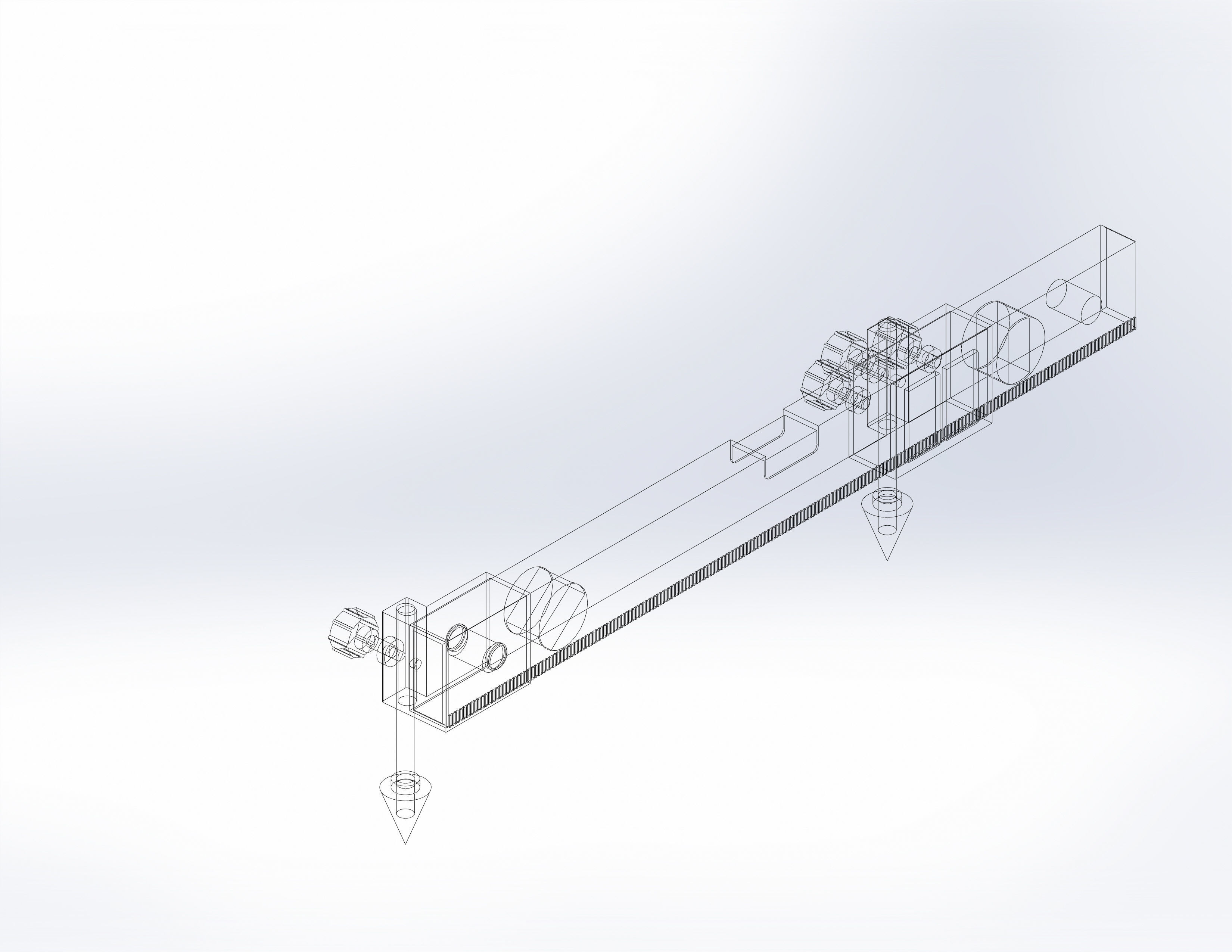

A ruler based on the building level. The model was created for 3D printing in Solid Works 2017. Used to measure the distance between two holes. You can choose any length of the level. You can choose which rod is convenient for you. How it's done. Threads are used on the parts, but they are cut after 3D printing.

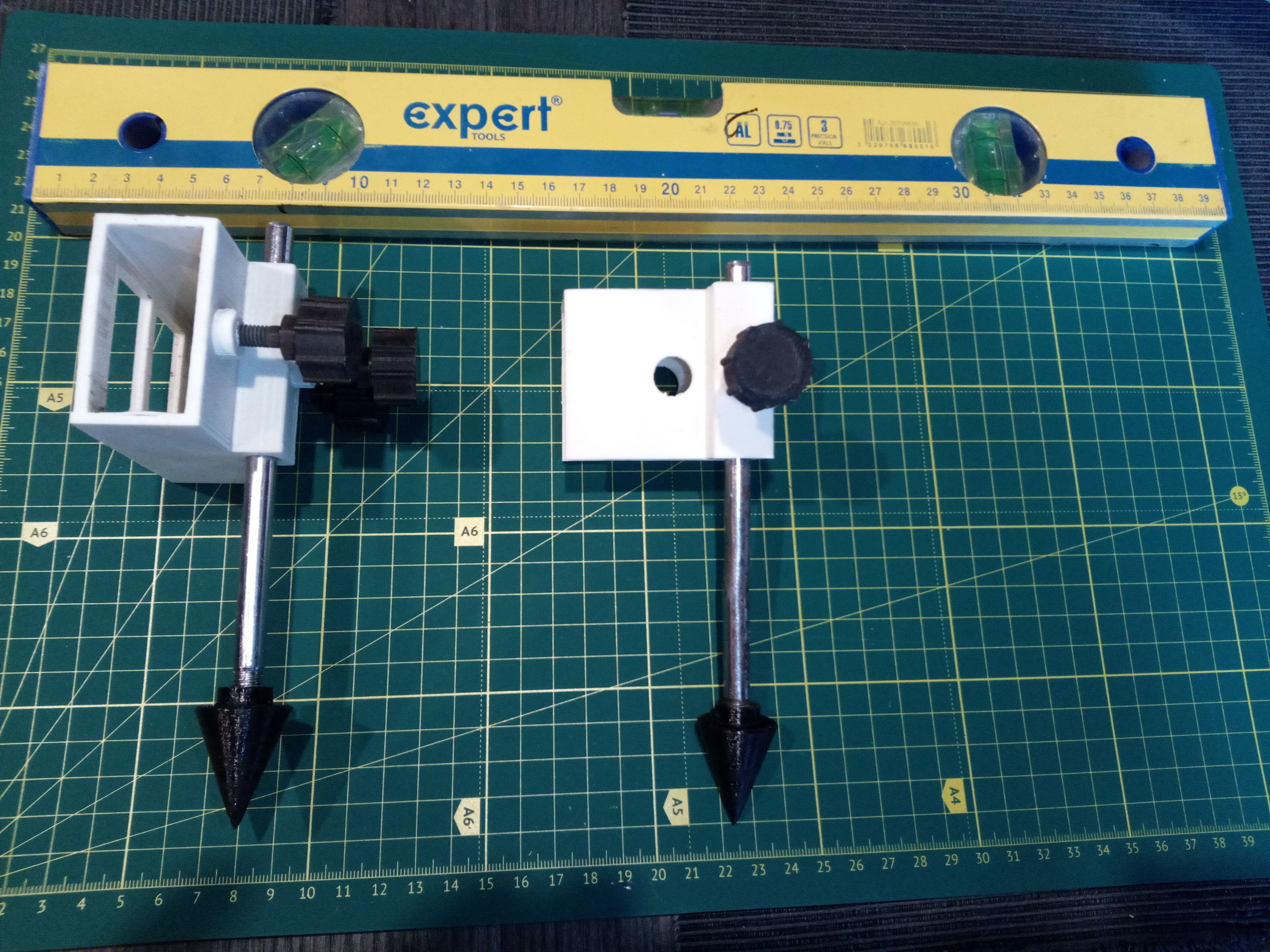

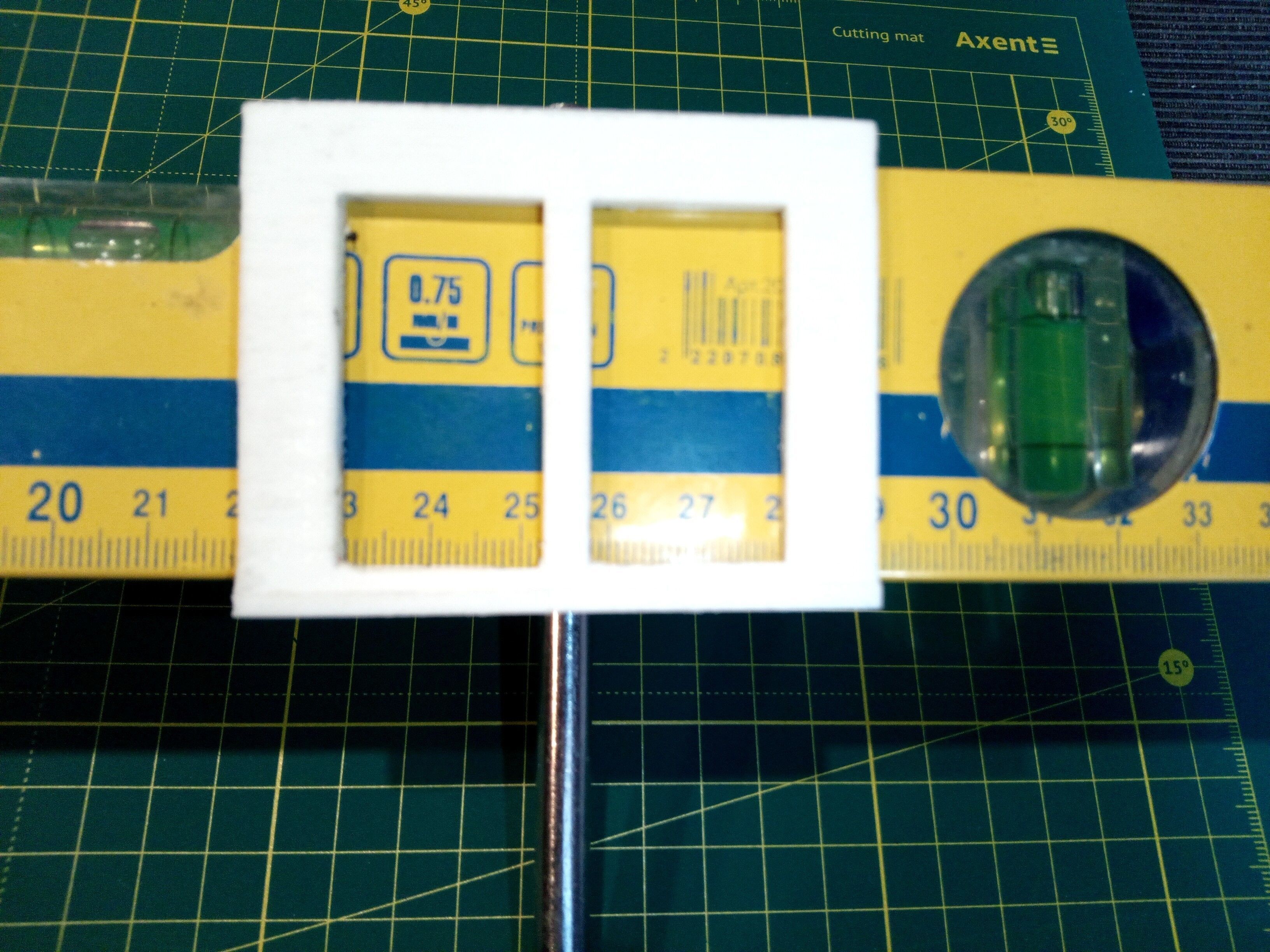

Detail Cone - thread inside М8х1.25 Detail Rod - thread outside М8х1.25 Detail Holder 1, Holder 2- internal thread M6x1.0 Detail Retainer - thread outside М6х1.0 You can choose any thread available to you. Building level used in the model for visual display only and in the model Excluded.

vertices 6571, edges 19761, faces 13174

Item rating
0 0
Ruler lifting device
Royalty Free License
Ruler lifting device
Royalty Free License
Response 100% in 6.6h
3D Modeling
3D Print Modeling
Low-poly Modeling
Post Production
Hire me

3D Model formats

Format limitations
  • SolidWorks 2017 (.sldprt, .sldasm, .slddrw)1.93 MB
  • Blender 2.91 (.blend)1.53 MB
  • Stereolithography (.stl)45.5 KB
  • OBJ (.obj, .mtl)624 KB

3D Model details

  • Publish date2021-11-21
  • Model ID#3398536
  • Ready for 3D Printing
