3D Print RC Catamaran

3D Print RC Catamaran 3D print model

Description

Overview:

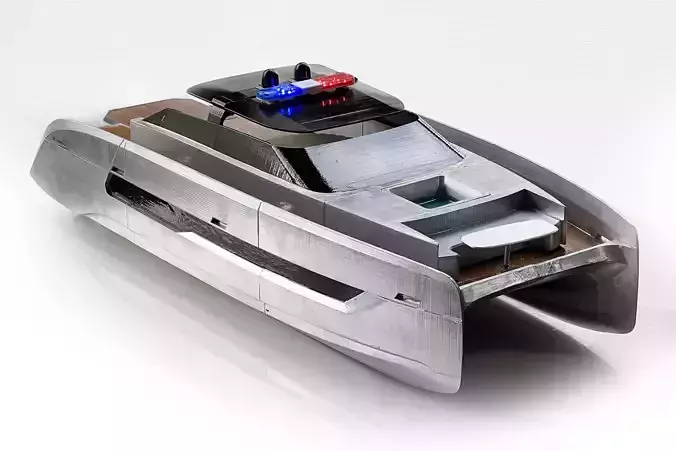

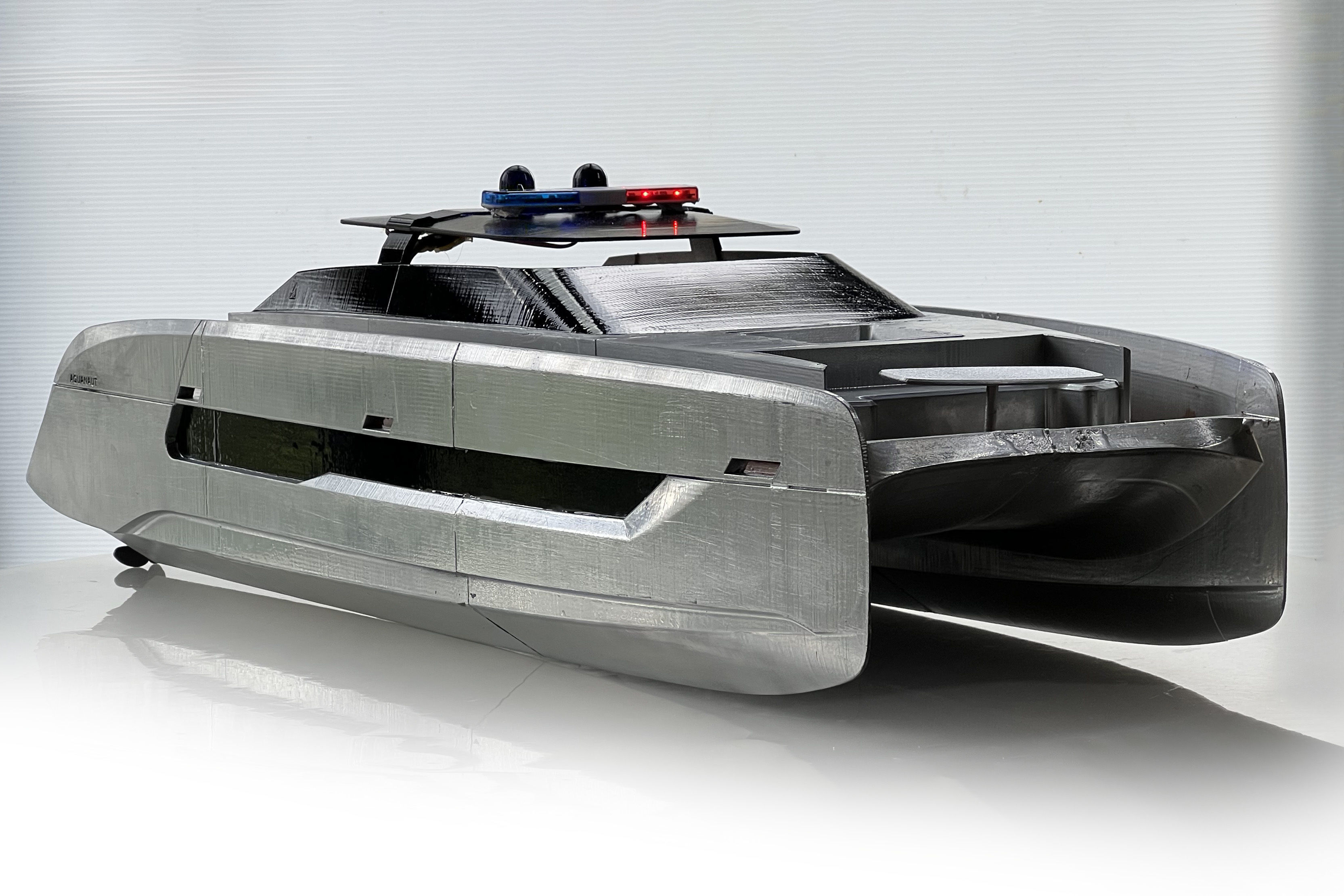

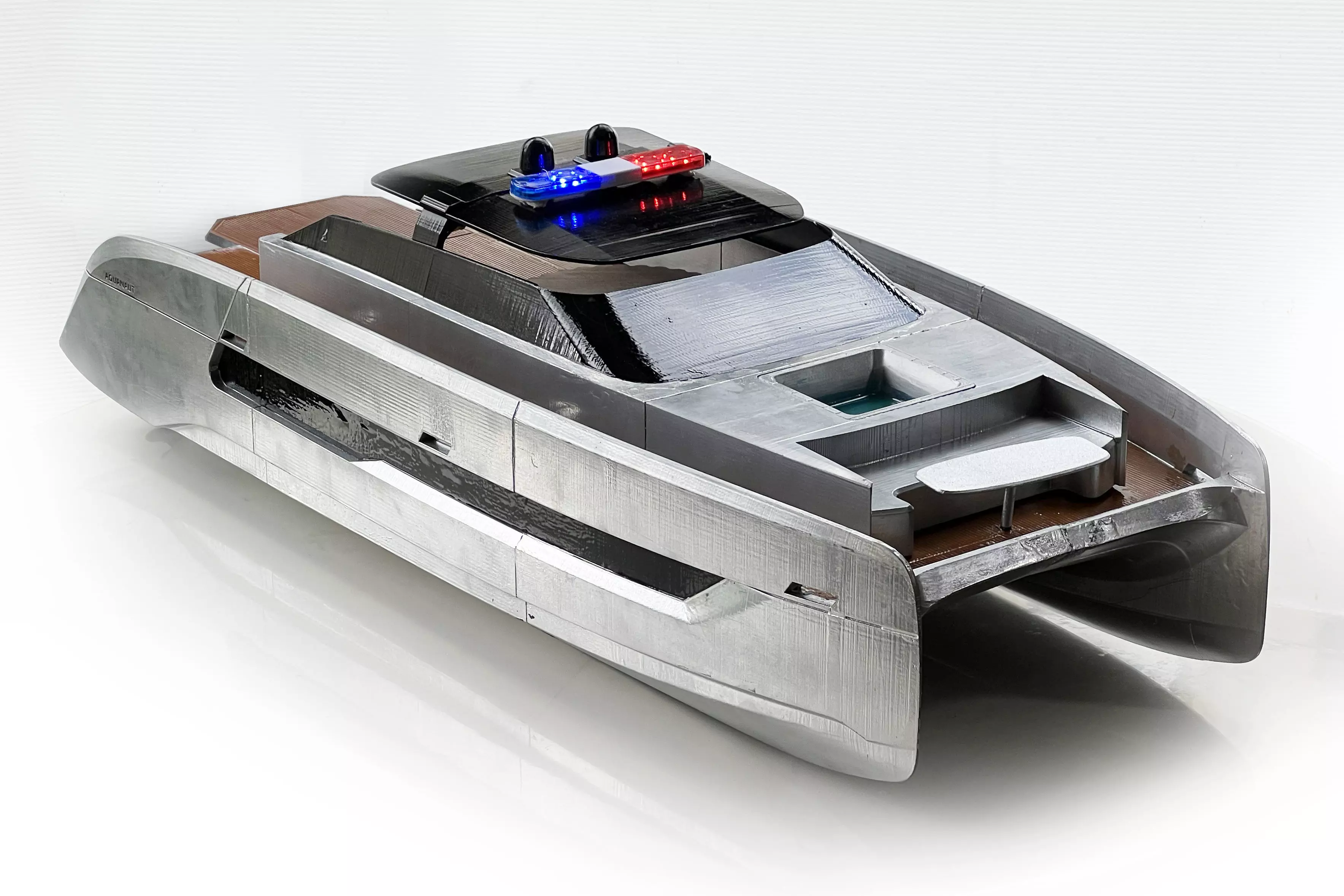

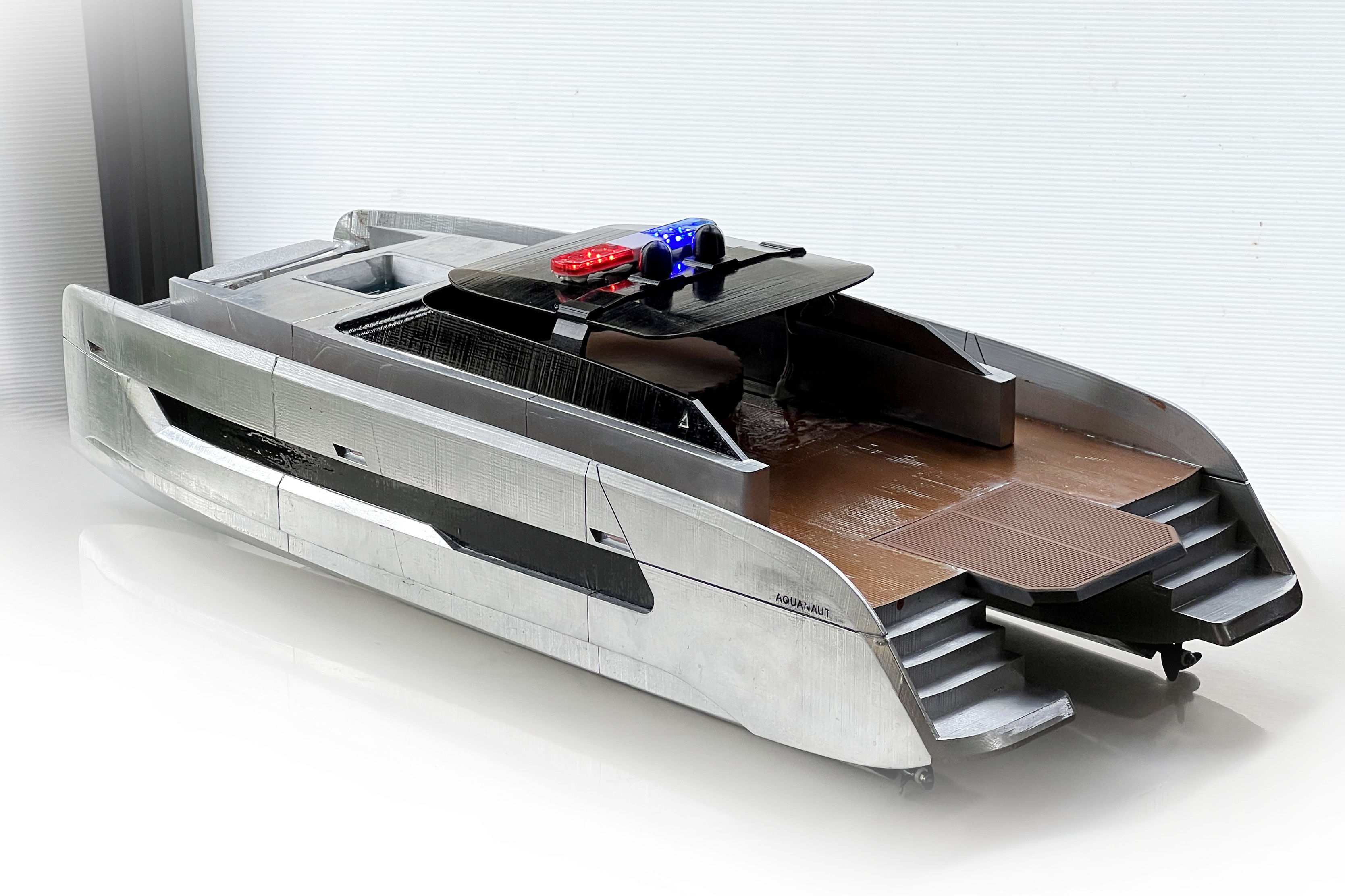

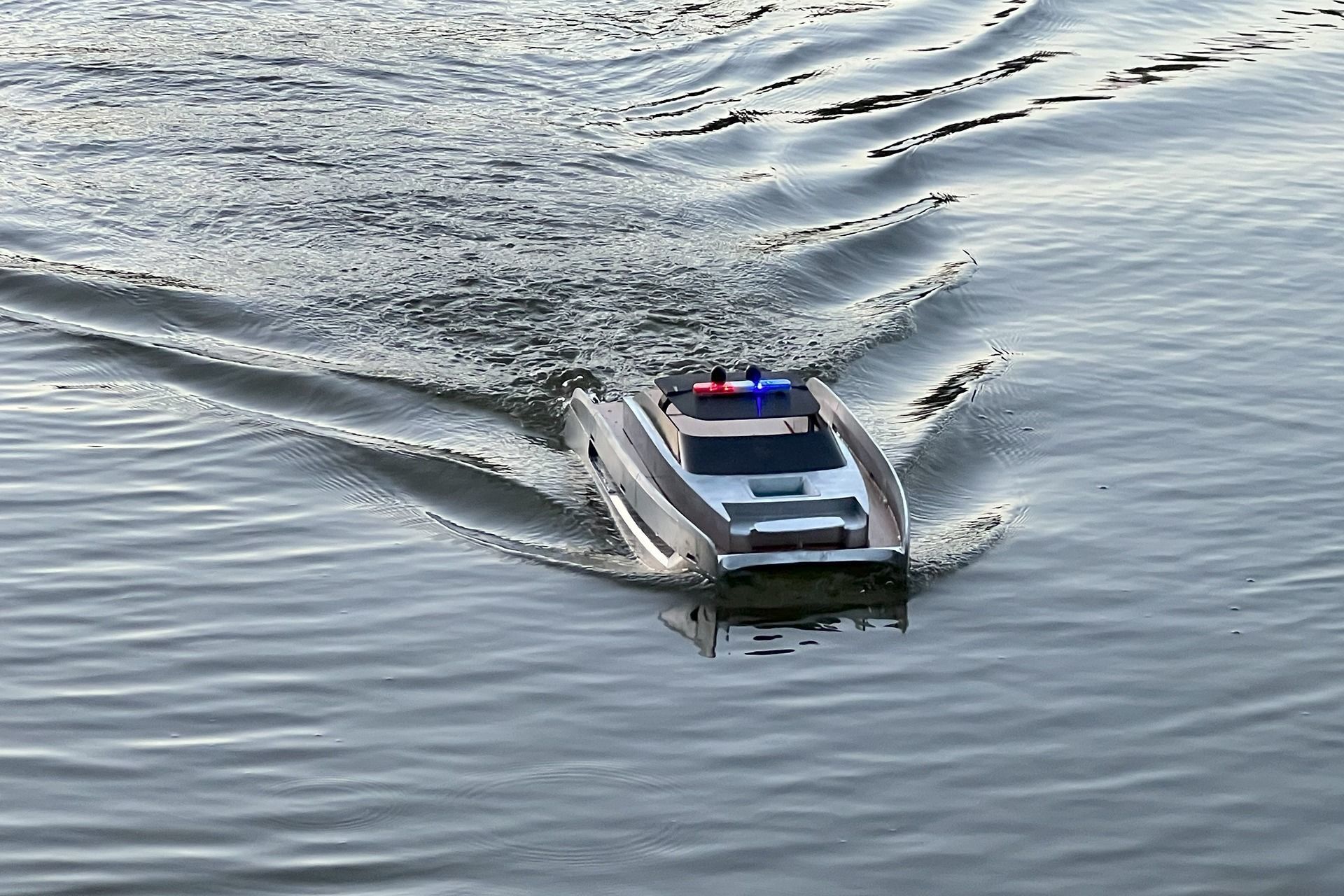

  • A catamaran style RC yacht designed with 3d printing in mind.
  • Easy to print and no support material needed.

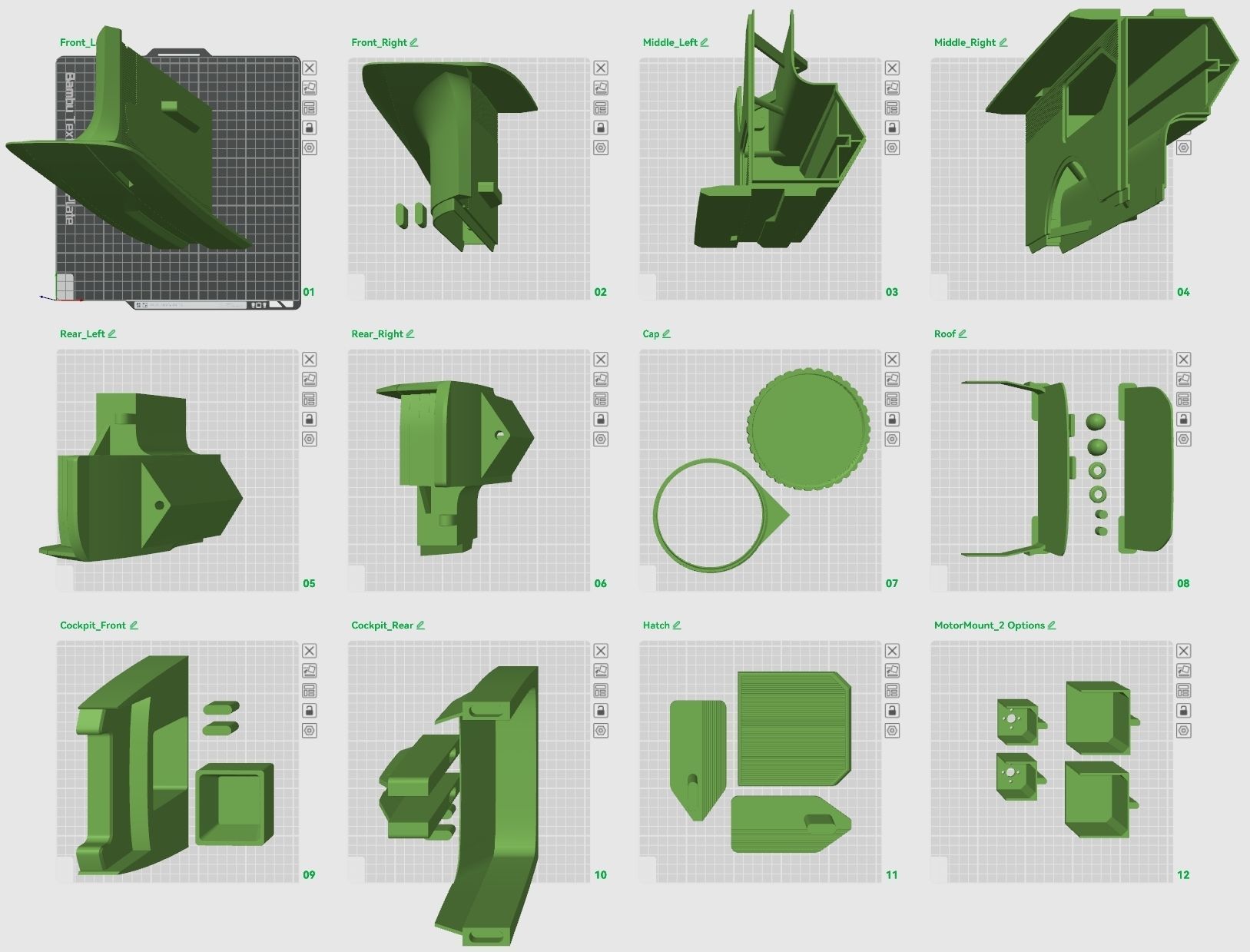

  • All parts connect easily with keys.
  • 3 mounting points for attaching any accessory
  • Dimensions: 750mm x 302mm x 208mm

What You Need:

  • A 3d printer with build volume at least 210mm x 210mm x 250mm(height).

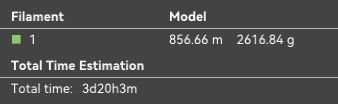

  • About 2.6kg of PLA or PETG filament.
  • 2 x RC boat driveshaft with universal coupling (250mm x 3mm inner core, 200mm x 8mm outer tube, 30mm propeller).
  • 2 x A2212 brushless motor or any motor that’s smaller then 60mm diameter.
  • 2 x Bidirectional ESCs.
  • 2s or 3s LiPo battery.
  • A receiver for your RC controller.
  • A RC controller with differential thrust settings.

What’s Included:

  • STL files compatible with most of slicer or 3d softwares.

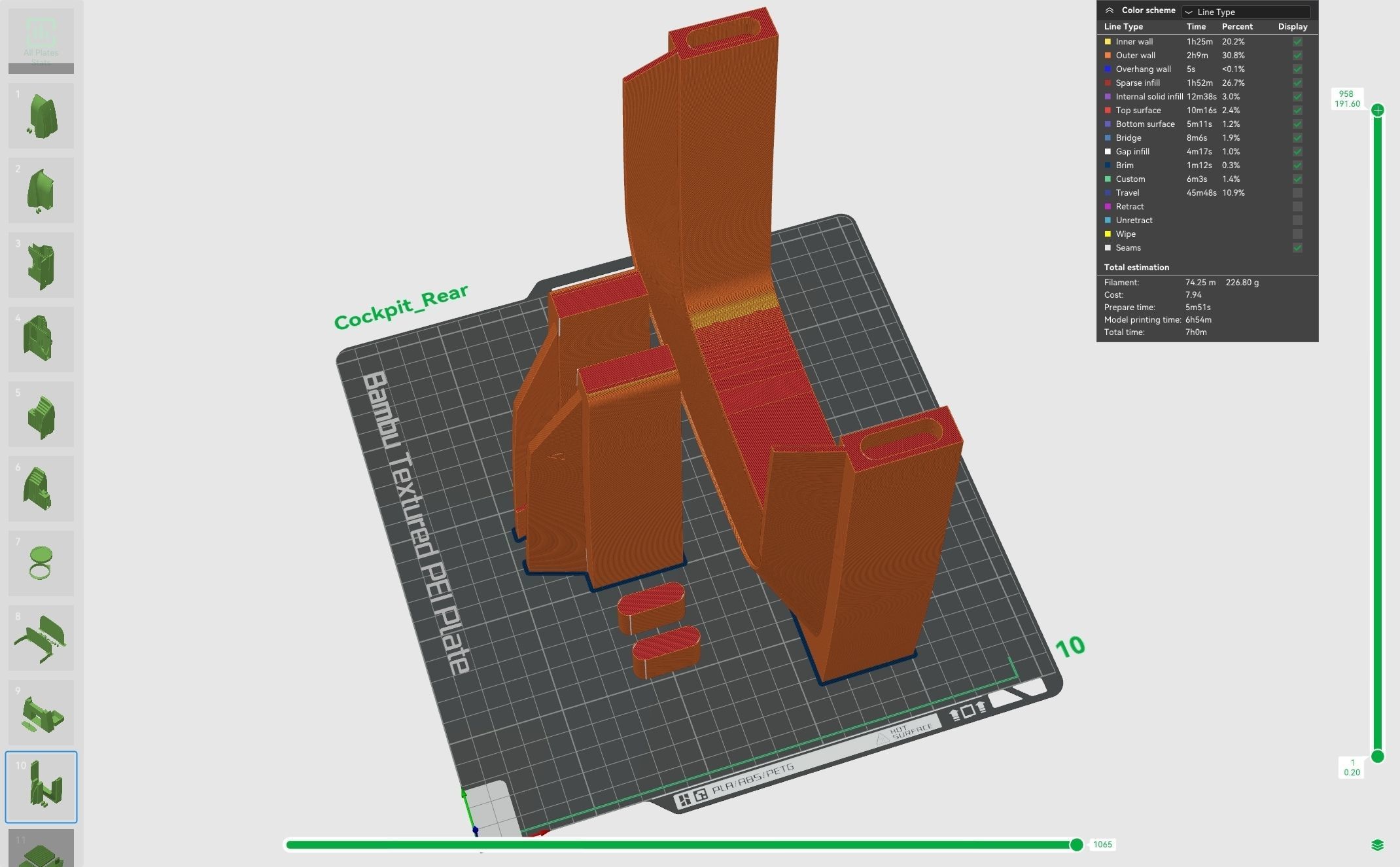

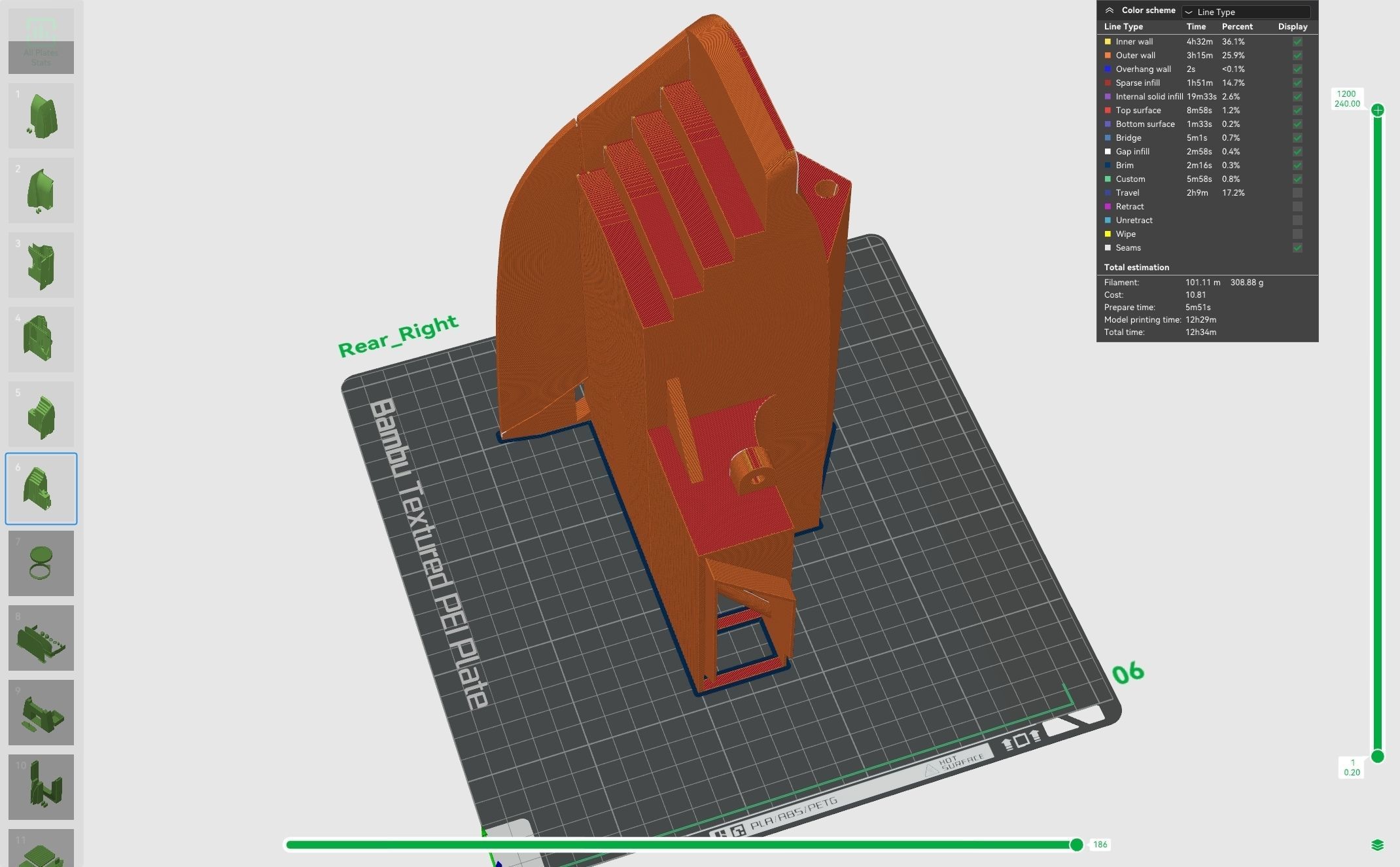

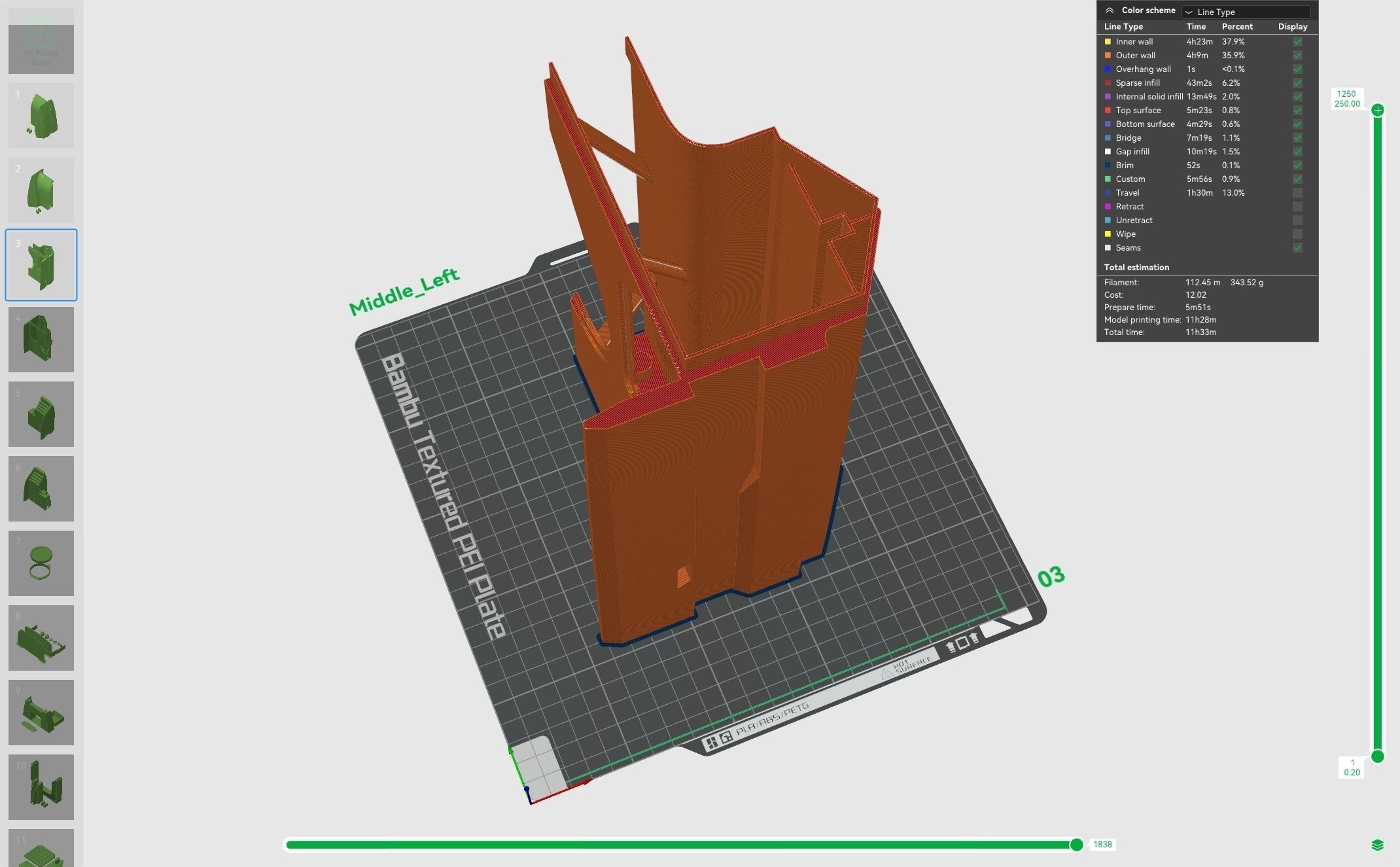

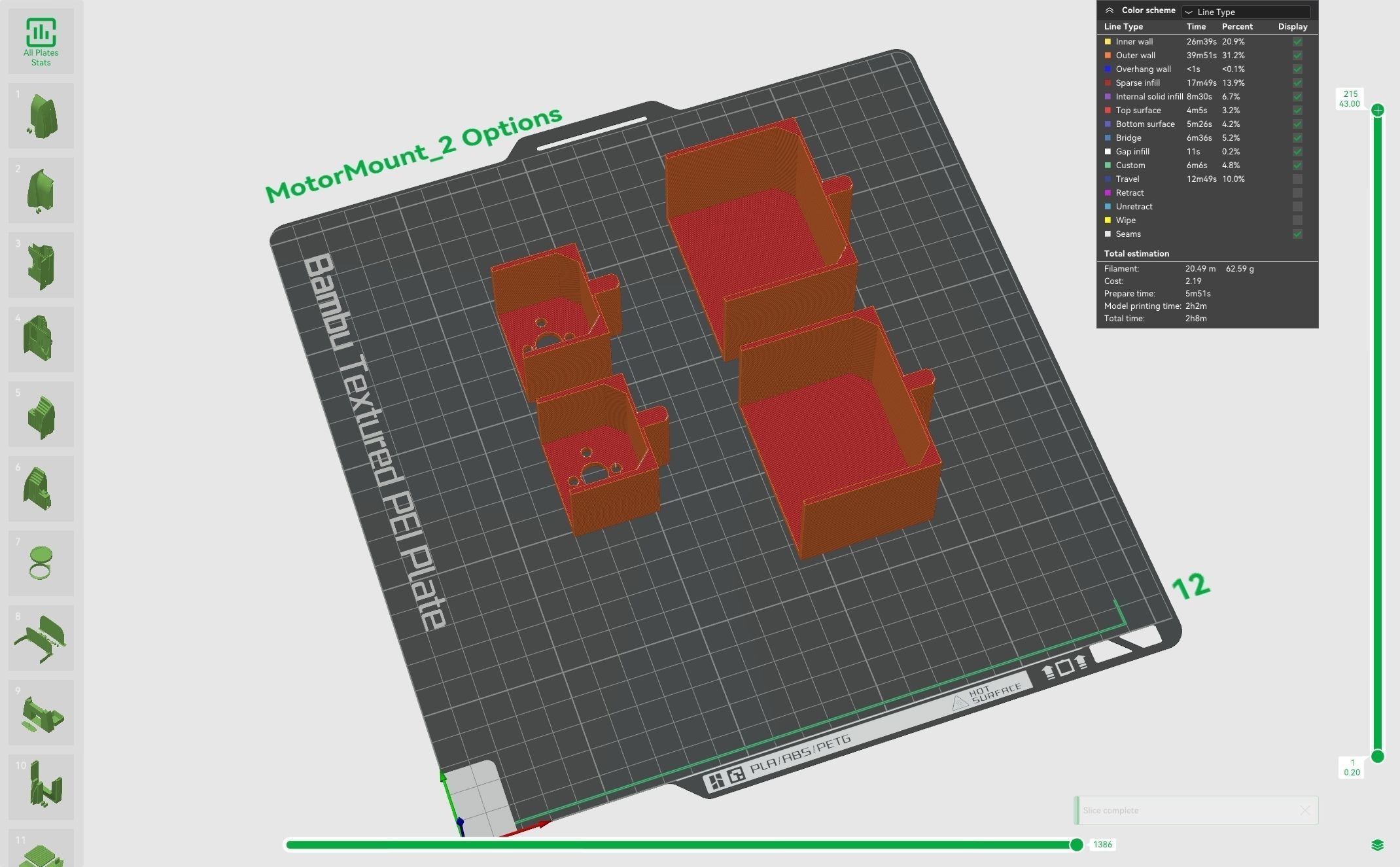

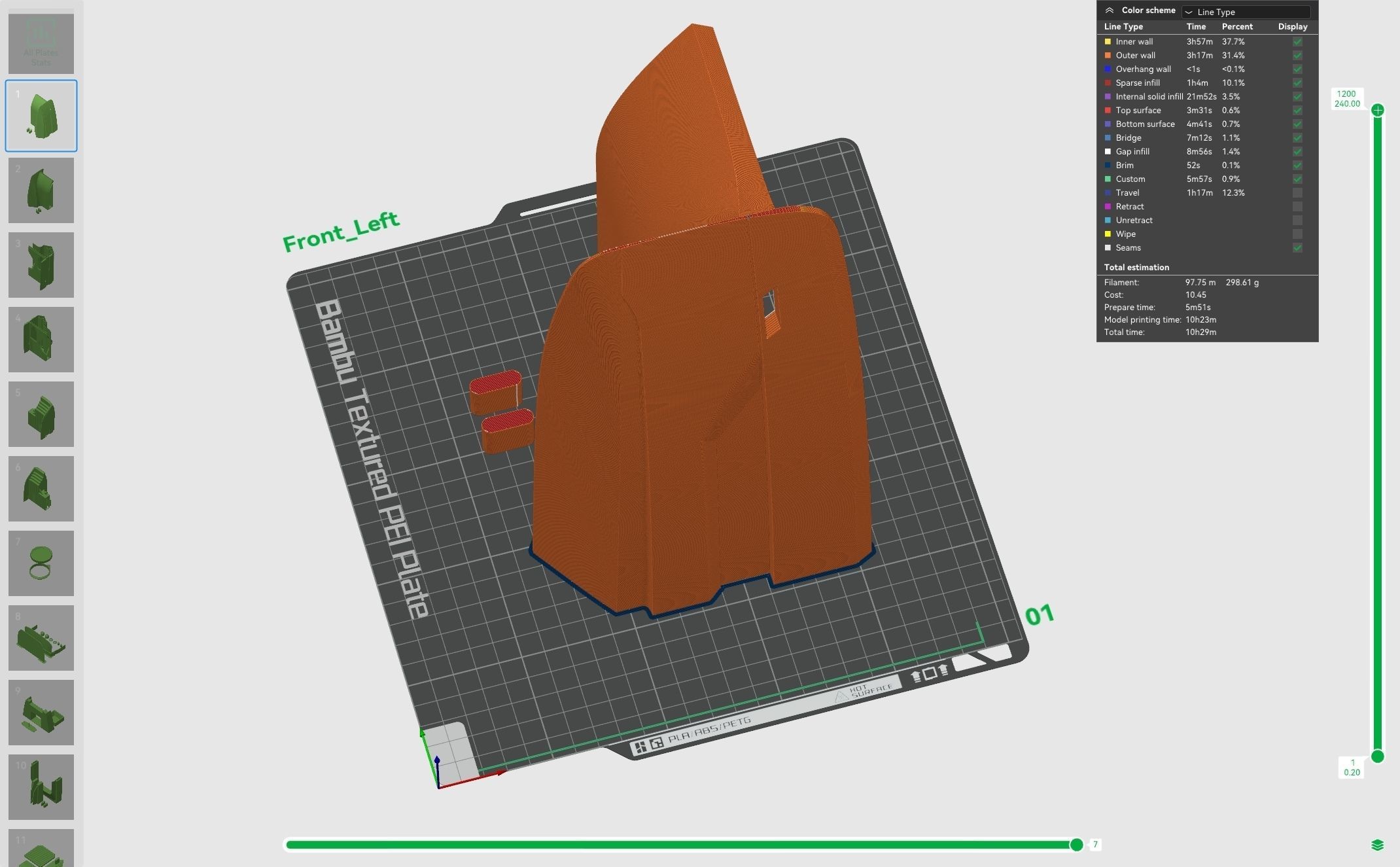

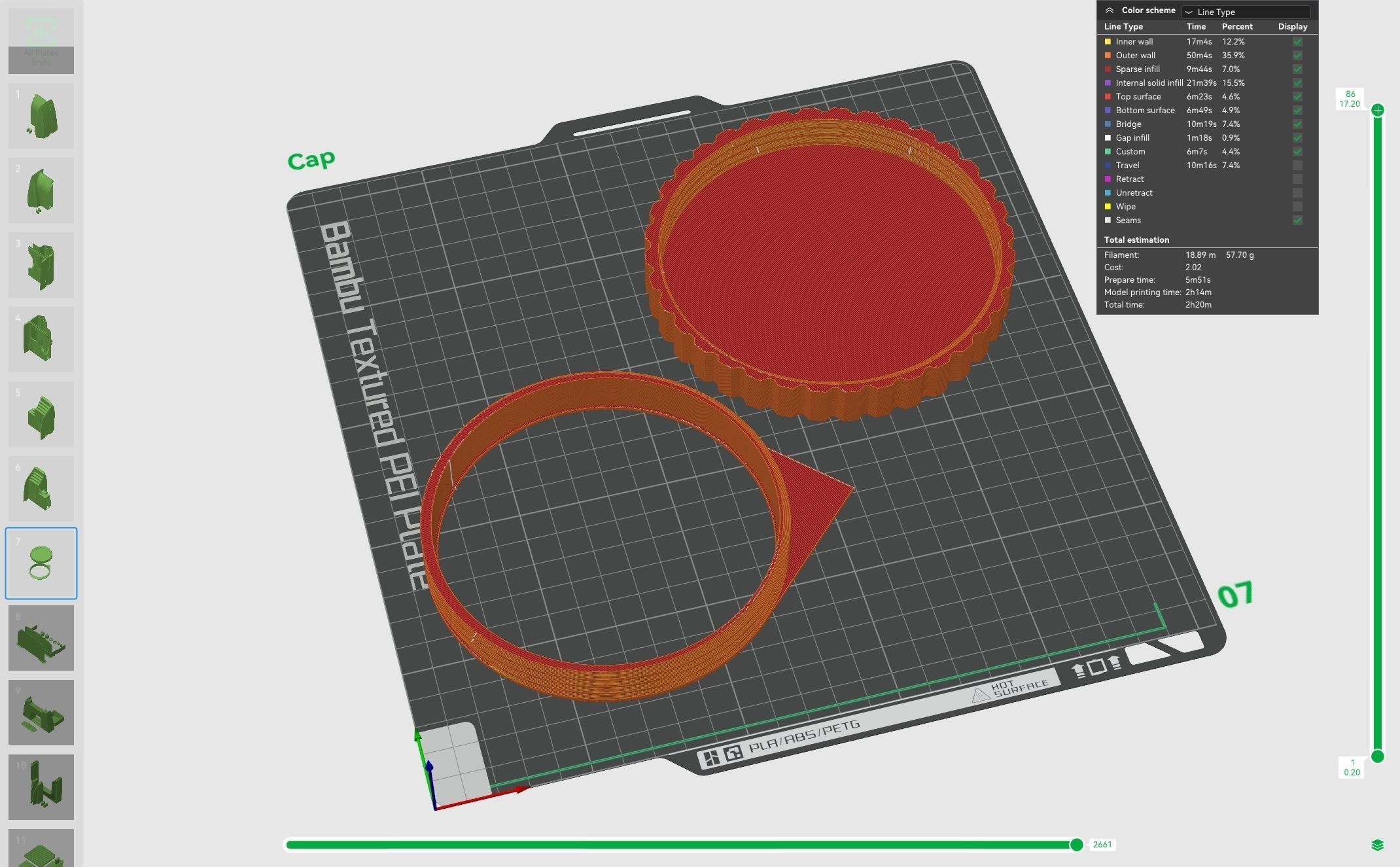

  • 3MF files for Bambu Studio, all the printing parameter has been setup.
  • STEP file for customizion.
  • Installation instructions video: https://youtu.be/aNSiPxIte-s
  • PDF file for user guide: https://drive.google.com/file/d/1XcthJ7xUsNTidrc4DEETYcru17O6kNiH/view?usp=sharing
Item rating
0 0
3D Print RC Catamaran
$20.00

Editorial No Ai License
3D Print RC Catamaran
$20.00

Editorial No Ai License
Available in these collections
Response 84% in 0.4h
3D Modeling
Lighting
Rendering
Hire me

3D Model formats

Format limitations
  • PDF (.pdf)576 KB
  • Stereolithography (.stl)17.8 MB
  • 3D Manufacturing File Bambu Studio (.3mf)11.2 MB

3D Model details

  • Publish date2023-11-06
  • Model ID#4885817
  • Ready for 3D Printing
