A320 / A330 Weather Radar panel

NO PCB NEEDED!

This panel do not need any PCB as it has the unique Button Base panel for easily insert and attach buttons, switches, rotary, potentiometers and encoders.

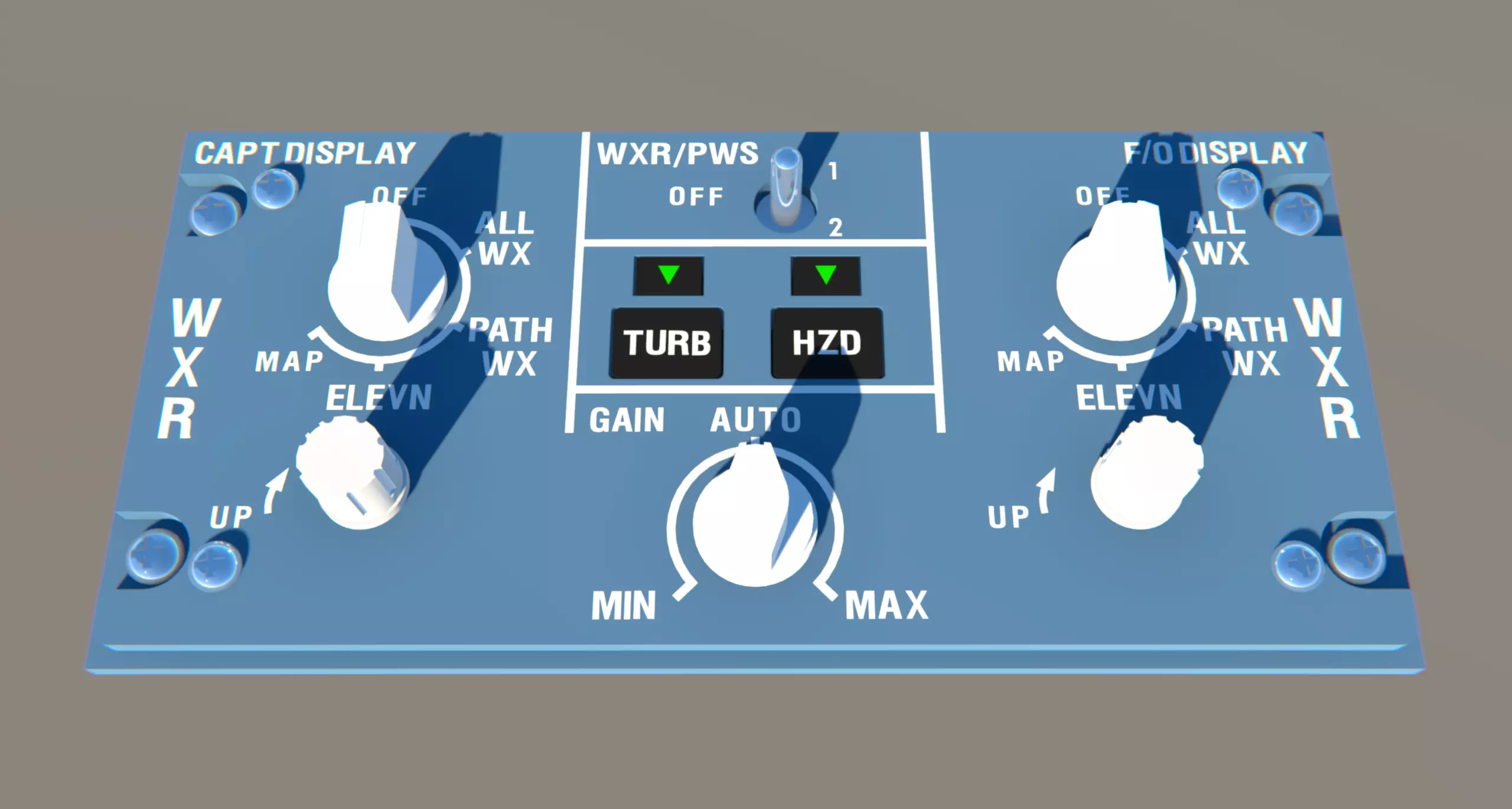

This panel feature the Weather Radar of the Airbus A320 and A330. It has 3 printable versions including the new Weather Radar version.

Includes nuts for screws compatible with AIRBUS models.

Dimensions:

148/119 mm

Height: 40 mm (or 6 mm for pedestal installation option)

Part list:

For the Standard WXR:

1 x 2 Pole 4 Position Single Deck Rotary Switch Band Selector

4 x Potentiometers 15mm

2 x Mini Toggle ON OFF ON (3 position) Switch

3 x Mini Toggle ON ON (2 position) Switch

6 x M3X20 Round screws

6 x M4X16 Round screws

For the New WXR:

2 x 1 Pole 6 Position Single Deck Rotary Switch Band Selector

5 x Potentiometers 15mm

1 x Mini Toggle ON OFF ON (3 position) Switch

1 x Mini Toggle ON ON (2 position) Switch

2 x DIP Tact Switch 6X6X4.3mm

2 x Green LED 3.5mm

6 x M3X20 Round screws

6 x M4X16 Round screws

3D printing settings:

There are 3 printing options:

1) Use a double head printer (dual extruder) and print the inscription in a different color.

2) Use a printer with one head and do not print the inscription so that it is sunken into the panel.

3) Use a printer with one head but print the transparent PLA (TPLA) version so the inscription will stand out above the panel.
