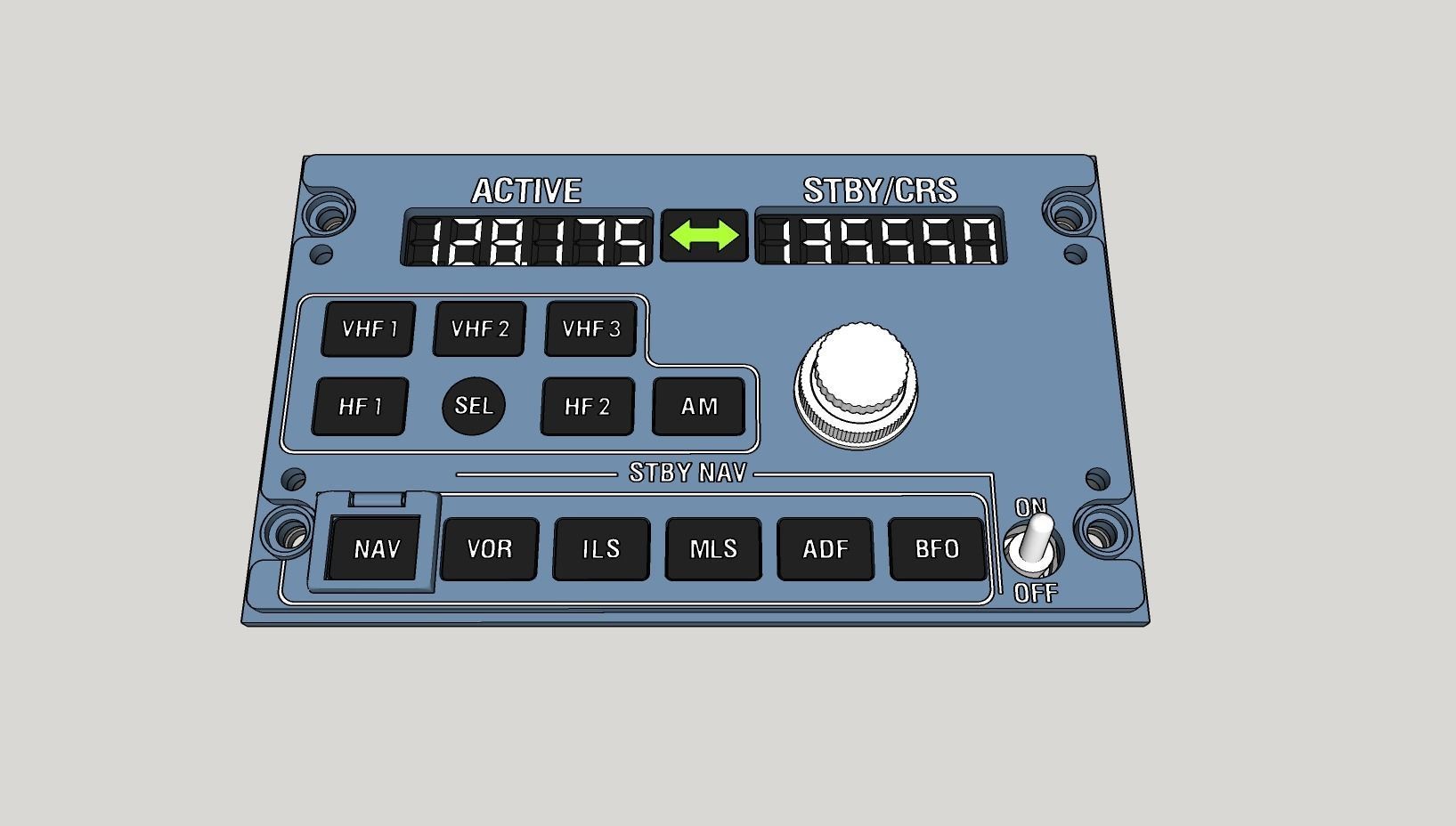

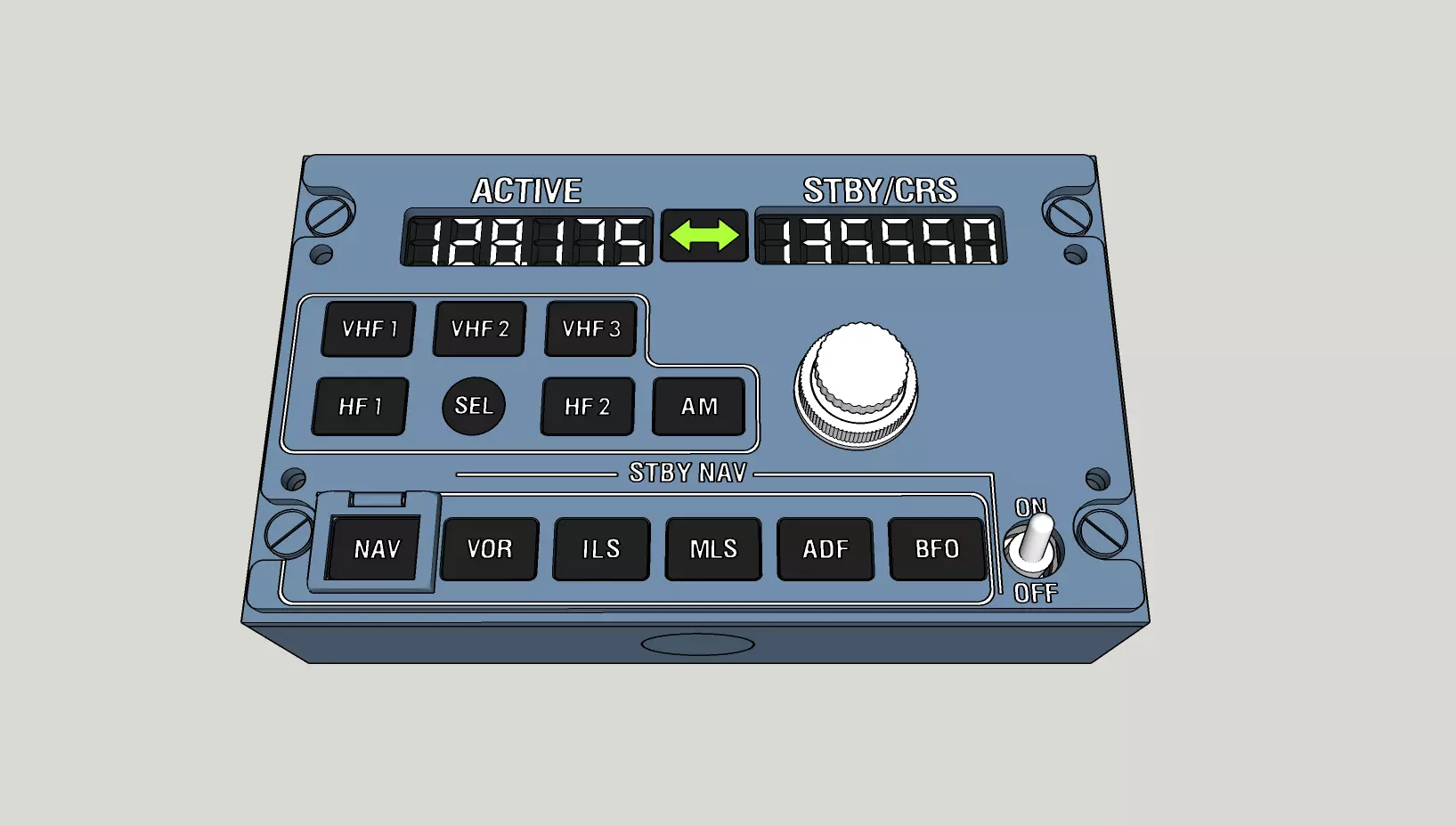

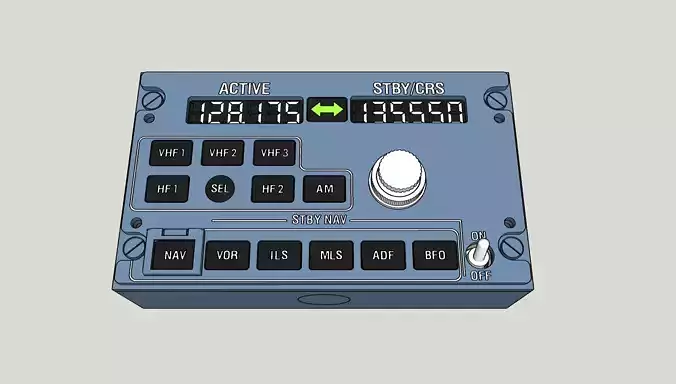

A320 RMP control panel

NO PCB NEEDED!

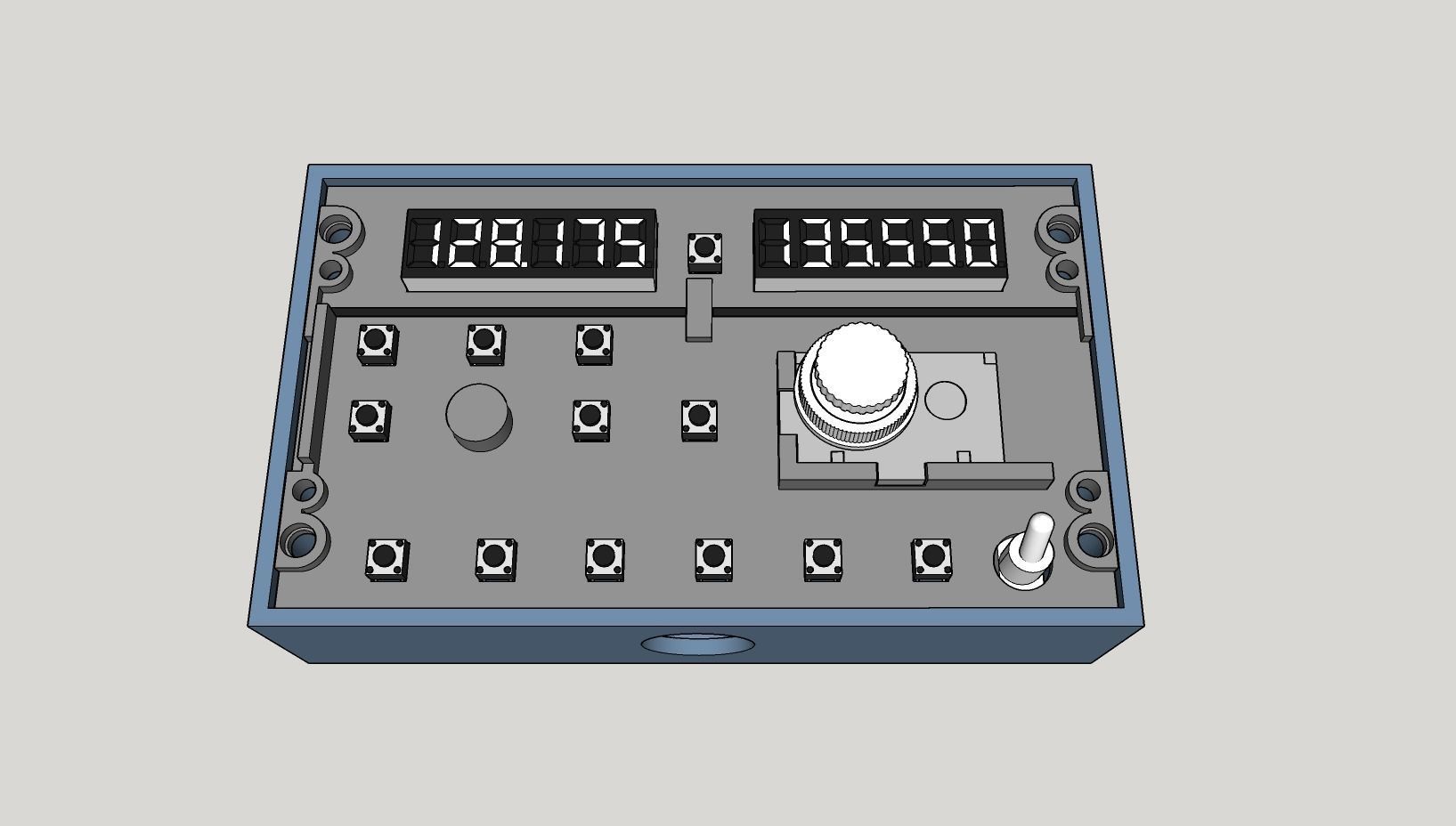

This panel do not need any PCB as it has the unique Button Base panel for easily insert and attach buttons, switches, rotary, potentiometers and encoders.

It is also possible to print only the board and screw it to a pedestal board.Includes nuts for screws compatible with AIRBUS models.

Can be connected to ACP panel which can be purchased separately via this link: https://www.cgtrader.com/3d-print-models/games-toys/game-accessories/a320-acp-control-panel or you can buy both of them at a REDUCED PRICE HERE: https://www.cgtrader.com/3d-print-models/games-toys/game-accessories/a320-rmp-and-acp-panels

Dimensions:

• 148/88 mm
• Height: 40 mm (or 6 mm for pedestal installation option)

Part list:

• 2 x 0.36 inch 6-digit LED Display Tube (decimal) 7 Segments (TM1637 preferred)
• 13 x Mini Push Button Switch DIP Tact Switch 6X6X4.3mm

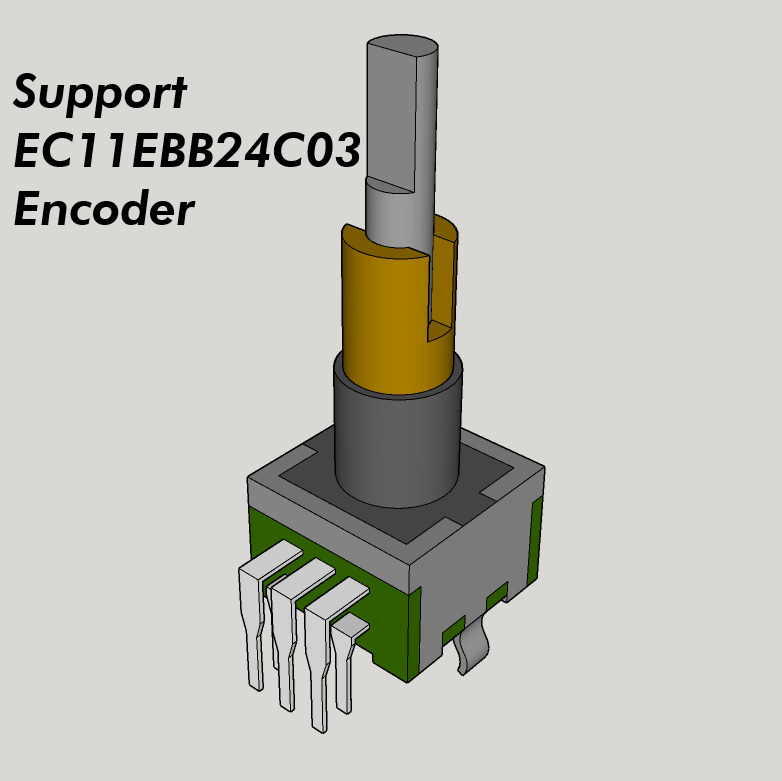

• 2 x EC11 Rotary encoders / 1 x EC11EBB24C03 encoder
• 1 x Mini Toggle ON OFF (or ON ON) Switch
• 4 x M3X20 Round screws
• 4 x M4X16 Round screws

3D PRINTING SETTINGS

Better be done with dual extruder 3D printer.
