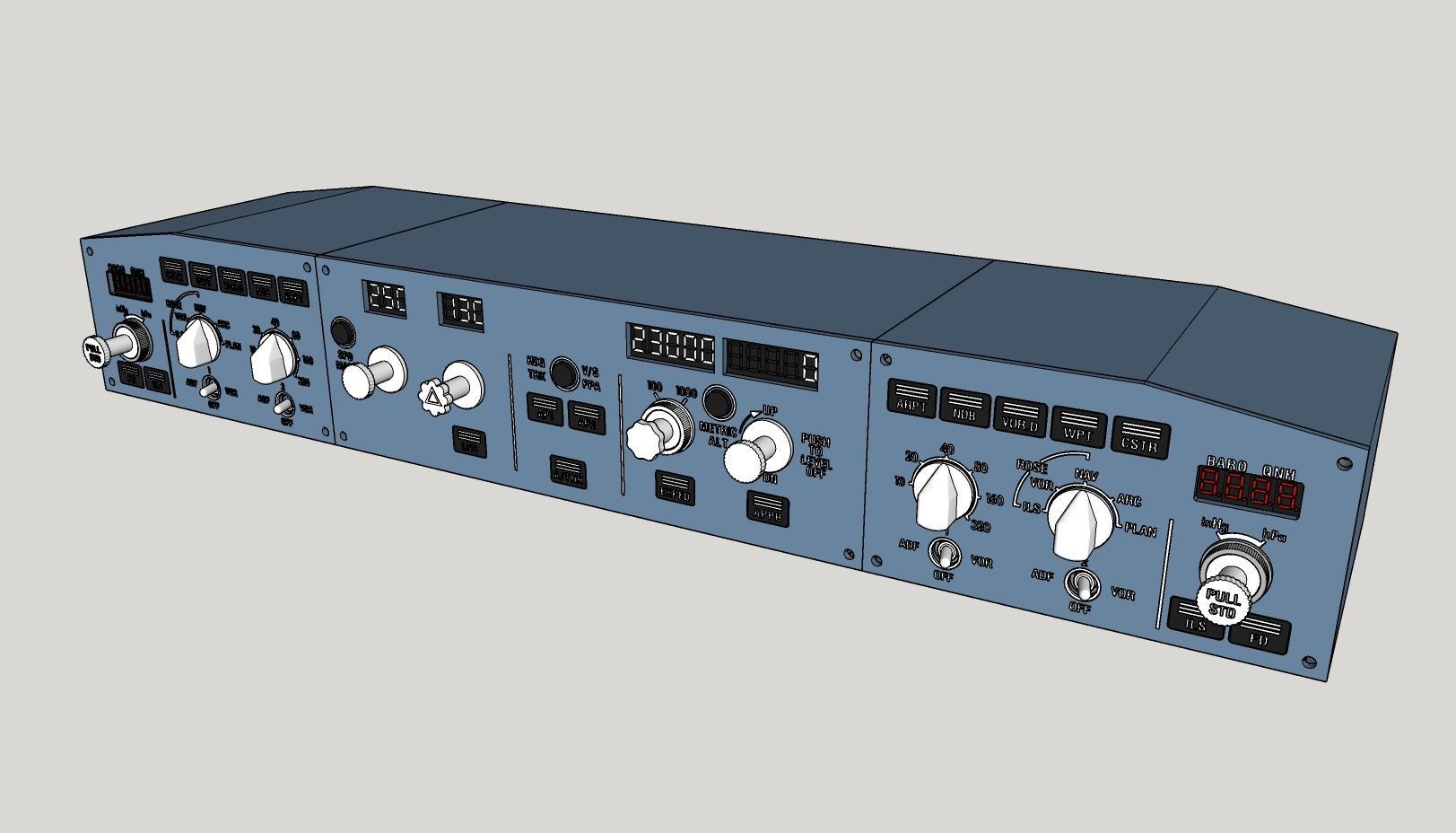

A320/A330 FCU and EFIS control panel

NO PCB NEEDED!

NOW SUPPORT KAV Simulations LCD

This panel can be fully illuminated and is ready for printing by transparent PLA and painting

Now you can have both models at an even more affordable price. The state of the art FCU and its EFIS.

Both panels do not need any PCB as they have the unique Button Base panel for easily insert and attach buttons, switches, rotary, potentiometers and encoders.

The displays can be assembled by a 7 Segment LED, KAV Simolations LCD display or by a 1.3" OLED Displays.

Detailed instructions on how to assemble each option can be found in the included assembly guide.

Dimensions of FCU: 256/133 mm Height: 86.3 mm

Part list:

2 x 7 Segment display 3 digits Display Module 0.36 inch (Common Cathode WHITE)

2 x 7 segment display 5 digits Display Module 0.36 inch (Common Cathode WHITE)

4 x Rotary Encoders EC11

1 x Rotary Band switch 2 Pole 3 Position (SR16)

4 x Micro Switch 3Pin NO/NC Mini push button

9 x Mini Push Button Switch DIP Tact Switch 6X6X4.3mm

4 x M3X20 Round screws

Can be purchased separately.

Dimensions of EFIS:

Part list:

1 x 7 Segment LED 0.36 inch MAX7219

7 x Mini Push Button Switch DIP Tact 6X6X4.3mm

2 x Toggle switch ON-OFF-ON

1 x Rotary Band switch 2 Pole 3 Position (SR16mm)

2 x Rotary Band switch 1 Pole 8 Position (SR16mm or SR26mm)

1 x EC11 Rotary encoder with Push switch 20MM Half Shaft

1 x Micro Switch 3Pin NO/NC Mini push button

4 x M3X20 Round screws

Can be purchased separately.

~~~ 3D printing settings: Better be done with dual extruder 3D printer.
