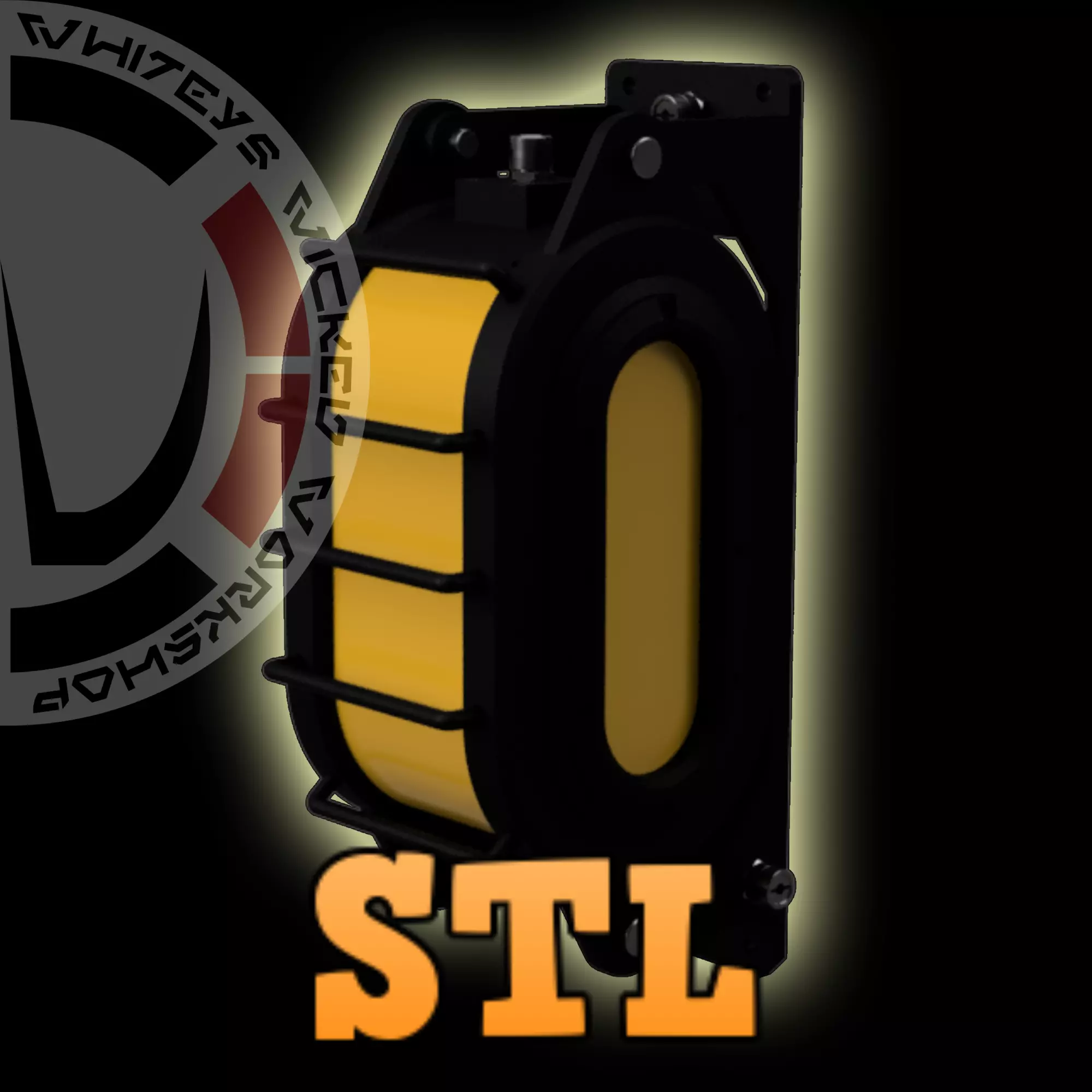

Star Wars Galaxys Edge Light 1 3D print model

Get this and other files by Joining Whiteys Wicked Workshop Patreon for monthly STL files https://www.patreon.com/WhiteysWickedWorkshop

2024-02-25 V2 Added a new mount base stl and Top cap stl for the lighting.

Items Needed:

Clevis Pin and hex screw stl files included but if you want real hardware you will need the following:QTY16 = Hexagon Socket Button Head screw Iso 7380-1 M4x20 steel McMaster-CarrQTY 4 = Adjustable Clevis Pin 98330A350 5/8x 2 McMaster-CarrQTY 4 = Aluminum Cordgrip 7529K302 McMaster-CarrQTY 1 = E27 LED Light Socket Extension cord with on/off switchQTY 1 = Non Polarized Plug 15amp

Dimensions:

• approx 510mm (20) x 220mm (8) But you can scale to your desire

Assembly:

1. Print all pieces
2. Test fit before gluing together
3. Start with Center lens and work outwards
4. Use Hex screws to tie it all together
5. Mount backing to the wall
6. Add light in place and secure with Clevis pins
7. Two cord grip holes depending on how you tie the wiring to the light
8. Hole will need to be drilled on top light for electrics.

PROTIP:

1. Paint and let dry before handling.
2. Glue in screws using CA glue
3. Have not printed this yet so let me know if it needs tweaked
4. I was planning on filament printing in clear for the lens areas (yellow parts)

Please let me know of any issues.

Please do not share this file.

Please do not print and sell this item.

Please do not print and make a mold with the purpose of selling this item.

This is for Personal use only!

For the Children! :)

Whitey!
