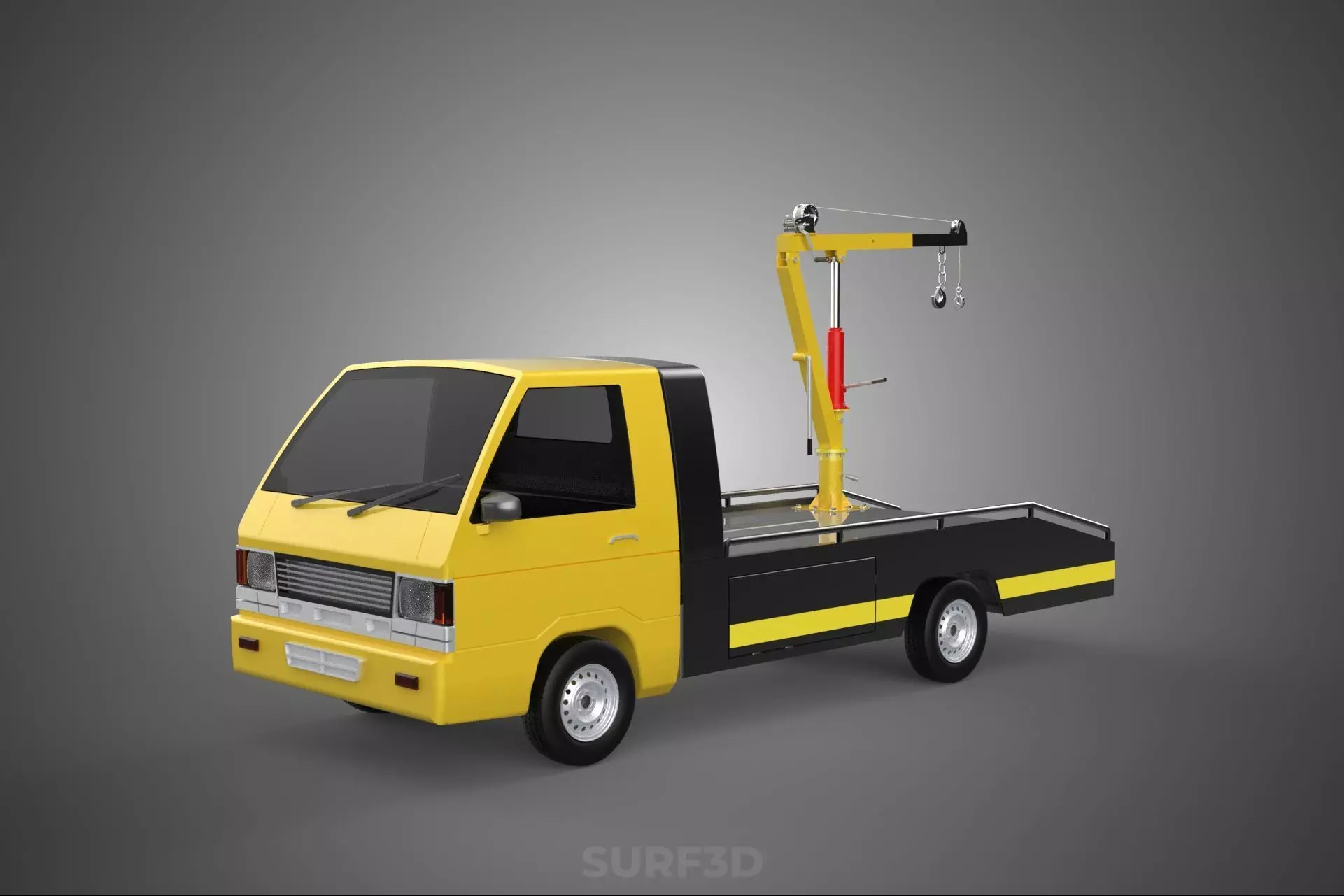

A Hydraulic Jack Crane Lifting with Manual Winch Hoist attached on the Tow Truck Pickup refers to a specialized vehicle-mounted lifting and recovery system, engineered for integration onto the chassis of a light-to-medium-duty pickup truck, which is typically adapted for towing and roadside assistance. This configuration combines the power and precision of a hydraulically actuated crane with the versatility and independence of a manual winch hoist, enabling a broad range of lifting, pulling, and recovery operations for relatively modest loads.

System Description:

1. Tow Truck Pickup Base: The foundational element of this system is a standard or modified pickup truck. These vehicles are chosen for their robust frame, maneuverability, and accessibility, particularly in situations where larger, dedicated tow trucks or crane vehicles might be impractical. The truck provides the mobile platform, stability for lifting operations (often augmented by integrated or deployable outriggers), and, in some cases, the power source (via Power Take-Off or an auxiliary power unit) for the hydraulic pump.


2. Hydraulic Jack Crane Lifting Mechanism: This constitutes the primary lifting component. It typically comprises a boom or A-frame structure, pivotally mounted to the truck's bed or frame. The articulation and elevation of this boom are controlled by one or more hydraulic cylinders (often colloquially referred to as hydraulic jacks in this context due to their function in lifting). These cylinders, pressurized by a hydraulic pump, provide powerful, smooth, and precise vertical lifting and controlled lowering capabilities. The crane's reach, maximum lifting capacity, and stability are contingent upon the design of its hydraulic system, the structural integrity of the boom, and the engineering of its mounting to the vehicle chassis.


3. Manual Winch Hoist: Integrated either onto the crane boom itself or a separate part of the truck's frame, the manual winch hoist serves as an auxiliary or supplementary pulling and lifting device. It consists of a hand-cranked drum around which a cable or rope is wound. Unlike hydraulic or electric winches, its operation relies entirely on human effort, providing mechanical advantage for pulling or lifting loads. This component offers critical advantages such as independence from the vehicle's power system, fine-tuned control for precise positioning, and a reliable backup in situations where hydraulic power might be impractical or unavailable.

   Operational Mechanism:
   The primary lifting function is performed by the hydraulic crane. An operator manipulates controls to extend or retract the hydraulic cylinders, which in turn raises or lowers the crane boom. Loads are typically attached to the boom's end via chains, straps, or specialized hooks. For tasks requiring delicate adjustment, recovery from constrained spaces, or when the hydraulic system is not the optimal choice, the manual winch hoist can be engaged. The operator manually turns the winch crank, spooling the cable in or out to exert pulling or lifting force on the attached load.

   Applications:
   This combined system is commonly employed in various light-to-medium duty scenarios, including:

4. Light Vehicle Recovery: Retrieving motorcycles, ATVs, small passenger vehicles, or other light equipment from ditches, embankments, or inaccessible areas.

5. Roadside Assistance: Lifting disabled vehicles onto a flatbed or dolly for transport.

6. Equipment Loading/Unloading: Assisting with the loading and unloading of generators, tools, machinery, or other materials onto the truck bed or a trailer.

7. Utility Operations: Used by service technicians for moving equipment in the field.

8. Minor Salvage Operations: Manipulating lighter objects during clean-up or salvage.

   Advantages:

9. Portability and Maneuverability: Being mounted on a pickup truck allows for access to tighter spaces and off-road locations that larger recovery vehicles cannot reach.

10. Versatility: The combination of hydraulic power and manual control offers flexibility for diverse tasks, ranging from heavy lifting to delicate adjustments.

11. Cost-Effectiveness: Generally less expensive to acquire and operate compared to full-sized dedicated tow trucks or large mobile cranes.

12. Precision and Control: The hydraulic system provides smooth and accurate positioning of loads.

13. Redundancy: The manual winch offers a critical backup or supplementary method of load manipulation, enhancing operational reliability.

    Limitations:

14. Limited Lifting Capacity: The overall lifting capacity is constrained by the structural integrity of the pickup chassis, the power of the hydraulic system, and the vehicle's stability, making it unsuitable for heavy-duty towing or lifting.

15. Manual Effort: The manual winch requires significant physical exertion for heavier loads, limiting its practical use for high-volume or strenuous tasks.

16. Slower Operation: Manual winching is considerably slower than powered alternatives.

17. Stability Concerns: Proper operation necessitates careful consideration of the vehicle's stability, often requiring deployment of outriggers (if equipped) and adherence to strict load charts to prevent tipping.

    Safety Considerations:
    Operation of such a system demands rigorous adherence to safety protocols, including comprehensive understanding of load limits, ensuring vehicle stability, employing proper rigging techniques, and maintaining acute awareness of the surrounding environment. Regular inspection and maintenance of all hydraulic, mechanical, and structural components are paramount to ensuring safe and efficient operation.
