JACK CRANE LIFTER HAND CRANK WINCH HOIST TOW TRUCK PICKUP TOWING 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

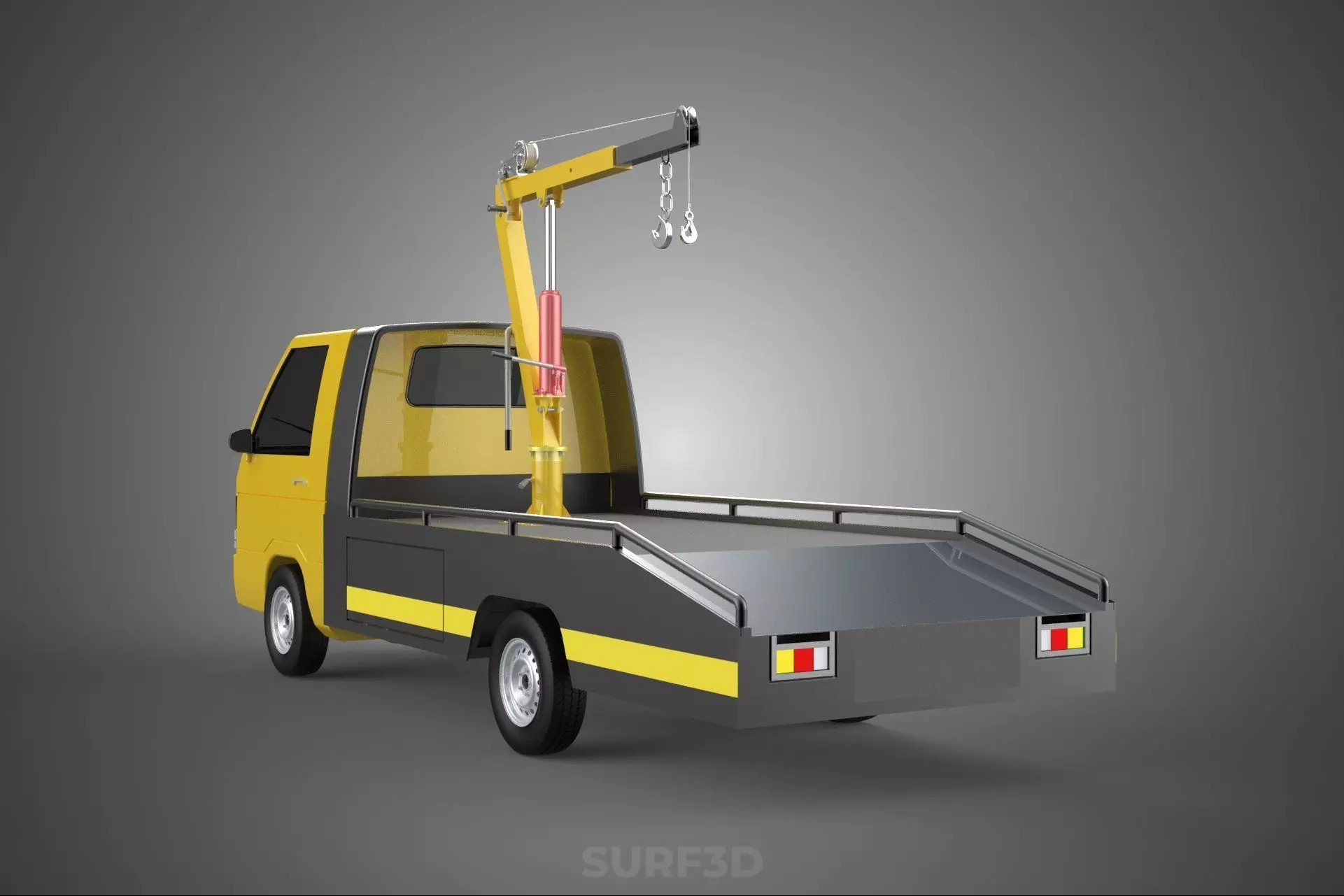

A Hydraulic Jack Crane Lifter with Hand Crank Winch Hoist Attached to the Tow Truck Pickup Towing is a specialized, multi-functional lifting and recovery apparatus designed for integration with light-to-medium duty tow trucks, particularly those built upon a pickup truck chassis. This system combines the power of a hydraulic lifting arm with the controlled precision of a manual winch, enhancing the versatility and operational capabilities of the host vehicle for various roadside assistance, vehicle recovery, and light material handling tasks.

I. Core Components and Mechanism

1. Hydraulic Jack Crane Lifter: This is the primary lifting component, typically comprising:

2. Boom/Arm: A robust steel structure, often telescopic or articulated, designed to extend vertically and sometimes horizontally from the mounting point. Its configuration dictates the maximum lift height and outreach.

3. Hydraulic Cylinder(s): Actuators that provide the primary lifting force. Pressurized hydraulic fluid, typically generated by a hand-operated pump lever (hence hydraulic jack) or an electrically driven pump, extends the cylinder, elevating the boom.

4. Hydraulic System: Includes the pump, fluid reservoir, control valves (for precise raising and lowering), and hoses. The jack designation often implies a self-contained, manually operated hydraulic system, suitable for intermittent use and moderate loads.

5. Lifting Capacity: Varies significantly by model, generally ranging from several hundred to a few thousand pounds (or kilograms), depending on the boom's extension and angle.


6. Hand Crank Winch Hoist: Integrated either onto the crane's boom or a separate frame component, this mechanism serves as an auxiliary or primary pulling/lifting device. It consists of:

7. Winch Drum: A cylindrical spool around which wire rope or synthetic line is wound.

8. Hand Crank: A manual handle mechanism that, when rotated, rotates the drum to spool or unspool the line, providing controlled pulling or lifting force.

9. Cable/Line: Typically high-strength steel wire rope or a durable synthetic fiber, equipped with a hook for attachment to loads.

10. Purpose: While often possessing a lower lifting/pulling capacity than the hydraulic system, the hand crank winch offers fine control for positioning, securing loads, or performing lighter recovery tasks. It also serves as a manual backup or for situations where hydraulic power is not required or feasible.


11. Attachment to Tow Truck Pickup Towing: The entire assembly is engineered for secure mounting onto the chassis or frame of a pickup truck that has been modified for towing operations.

12. Mounting Platform: This involves a robust subframe or a receiver hitch integration system that bolts directly to the truck's frame, typically at the rear, often above or behind the rear axle.

13. Stability Enhancements: Due to the potential for significant cantilevered loads, many systems incorporate deployable outriggers or stabilizers. These extend outward and downward from the truck's chassis, providing a wider, more stable base of support during lifting operations and preventing vehicle tilt or instability.

    II. Functionality and Operational Scope

    This integrated system greatly enhances the utility of a standard pickup-based tow truck. Its primary functions include:

14. Vehicle Recovery: Lifting disabled vehicles (e.g., cars, motorcycles, ATVs) from ditches, off embankments, or righting overturned vehicles for easier towing or loading.

15. Roadside Assistance: Facilitating tasks such as lifting a vehicle to change a heavy tire, clearing small obstacles, or performing minor mechanical work requiring elevation.

16. Load Handling: Lifting and positioning various objects or materials for transport, particularly useful in construction, landscaping, or agricultural settings for lighter loads.

17. Auxiliary Pulling/Securing: The hand winch can be used to pull objects into position, secure a load on a trailer, or provide tension during recovery operations.

    III. Design Considerations and Applications

    Design variations include different boom lengths (fixed or telescopic), boom articulation capabilities, hydraulic pump types (manual vs. electric), and varying lifting capacities. Systems are typically robustly constructed from high-strength steel to withstand the stresses of lifting and pulling. Safety features often include overload protection, check valves to prevent hydraulic collapse, and locking pins for boom stabilization.

    The Hydraulic Jack Crane Lifter with Hand Crank Winch Hoist Attached to the Tow Truck Pickup Towing represents a versatile, compact, and cost-effective solution for light-to-medium duty recovery and lifting, providing independent operators and smaller towing services with expanded capabilities without the investment in a full-sized heavy-duty wrecker.
