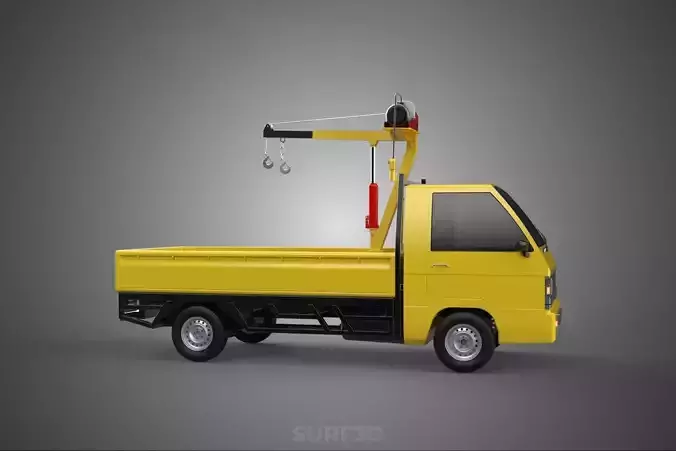

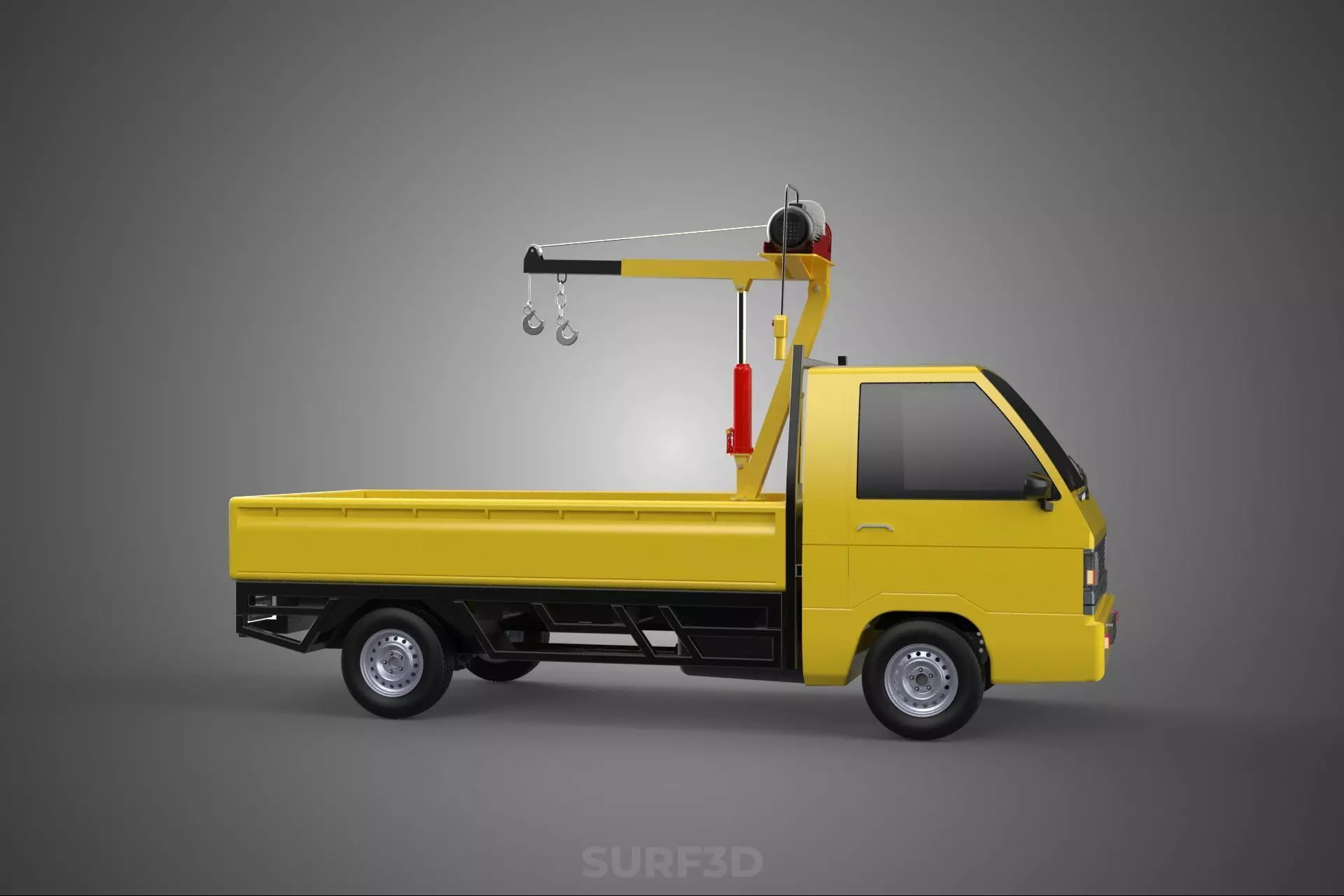

SMALL MINI COMPACT PICKUP TRUCK WINCH HOIST HYDRAULIC CRANE JIB 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A Small Mini Compact Pickup Truck with Electric Winch Hoist Hydraulic Crane Jib refers to a specialized light-duty utility vehicle meticulously engineered to integrate advanced material handling capabilities onto a reduced-footprint automotive platform. This configuration is designed for efficient lifting, lowering, and precise placement of loads in diverse environments, particularly where spatial constraints or the need for self-sufficiency preclude the use of larger, dedicated equipment. The system effectively combines the inherent transport agility of a compact pickup truck with the self-loading and offloading functionalities afforded by a hydraulic crane, complemented by an electric winch for hoisting operations.

Small Mini Compact Pickup Truck Platform:
The foundational element is a light-duty pickup truck, distinguished by its reduced overall dimensions, lower gross vehicle weight rating (GVWR), and enhanced maneuverability when compared to conventional full-size pickups. This category often encompasses vehicles such as Japanese Kei trucks, earlier generations of domestic compact pickups (e.g., pre-2000s Ford Ranger, Chevrolet S-10, Datsun/Nissan pickups), or various international compact utility vehicles. Their constrained dimensions are advantageous for navigating narrow urban streets, densely populated work sites, and restrictive off-road or rural access ways. The open cargo bed provides a versatile and accessible area for tools, materials, and the integral crane system, while also offering benefits such as lower operational costs, improved fuel efficiency, and ease of parking.

Hydraulic Crane Jib:
The hydraulic crane jib serves as the primary mechanism for mechanical lifting and load manipulation. Typically comprising a series of telescoping or articulating boom sections, its operation is powered by a dedicated hydraulic system, which includes a pump, hydraulic cylinders, control valves, and a fluid reservoir. Hydraulic power is essential for generating the substantial force required for controlled lifting, precise lowering, and slewing (rotation) of loads, offering superior control and variable speed capabilities. These cranes are generally configured as knuckle-boom (articulated) or fixed-boom types, designed for light to medium lifting capacities, ranging from approximately 300 kilograms to 1.5 metric tons, contingent upon the truck's chassis integrity and stability. The jib's outreach capability enables loads to be retrieved from or deposited at a distance from the vehicle's chassis, significantly enhancing material handling flexibility. Stability systems, frequently incorporating manual or hydraulically actuated outriggers, are often integrated to mitigate the risk of tipping during lifting operations.

Electric Winch Hoist:
Integrated into or mounted upon the crane jib, the electric winch functions as the dedicated hoist mechanism for vertical load movement. It derives power from the vehicle's direct current (DC) electrical system, typically 12V or 24V. Unlike winches designed exclusively for horizontal pulling or vehicle recovery, this application specifically leverages the winch for controlled vertical lifting and lowering via a wound cable or synthetic rope. Key design attributes include a robust electric motor, durable gearing for torque multiplication, and a fail-safe braking system to securely hold suspended loads. Its electric operation offers considerable convenience, allowing for lifting operations without requiring continuous high engine RPM, thereby contributing to fuel efficiency, reduced noise emissions, and potential operation in emission-sensitive areas.

Integrated Functionality and Applications:
The synergistic combination of these components creates a highly versatile and self-sufficient utility vehicle. The compact pickup provides the necessary mobility for material transportation, while the integrated hydraulic crane with its electric hoist enables independent loading and unloading of materials, tools, or small equipment, thereby eliminating reliance on external lifting machinery or extensive manual labor.
Primary applications for this specialized vehicle include:

• Urban Logistics and Deliveries: Facilitating the transport and placement of heavy or bulky items in congested city environments.

• Landscaping and Arboriculture: Efficiently moving rocks, logs, bags of soil, or nursery stock.

• Light Construction and Maintenance: Handling materials on job sites, assisting with equipment installation, setting light poles, or servicing infrastructure.

• Agricultural and Farm Operations: Lifting feed sacks, small machinery components, or aiding in fence construction and repairs.

• Specialized Field Services: Supporting mobile workshops, emergency response efforts, or operations in remote or off-grid locations where access for larger equipment is restricted.

  Advantages and Considerations:
  The principal advantages of this vehicle configuration include its unparalleled maneuverability in confined spaces, significant self-sufficiency in material handling operations, reduced operational costs compared to larger dedicated crane trucks, and the capacity to access areas inaccessible to heavier equipment. However, critical operational considerations necessitate strict adherence to stated lifting capacity limits, ensuring vehicle stability (which often mandates the deployment of outriggers), thorough training for crane operators, and diligent routine maintenance of both the vehicle chassis and the hydraulic/electrical systems to ensure optimal safety and reliability. Furthermore, compliance with relevant regulatory standards concerning vehicle modifications, permissible gross vehicle weight, and crane operation certification is paramount.
