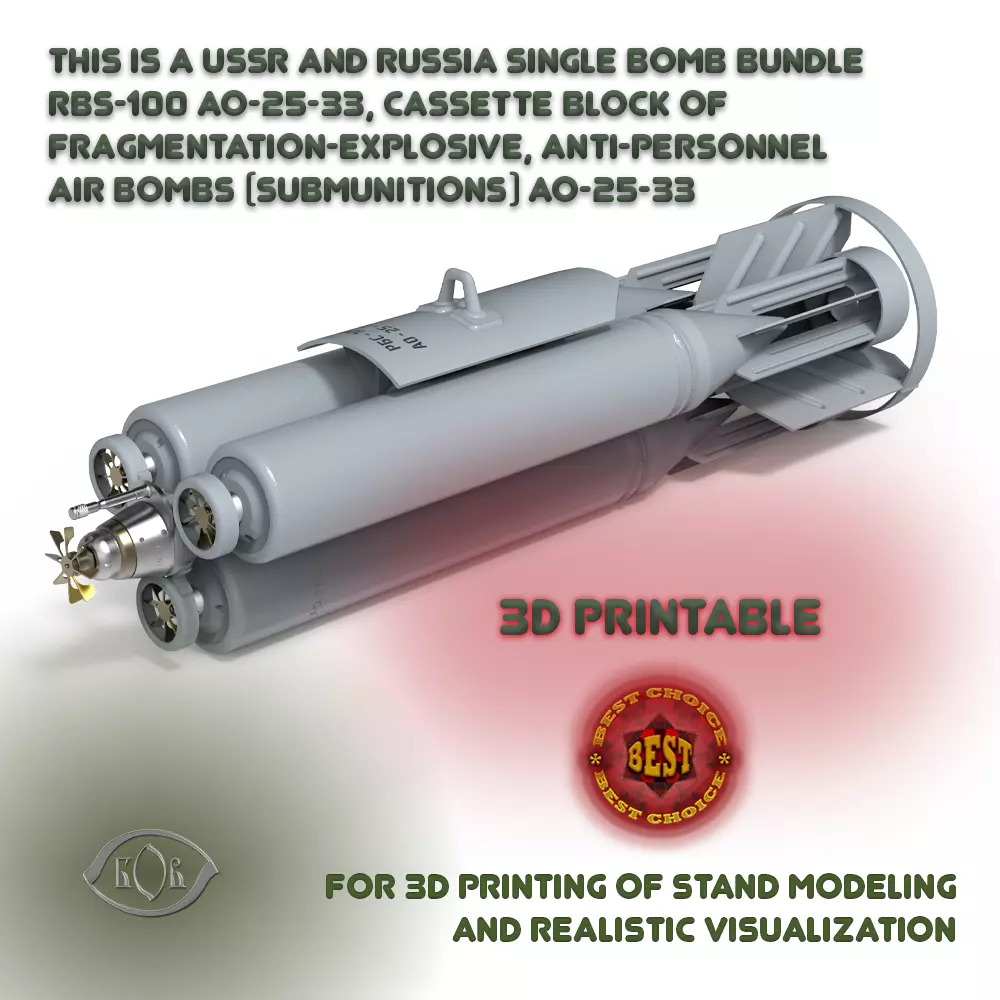

This is the USSR and Russian Single bomb bundle RBS-100 AO-25-33 cluster block of AO-25-33
fragmentation-fugitive anti-personnel aerial bombs (submunitions).
AO-25-33 fragmentation bombs are used to destroy enemy manpower,
unarmored and lightly armored vehicles; they are used in bundles RBS-100 AO-25-33
from all aircraft, on the bomb carriers which provide for the suspension of bombs of 100 kg caliber.
Three fragmentation bombs assembled into a single munition. In this way, a larger fragmentation
area is achieved compared to a unitary munition.

Characteristics of the product when equipped with AO-25-33 bombs:
Bomb bundle length - 1060-1062 mm;
Diameter of the bomb bundle - 280 mm;
Stabilizer span - 280 mm;
Weight of the unequipped bundle - 111 kg;
Weight of the bundle without bombs - 12 kg.

Basic data of the AO-25-33 aerial bomb without fuse:
Length of the aerial bomb - 982.5-987 mm;
Body diameter - 120-122 mm;
Stabilizer span - 120-122 mm;
Weight of the unfinished aerial bomb - 33 kg;
Explosive charge weight - 5.6 kg;
Filling factor - 17.12;
Radius of solid impact by killing fragments - 34 m;
Area of continuous shrapnel-killing damage - 3630 m2
Adopted for service in the Fifties of the twentieth century and used to this day in the wars waged by the Russian Federation.

Assembly models are made in original dimensions. The models are made in SolidWorks.
They are intended primarily for 3D printing of bench models - training models,
for use as a visual aid and are not a complete copy of the external forms of the original products.
Although they show all the main external elements. The models are adapted for the
possibility of 3D printing and subsequent assembly of the product layout.
The models are soborochnye and contain files of all conditional parts (STL)
in a highly polygonal version to obtain qualitatively smooth forms. Additionally,
the set includes all files for obtaining high-quality realistic visualization with close-up
(smooth lines, selected surfaces for applying materials or textures) See rendering examples.
In addition to solid model file formats, converted polygonal formats with high detail are additionally provided.

Mesh:
Vertices 1654674
Faces 3309332
(RBS100.obj)
