Description

This is the RBK-500 AO-2.5RTM (Cassette) cluster bomb is designed to defeat easily vulnerable
equipment and manpower located in open terrain in trenches, trenches and natural folds of terrain.
The drop height of the cluster bomb is from 300 m and more and the airplane flight speed is 500-2300 km/h,
as well as from diving and coasting at angles up to 30 degrees.
Developed in the USSR, it is a non-conventional weapon of mass destruction and is actively used
by the Russian Federation in all the wars it wages and since 2022 in the Russian-Ukrainian war.

Main technical data of the cassette:
caliber - 500 kg
mass without tare:

  • with fairing and release mechanism - 504 kg
  • without fairing and release mechanism - 494 kg
    mass with tare - 605 kg
    fairing weight - 7.2 kg
    mass of release mechanism - 2.3 kg
    overall dimensions:
  • diameter - 450 mm
  • length with fairing - 2500 mm
  • length without fairing and hooks - 2145 mm
  • stabilizer span - 570 mm
    number of bombs in the cassette - 108 pcs.

The main technical data of the bomb:
mass - 2.5 kg
diameter - 90 mm
length - 150 mm
mass of an individual fragment - 2.5-3 g.
mass of BB (TG-40) - 0.55 kg
fuze type - I-352V

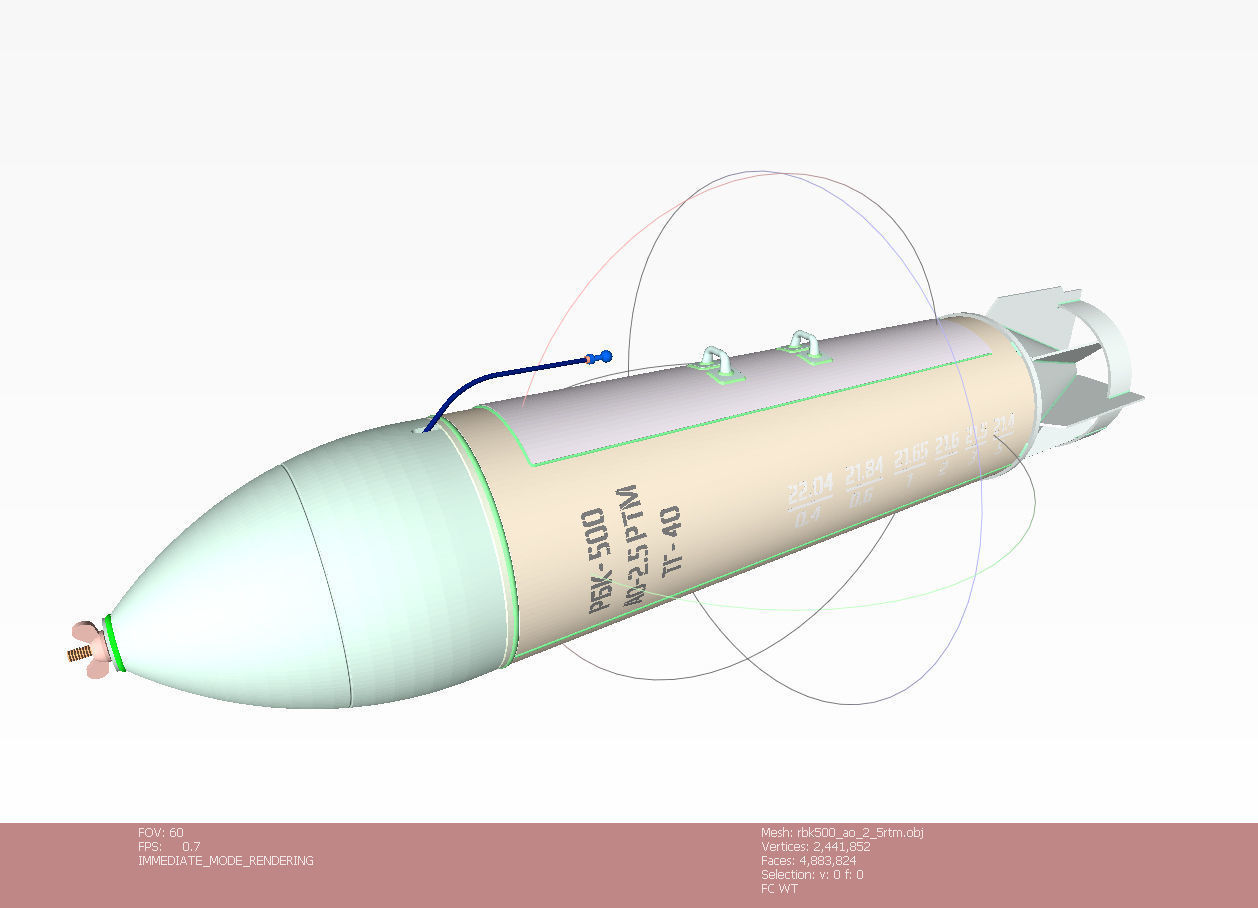

This is an assembly - stand 3D model, in scale 1:5 in TWO variants (Full assembly, Training moulage-stand with cut).
Dimensions of the model 500x124x124mm. maximum - Including stand (scale 1 to 5 in relation to the real size).
The model stand is stylized to look like a real industrial stand for the production and maintenance of such aerial bombs.

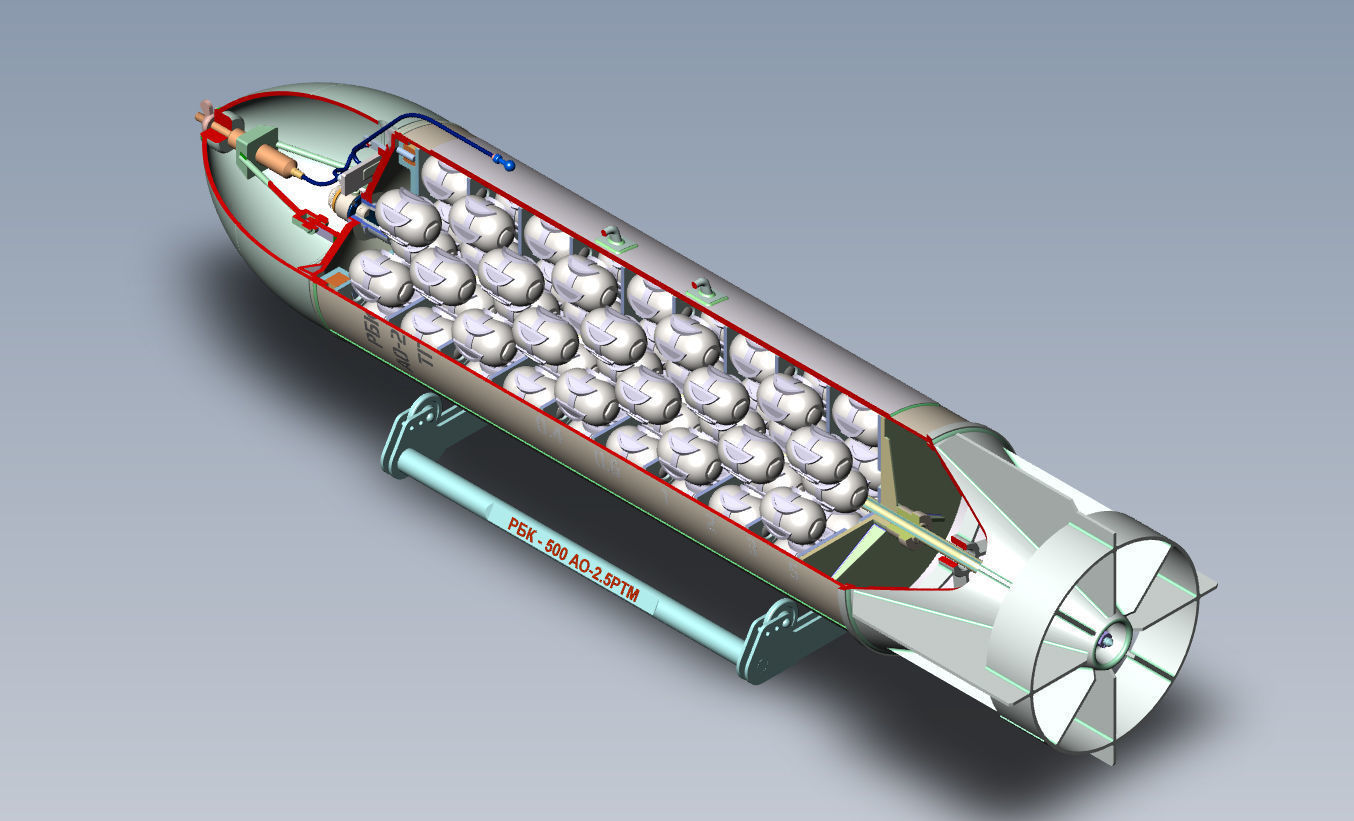

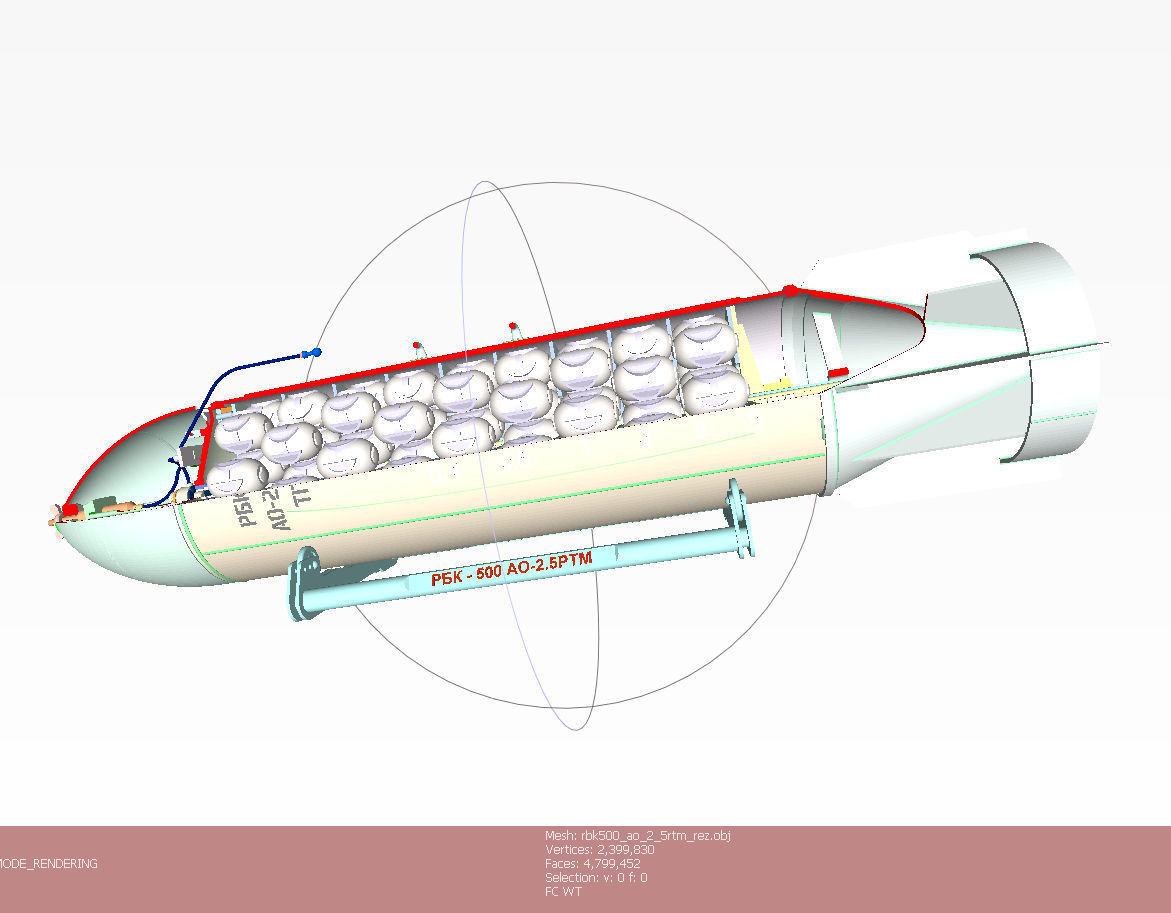

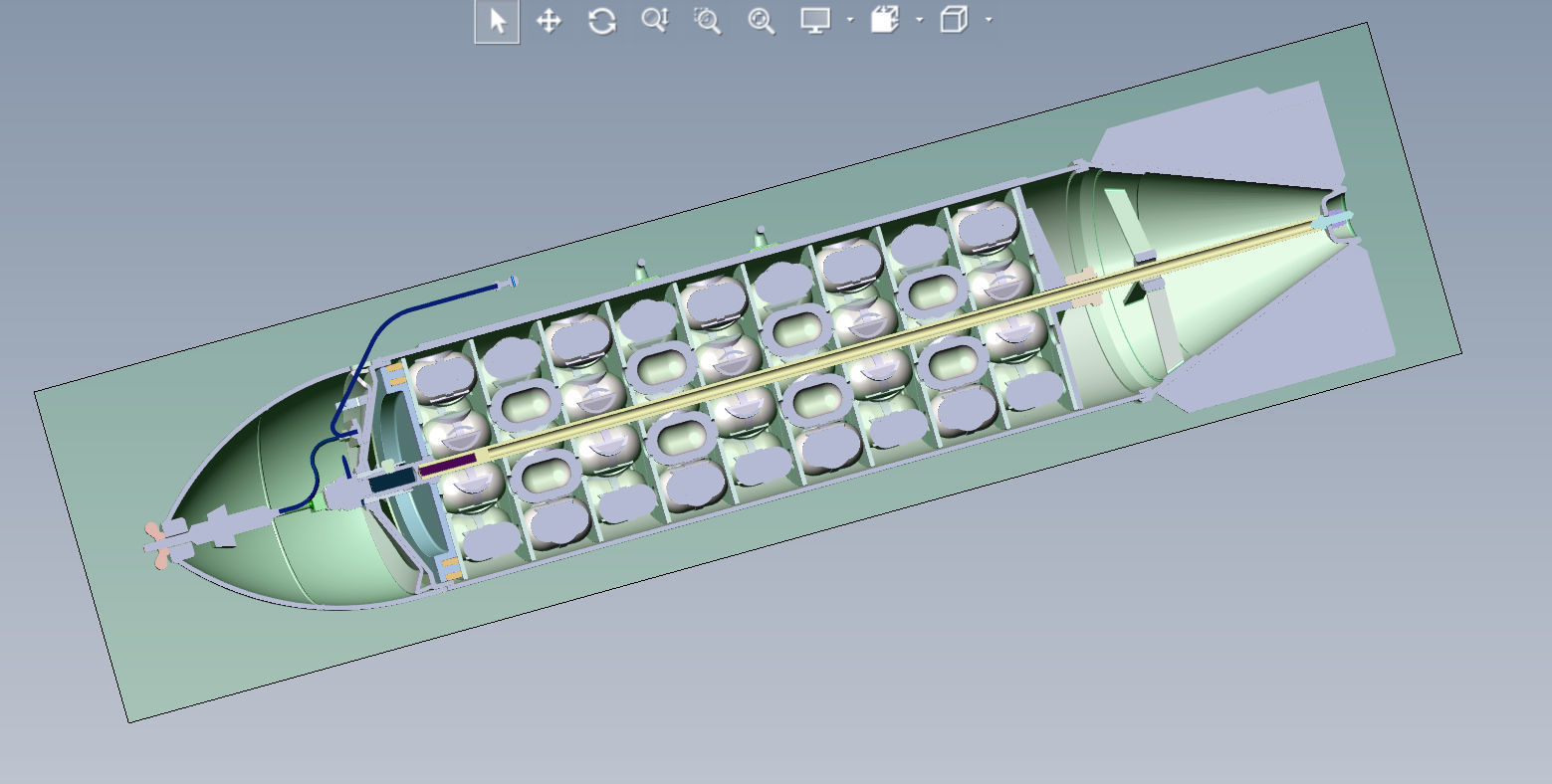

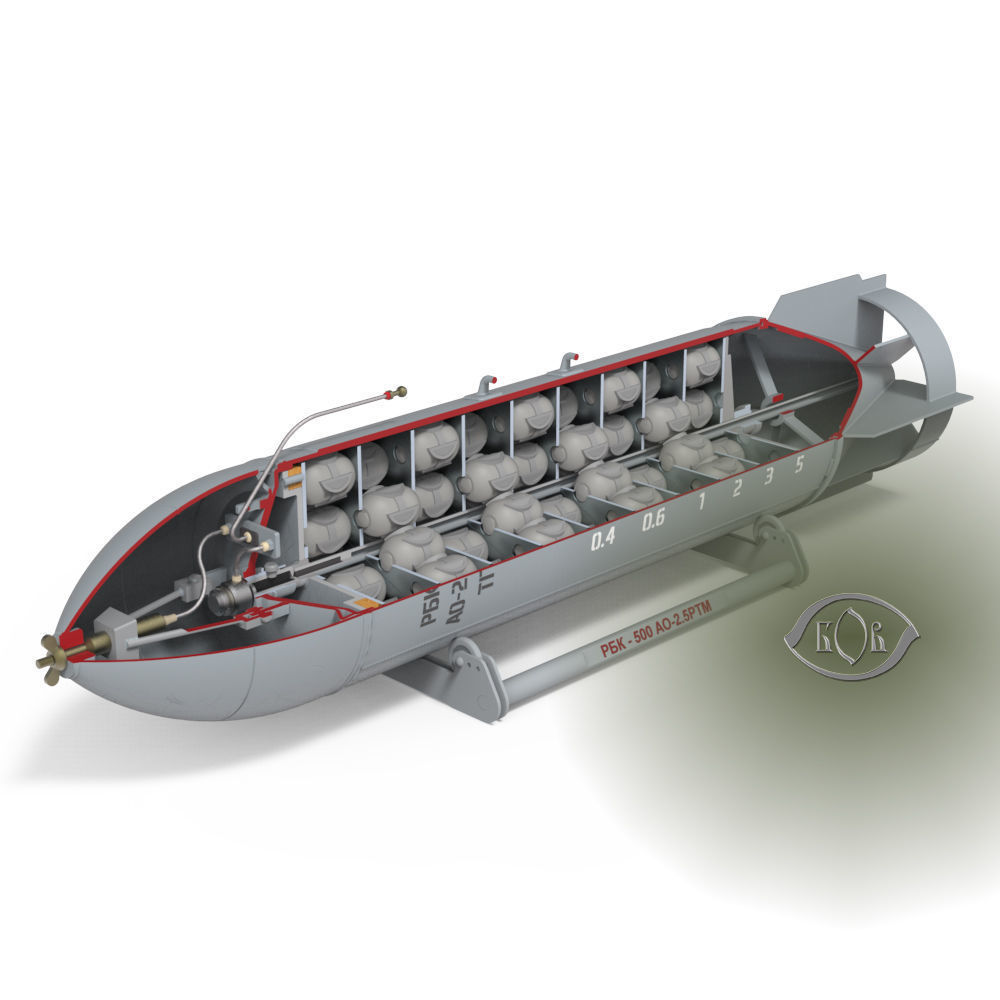

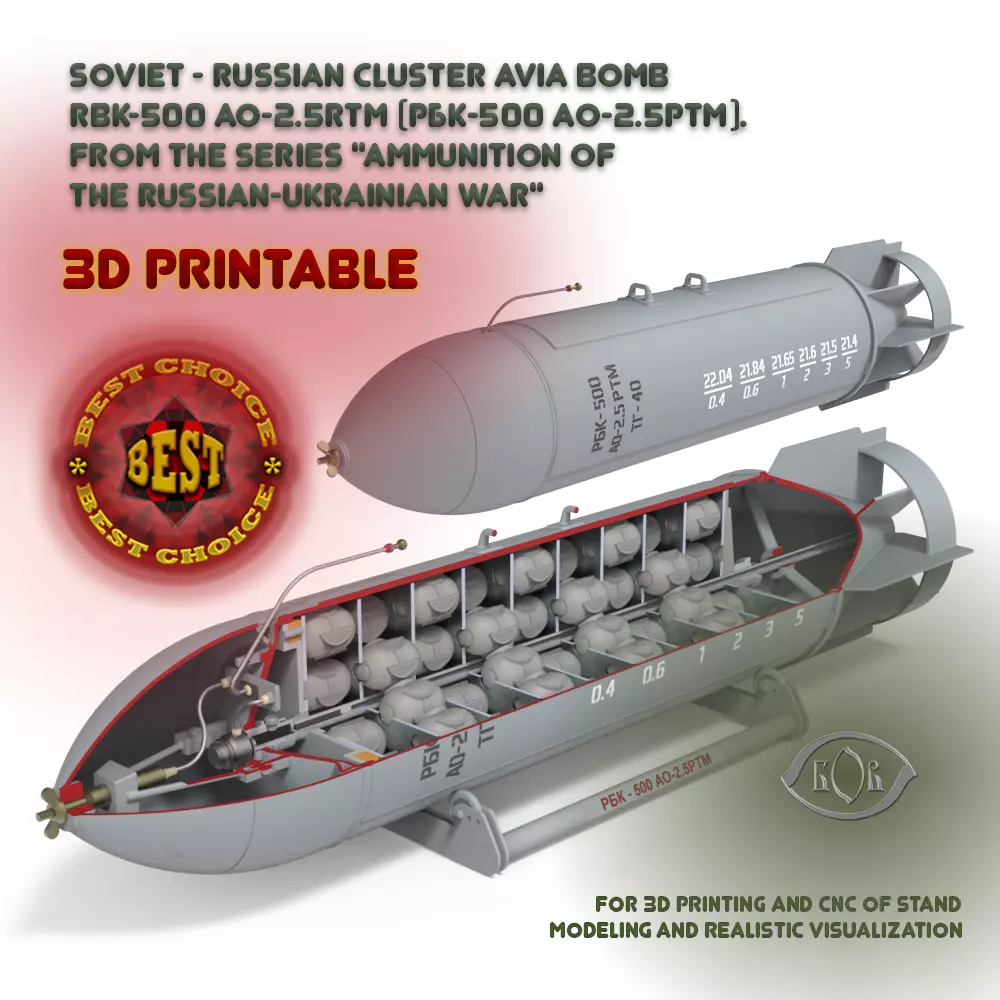

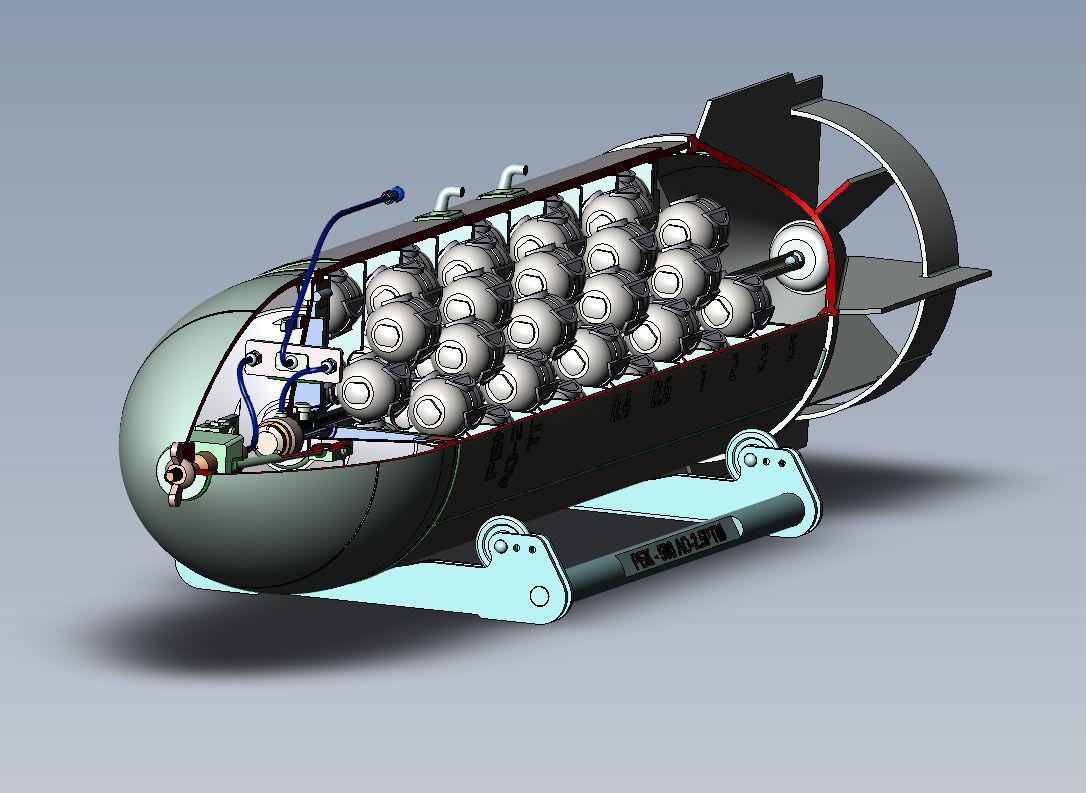

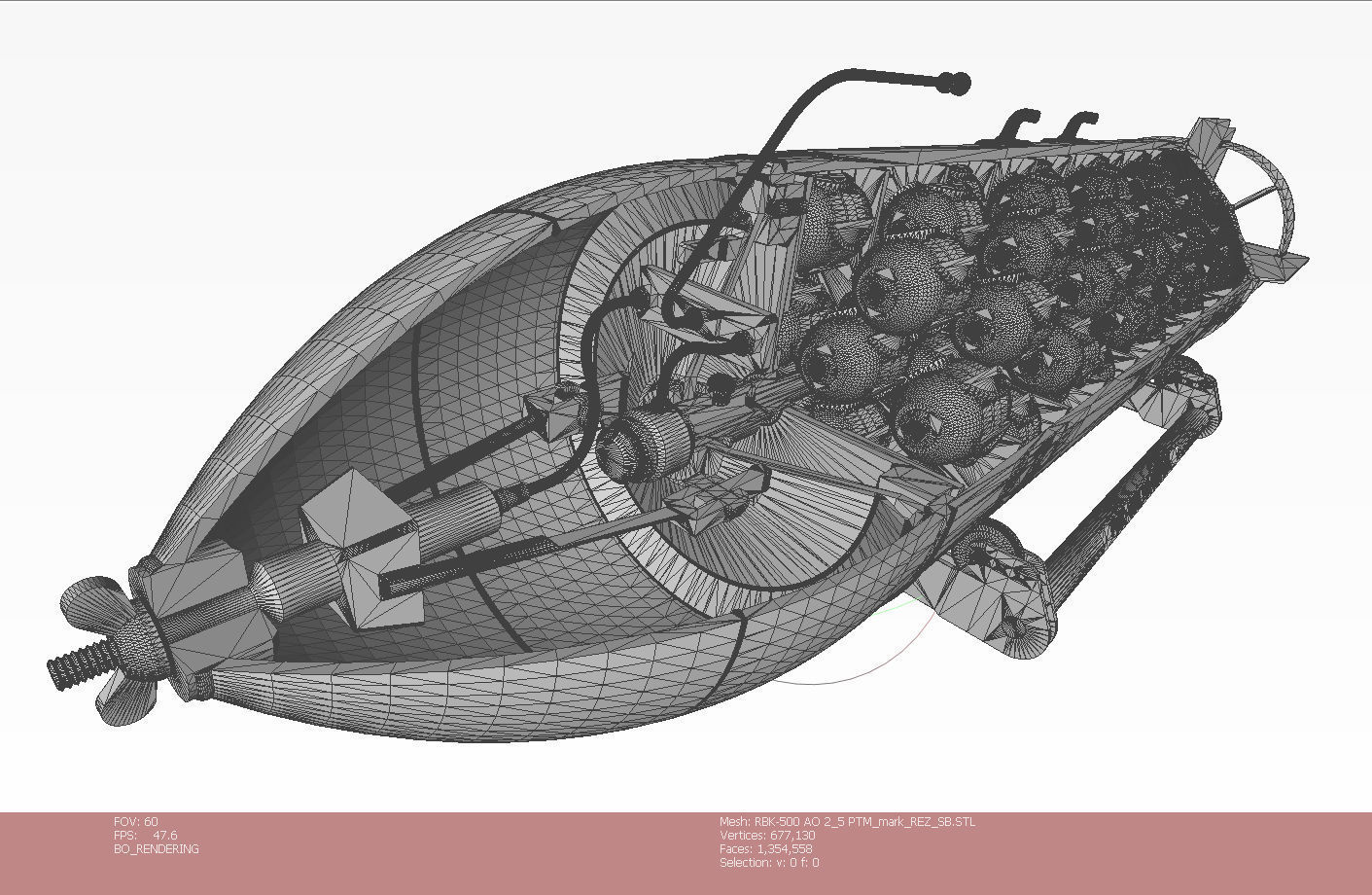

One of the variants of the model is a moulage with conventionally opened internal cavity -
a cognitive model to create an educational understanding of the basics of the internal structure
and principles of operation in a visual form.The models are made in SolidWorks program.
They are intended primarily for 3D printing or partial CNC manufacturing
of bench models - training models, for use as a visual aid.
The models are not exact copies of the forms of the real product, but contain the forms
of the main elements and are adapted for the possibility of manufacturing and
subsequent assembly of the model-imitation of the product.

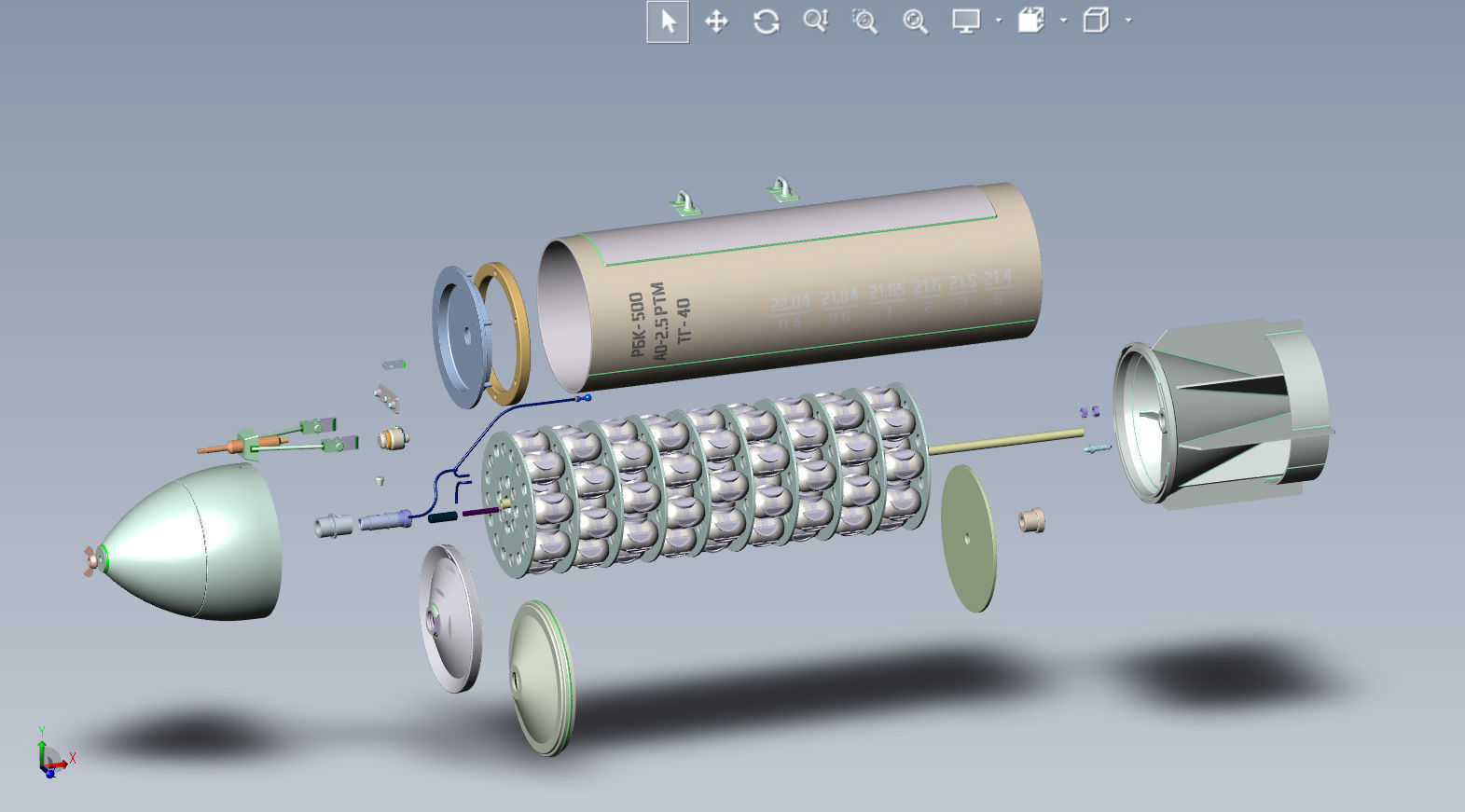

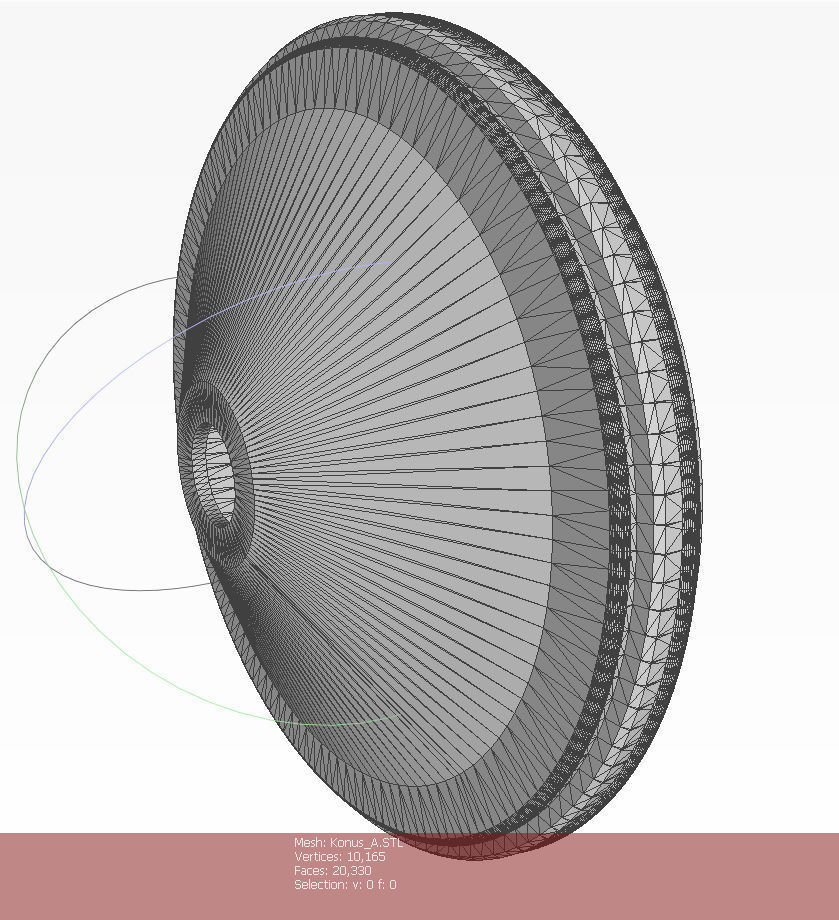

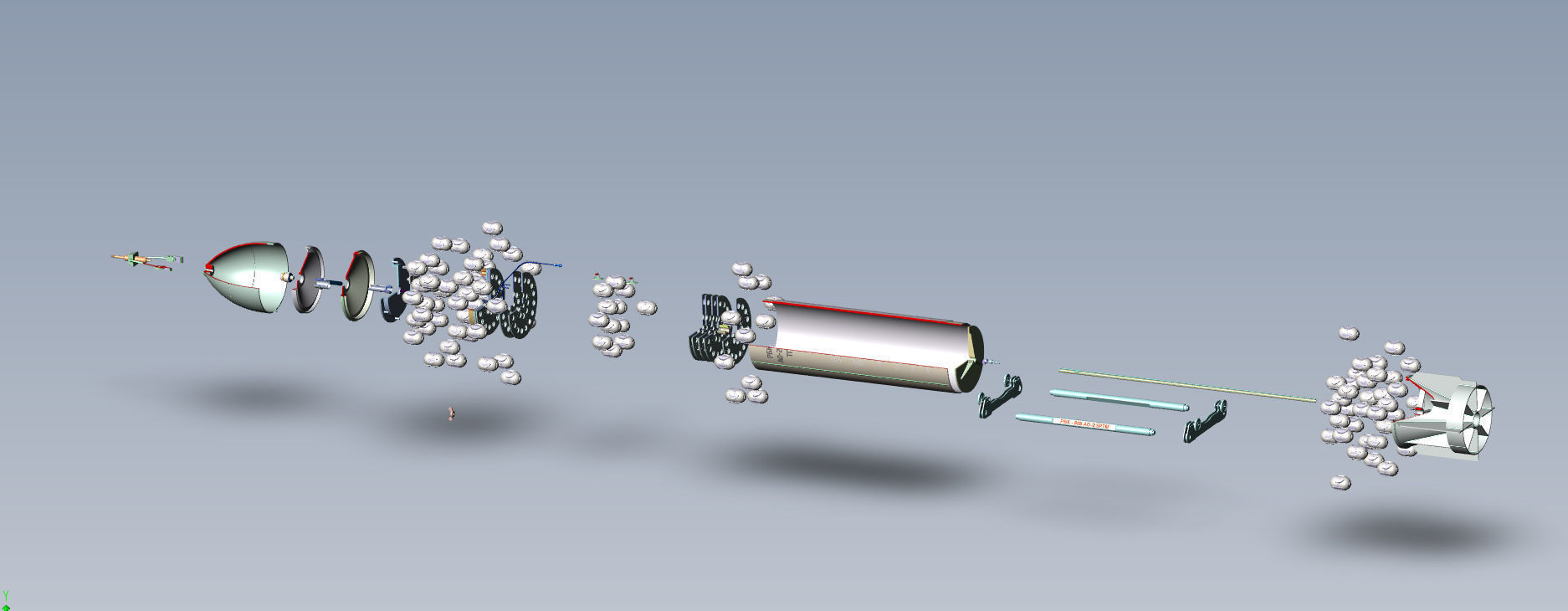

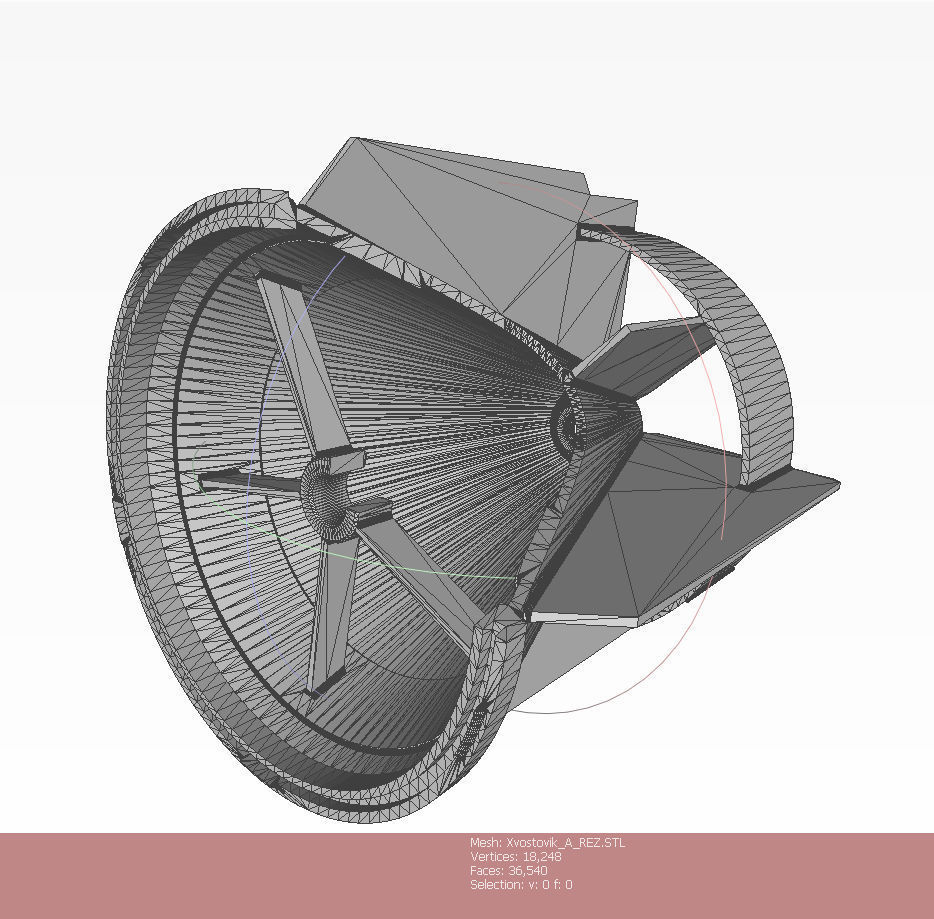

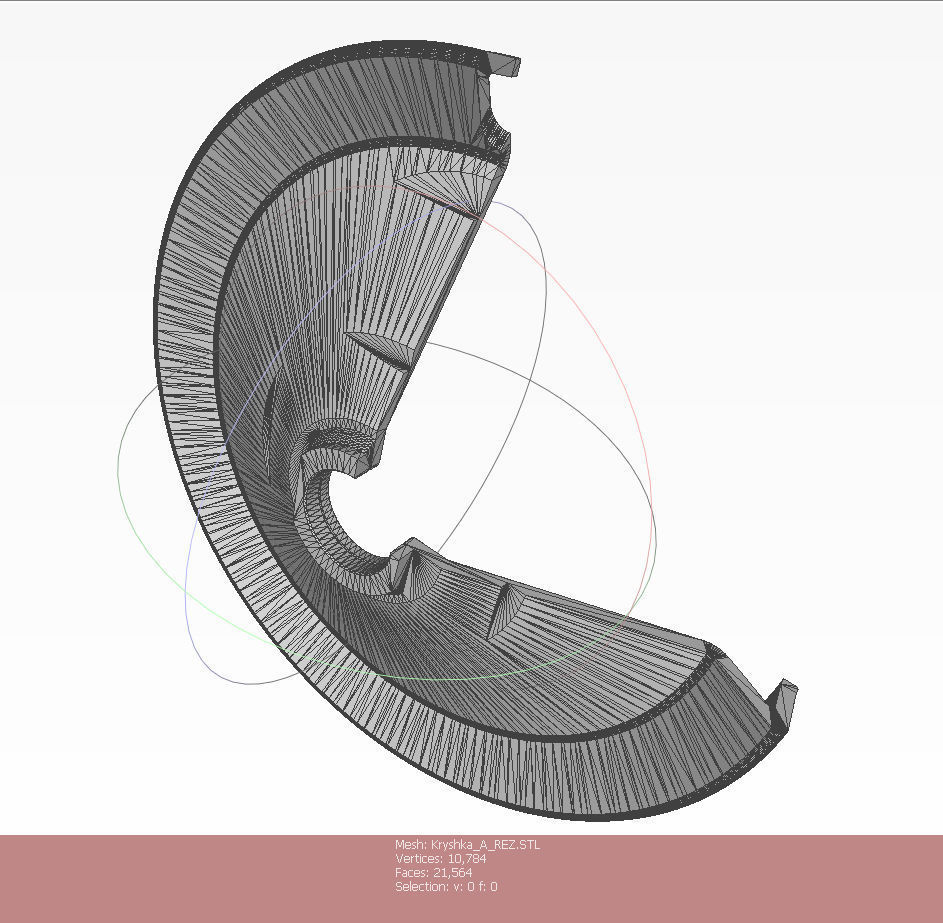

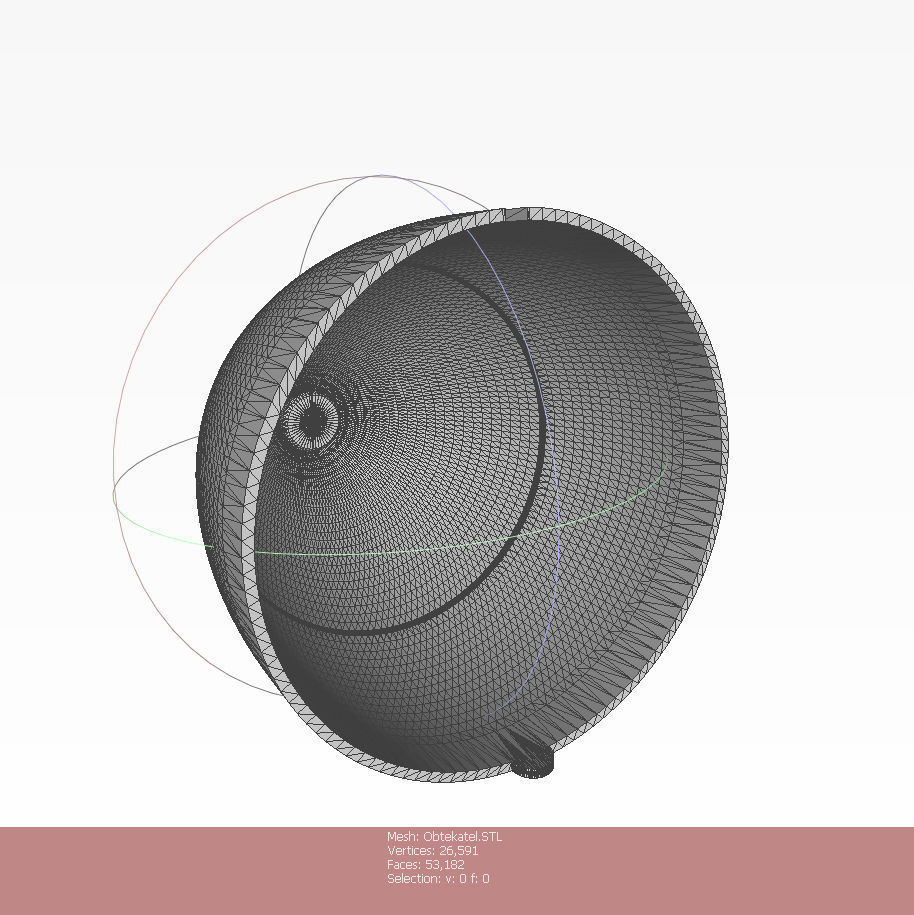

The models are assembly models, containing all the conditional part files (STL)
in high-polygonal design to obtain qualitatively smooth shapes.
The parts can be attached to each other with glue or with pins (wire material) to preserve the possibility of later disassembly.
In addition, the set contains all files for obtaining high-quality realistic close-up renderings (smooth lines, highlighted,
prepared surfaces for applying materials or textures),
In addition to solid model file formats, converted highly detailed polygonal file formats are additionally provided.

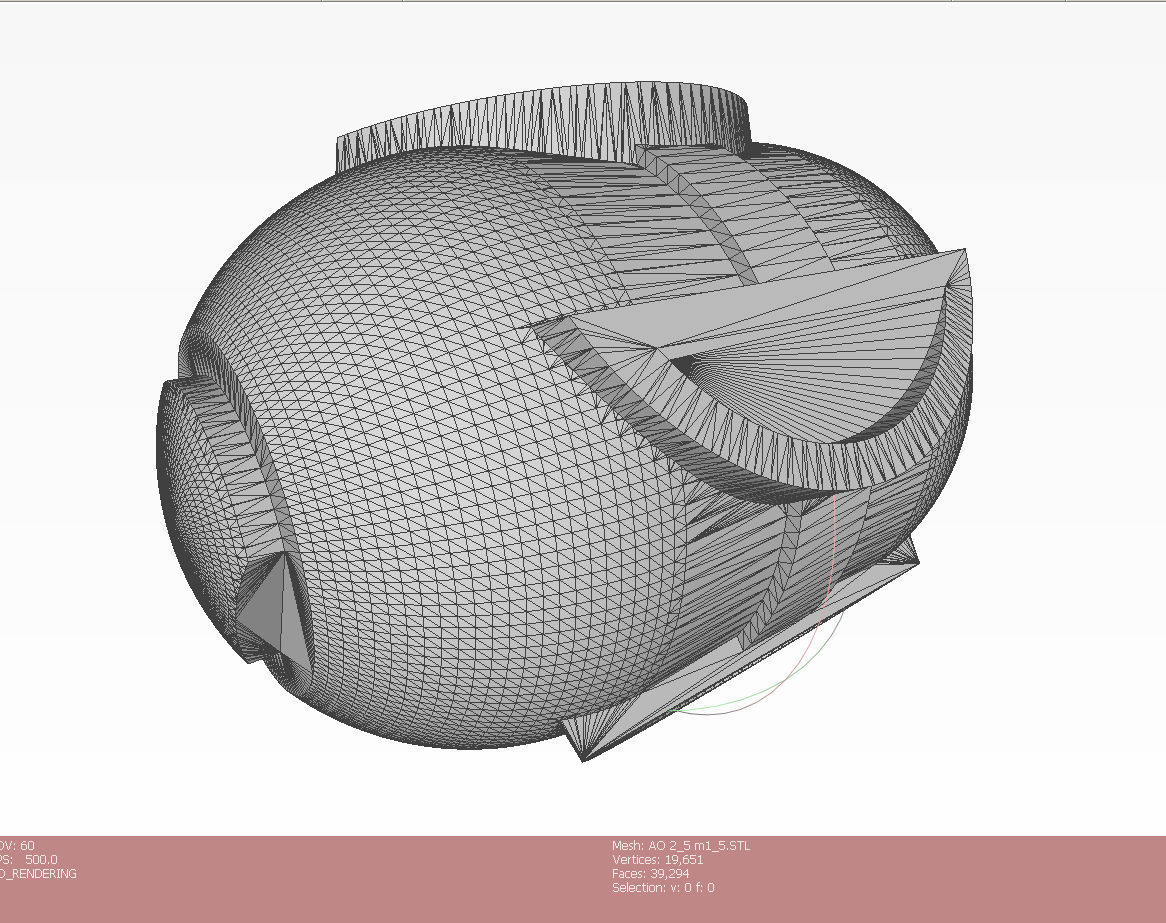

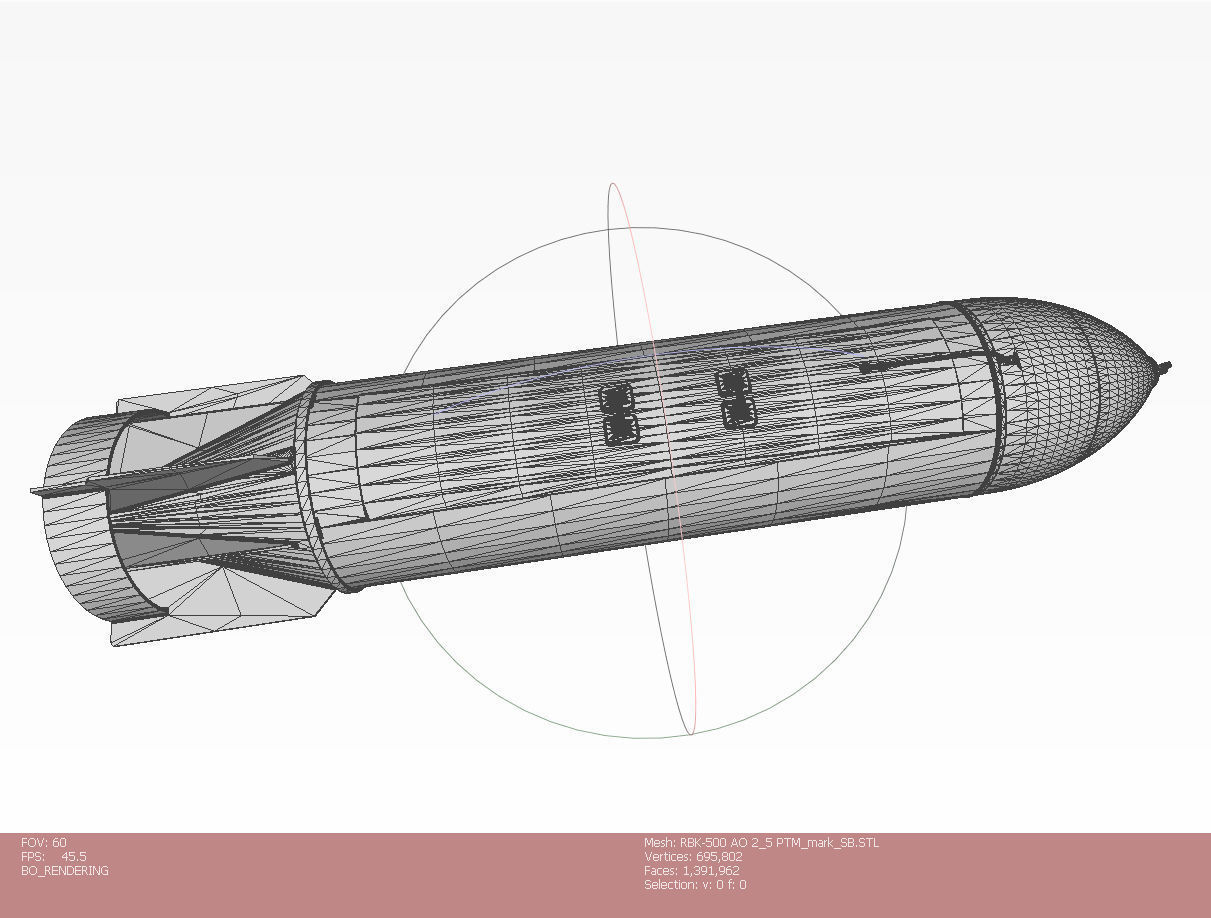

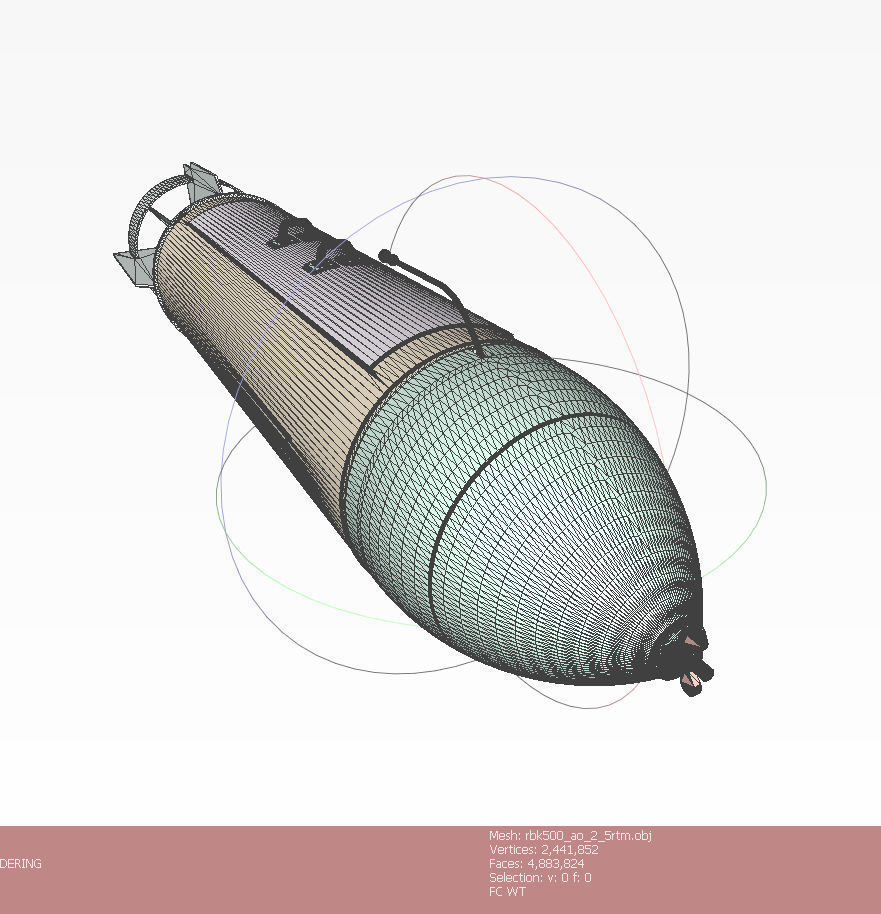

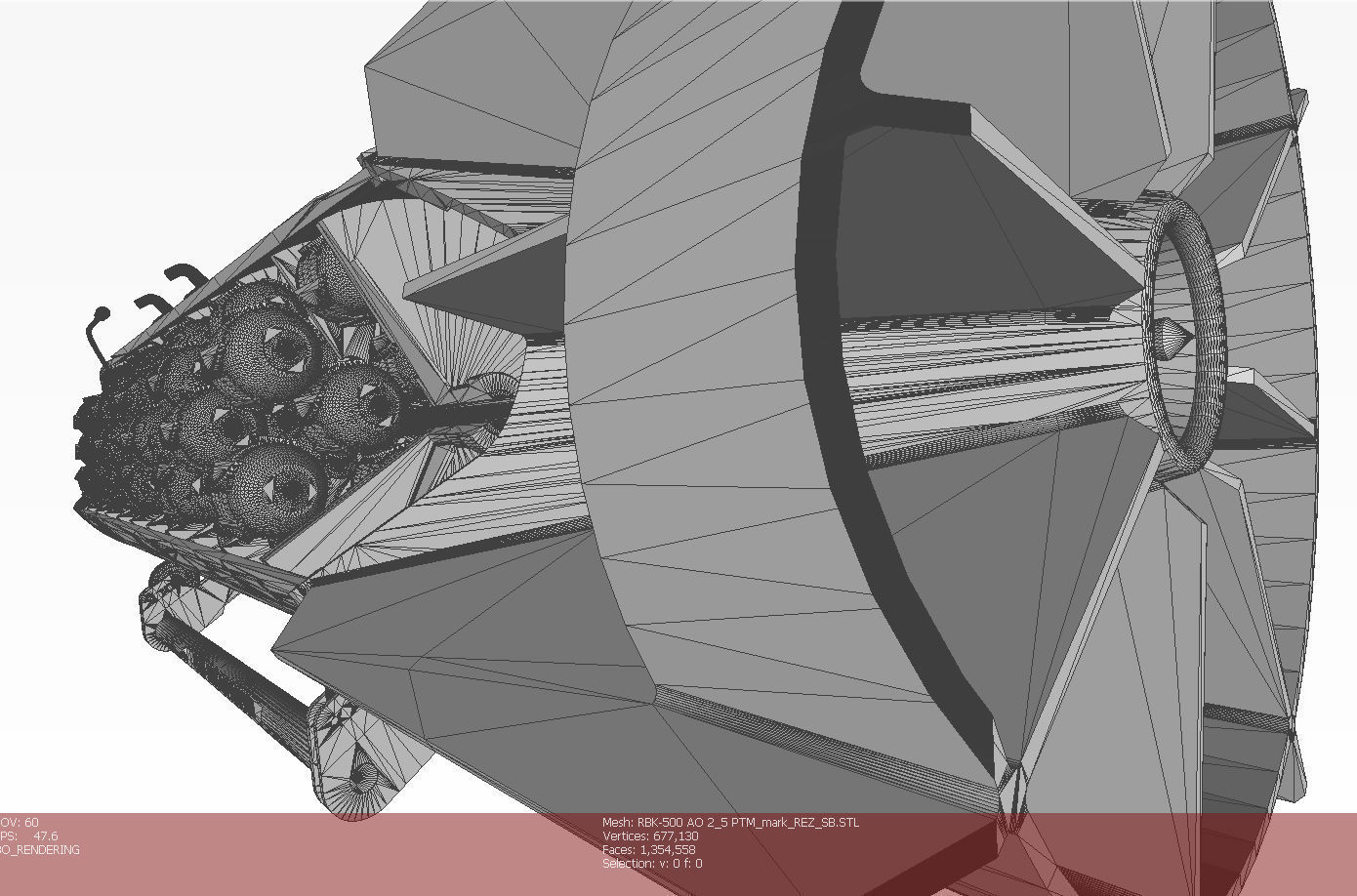

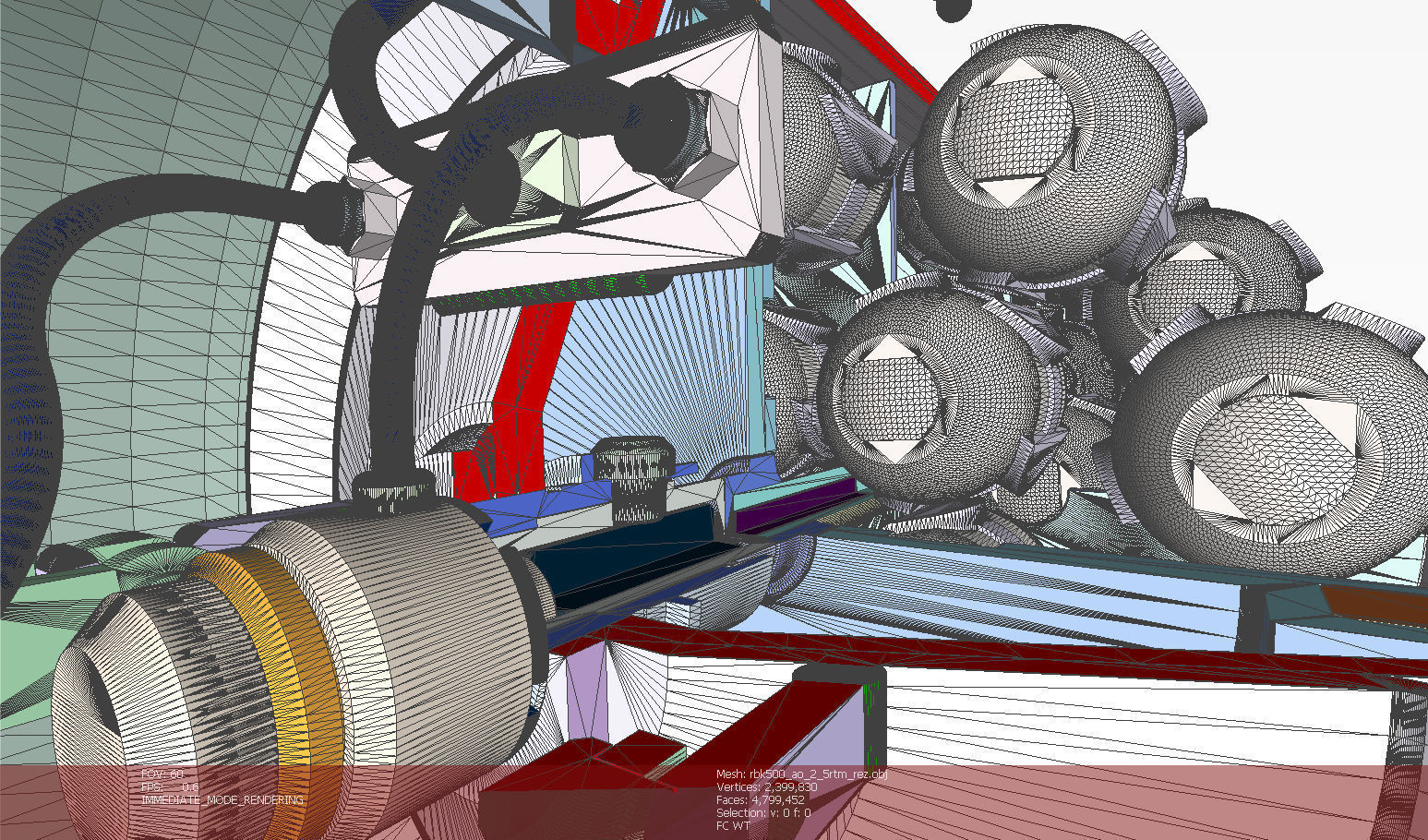

Mesh:
Vertices 2441852
Faces 4883824
(RBK500_ AO_ 2_ 5rtm.obj )
Please rate and write a review about this model.
If you have any questions, please message me.

If you have any wishes or suggestions,
what other models of similar military ammunition you would
like to see in your collection - please write me. Thank you.

O
ollgg 2024-10-16 09:31:12 UTC
Good Job!
Item rating
1 0
Cluster aviation bomb RBK 500 AO 2 5 RTM Moulage 3D printable
$30.00

Royalty Free License
Cluster aviation bomb RBK 500 AO 2 5 RTM Moulage 3D printable
$30.00

Royalty Free License
Response 88% in 2.2h
3D Modeling
3D Print Modeling
Rendering
Texturing
Post Production
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • SolidWorks 2012 (.sldprt, .sldasm, .slddrw)16.5 MB
Exchange
  • Autodesk FBX (.fbx)212 MB
  • IGES (.ige, .igs, .iges)5.02 MB

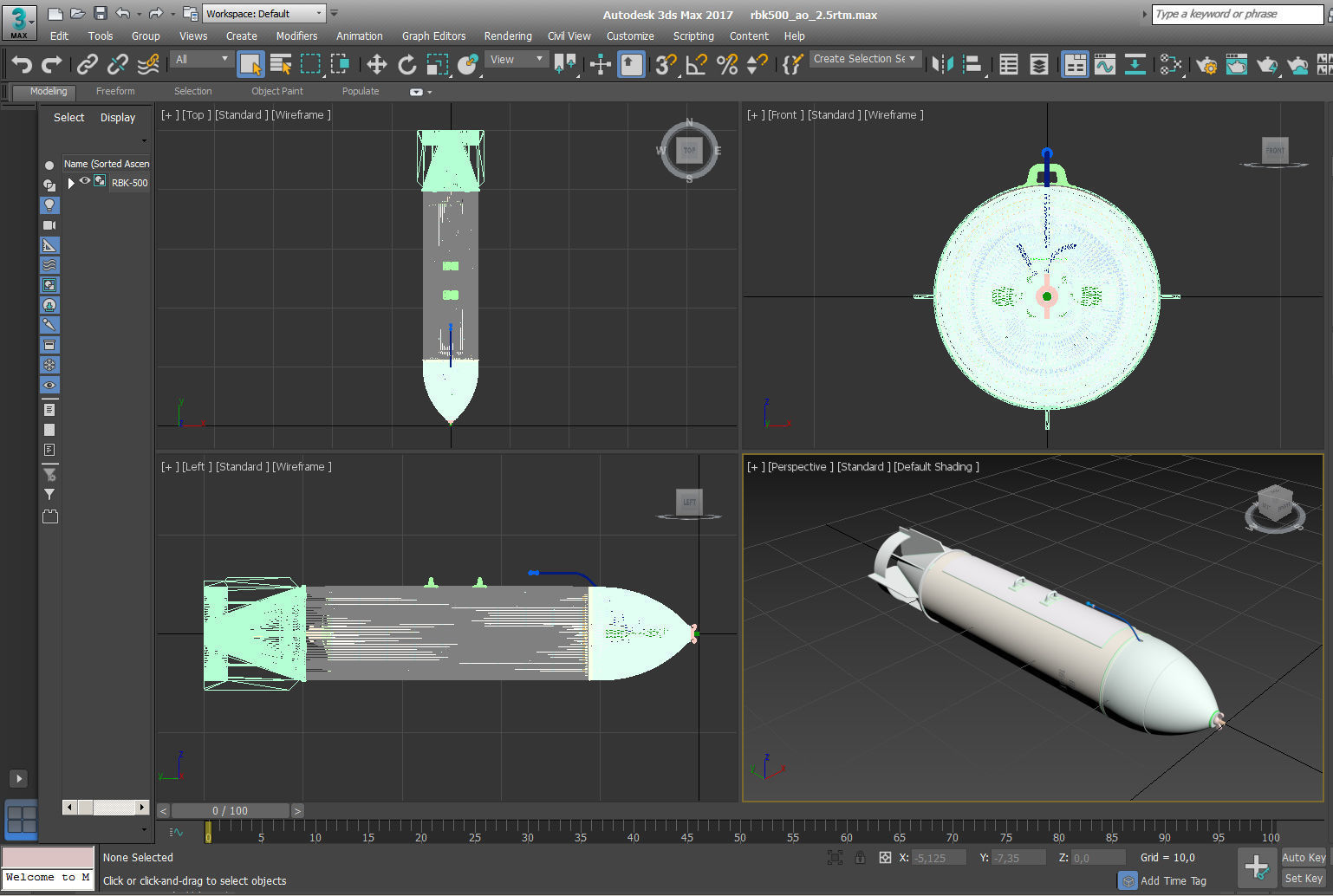

  • Autodesk 3ds Max 2017 (.max)36.5 MB
  • STEP (.stp)6.54 MB
  • Other 6.54 MB
  • OBJ (.obj, .mtl)174 MB
  • Stereolithography (.stl)67 MB
  • Parasolid (.x_t, .x_b)4.51 MB

3D Model details

  • Publish date2024-10-13
  • Model ID#5581864
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 4,883,824
  • Vertices 2,441,852
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
