High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

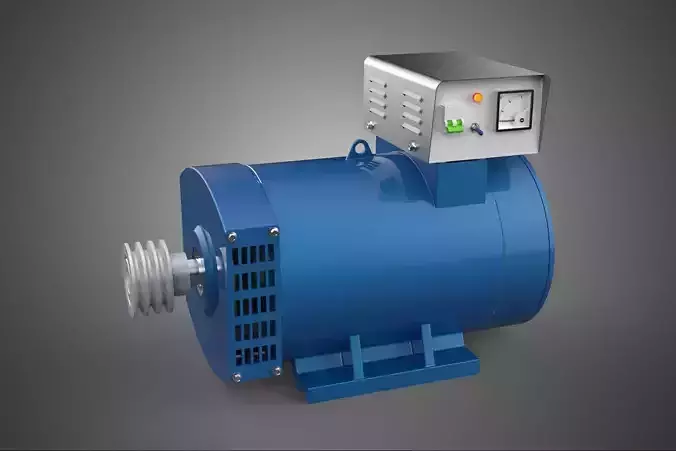

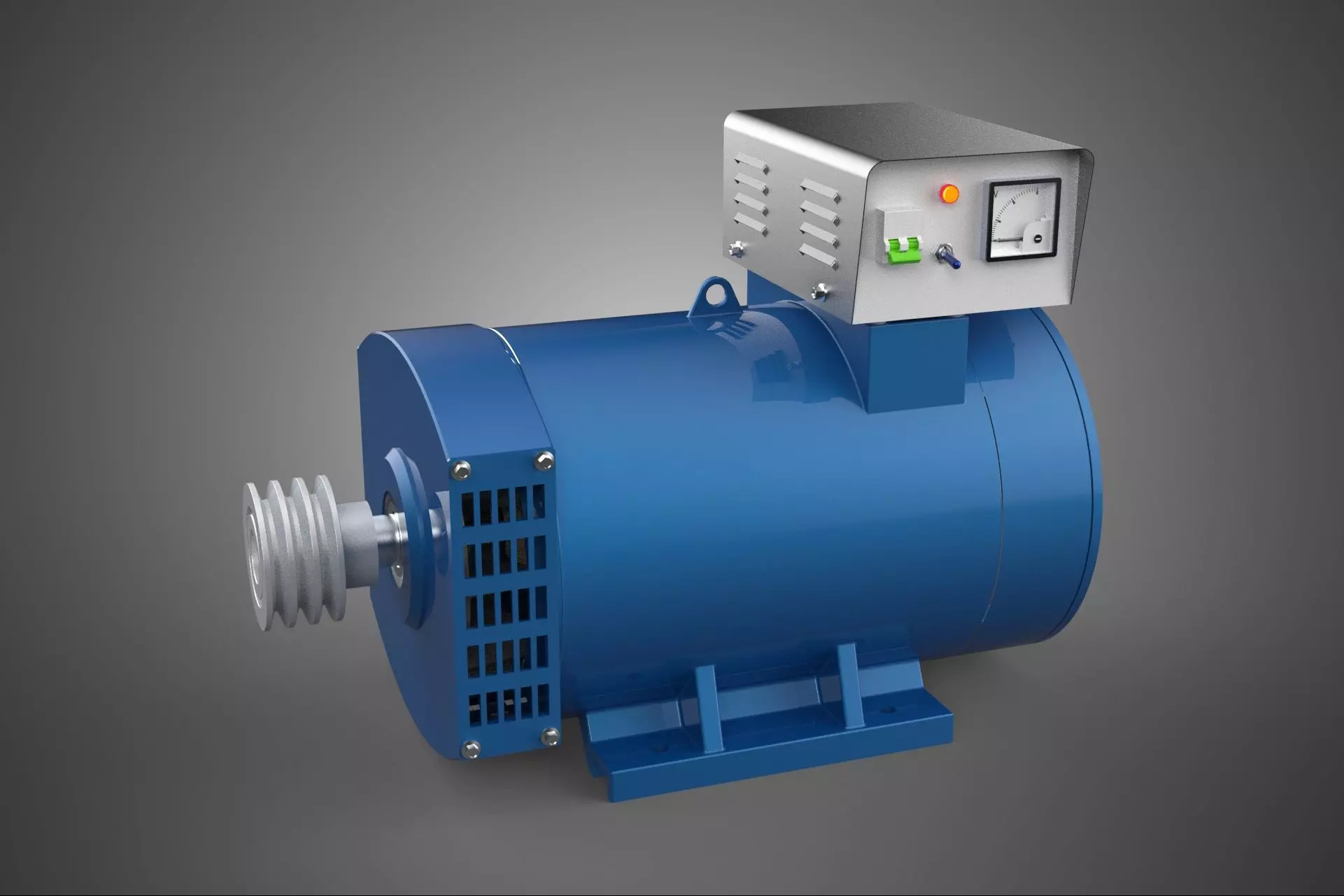

Blue Electric Dynamoelectric Converter (High-Torque, Multi-Groove Drive)
The item described as a BLUE ELECTRIC GENERATOR MOTOR ALTERNATOR DYNAMO PULLEY 3 GROOVE refers to a specific configuration of a dynamoelectric machine, typically characterized by high output capacity and robust mechanical drive interfaces. This device is an electromechanical converter capable of transforming mechanical energy into electrical energy (acting as a generator/alternator/dynamo) or, conversely, electrical energy into mechanical rotational motion (acting as a motor).
Nomenclature and Functionality
The title employs generalized and historically differentiated terms (Generator, Motor, Alternator, Dynamo) to broadly define the machine's potential functionality. In modern engineering contexts, especially for compact, auxiliary power units:
- Alternator/Generator: The primary modern function, denoting a machine that produces Alternating Current (AC). If designed for vehicle or battery charging applications, the AC output is typically internally rectified using solid-state diodes to produce a stable Direct Current (DC) output.
- Motor: Indicates the machine can be energized electrically to initiate rotation, functioning as a starter or drive mechanism.
- Dynamo: Historically refers specifically to DC generators, utilizing a commutator and brushes. While often used colloquially, most modern units labeled 'dynamo' are functionally alternators with integrated rectification systems.
The 'Electric' designation confirms the operation relies upon the principles of electromagnetic induction.
### Physical and Mechanical Characteristics
Casing and Color: The designation 'BLUE' typically refers to the external enamel or powder coating of the machine housing. While not an intrinsic electrical specification, this coloring often serves as an identifier, potentially denoting a specific manufacturer, a high-performance or heavy-duty model (e.g., performance aftermarket or specialized marine/industrial applications), or a particular voltage standard separate from standard OEM grey or black units.
Pulley (3 Groove): The mechanical interface is defined by a 3-groove pulley. This feature is critical, indicating the machine is engineered for significant torque transmission requirements, necessitating the use of multiple belts (V-belts or Poly-V/Serpentine belts) to handle the required force transfer from the prime mover (e.g., an internal combustion engine or hydraulic motor) without slippage or premature belt wear.
- Torque Capacity: A multi-groove pulley system is necessary when the power required to drive the generator (or the torque required to spin the motor) exceeds the capacity of a standard single-groove belt. This directly correlates with the machine's high electrical output (amperage).
- Belt Type: The grooves are precisely machined to accommodate specific belt profiles. In high-performance systems, the 3-groove configuration often employs a specialized Poly-V (ribbed) system across the three channels for maximum contact area and power transfer.
Construction: Internally, the machine utilizes standard dynamoelectric architecture, including a stator (stationary electromagnets or permanent magnets), a rotor (rotating coil assembly), and bearings to ensure smooth rotational movement. Cooling is achieved via integrated fins on the casing and, typically, an internal fan attached to the rotor shaft drawing air through vent holes.
### Applications
Given the robust design features (high-torque 3-groove pulley and high-output implications), this specific machine is commonly utilized in environments demanding high auxiliary electrical power reliability:
- Marine and Coastal Vessels: Used for charging large battery banks, operating navigation equipment, or running high-draw appliances (e.g., refrigeration, water makers). The blue color may denote specific corrosion resistance treatments typical of marine-grade equipment.
- Heavy Equipment and Industrial: Deployed on custom vehicles, agricultural machinery, or industrial processes requiring substantial DC power input, often operating in environments where standard components would fail due to high load demands.
- Performance and Racing Vehicles: Used when standard alternators cannot meet the demands of sophisticated electronic control systems, high-output fuel pumps, or specialized ignition equipment.
### Summary of Specifications
The BLUE ELECTRIC GENERATOR MOTOR ALTERNATOR DYNAMO PULLEY 3 GROOVE is a versatile dynamoelectric converter designed for heavy-duty, high-amperage output requirements, distinguishable by its color coding and its mechanical drive system optimized for maximum torque transmission through a triple-groove pulley interface.
