72 CAD Models - Electric motors IEC B3

72 CAD Models - Electric motors IEC B3 3D model

Description

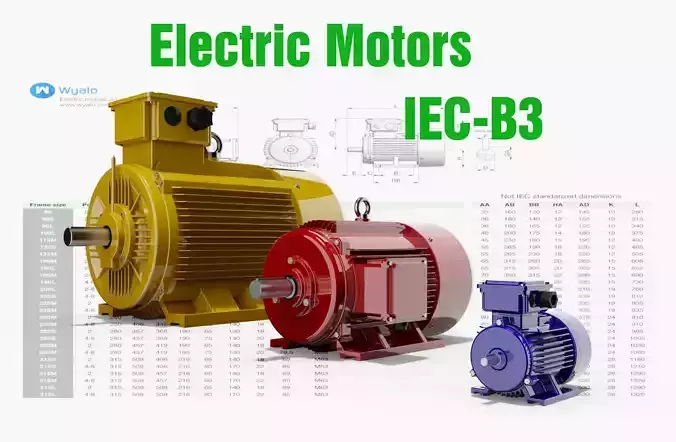

IEC Three phase asynchronous AC motors.
Download this CAD library for use in Autodesk Inventor (Content Center), Autocad (.dwg file library), Solidworks and other 3D software (.stp file library).
Frame size IEC 80 up to IEC 315 Frame type B3 (Foot mount)

Power range IEC motors (50Hz): 0,75kW - 160kW

File formats: Autodesk Inventor Content Center Library(!) (.idcl) file format. If Autodesk Inventor is the solid modeling software you use, this is the best file format for you! Compatible with: - Inventor 2012 - Inventor 2013 - Inventor 2014 - Inventor 2015 - Inventor 2016

STEP (.stp) file format, for direct import in: - Autodesk Inventor - Autodesk Fusion 360 - Dassault Solidworks - Dassault Catia - Siemens Solid Edge - ISMI Turbocad Professional

DWG (.dwg) file format for direct use in Autocad (2010 or newer) DATASHEET in pdf file format is included!
Free sample 3D model

What is a three phase asynchronous AC motor?
In industrial use, the AC asynchronous motors are by far the most common types of motors. High voltage motors are almost always AC motors.
- AC is the form of electricity supplied from the grid and is intended for domestic and industrial use. - Three-phase voltage power current is electrical energy in the form of three simultaneous induced ac voltages. In fact, all companies that work with machines have a three-phase power connection available. - Asynchronous has to do with the operation of the motor. This type of works with a rotor and a stator, wherein the rotor is driven by a rotating magnetic field between the rotor and the stator. - IEC are the international standards which are used for these type of electric motors. These standards contain agreements on energy classes, frame types and sizes, main dimensions and more things that are important to exchange the motors. IEC motors are supplier independent, so you can switch out a Wyalo 3D model for the requested model by your supplier, and everything will always fit .
Asynchronous motors are also called induction motors.
