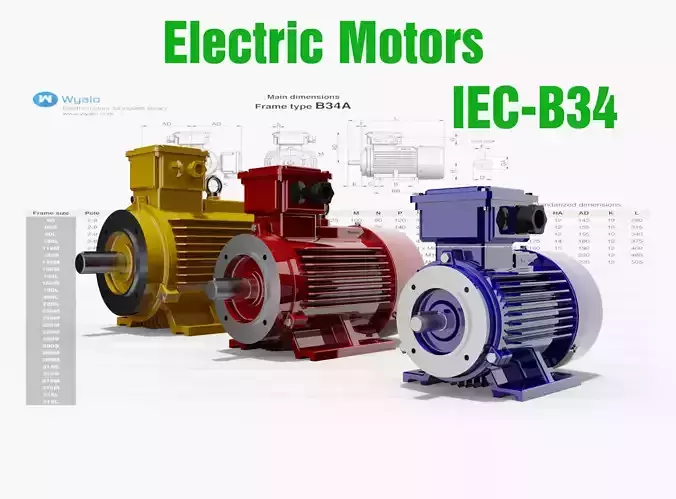

42 CAD Models - Electric motors IEC B34

42 CAD Models - Electric motors IEC B34 3D model


IEC Three phase asynchronous AC motors.
Download this CAD library for use in Autodesk Inventor (Content Center), Autocad (.dwg file library), Solidworks and other 3D software (.stp file library).

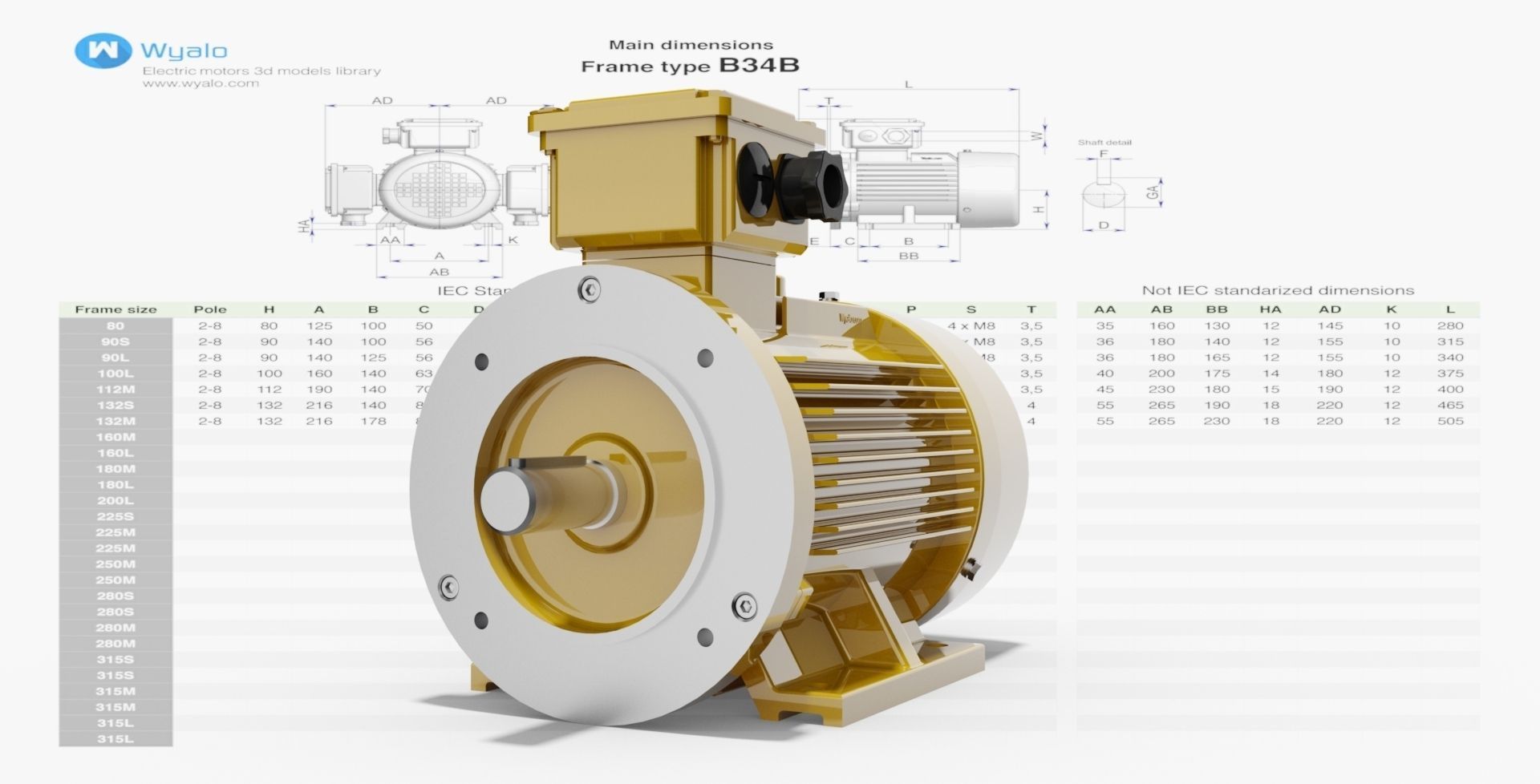

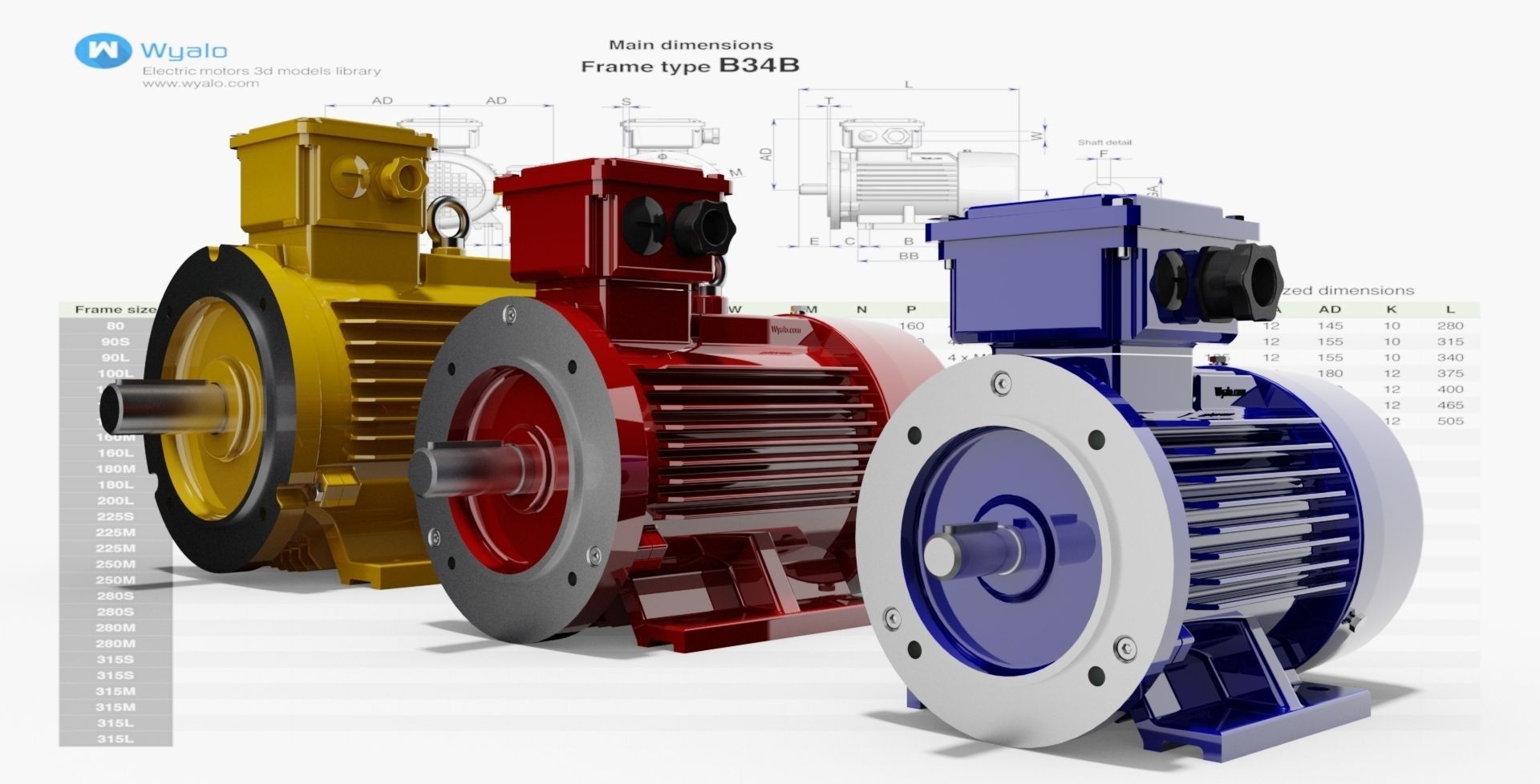

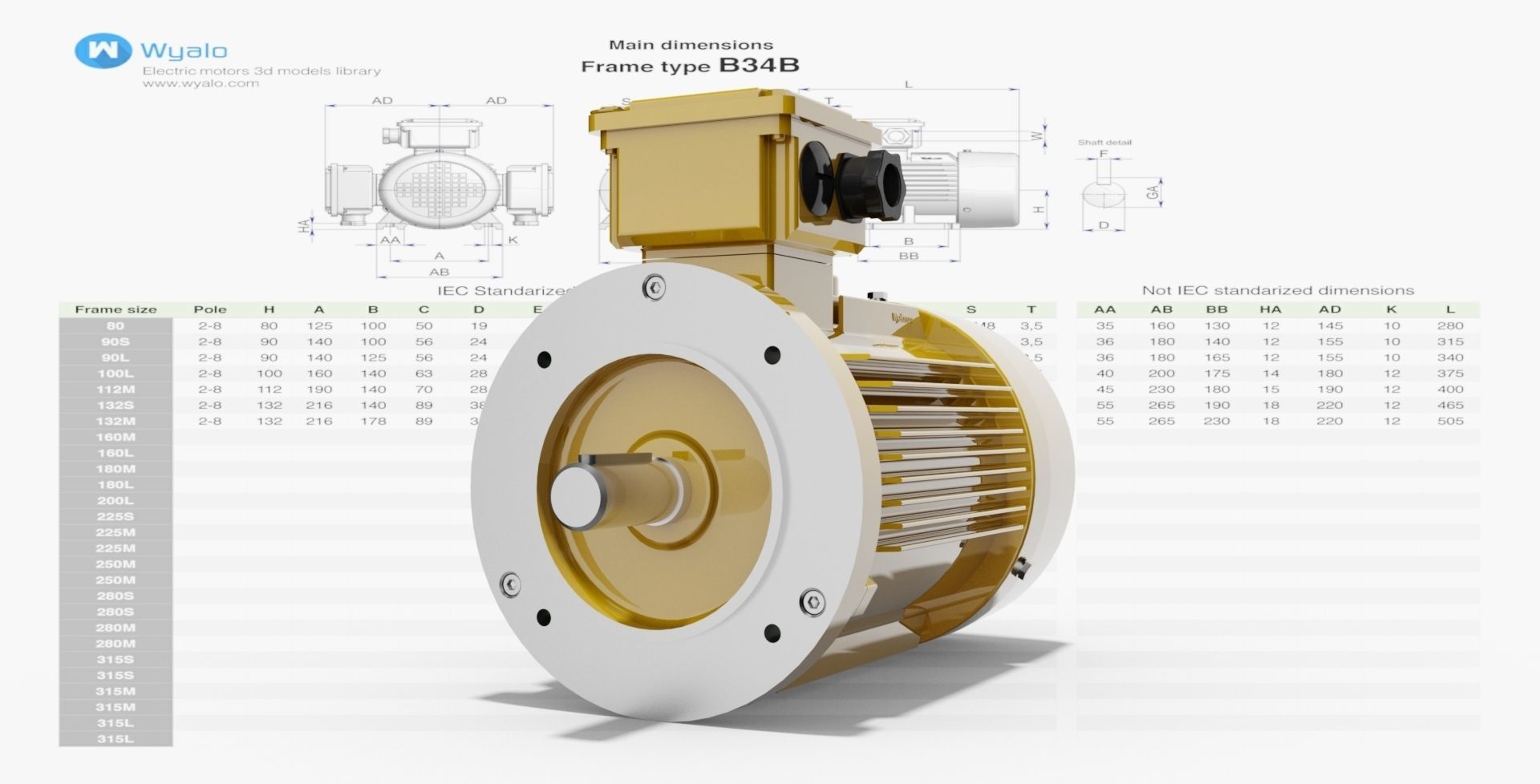

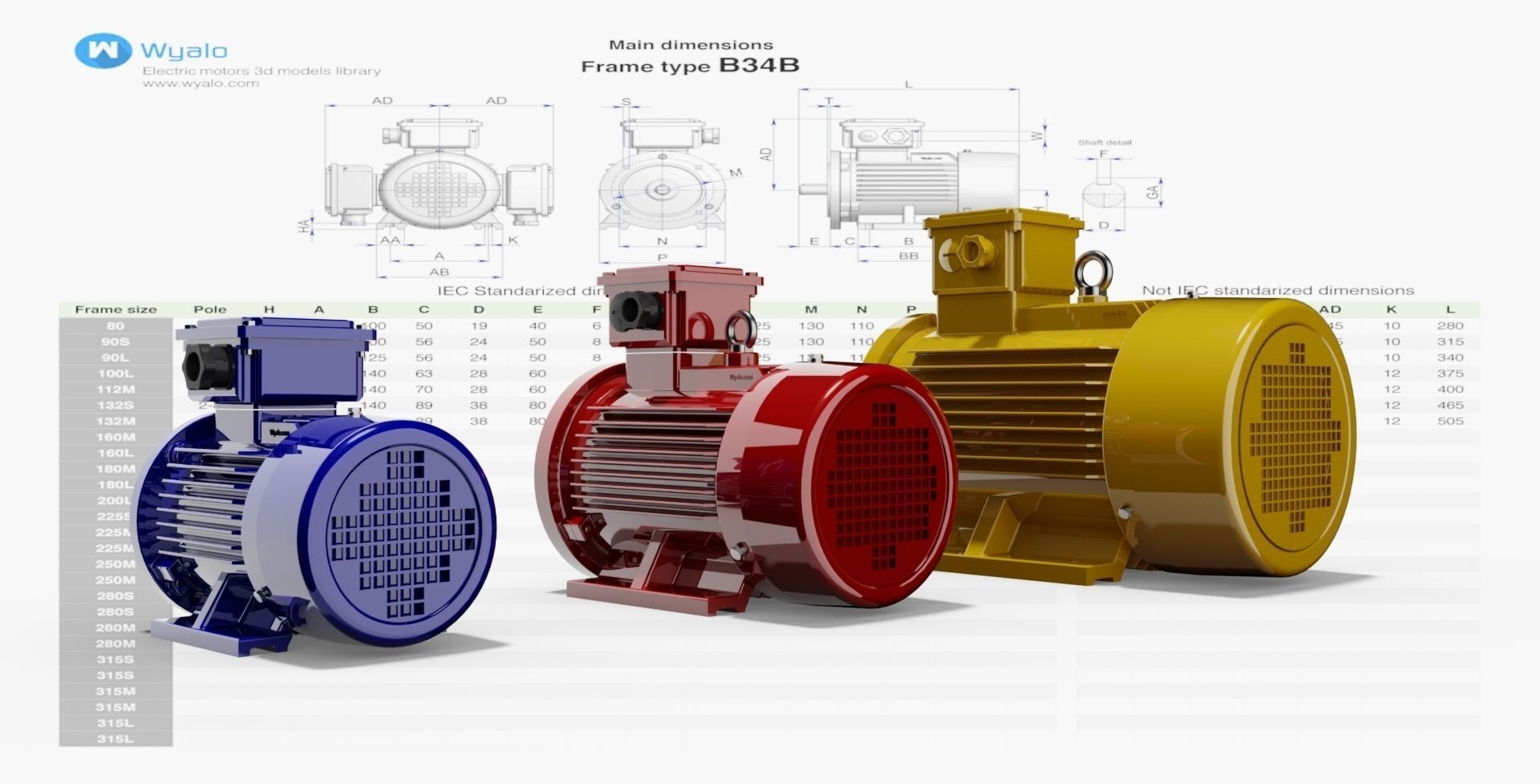

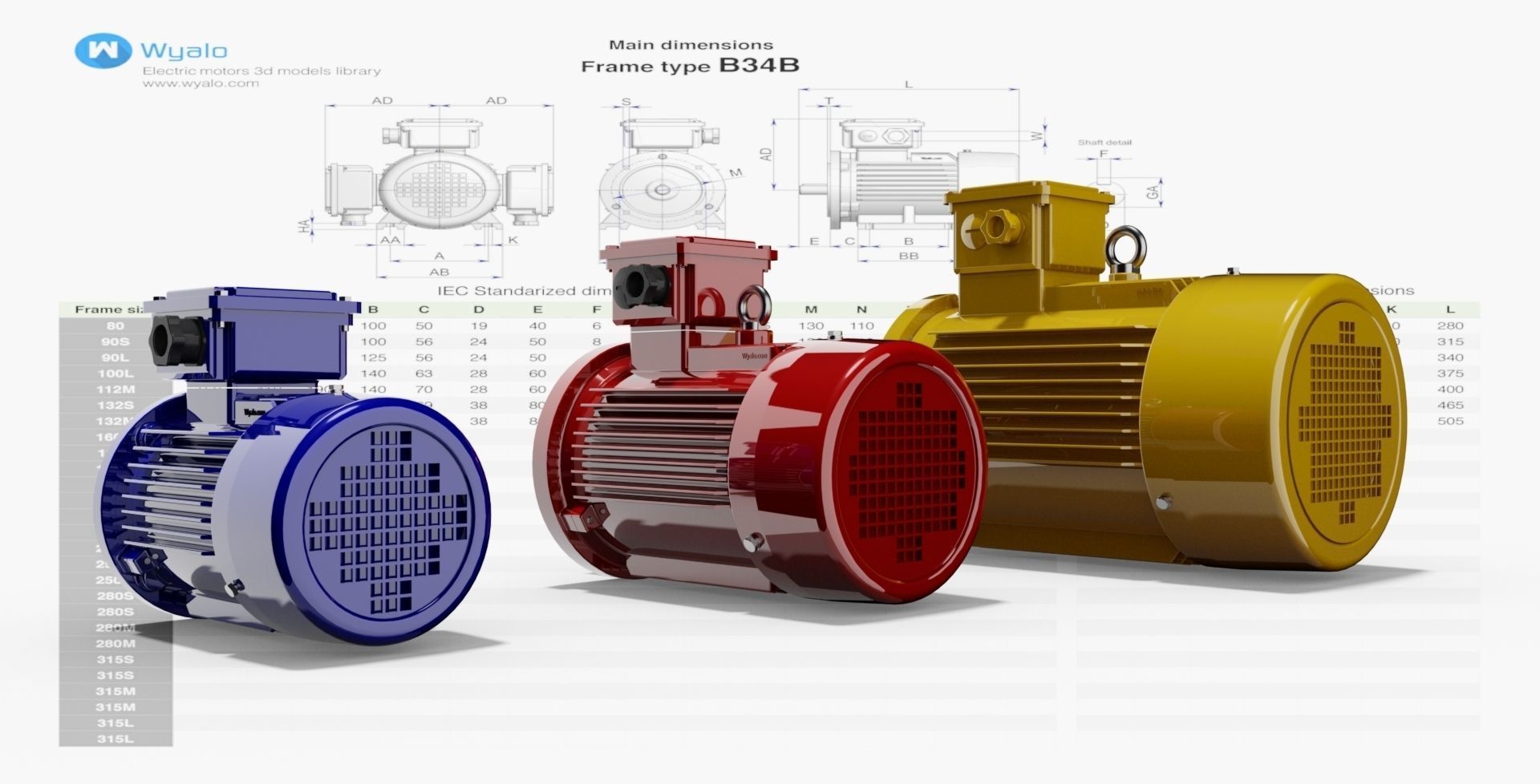

Frame size IEC 80 up to IEC 132 Frame type B34a and B34b (Face-foot mount)

Power range IEC B14 motors (50Hz): 0,75kW - 7,5kW

File formats: Autodesk Inventor Content Center Library(!) (.idcl) file format. If Autodesk Inventor is the solid modeling software you use, this is the best file format for you! Compatible with: - Inventor 2012 - Inventor 2013 - Inventor 2014 - Inventor 2015 - Inventor 2016

STEP (.stp) file format, for direct import in: - Autodesk Inventor - Autodesk Fusion 360 - Dassault Solidworks - Dassault Catia - Siemens Solid Edge - ISMI Turbocad Professional

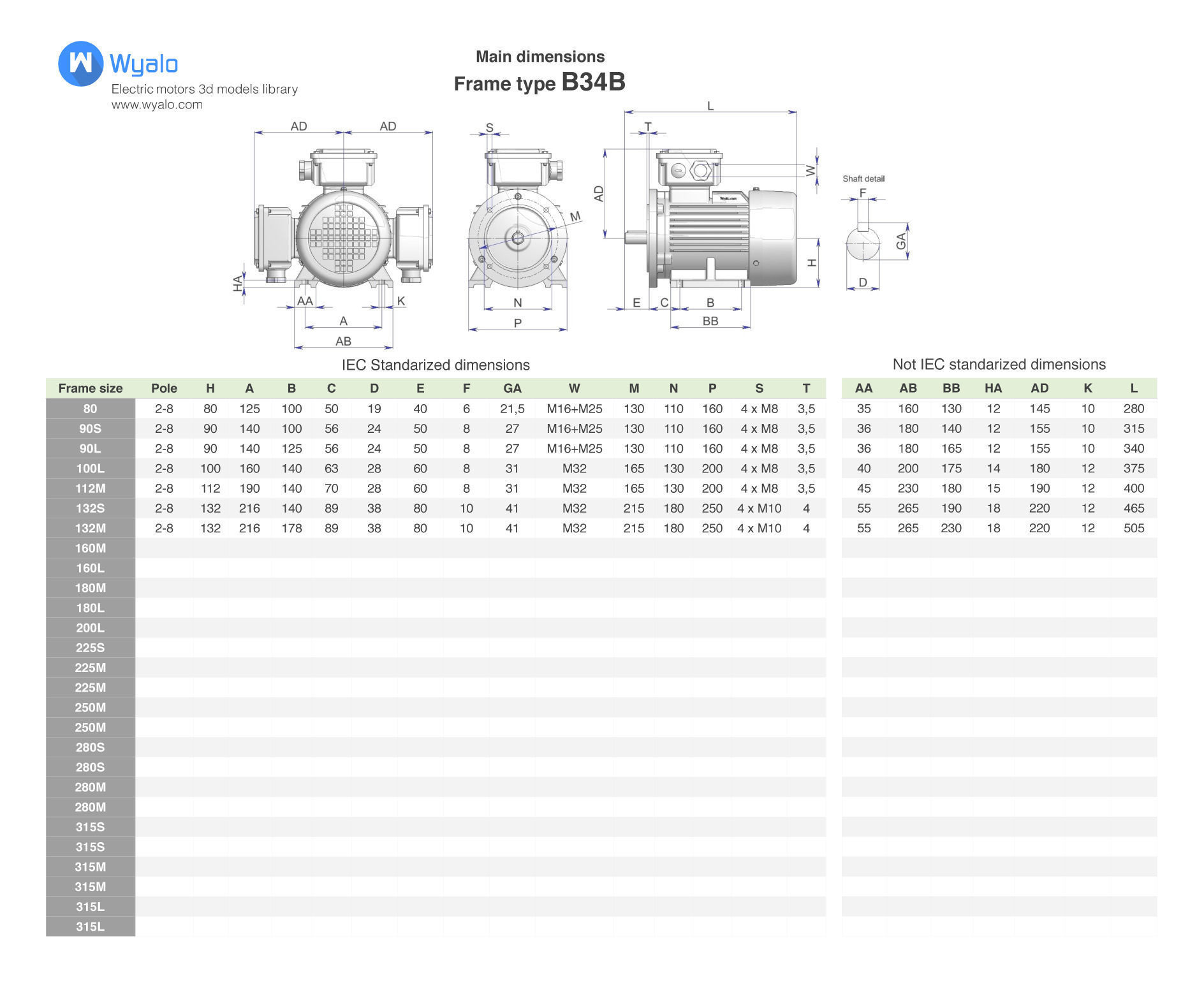

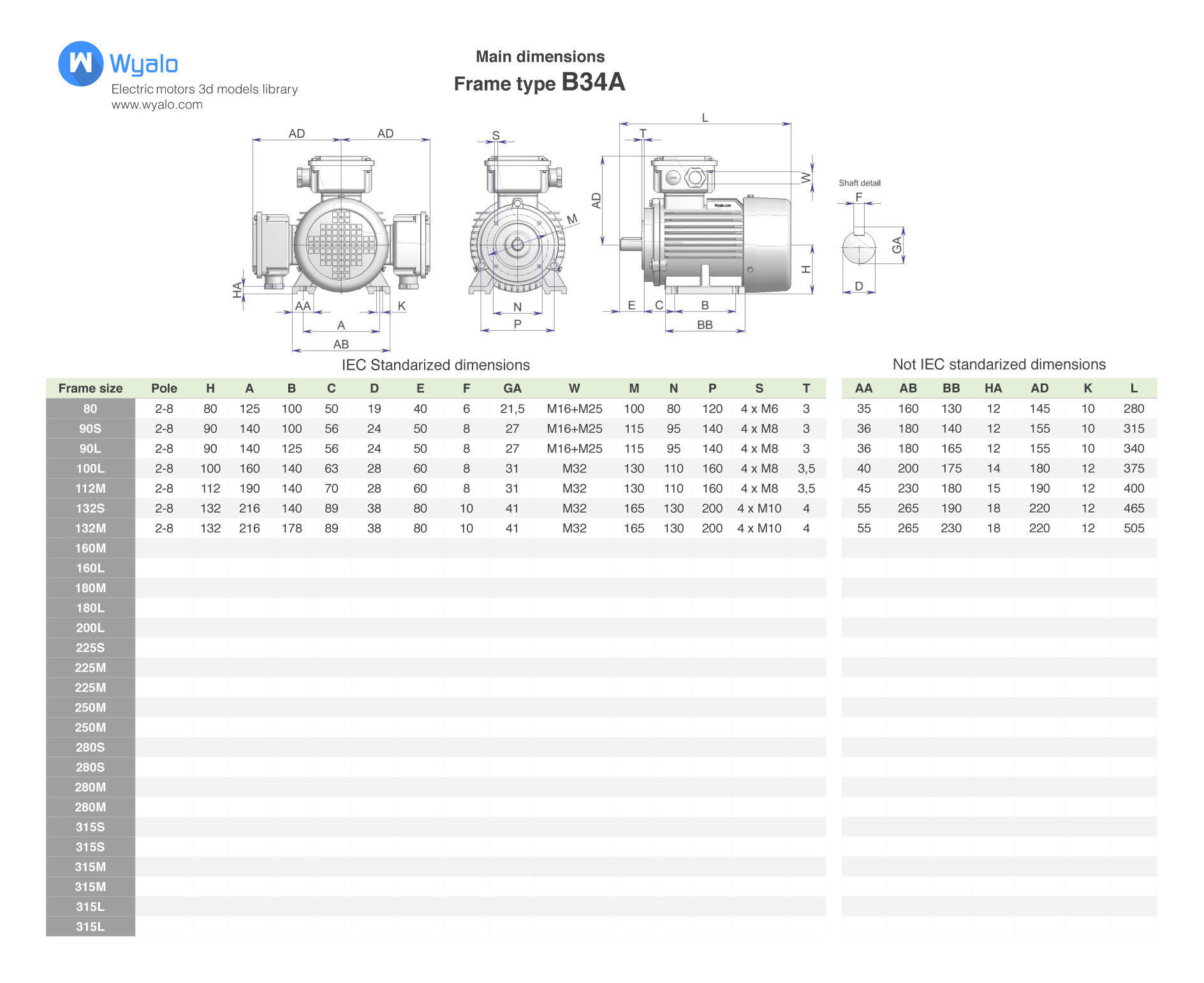

DWG (.dwg) file format for direct use in Autocad (2010 or newer) DATASHEET in pdf file format is included!
Free sample 3D model 1
Free sample 3D model 2

What is a three phase asynchronous AC motor?
In industrial use, the AC asynchronous motors are by far the most common types of motors. High voltage motors are almost always AC motors.
- AC is the form of electricity supplied from the grid and is intended for domestic and industrial use. - Three-phase voltage power current is electrical energy in the form of three simultaneous induced ac voltages. In fact, all companies that work with machines have a three-phase power connection available. - Asynchronous has to do with the operation of the motor. This type of works with a rotor and a stator, wherein the rotor is driven by a rotating magnetic field between the rotor and the stator. - IEC are the international standards which are used for these type of electric motors. These standards contain agreements on energy classes, frame types and sizes, main dimensions and more things that are important to exchange the motors. IEC motors are supplier independent, so you can switch out a Wyalo 3D model for the requested model by your supplier, and everything will always fit .
Asynchronous motors are also called induction motors.

Wyalo 3D CAD models Wyalo offers very high detailed and accurate 3D CAD models for use in professional engineering projects. Dimensional drawings (datasheets) are always included in our download packages, also in the free ones. That means you will never have to measure the 3D model first, to compare it with your supplier specifications.

Item rating
0 0
42 CAD Models - Electric motors IEC B34
Royalty Free License
42 CAD Models - Electric motors IEC B34
Royalty Free License
Response 80% in 0.9h
3D Modeling

3D Model formats

Format limitations
  • Other Autodesk Inventor Content Center (.idcl)118 MBVersion: Autodesk Inventor Content Center (.idcl)Version: Datasheets (pdf)
  • AutoCAD (.dwg) (2 files)30.8 MBVersion: 2010
  • STEP (.stp) (2 files)19.2 MB
  • Autodesk Inventor 2012 (.iam, .ipt)81.5 KB

3D Model details

  • Publish date2015-09-19
  • Model ID#168151
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Other
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs
  • Plugins used
  • Ready for 3D Printing
