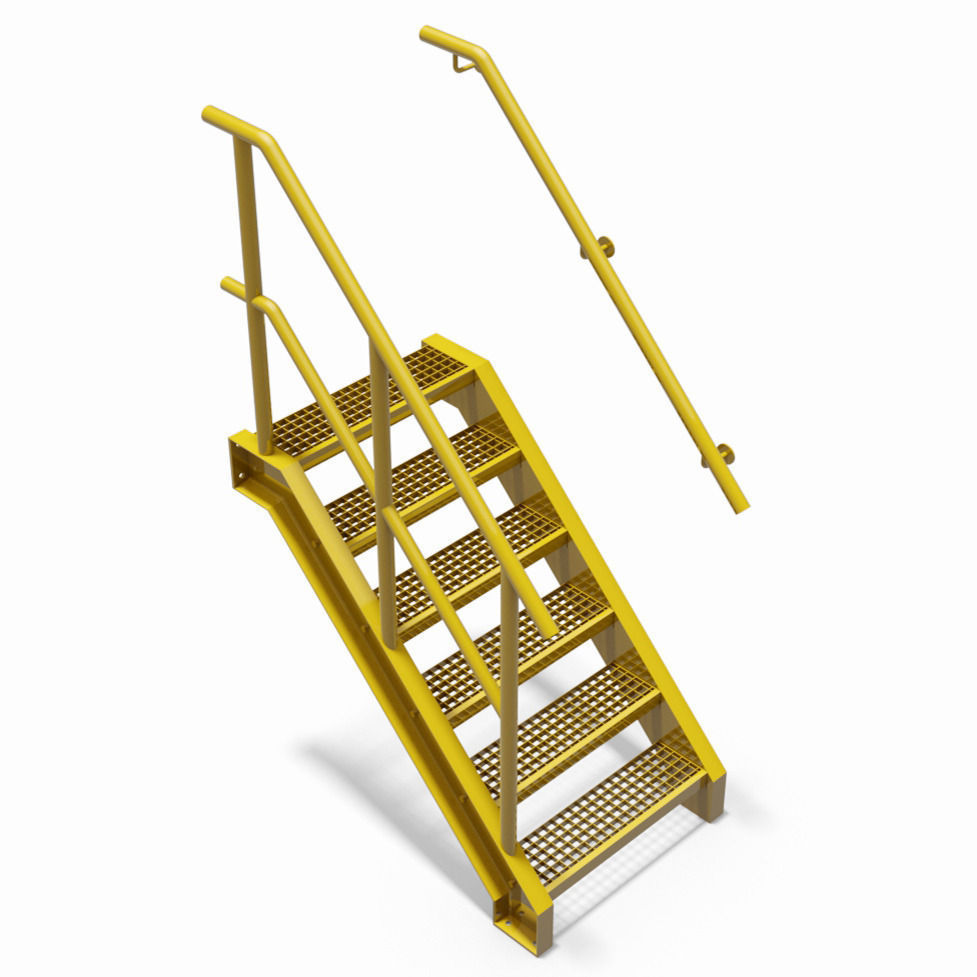

Factory stairs - parametric 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

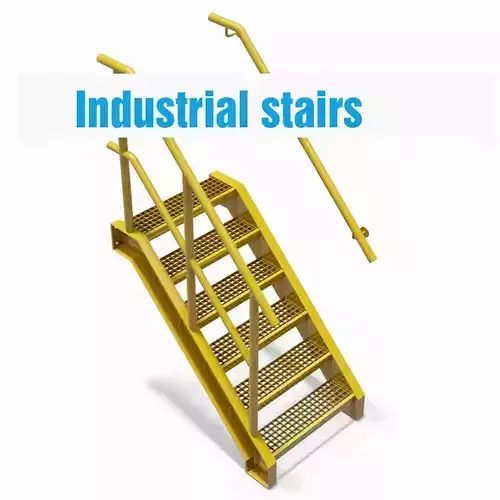

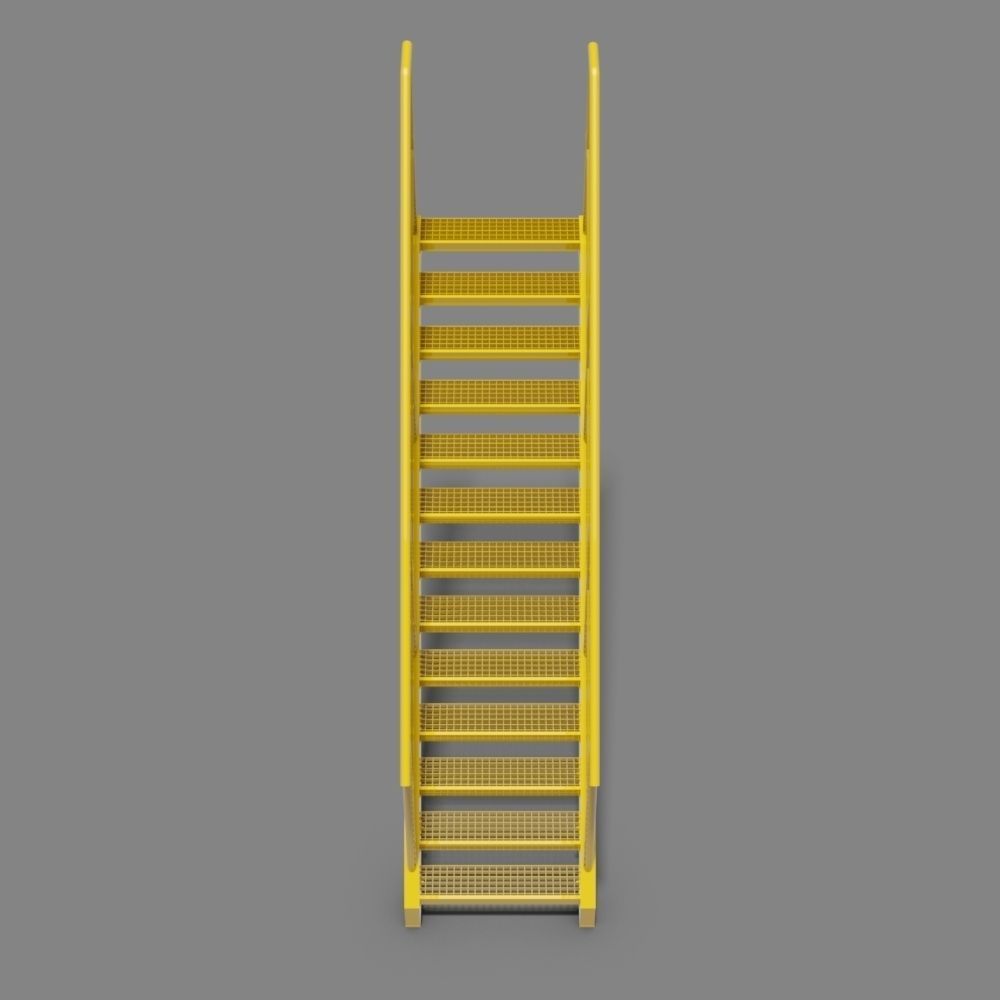

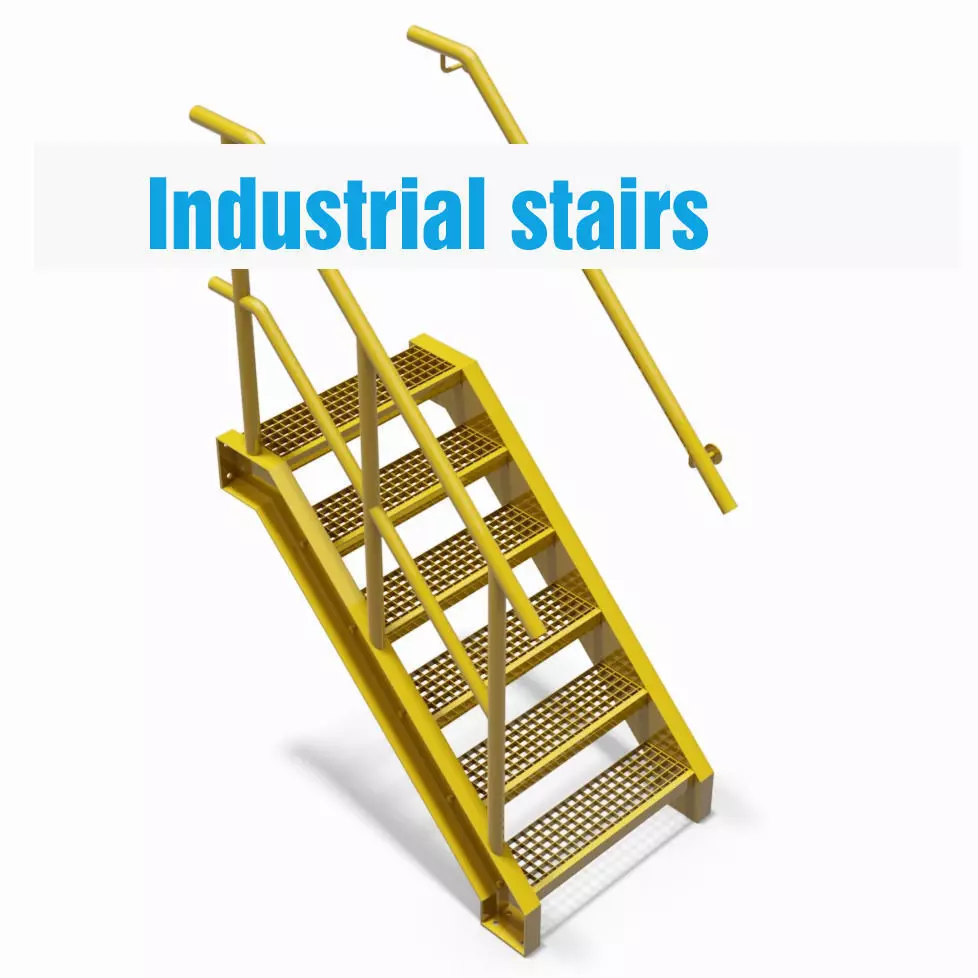

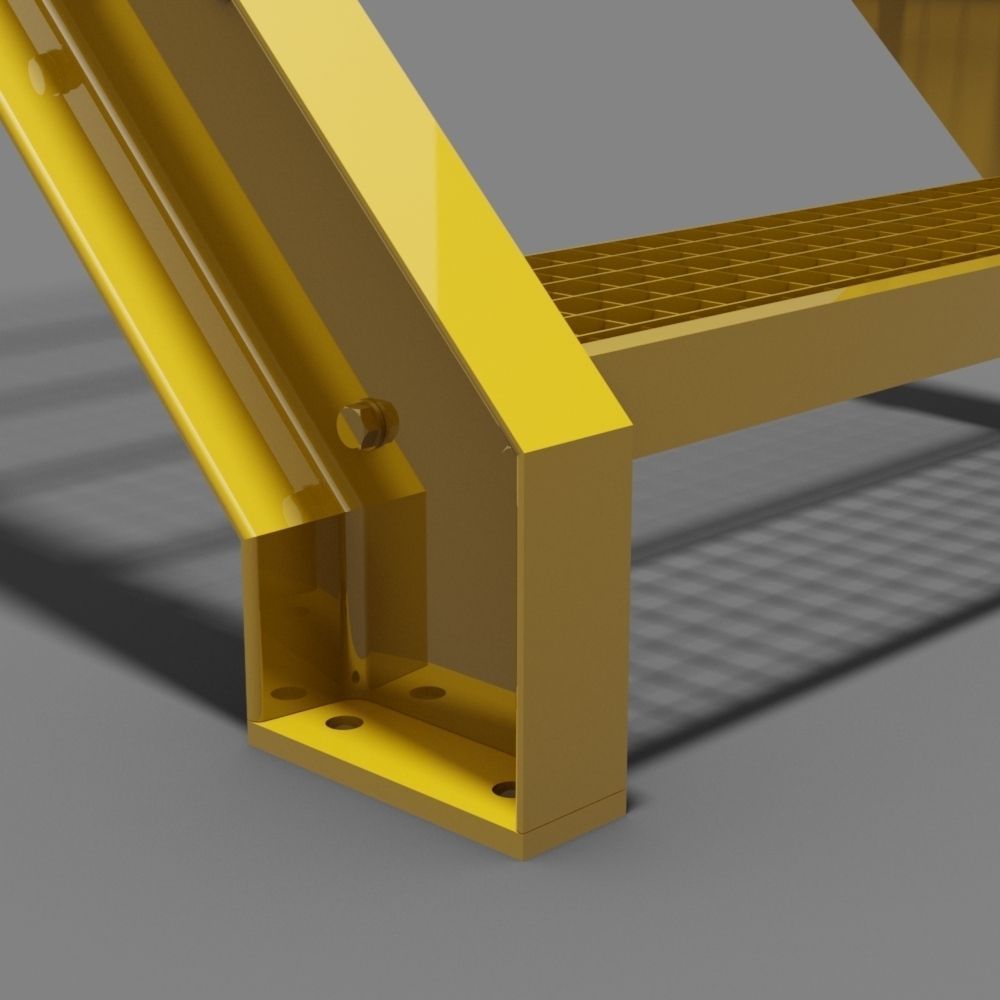

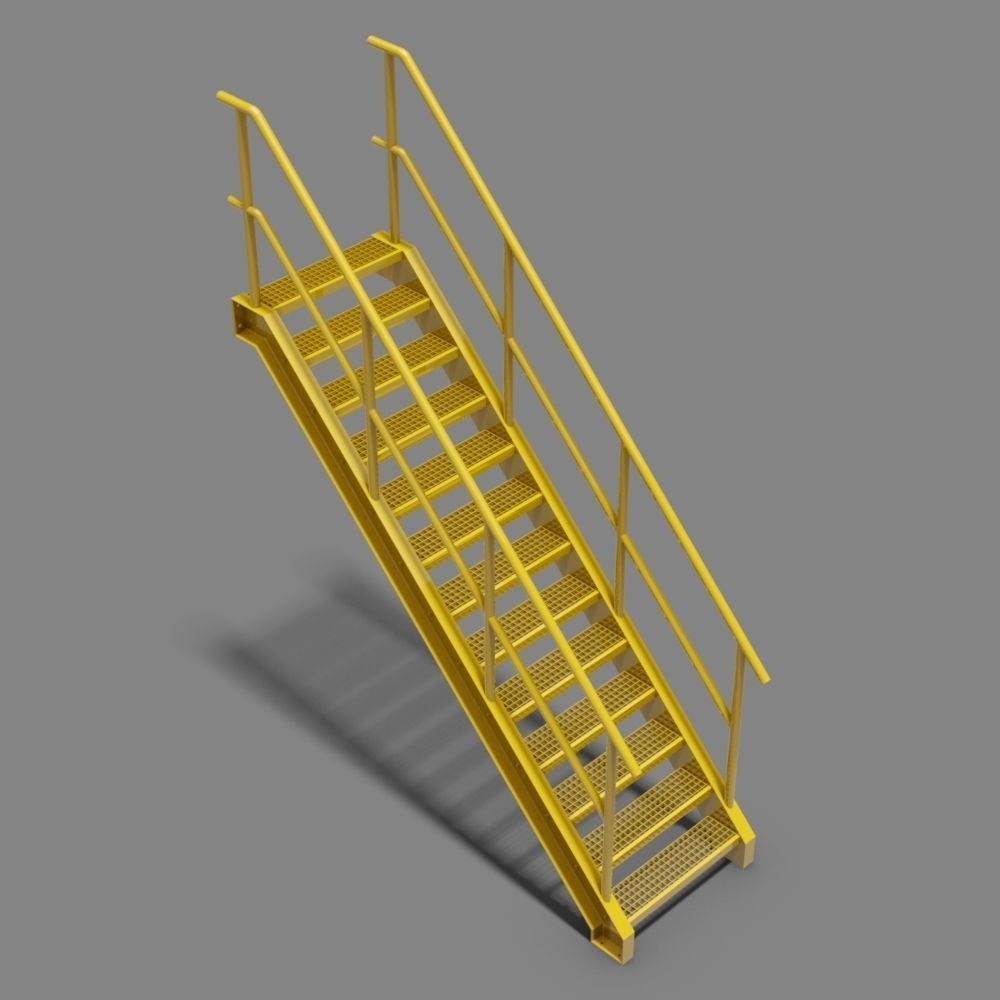

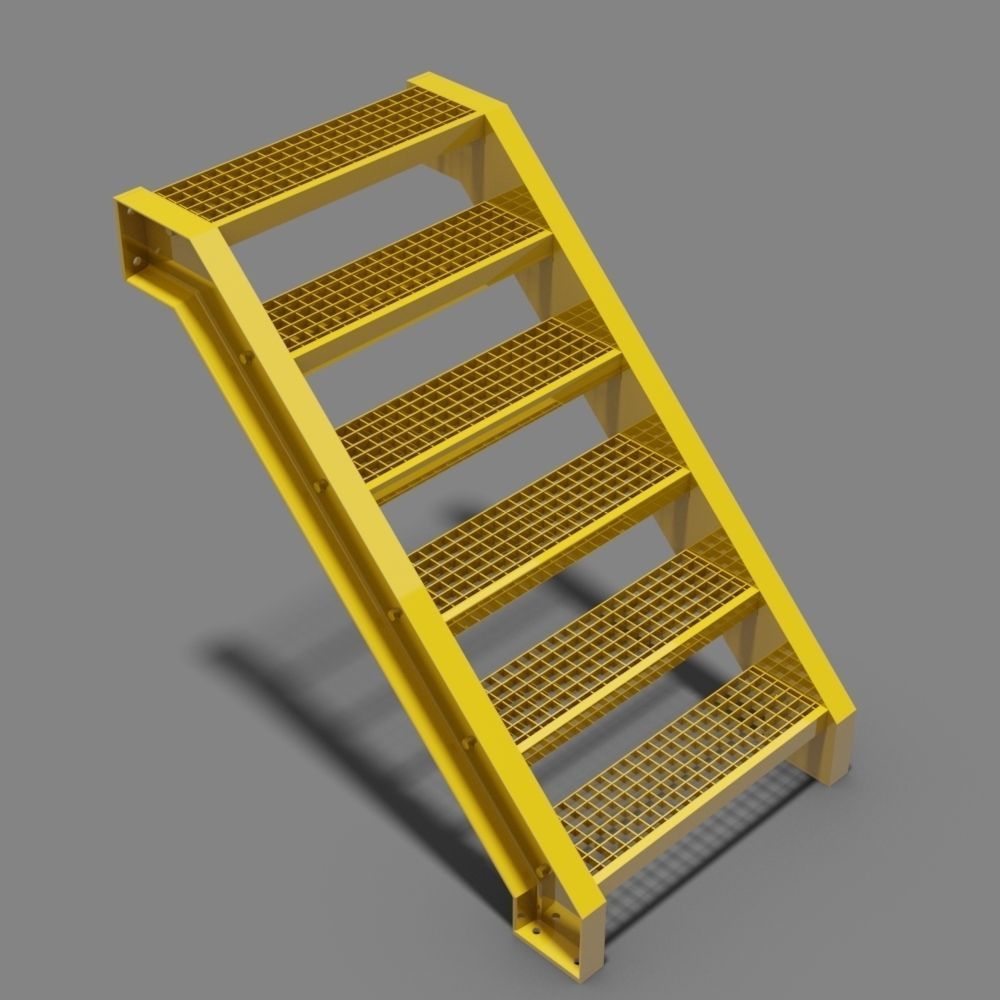

One of the most used stairs for buildings and process plants, equipped with U beams and grid stairs.

This is a parametric part that is only available for Autodesk Inventor (2012 or newer).Choose the height and check some settings and the stairs will be completely designed for you, in just a few seconds!You can make an unlimited amount of stairs out of this model.

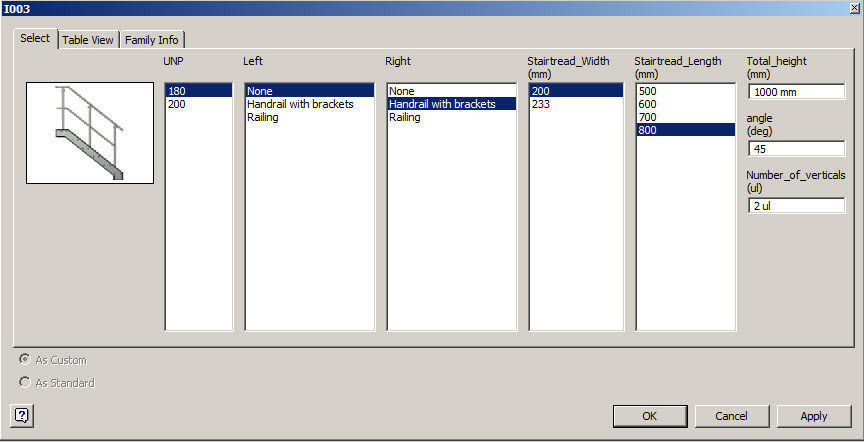

Some choices that can be made:

  • Beam type U180 or U200

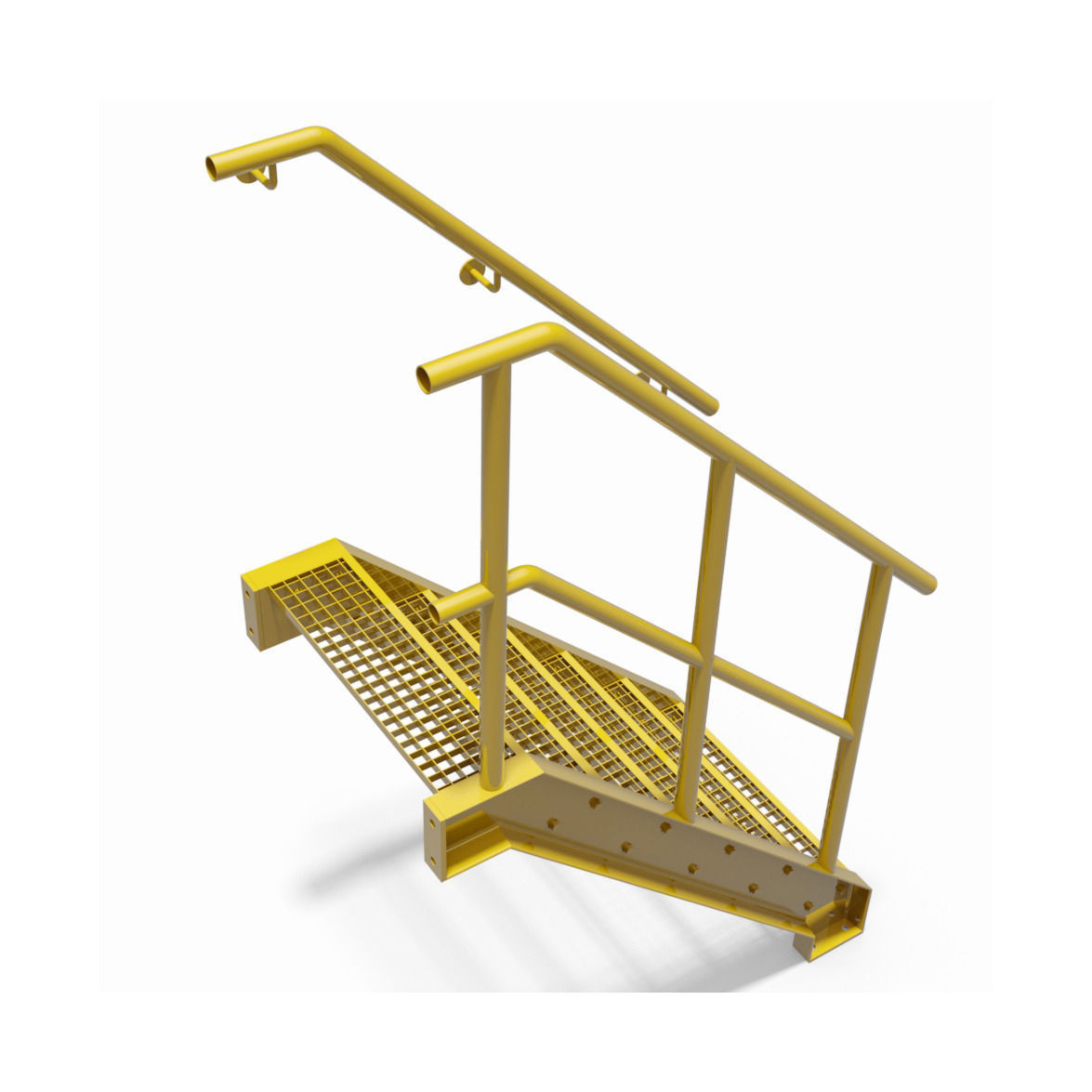

  • Railing, handrail or open at the left and right side
  • Angle of the stairs
  • Number of verticals for the railings
  • Step width and step length

The part is a so called ipart and is really perfect to use in your Autodesk Inventor Content Center.A super timesaving 3d model if you need industrial stairs in your design.The dimensions are in millimeter (mm)

Related Tagsstairshandrailbalusterrailingindustrial
ubeam
grid
factorystairs
inventorpartipart
ipt
parametricindustrial partstairs railing
