DESCRIPTION

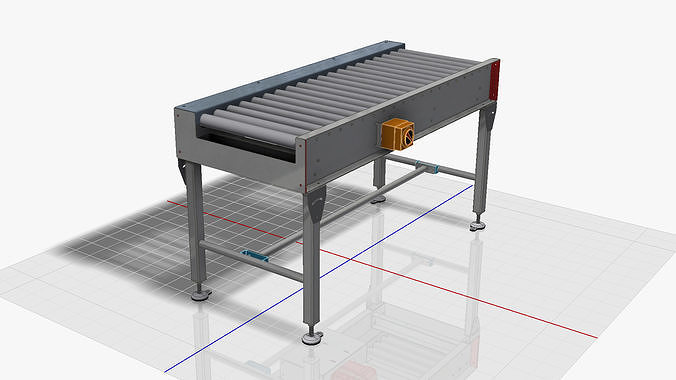

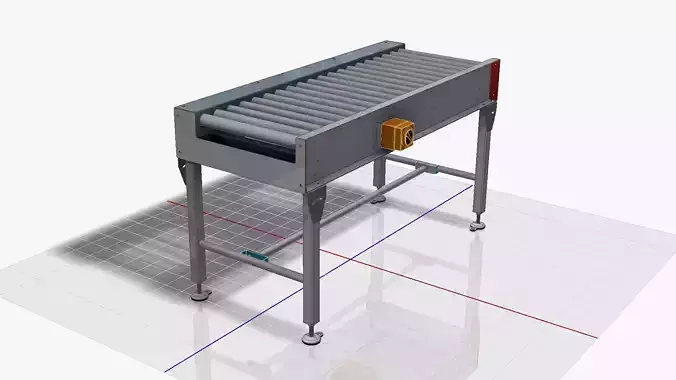

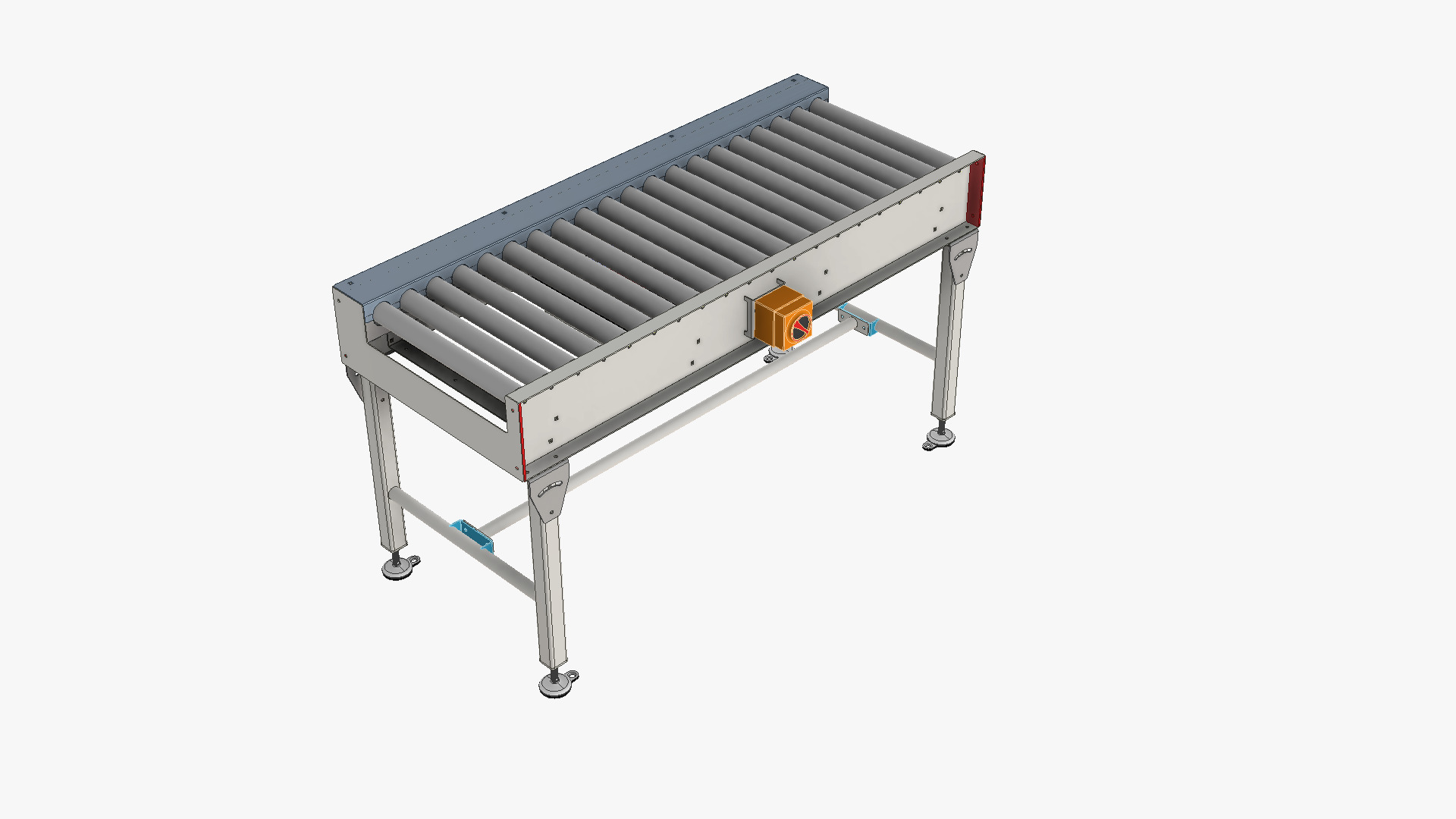

Chain driven roller conveyor 01(We use the program inventor 2021 to do)

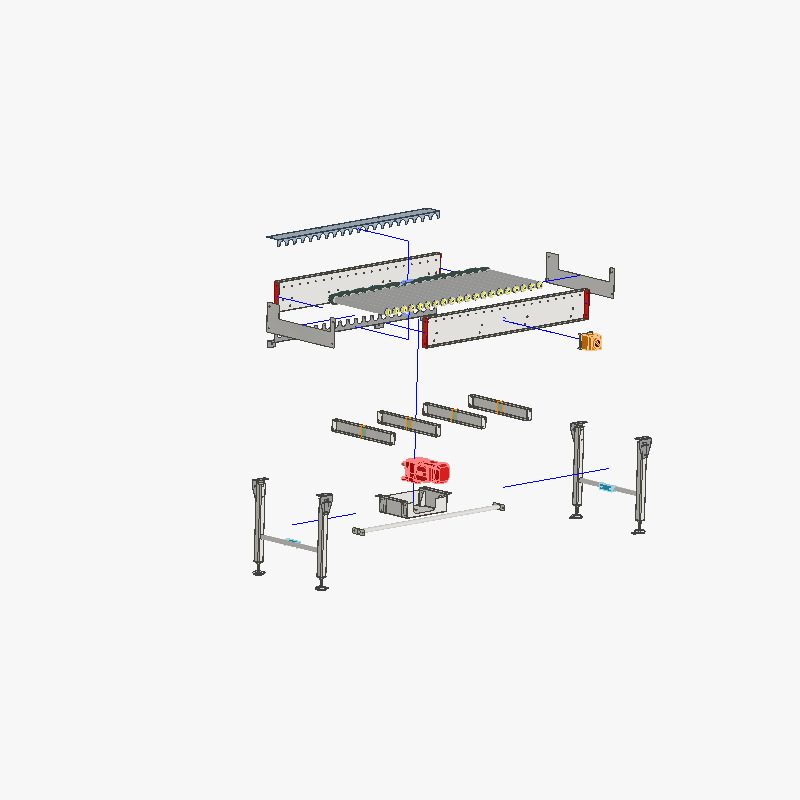

File formats: (Full Drawing Process Engineering)

  • Inventor ( iam = Assembly file)
  • Inventor ( idw = Drawing file)
  • Inventor ( ipt = Part file)
  • Inventor ( ipn = UV file)-Solid model 3D (STEP file)-Ohther file X_T , IGS , STP , STL , CATProduct , OBJ-PDF file for review drawing (PDF)

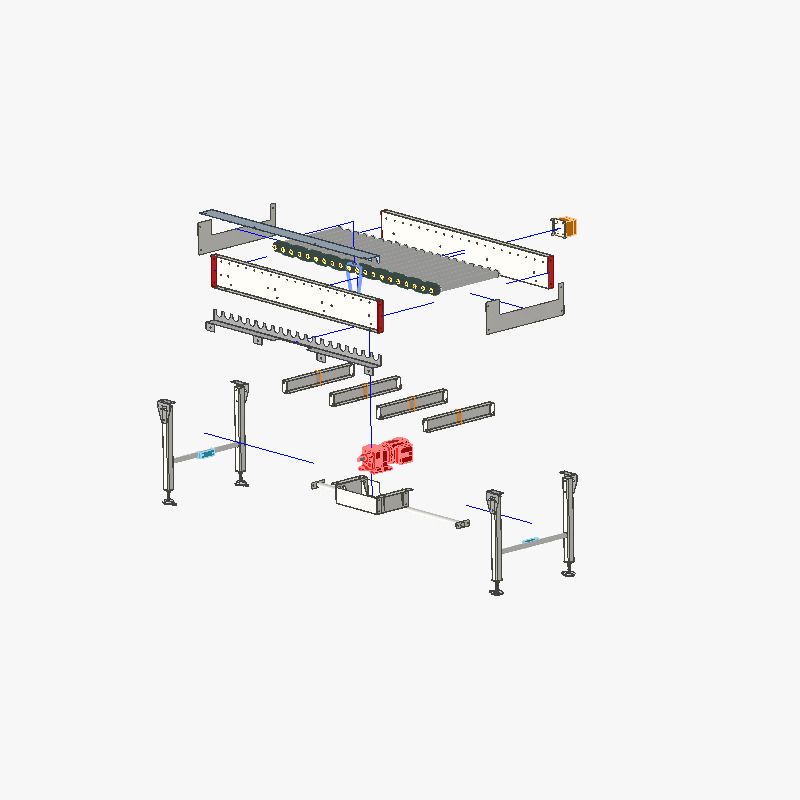

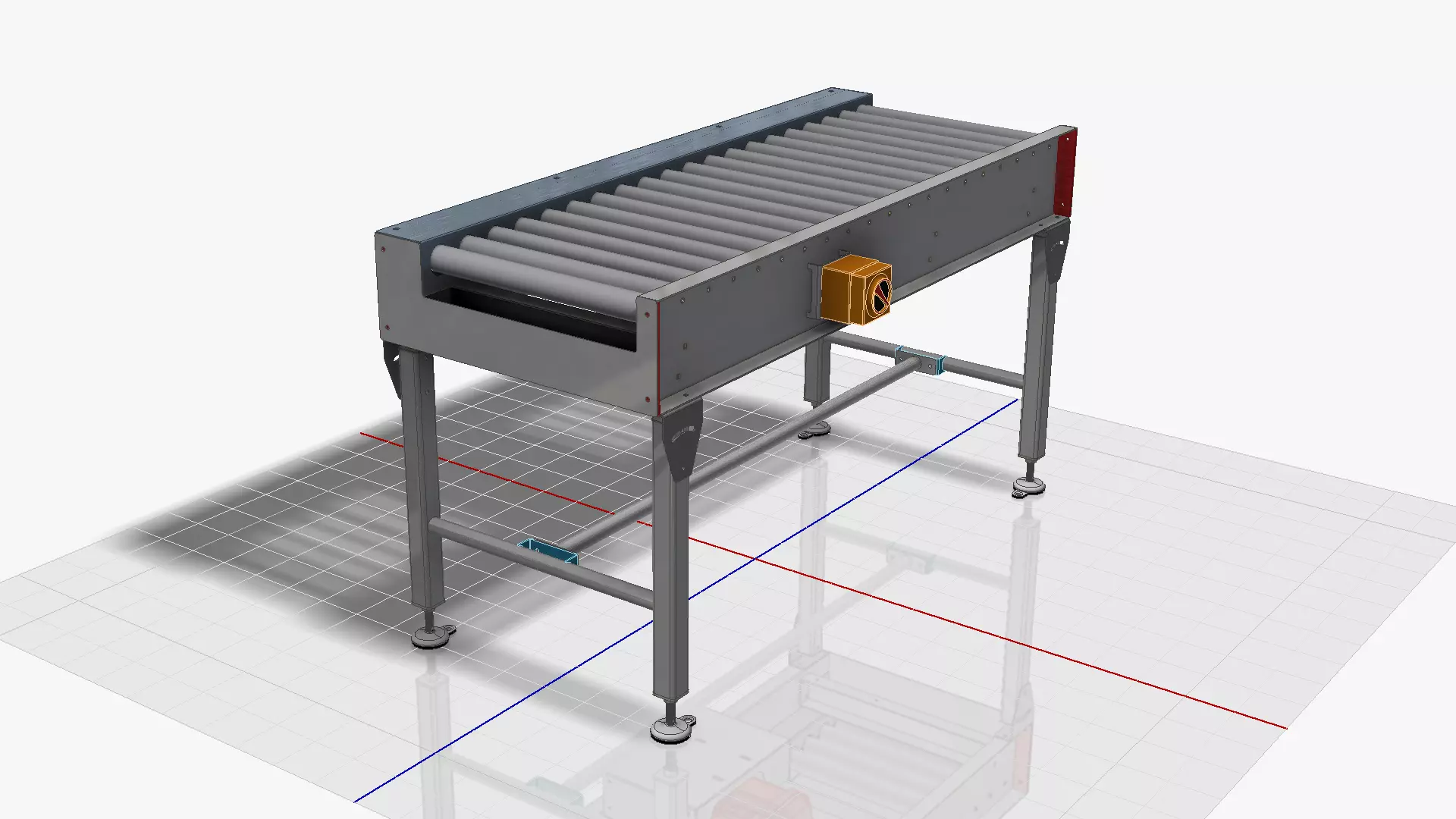

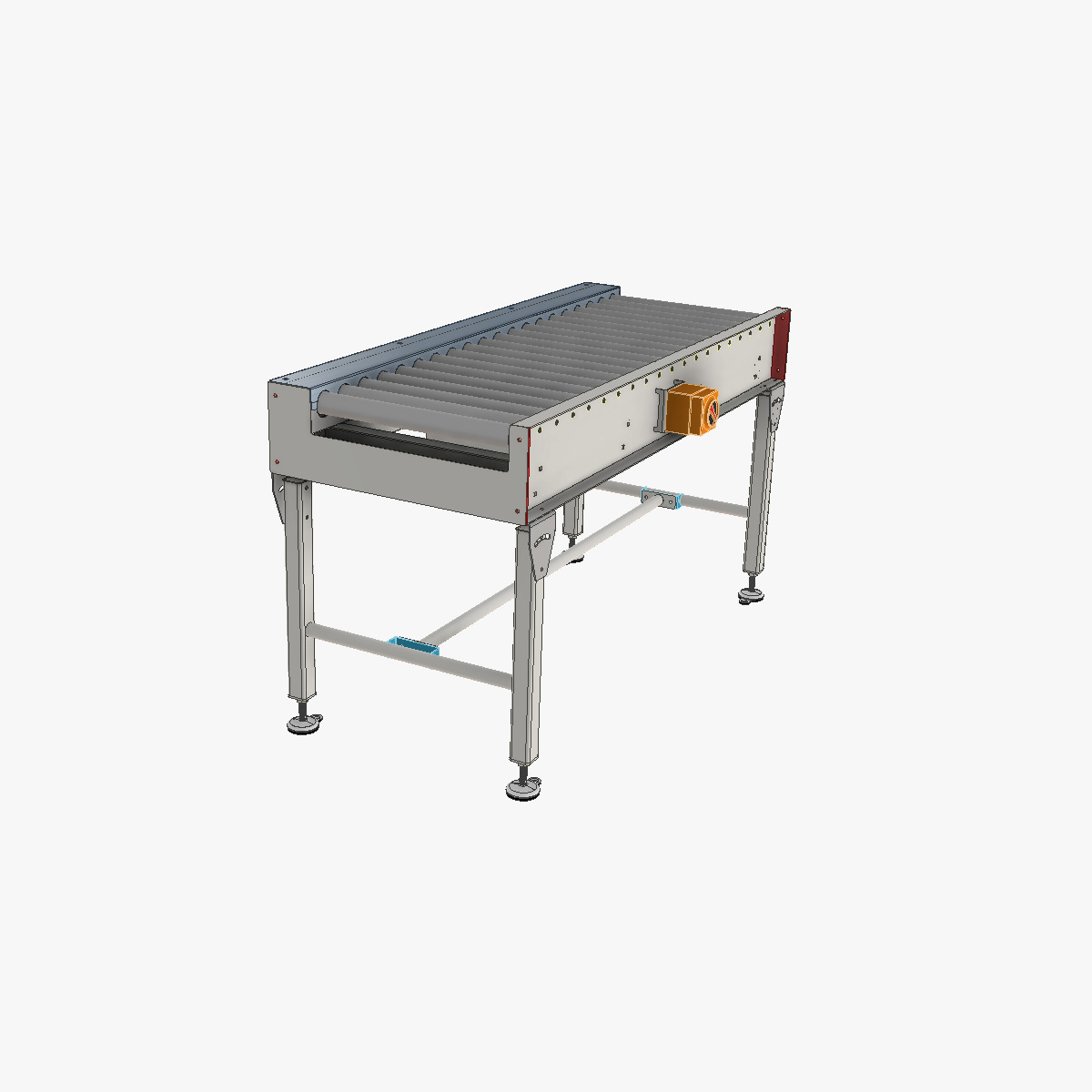

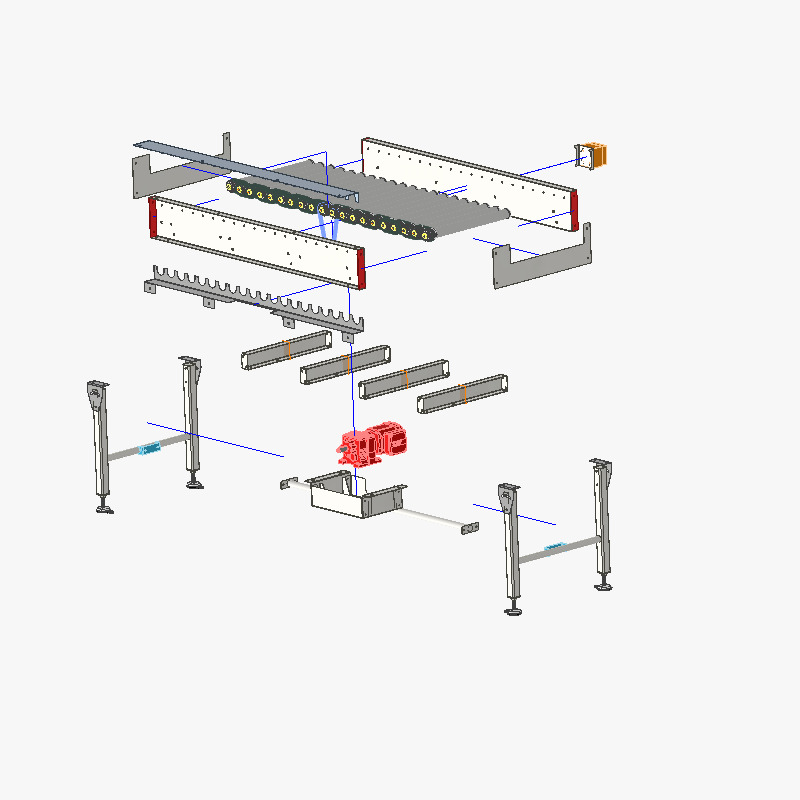

Concept Design

  • Design Material Food Grade SUS304 & Plastic PE

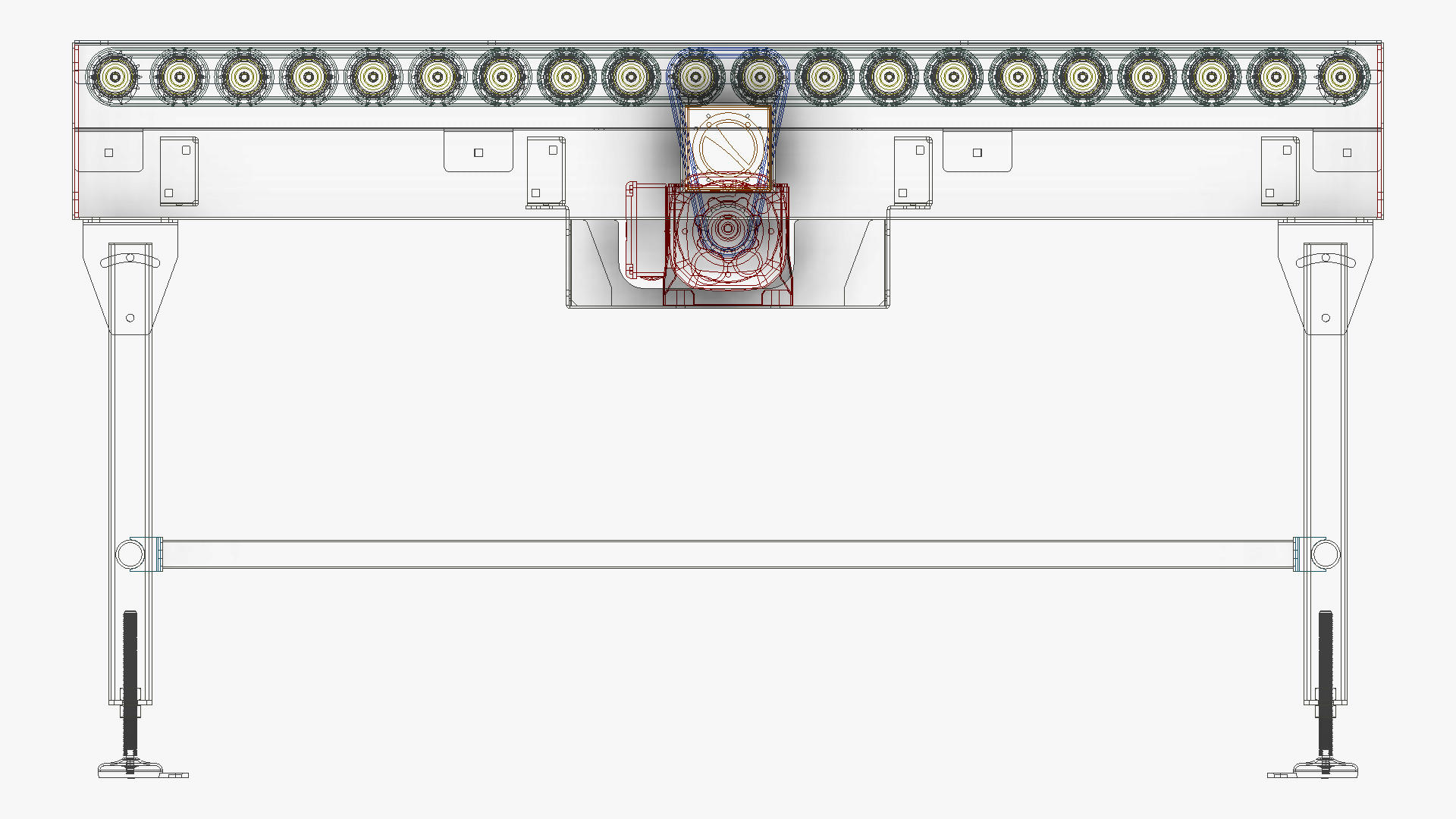

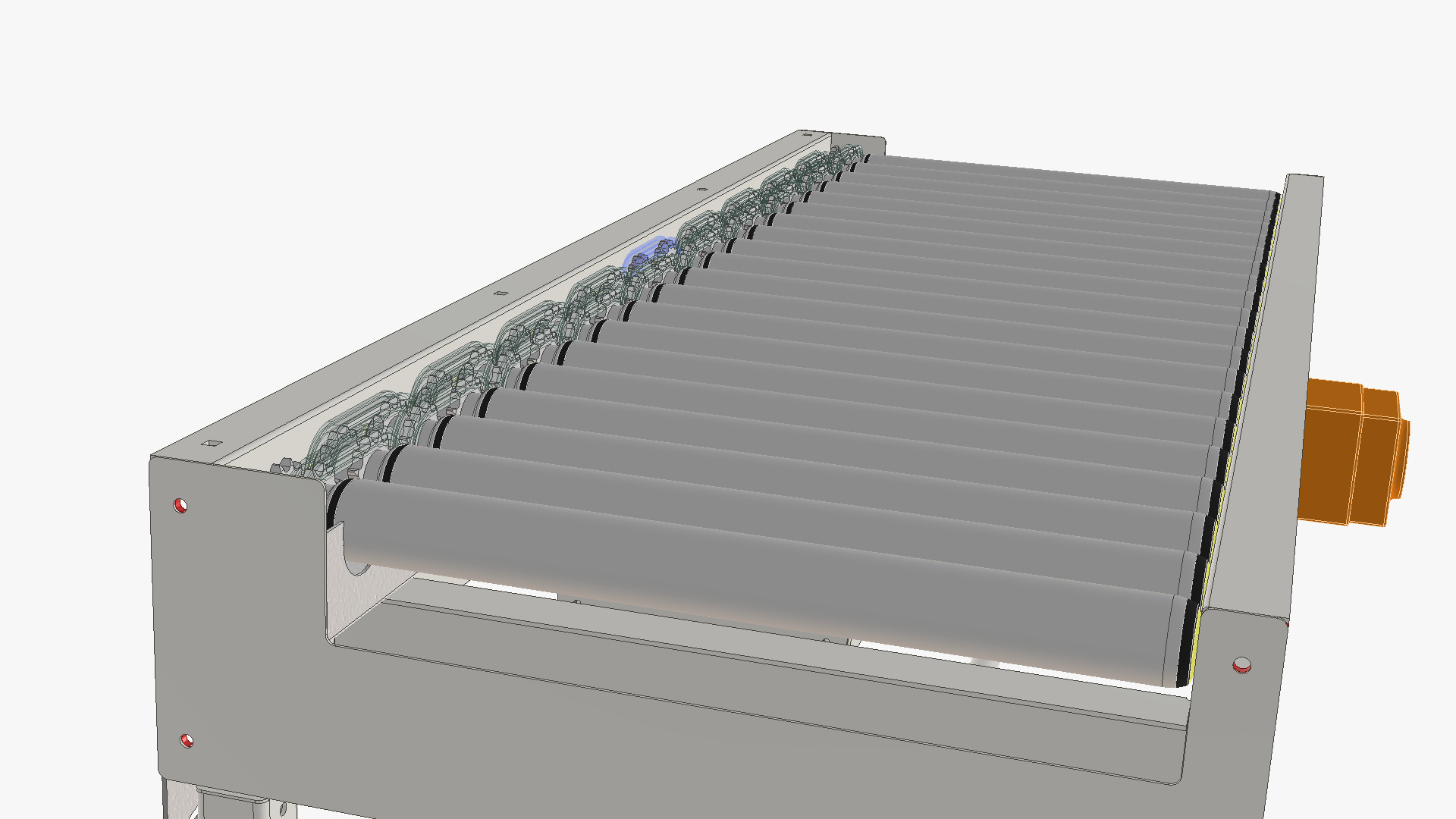

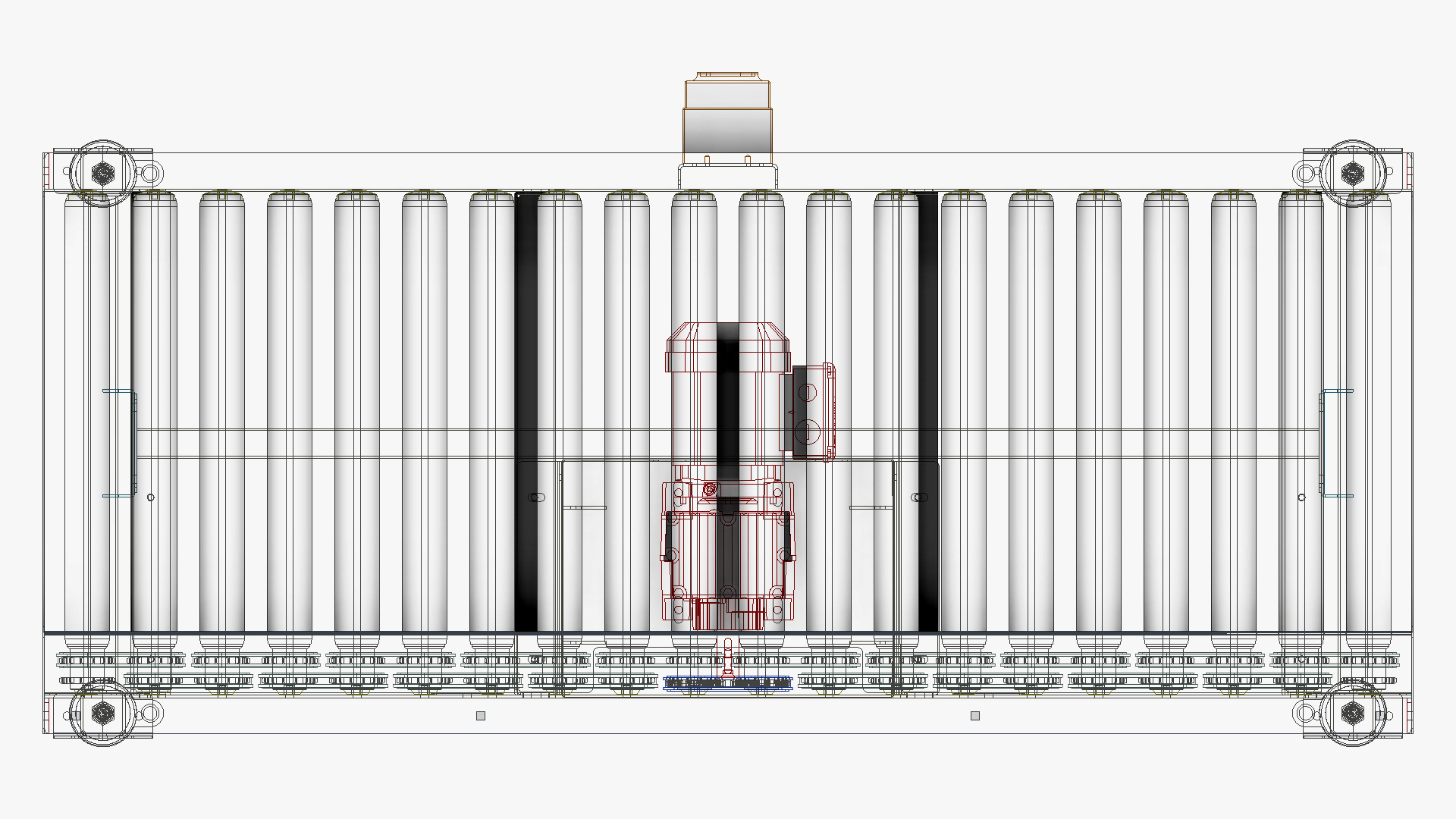

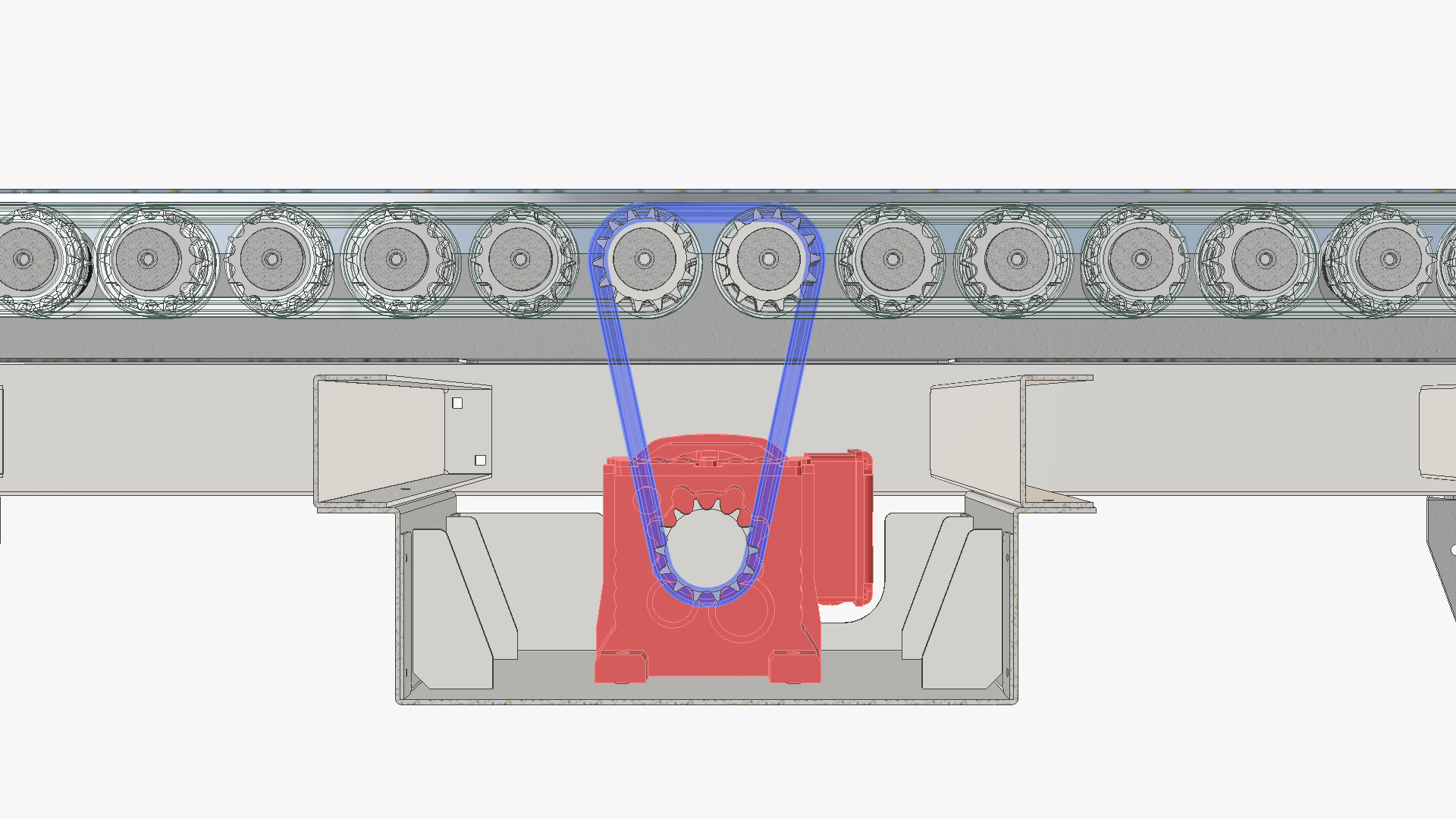

  • Chain driven roller conveyor Interroll_R533182_DE10_CR3800_Roller_Series Roller Drive Spocket 40 - 14T

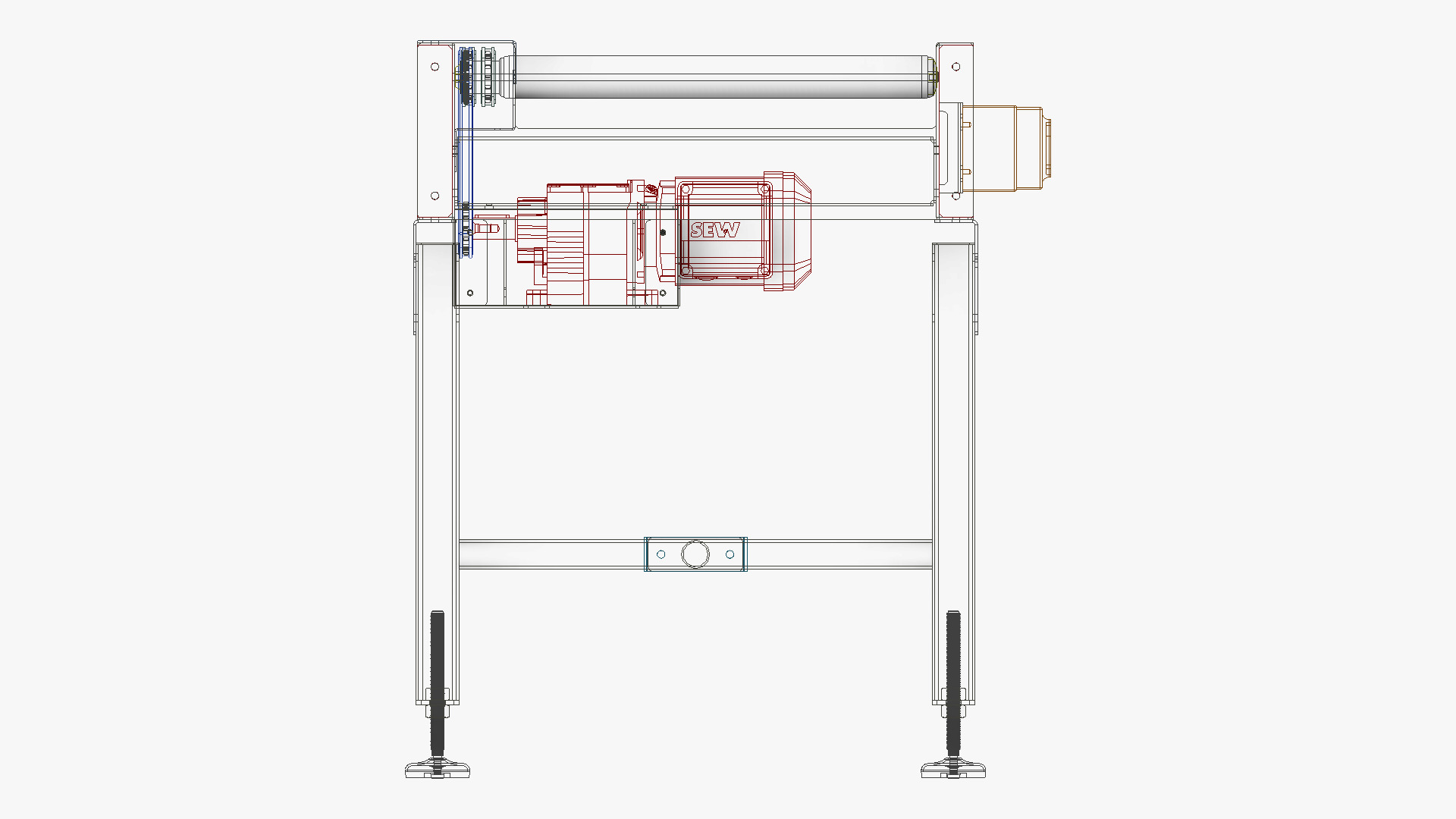

  • Motor SEW R27DRS71S4
  • Speed conveyor = 60 rpm = 10 m/min
  • Motor drive Spcorket 1:1 = 14T only.
  • Foot Plate Part Stud Adjust +-70 for top belt conveyor

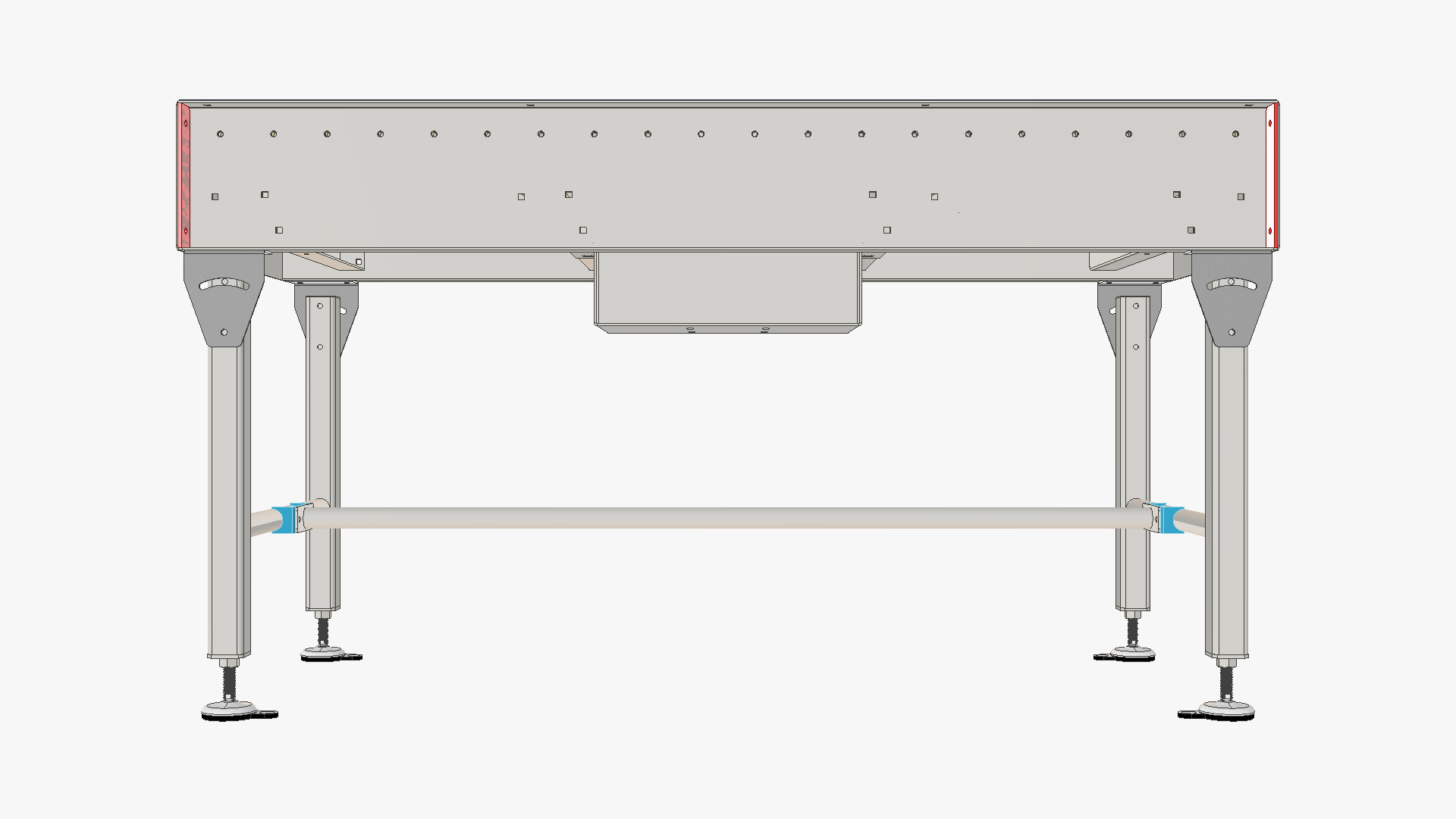

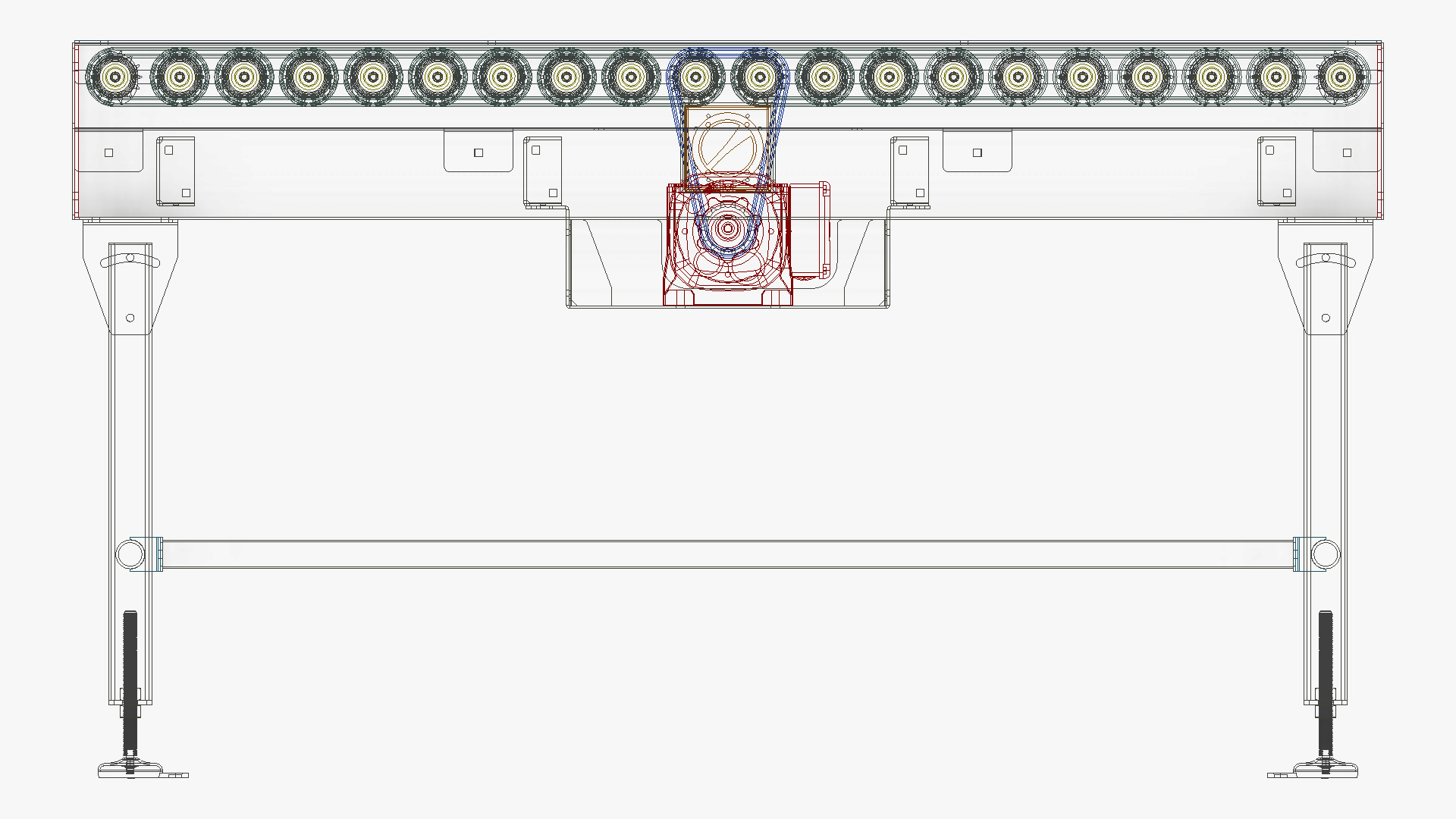

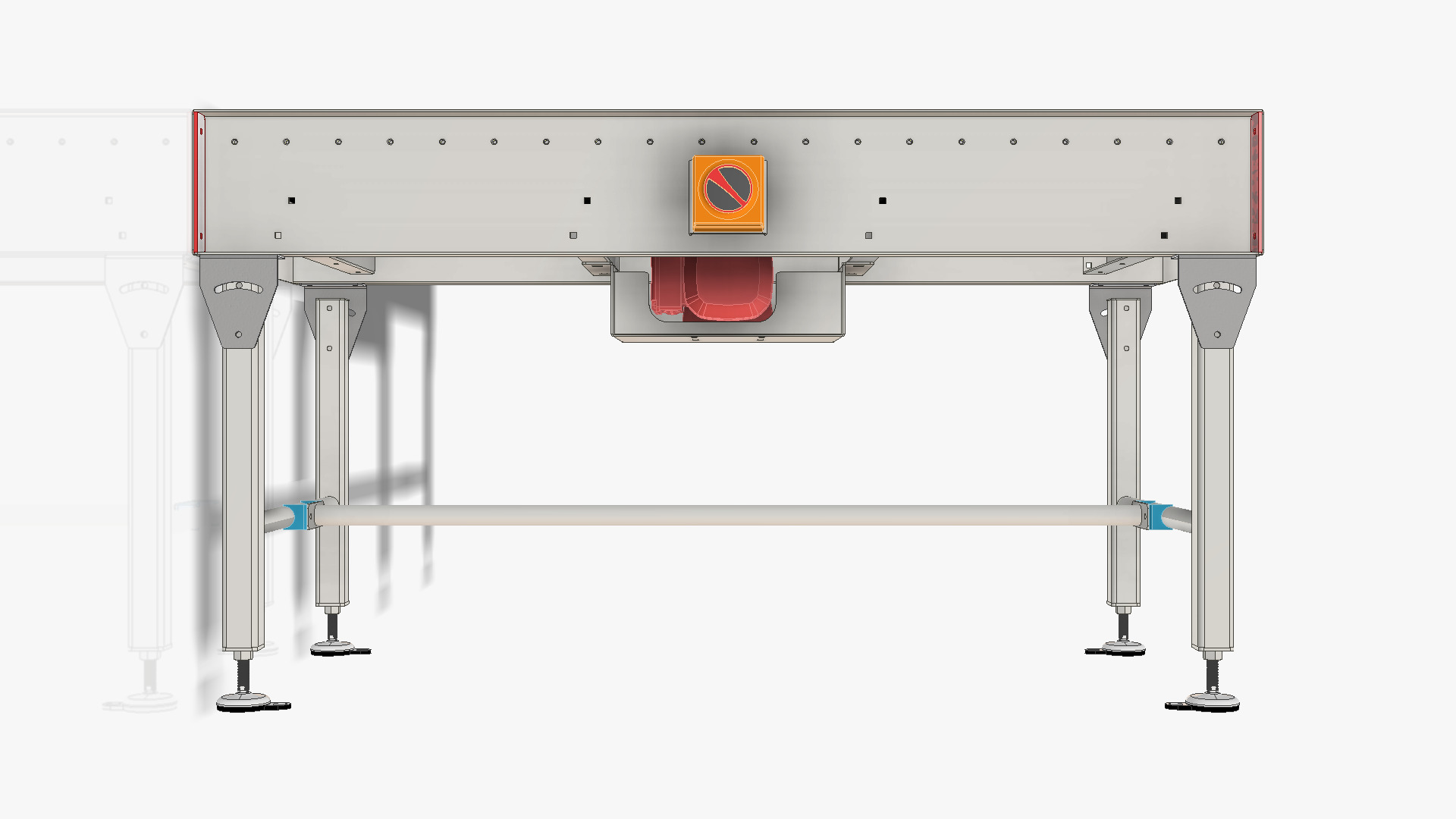

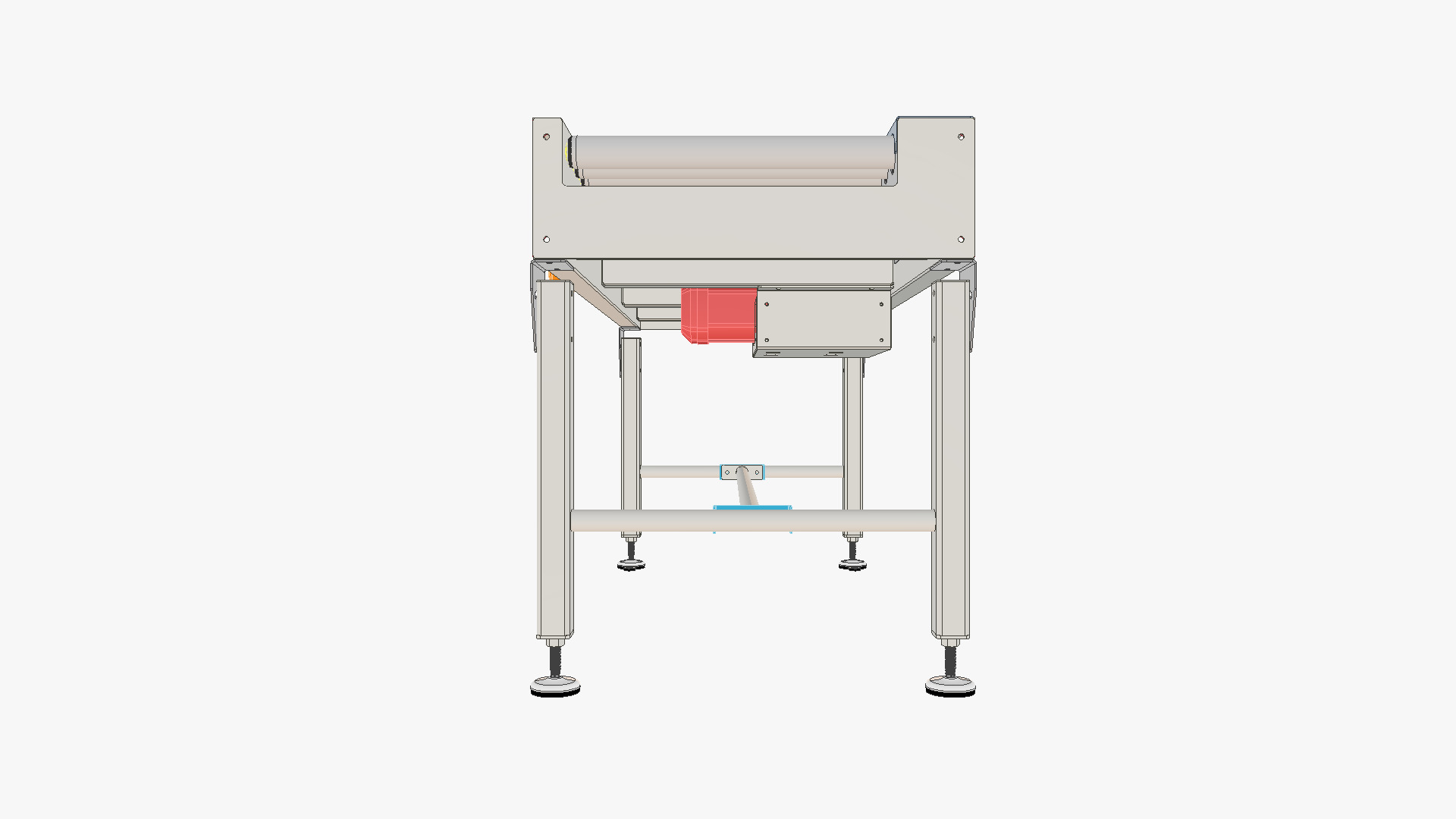

  • Dimension W650 x L1530 x H850 mm.

If you have questions, you can ask.Thanks for interesting
