DESCRIPTION

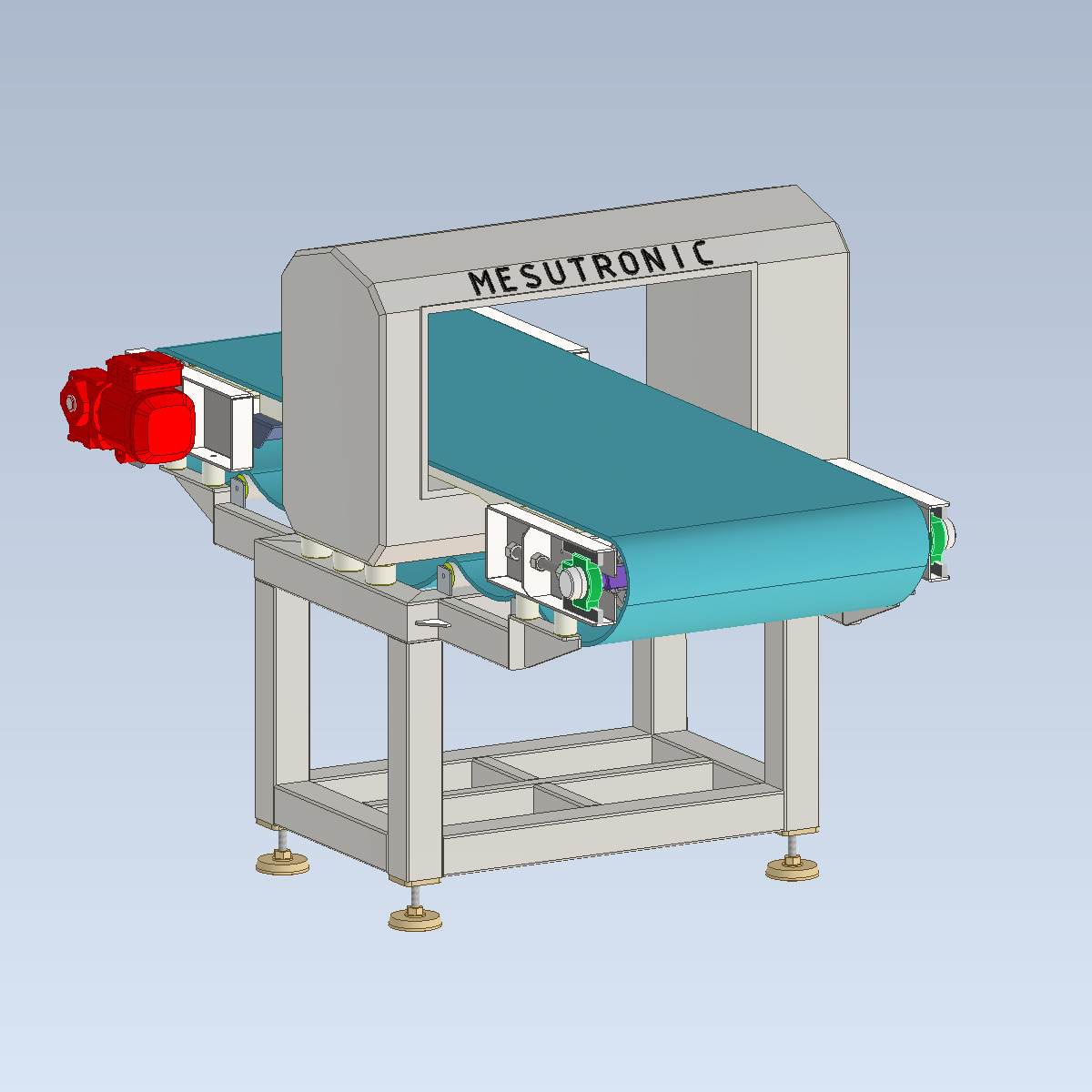

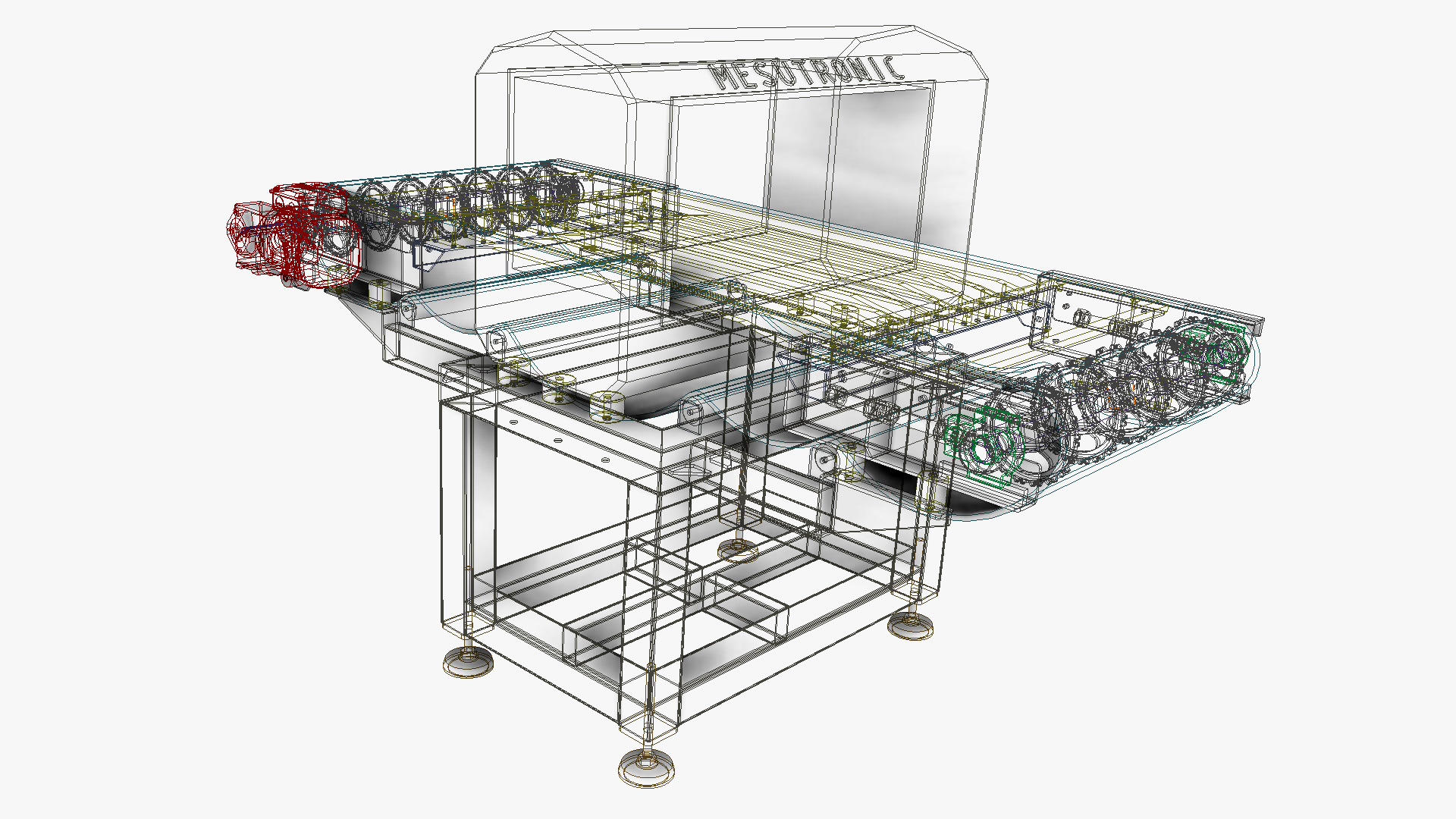

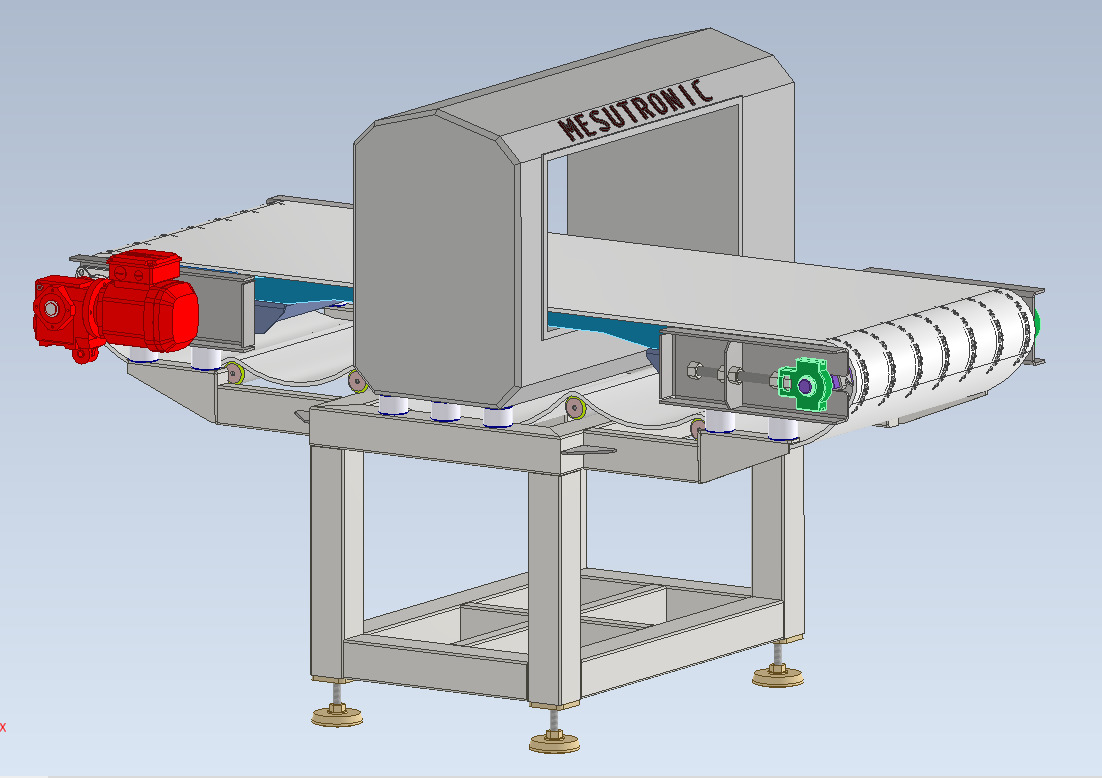

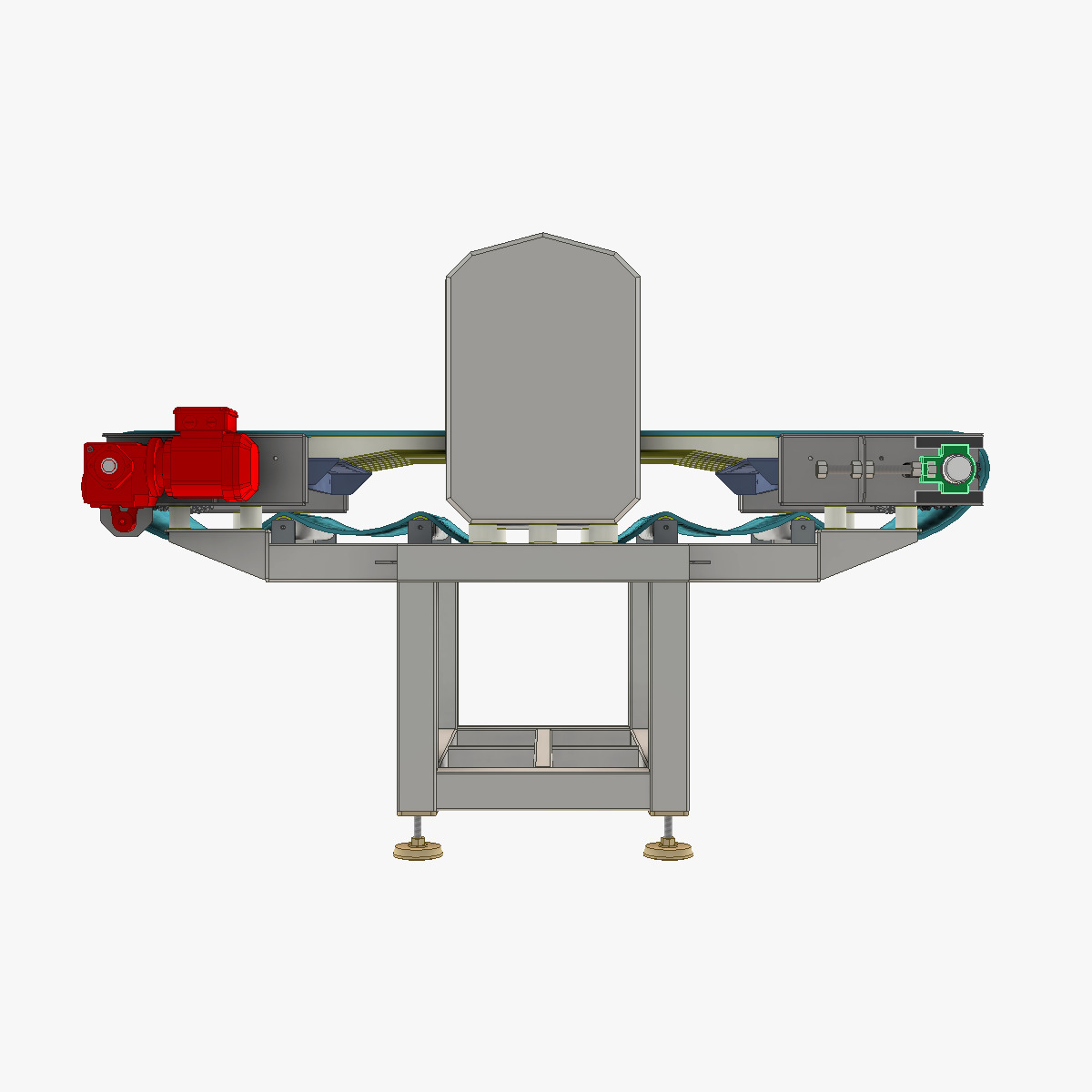

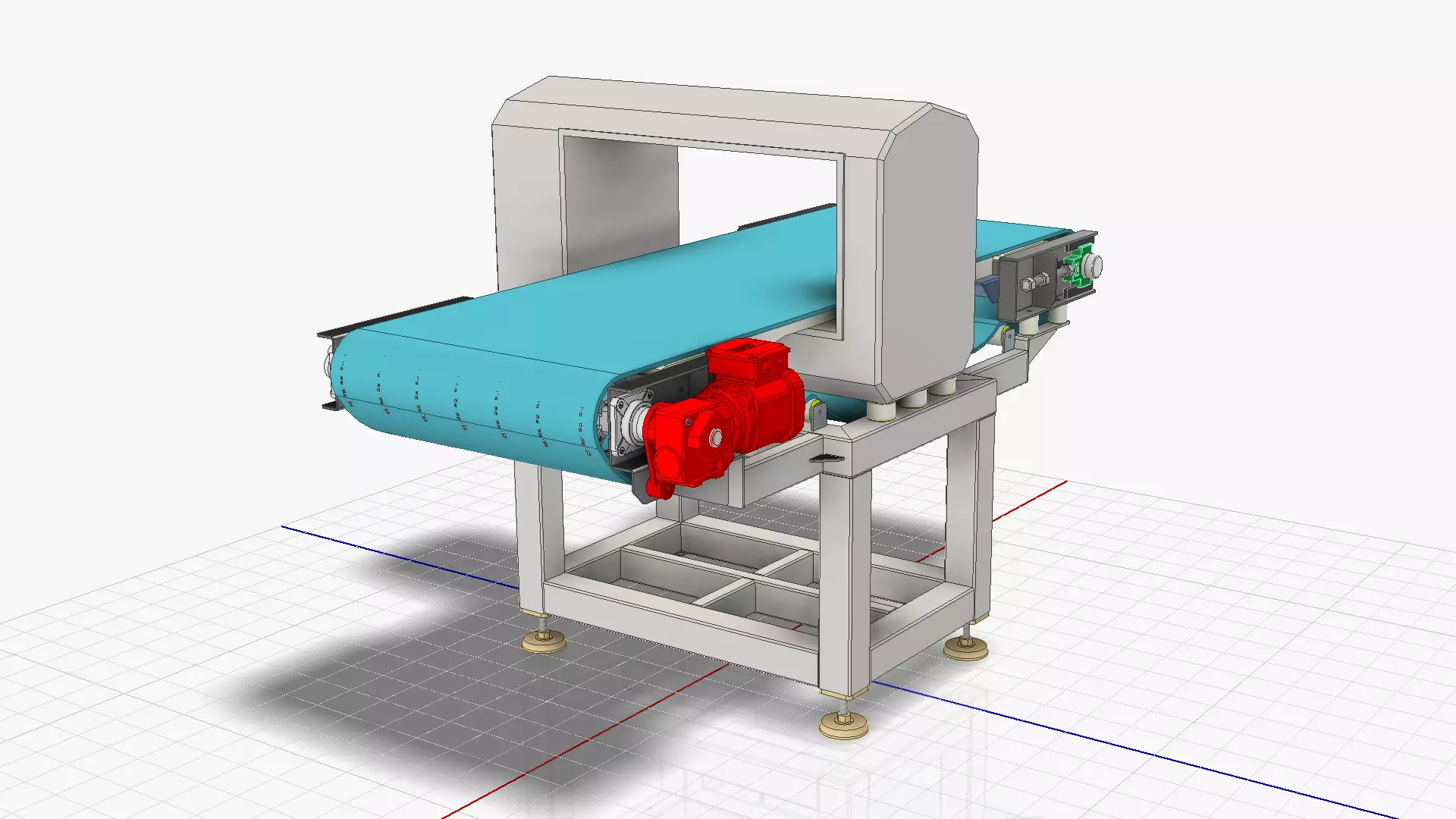

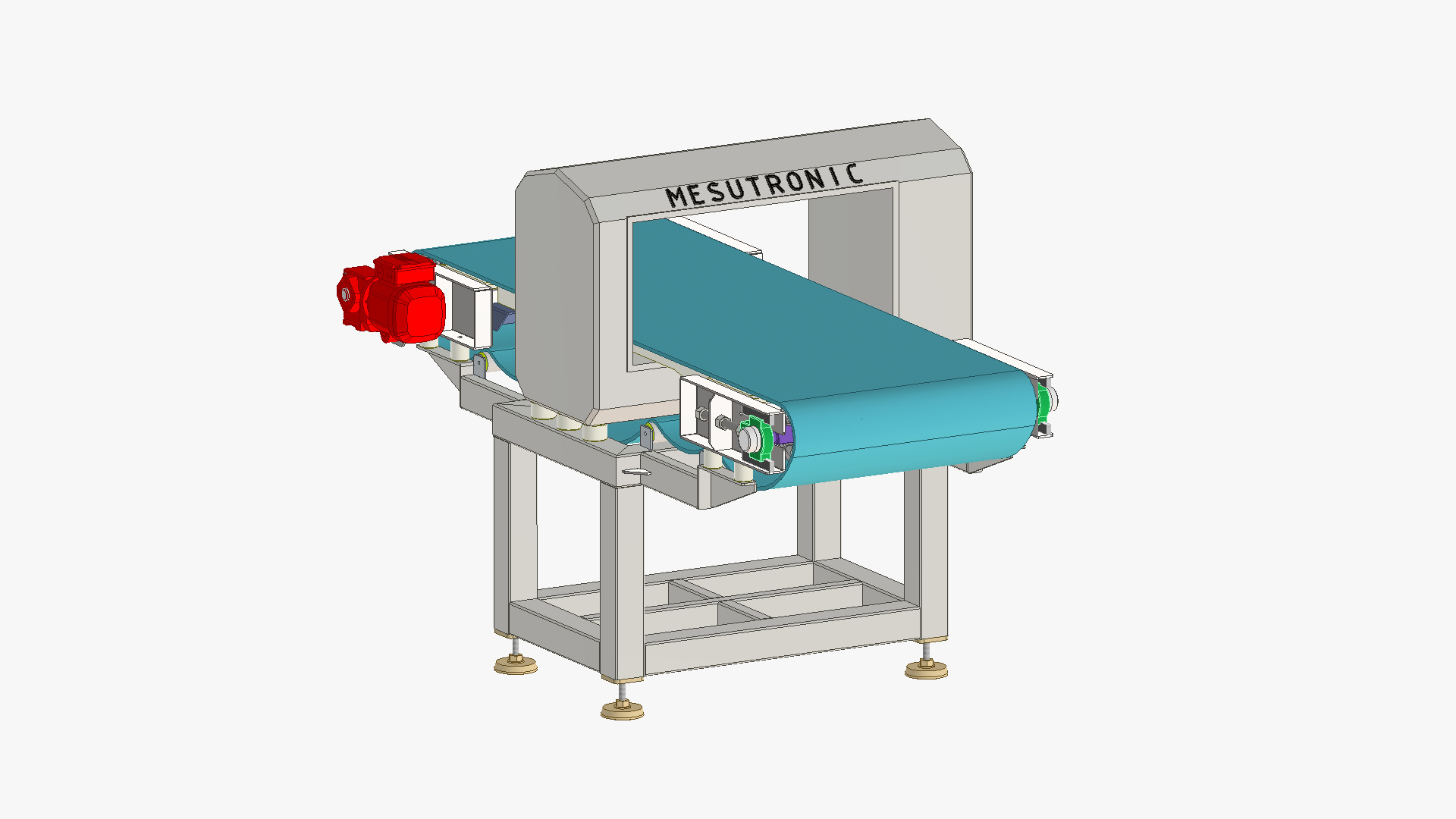

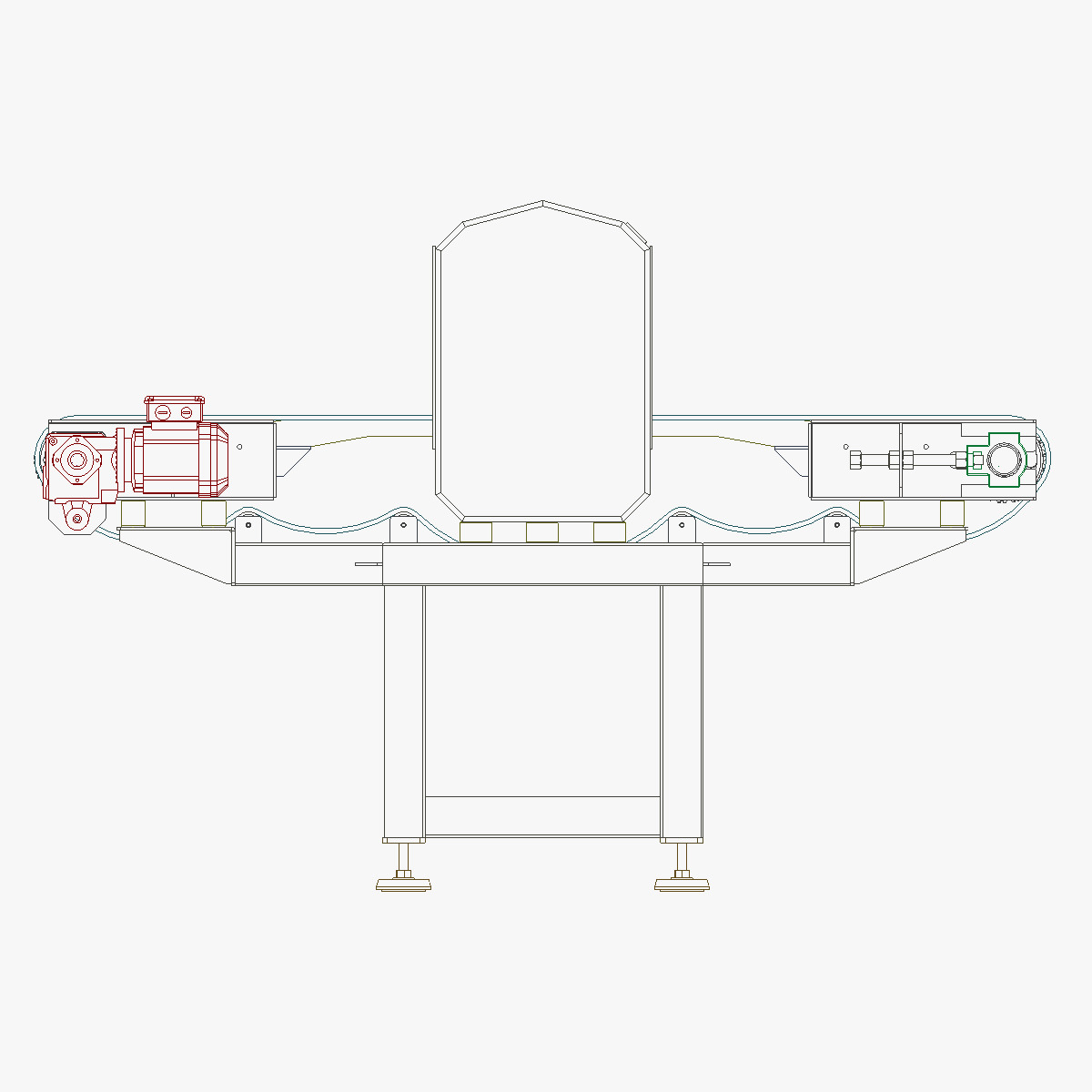

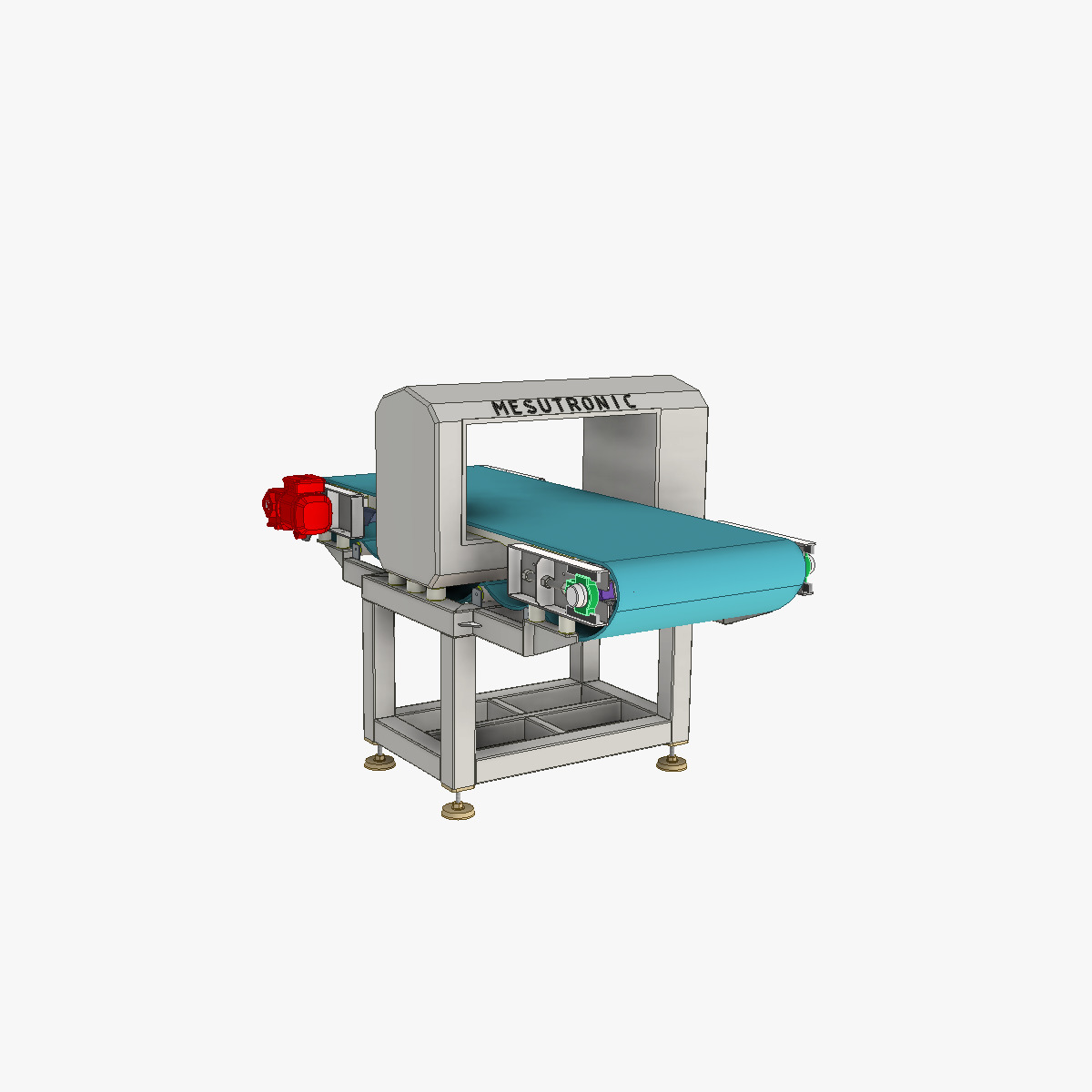

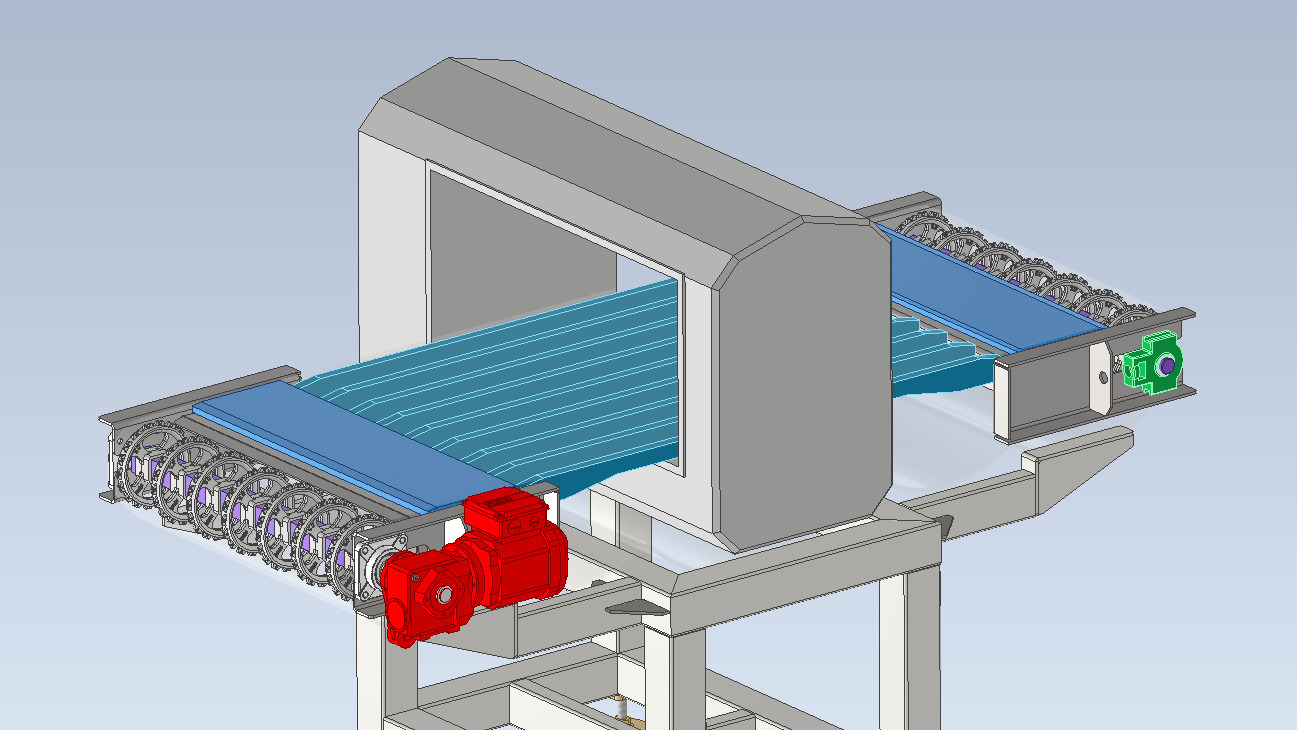

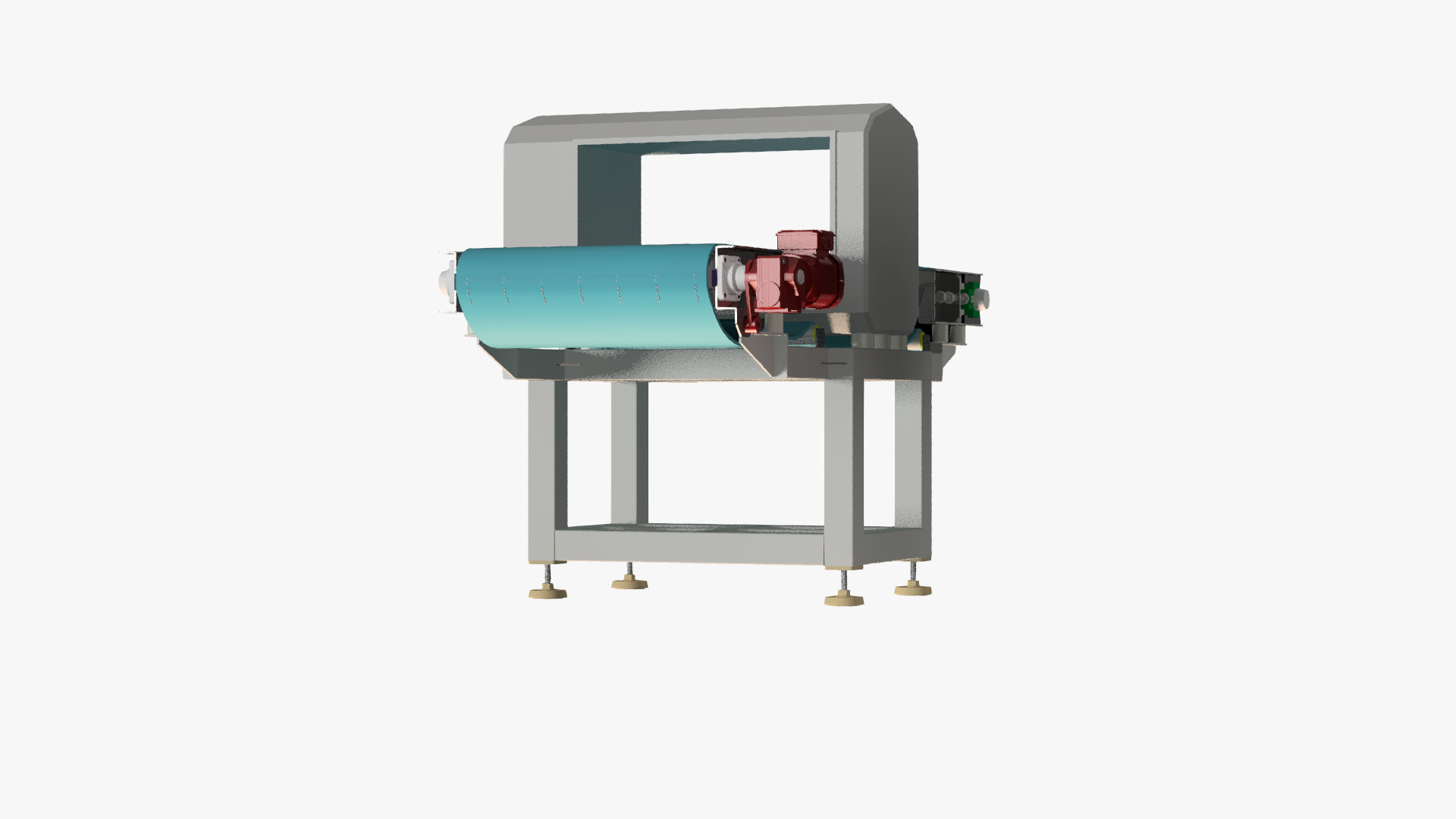

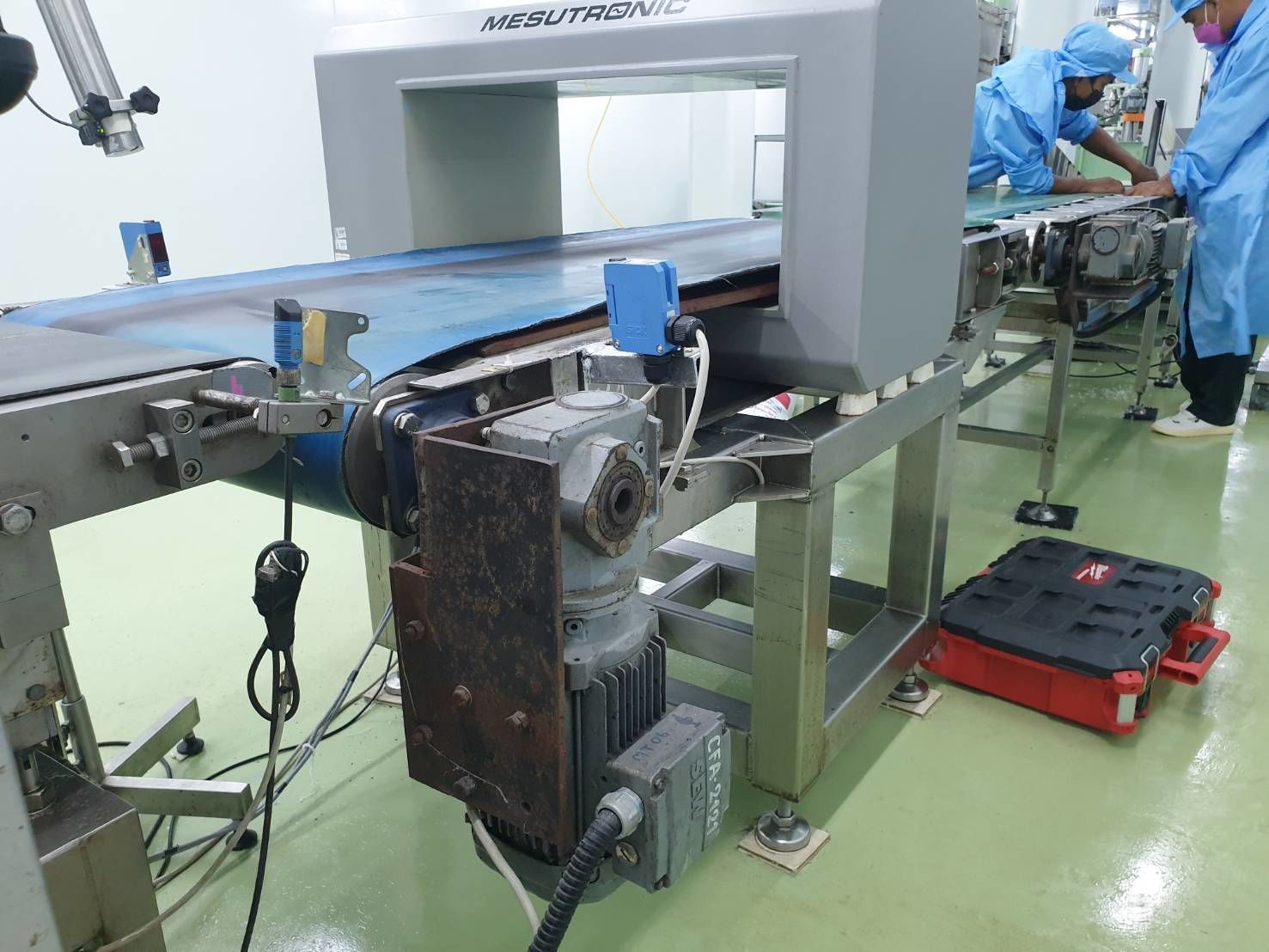

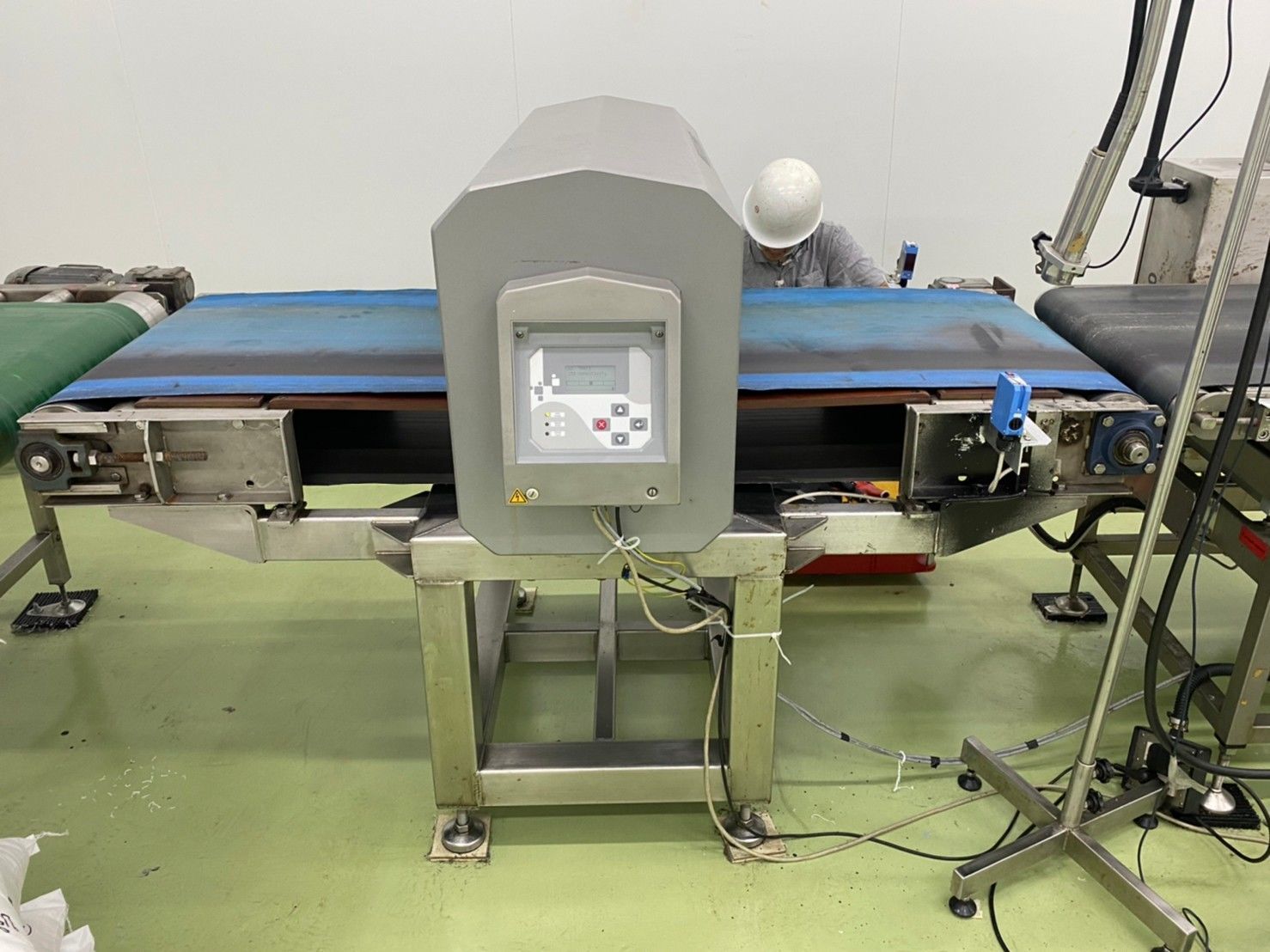

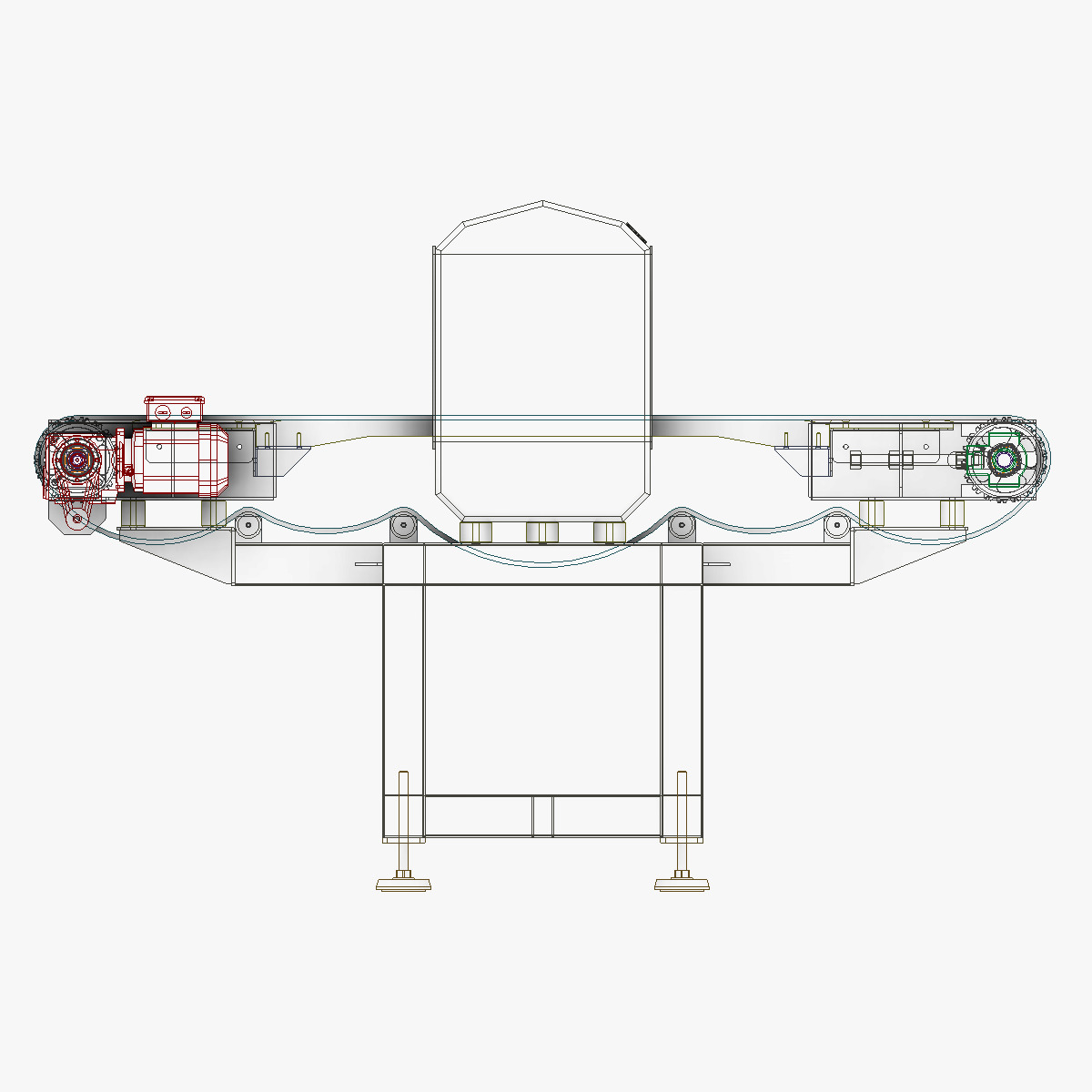

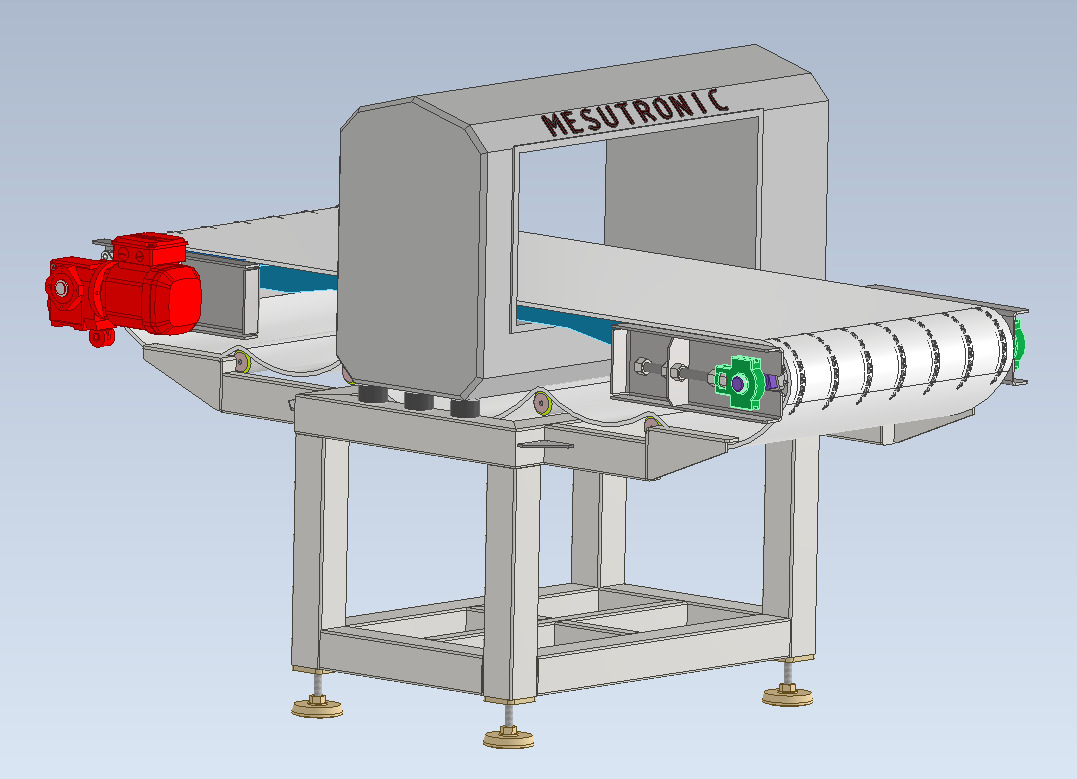

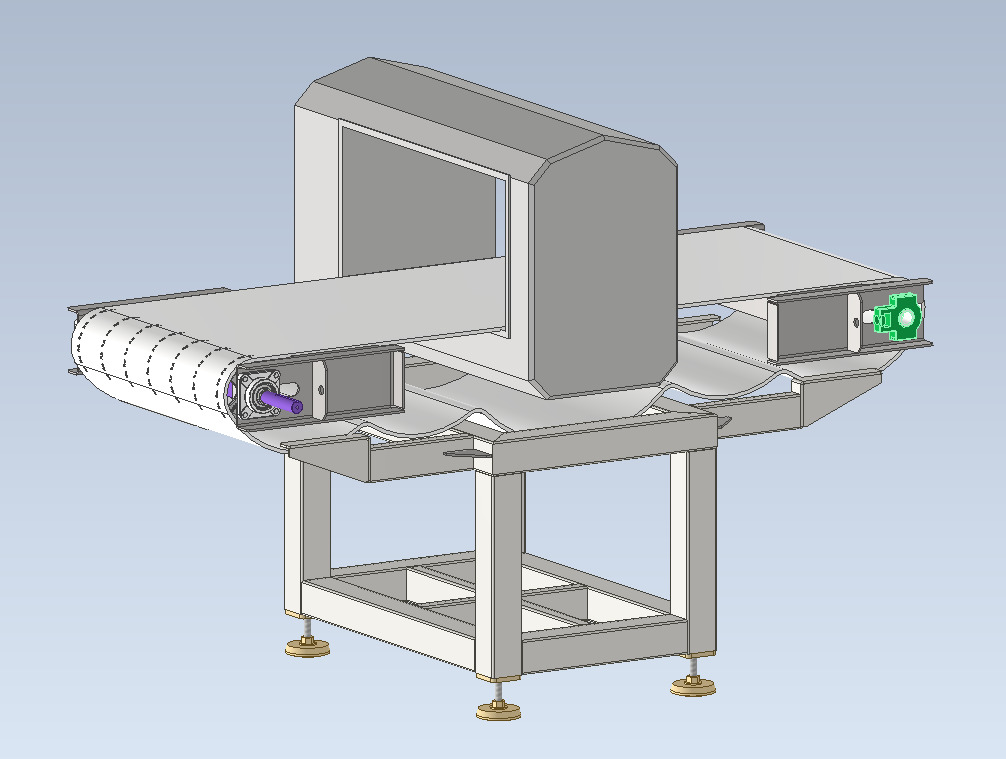

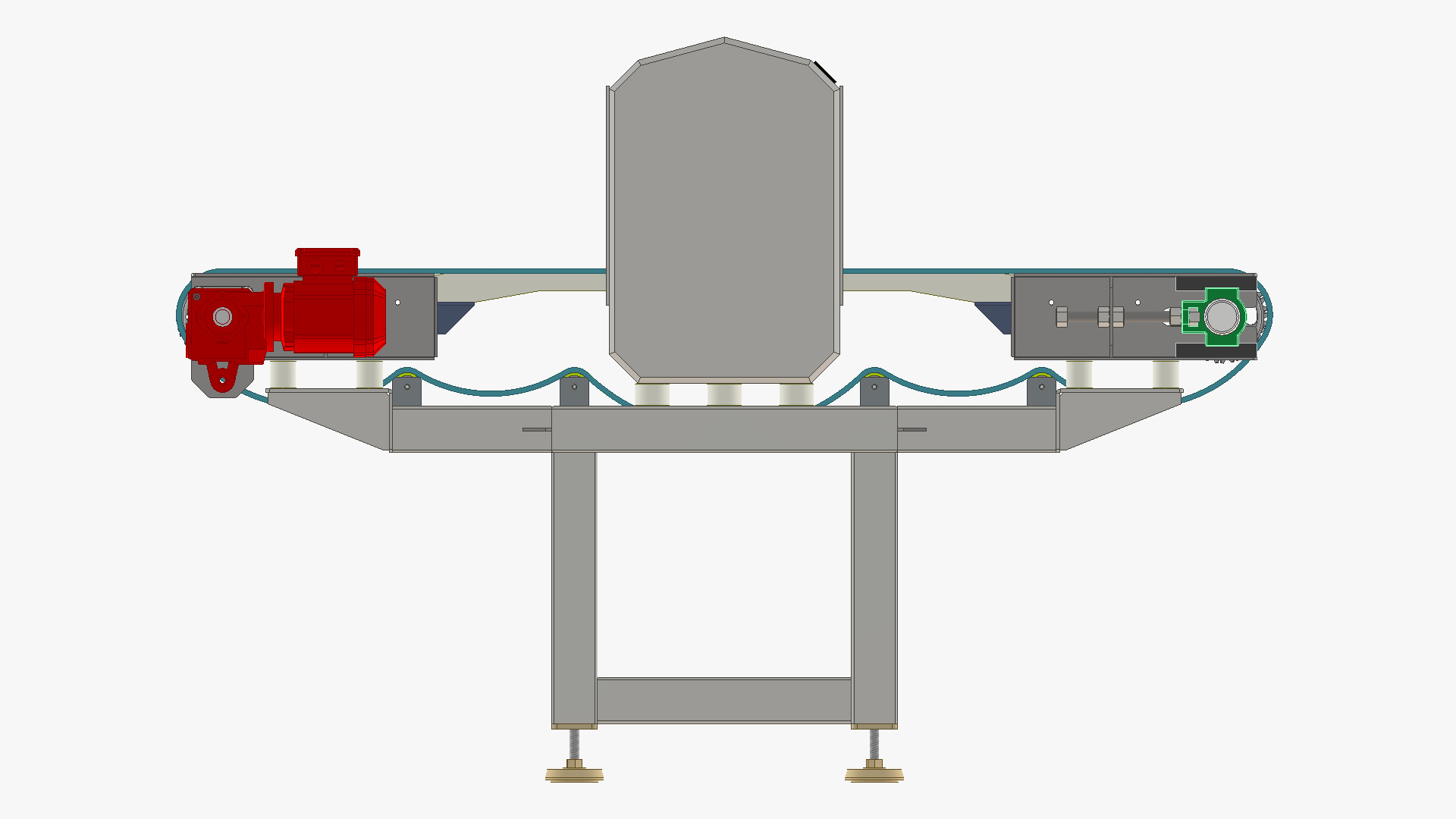

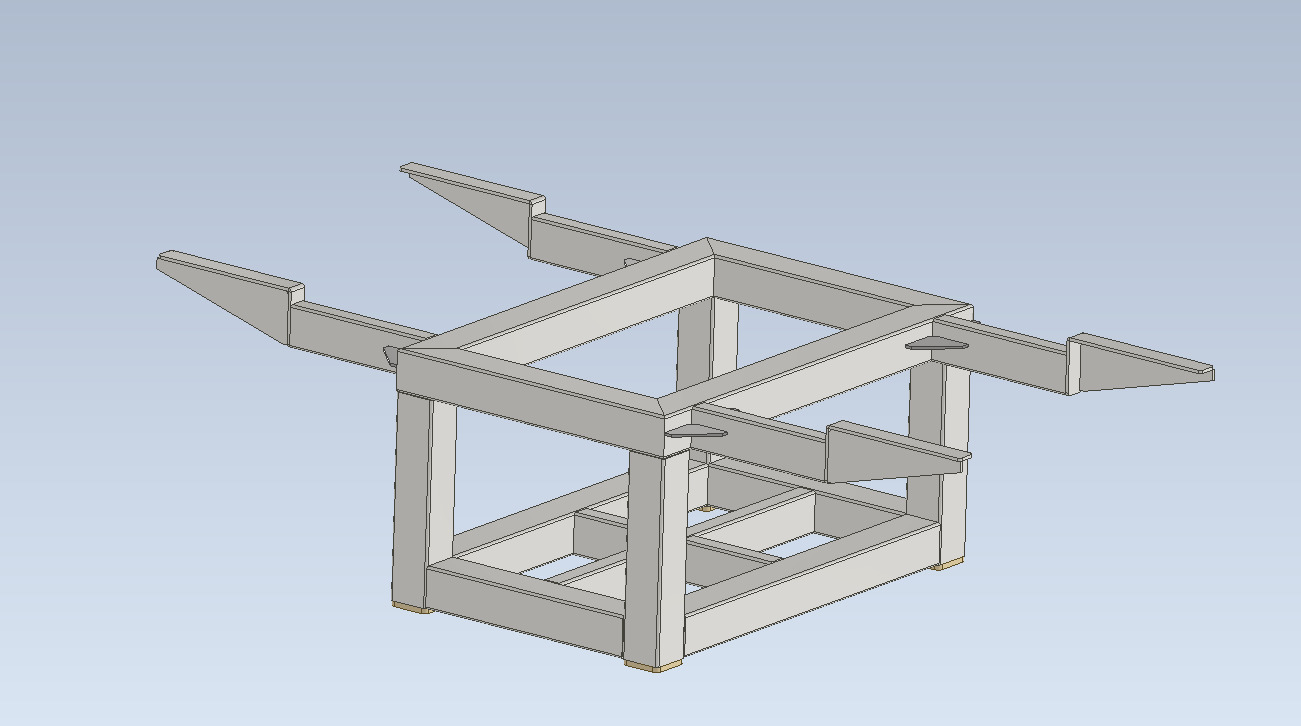

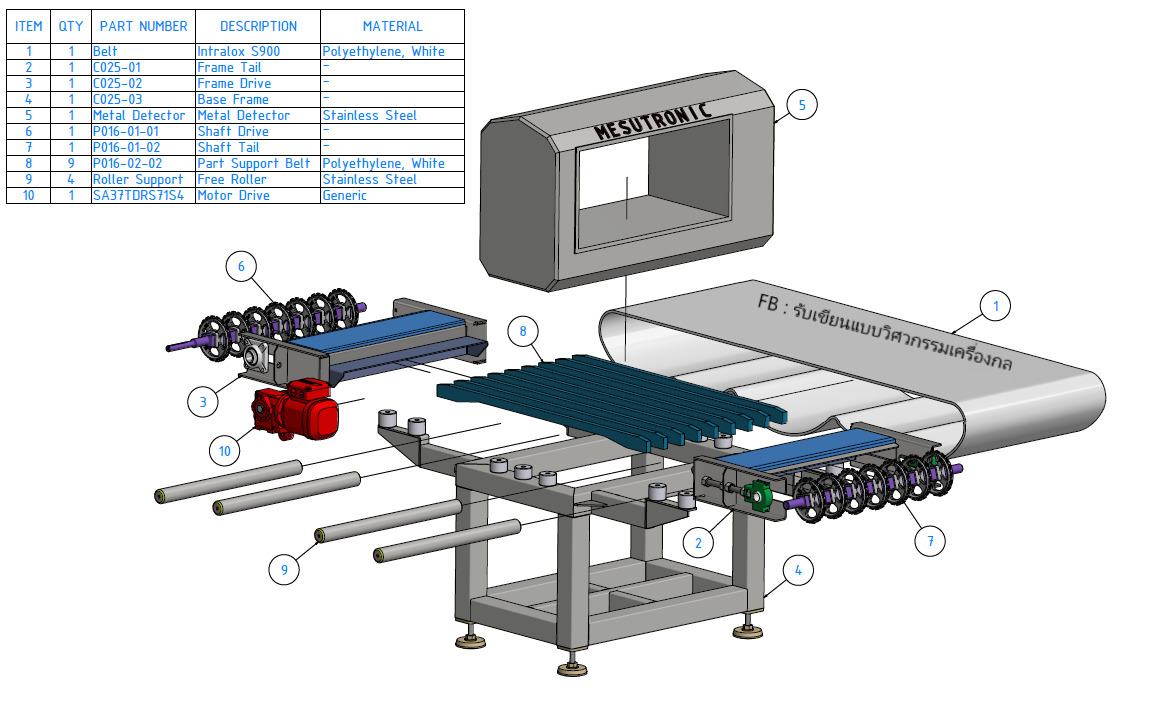

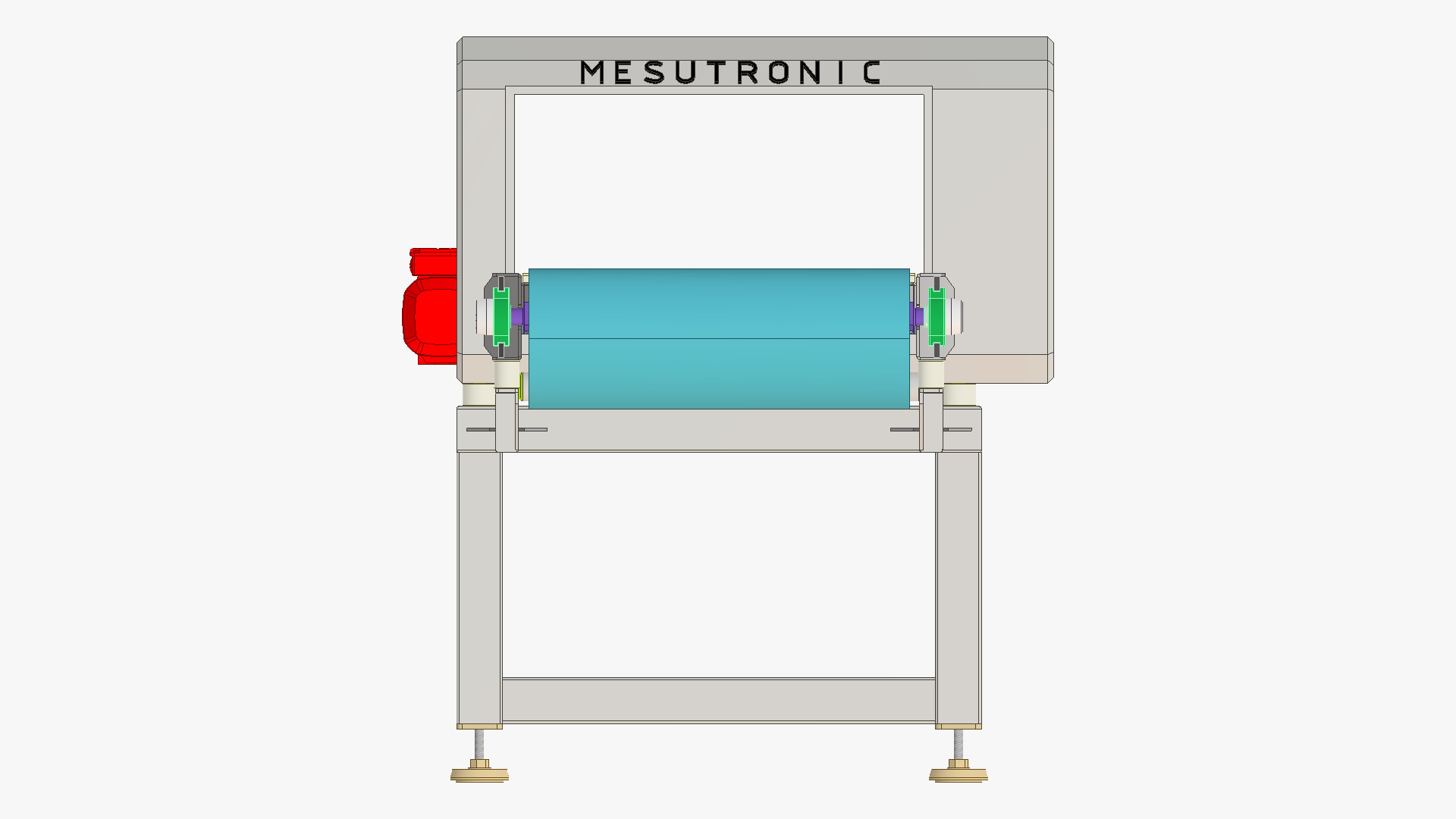

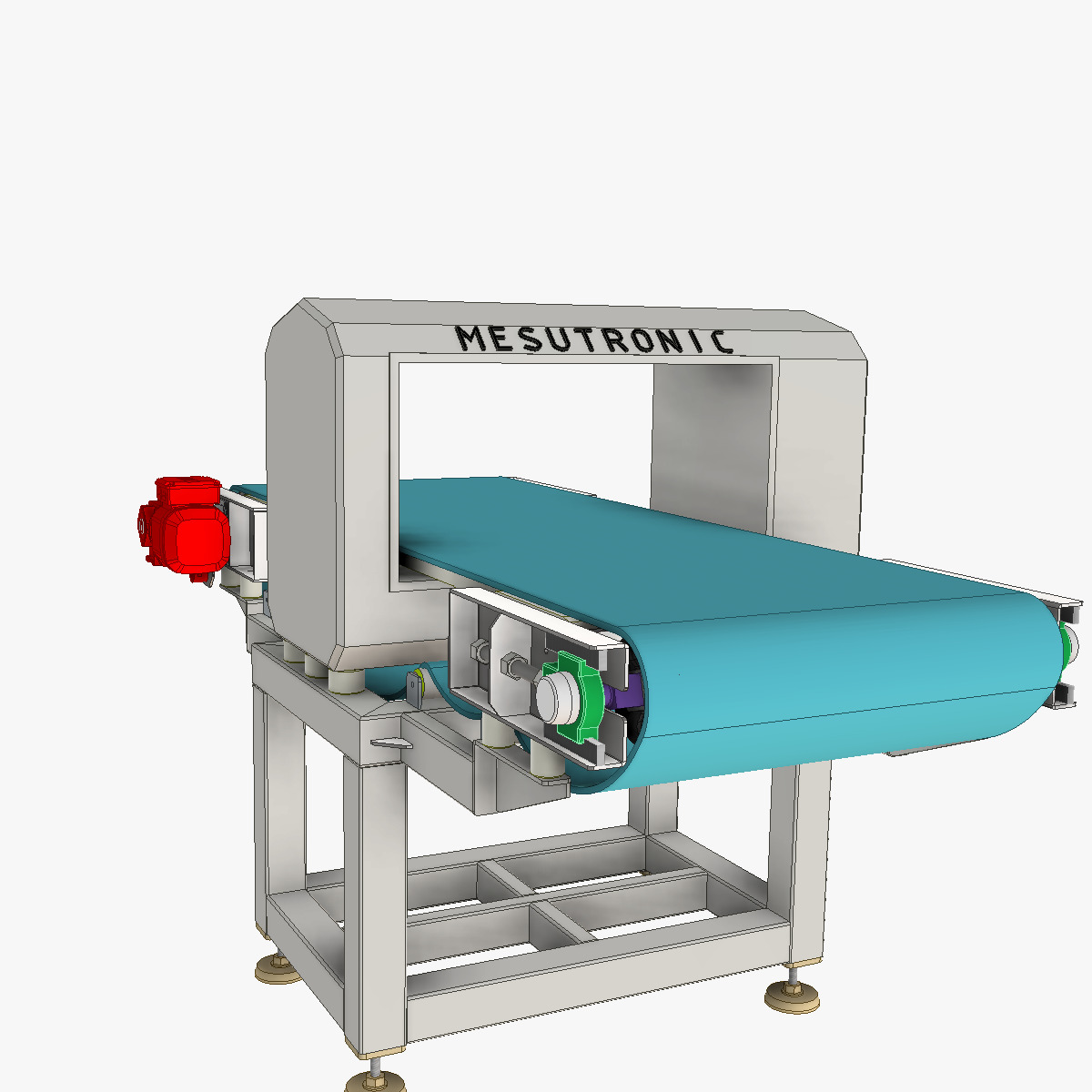

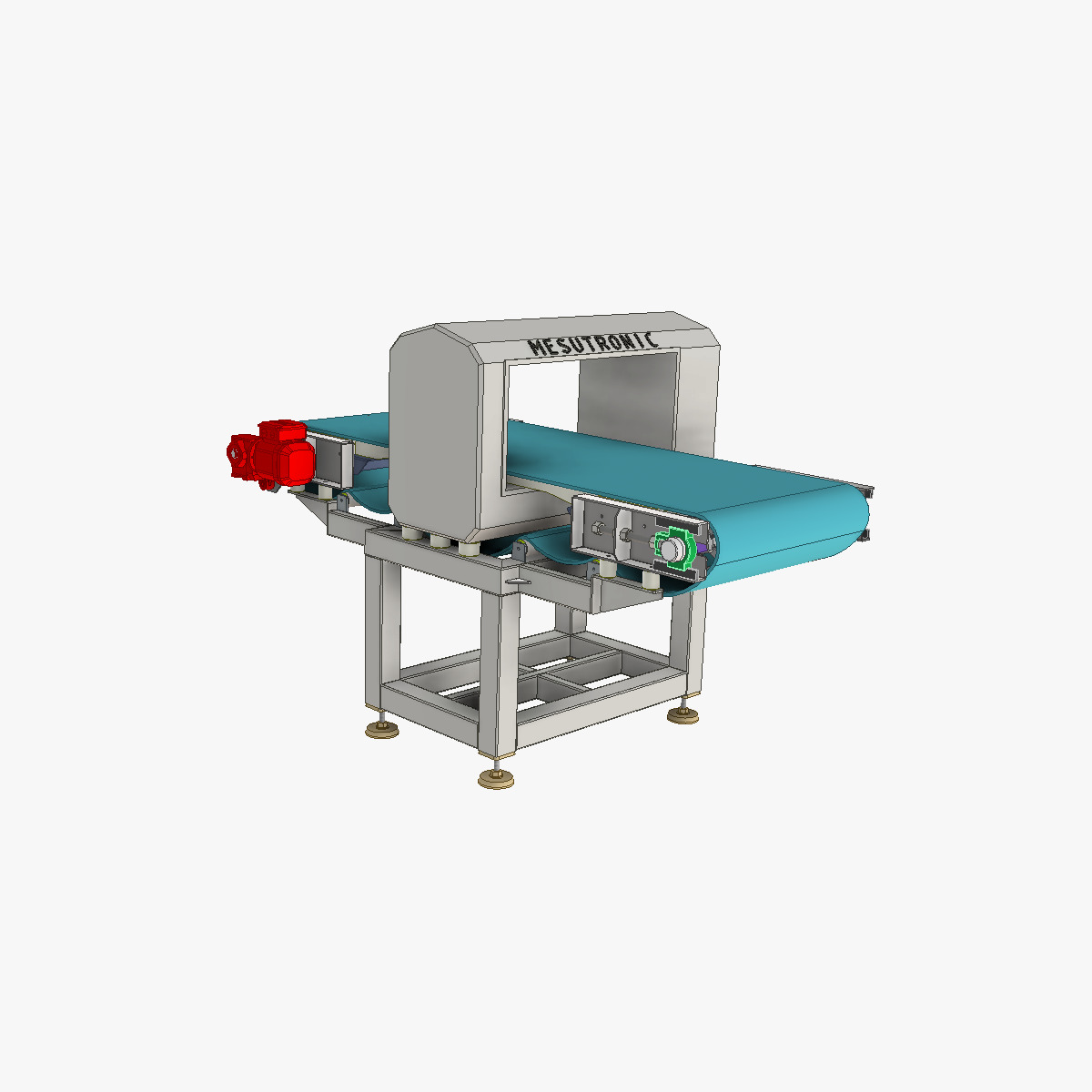

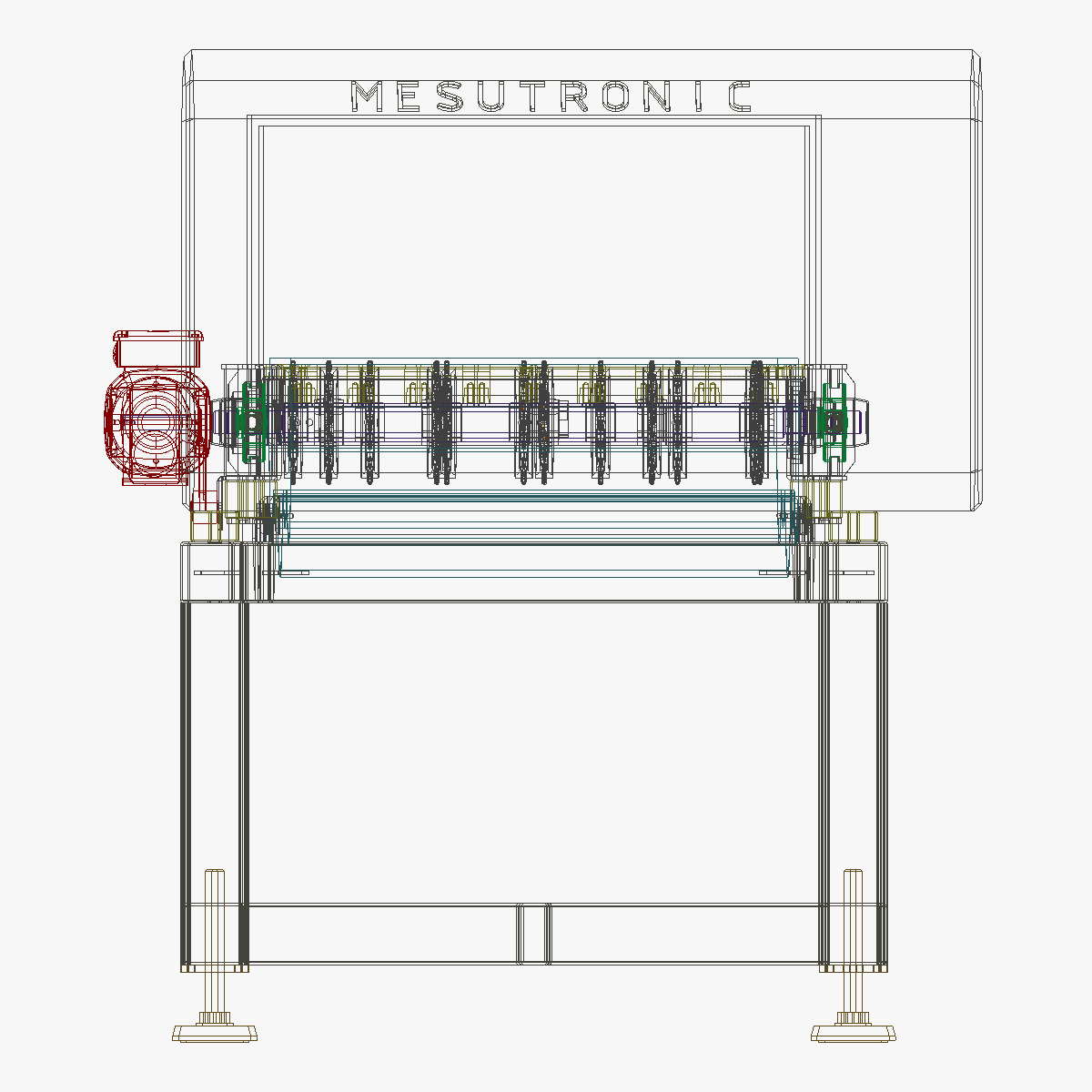

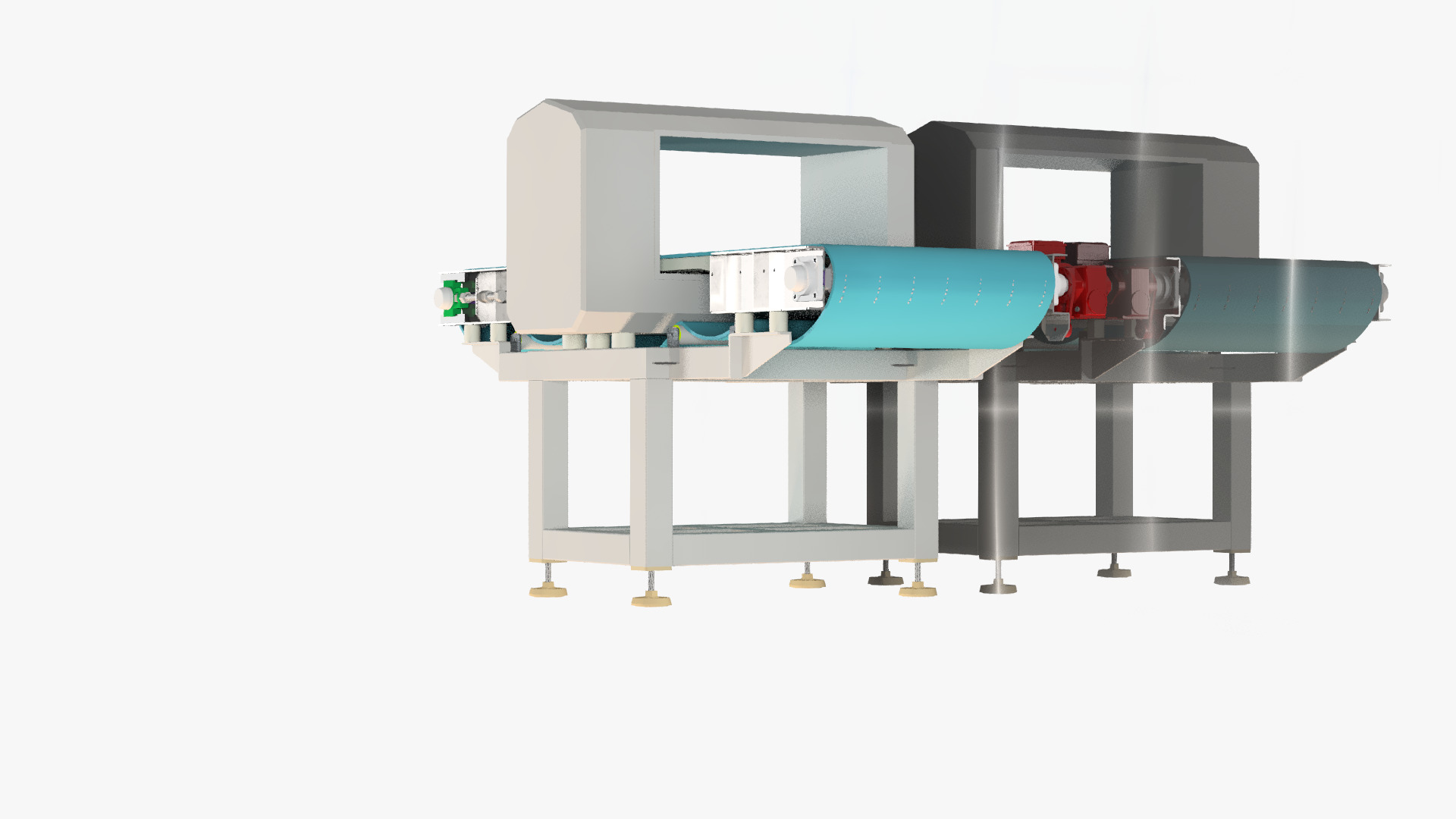

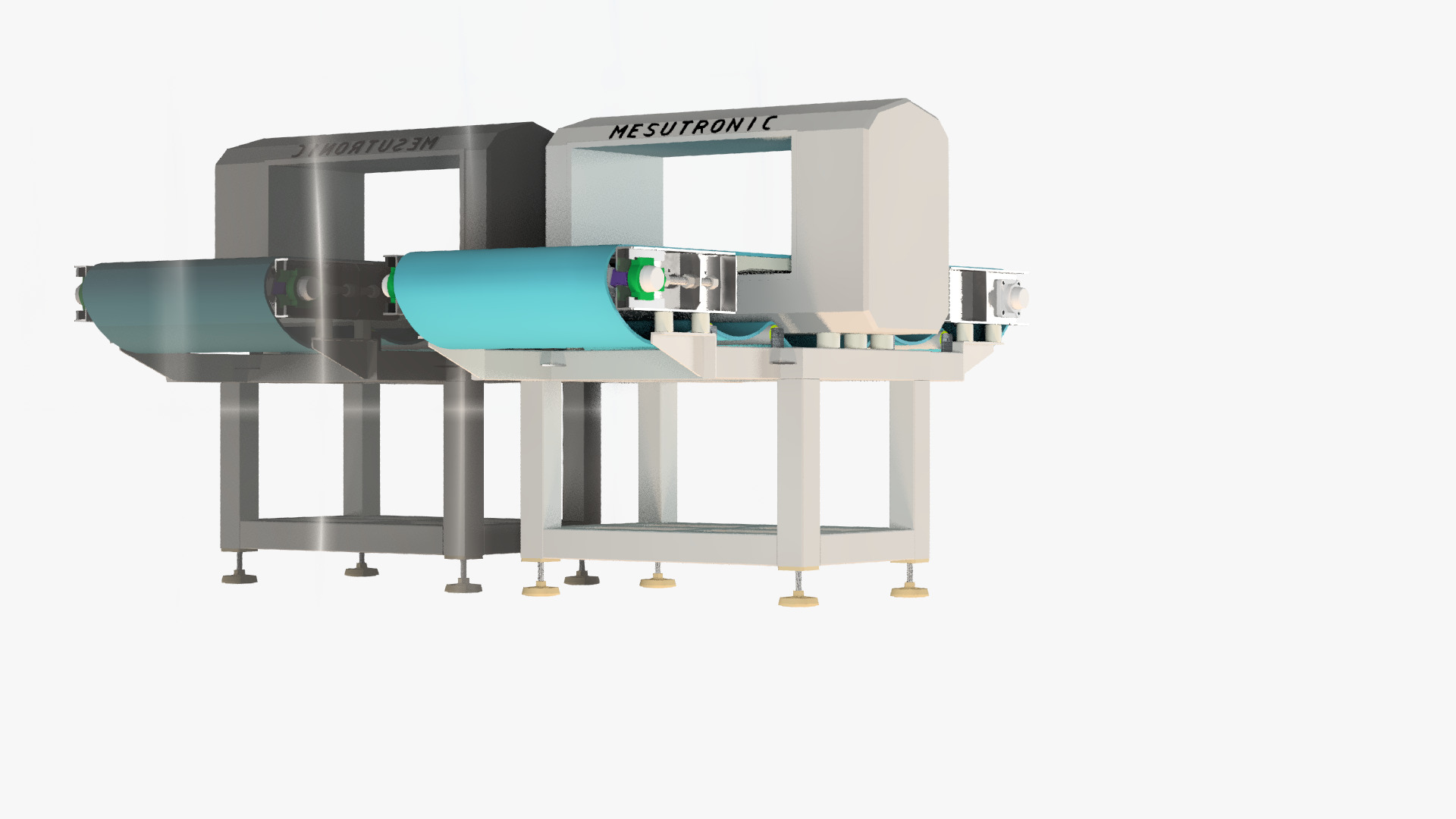

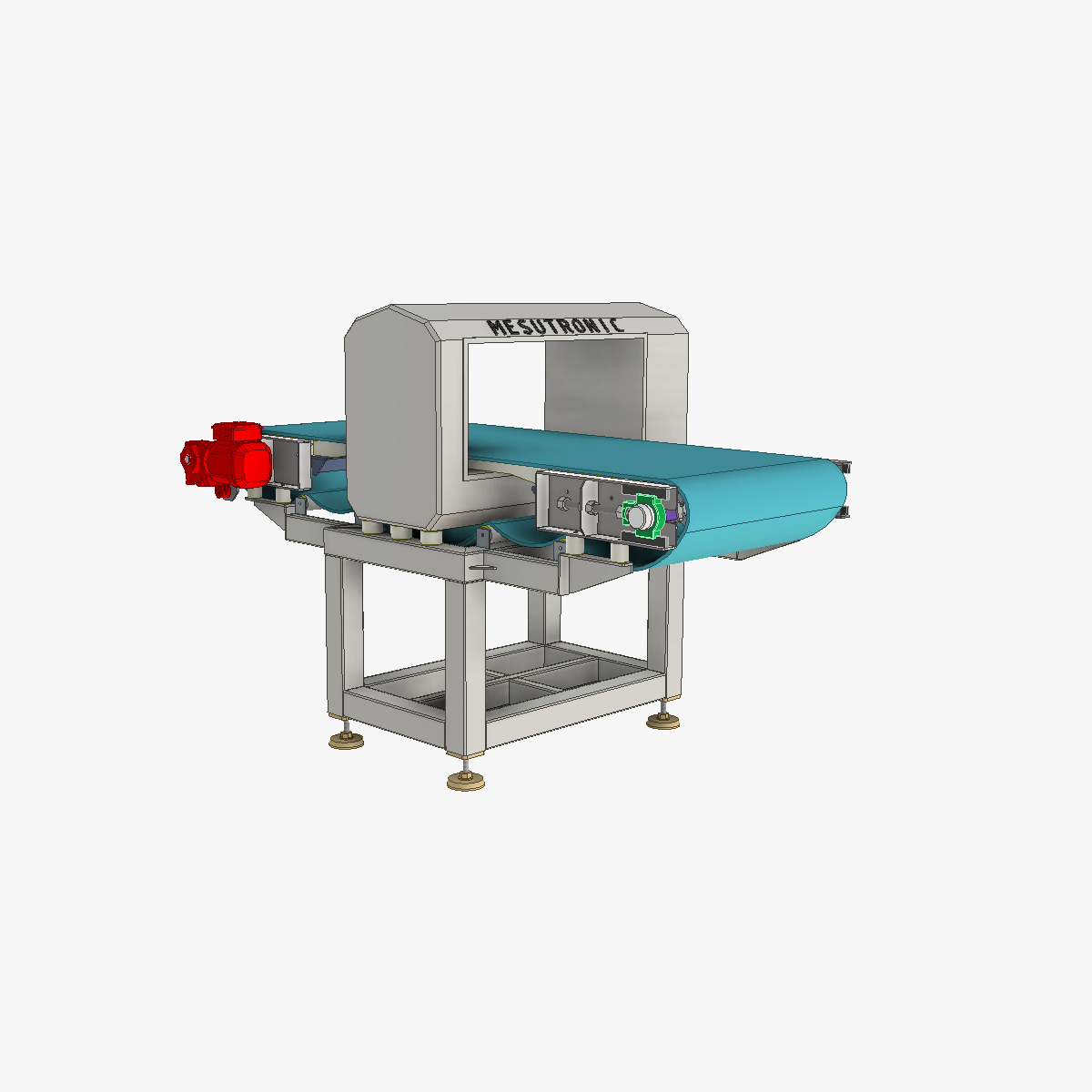

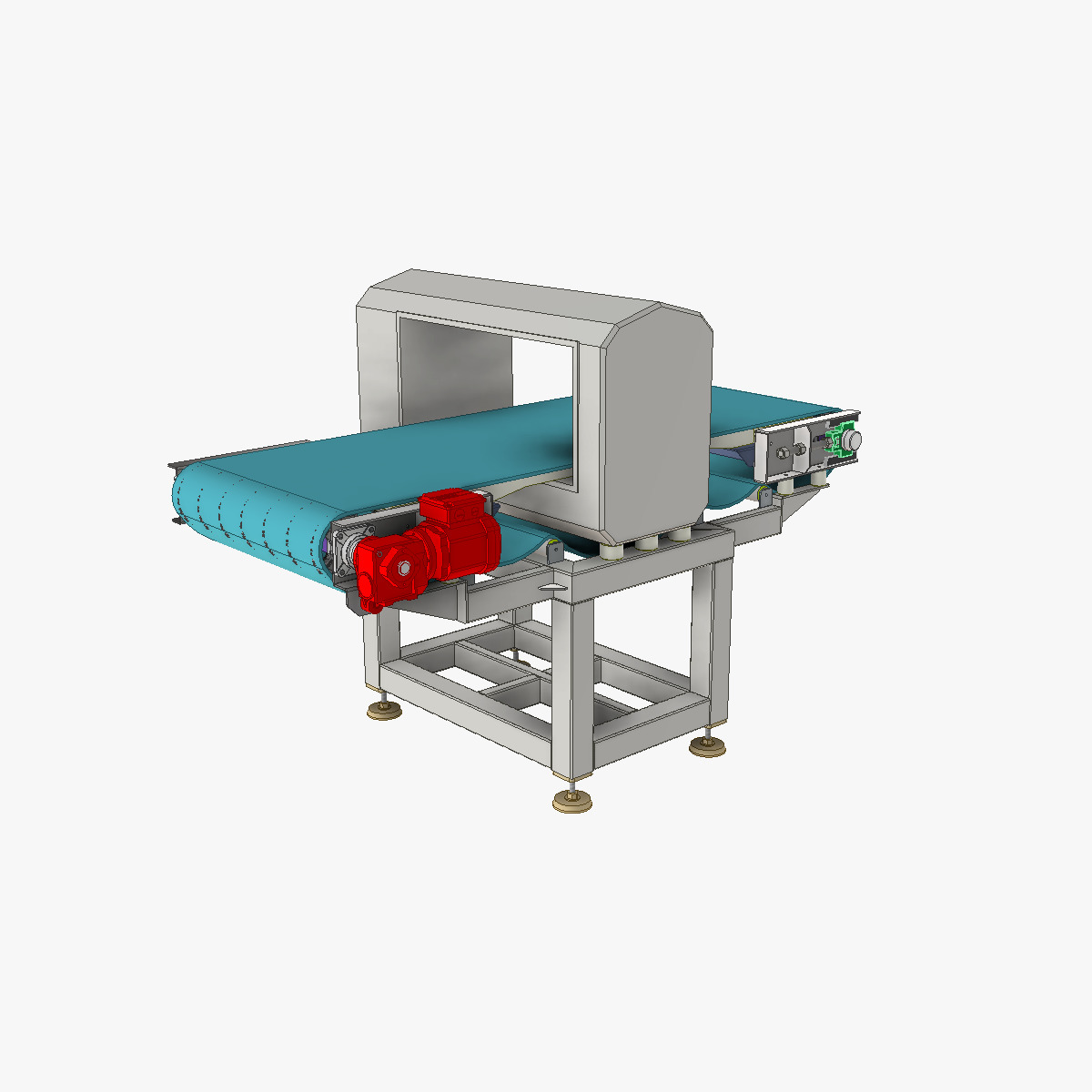

Conveyor Modular belt 02 & Metal detector(We use the program inventor 2021 to do)

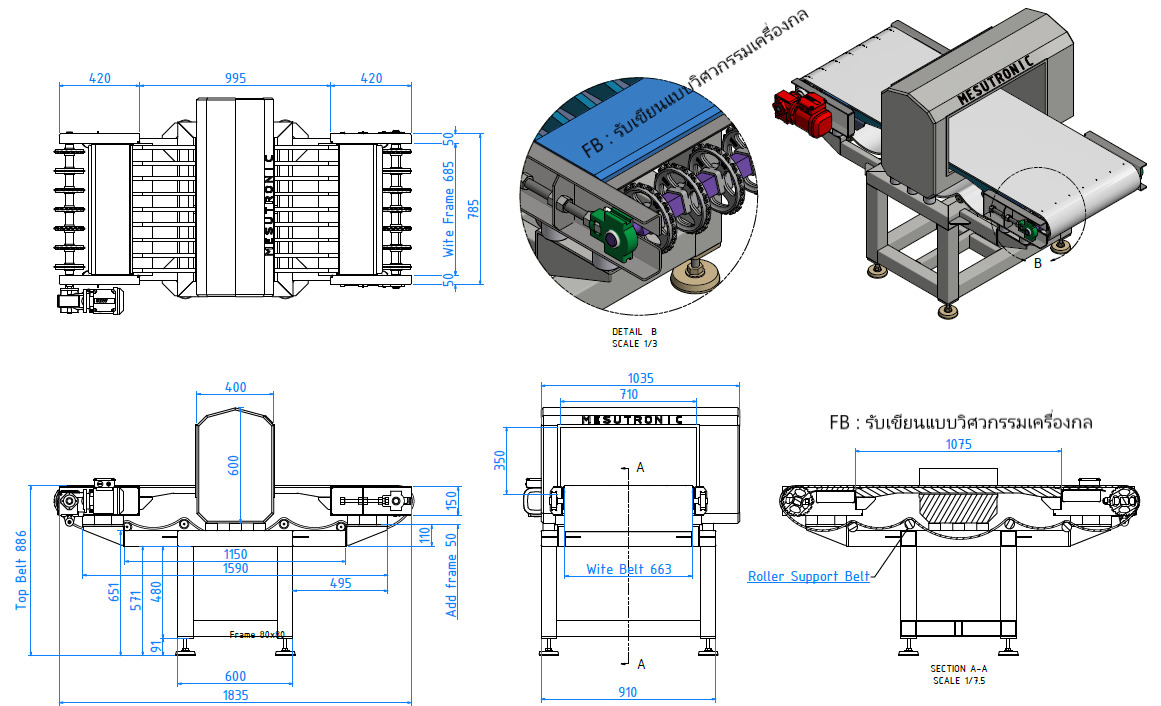

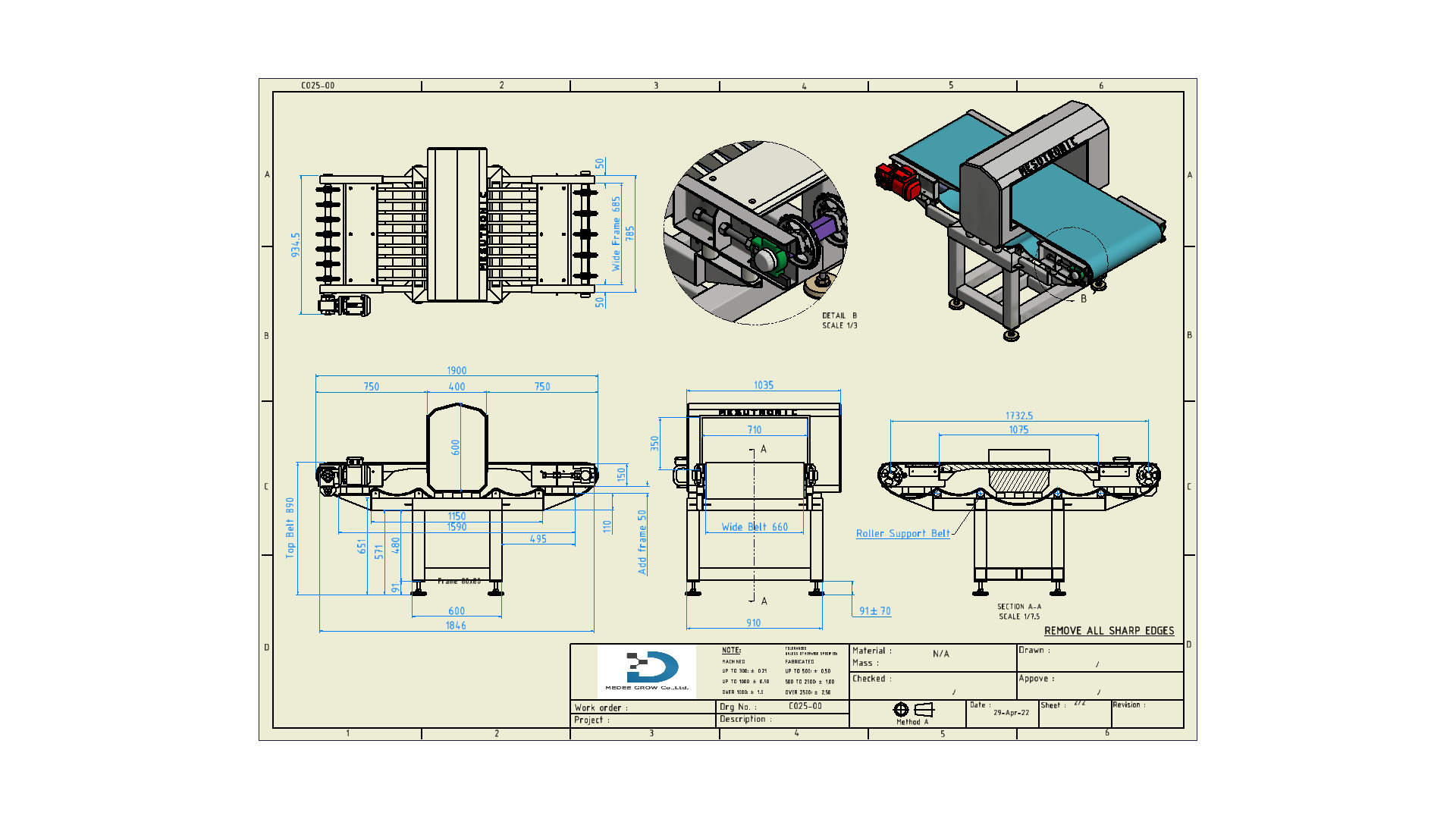

File formats: (Full Drawing Process Engineering)

  • Inventor ( iam = Assembly file)
  • Inventor ( idw = Drawing file)
  • Inventor ( ipt = Part file)
  • Inventor ( ipn = UV file)-Solid model 3D (STEP file)-Ohther file X_T , IGS , STP , STL , CATProduct , OBJ-PDF file for review drawing (PDF)

Concept Design

  • Design Material Food Grade SUS304 & Plastic PE
  • Motor drive Spcorket S900_18t_155mmpd_40mm_sq_ezclean
  • Motor SEW SA37TDRS71S4
  • Speed conveyor = 60 rpm = 10 m/min
  • Motor drive Spcorket 1:1
  • Foot Plate Part Stud Adjust +-70 for top belt conveyor
  • Dimension W660 x L1900 x H890 mm.

If you have questions, you can ask.Thanks for interesting
