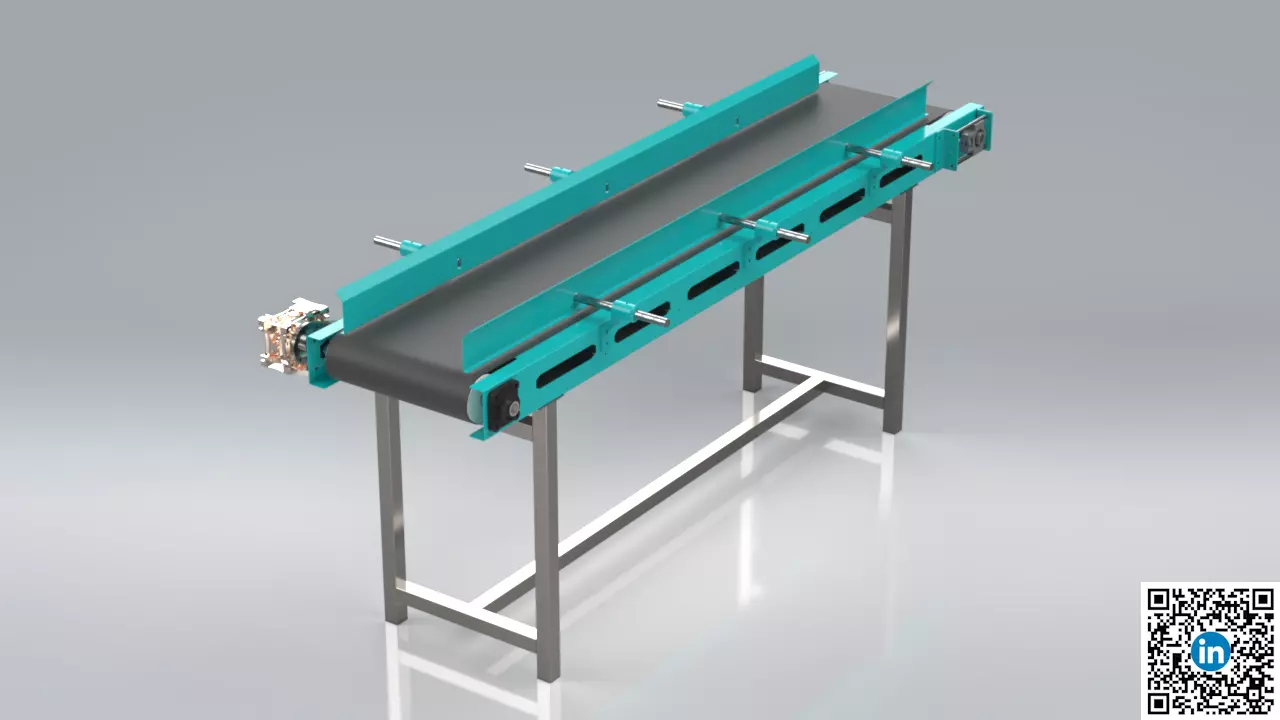

High-Quality SOLIDWORKS 2025 Model: Horizontal PVC Conveyor Belt Ready-to-Manufacture

This comprehensive 3D model, developed in SOLIDWORKS 2025, represents a fully engineered horizontal PVC conveyor belt system, designed for real-world manufacturing. The package includes a complete set of production-ready files: DXF files optimized for laser cutting, plus detailed general arrangement and assembly drawings in both PDF and SLDDRW formats , featuring exploded views for straightforward assembly guidance, some of the technical drawings are aploaded within preview images.

Key Specifications:Conveyor Belt: PVC material with a 400 mm width, 4460 mm length, and 3 mm thickness.Frame Structure: Constructed from aluminum and steel, with overall dimensions of 2270 mm (L) x 1100 mm (W) x 1050 mm (H), providing an effective conveying length of 1940 mm.Mechanical Drive: Features an NMRV050 i20 gearbox compatible with 0.5 HP motors and a 25 mm drive shaft diameter. Equipped with UST205 & USF205 bearings for smooth and reliable operation. Speed is customizable by installing a compatible motor and gearbox with a 25 mm input shaftDesign Features:All parts, including sub-numbered welded components, are logically named and organized within the FeatureManager Design Tree for easy modification and understanding. The model is supplied as a final design ready for manufacuturingIdeal Application:This model is perfect for a wide range of material handling and packaging applications across various industries, provided the conveyed materials operate within the PVC belt's temperature tolerance limits.Intended Use:Primarily engineered for direct physical manufacturing, this package provides all the necessary files to build a functional conveyor. Its high detail also makes it suitable for industrial visualization and design reviews.
