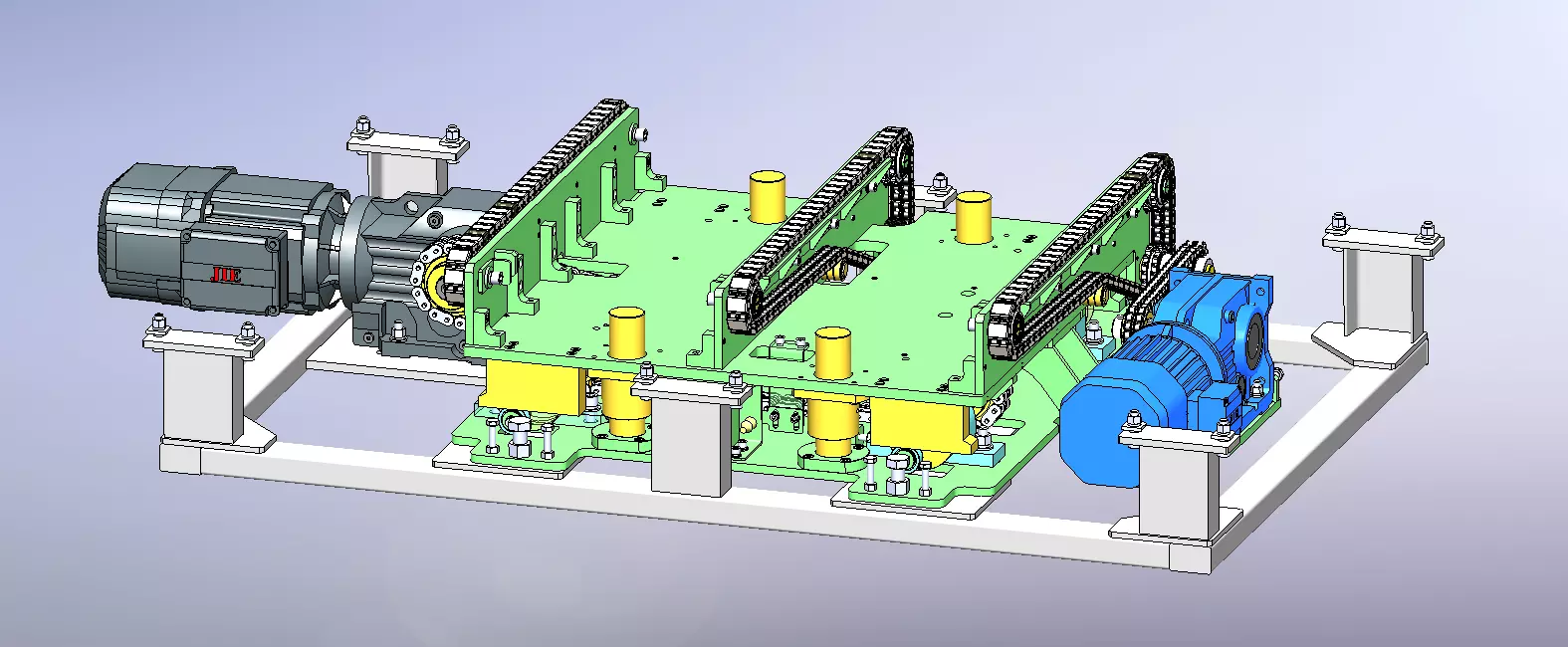

This 3D model is based on a real heavy-duty industrial lift-and-transfer conveyor that has been used in actual production and has operated reliably and consistently for many years.

The equipment is designed for lifting and cross-transferring tooling pallets, workpiece carriers, fixtures, and heavy loads on roller conveyor production lines. It changes the conveying direction of the workpiece by combining vertical lifting and horizontal chain-driven transfer functions within one compact mechanical structure.

The lifting motion is driven by a large motor through an eccentric mechanism, while the horizontal transfer motion is driven by a smaller motor through a chain transmission system.

This model is suitable for conveyor system design, automated production line design, factory equipment layout, mechanical engineering reference, material handling system development, industrial visualization, and digital factory applications.

Technical SpecificationsTransfer frame size: 1580 × 970 mmOverall dimensions: 1815 × 970 mmOverall height: 317–377 mmVertical lifting travel: 60 mmRated load capacity: 2,000 kgHorizontal transfer speed: 7 m/minLifting speed: 30 mm/sCompatible tooling pallet size: 1200 × 800 mmApplication: Industrial production lines, roller conveyor systems, automated material handling systemsKey FeaturesBased on production-proven industrial equipmentUsed reliably in a real manufacturing environment for many years2,000 kg heavy-duty load capacityIntegrated vertical lifting and horizontal transfer functionsDesigned for roller conveyor production linesSuitable for tooling pallets, fixtures and workpiece carriersChain-driven horizontal transfer mechanismCompact and practical mechanical structureSuitable for medium- and heavy-duty industrial applicationsUseful as a reference for real-world mechanical and automation equipment design
