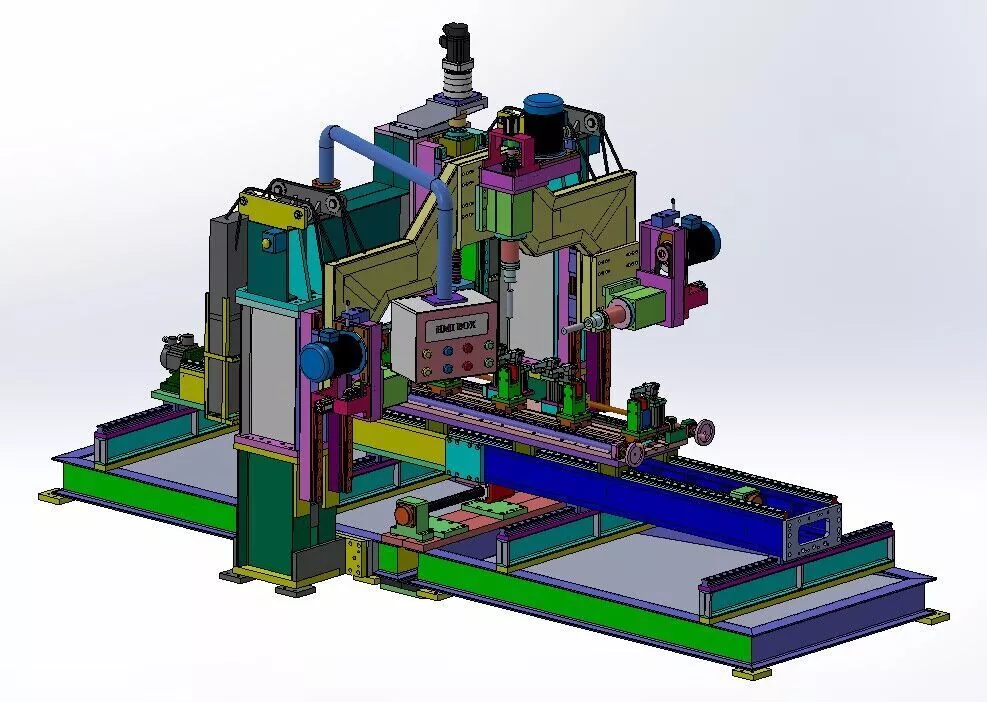

Professional Three Axis CNC Drilling Machine 3D CAD Model designed for automatic drilling, tapping, and precision machining operations. This industrial CNC drilling system features a rigid gantry structure, multi-axis servo control, programmable drilling positions, and automated workpiece handling for high-volume manufacturing environments.The machine incorporates X, Y, and Z-axis motion control, precision linear guideways, ball screw transmission, servo-driven positioning, automatic drilling cycles, and PLC/HMI-based operation. Suitable for drilling multiple holes with high accuracy and repeatability in metal fabrication, machinery manufacturing, automotive components, structural steel, and industrial production lines.This complete engineering model is valuable for machine designers, automation engineers, CNC equipment manufacturers, and industrial machinery developers.

Key Features• Three-axis CNC drilling system • Automatic drilling cycle • Servo motor motion control • High-precision positioning • Gantry-type machine structure • PLC and HMI operation • Multi-hole machining capability • Rigid industrial frame • Linear guide rail system • Ball screw transmission • Programmable drilling parameters • Continuous production operation
