DESCRIPTION

FFC mobile phone flexible cable automatic peeling, hot pressing, cutting, cutting and testing production lineIncludes the following componentsPeeling hot press----Peeling the hot-pressed substrate assembly----Transfer components----Reinforcement plate assembly (movement)----Reinforcement plate assembly (fixed)---- Stripping components----Reinforcement plate feeding rack----Small operation panel components----Hot press cleaning mechanism (movement)----Hot Press Mold----Heat pressure protection coverBlanking inspection machine----Blanking electrical inspection frame----Blanking and testing substrate components----Blanking components (fixed)----Blanking components (movement)----Dimension check assembly (fixed)----Dimension check component (movement)----Electrical inspection components (fixed)----Electrical inspection components (movement)----Pulling component (fixed)----Pulling component (movement)----Small operation panel components----Blanking protective coverIntermediate handling components----Intermediate handling of substrate components----Intermediate handling and fixed jaws----Moving gripper for middle handling (rear)----Moving gripper for middle handling (front)----Long Pini Guide ComponentsCutting machine----Frame----Laser guide assembly----Cutter----Feeding----Supporting roller----Operation Panel----Laser protective cover----Cutting machine safety coverHandling machineSplicerUnwinding rack

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.
BEST PRICE GUARANTEED
Found this model cheaper on another marketplace? Let our support team know - we’ll match it.

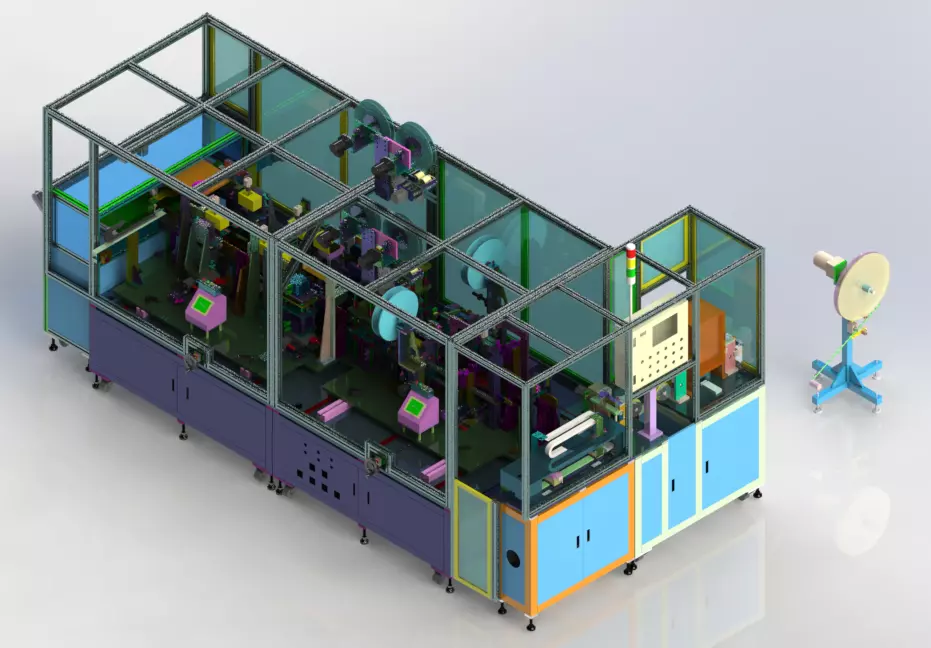

FFC mobile phone flexible flat line production line 3D model

Royalty Free License
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
File formats
DWG
AutoCAD<br />Version: 2004<br />File Size: 34.3 MB
DXF
DXF<br />File Size: 137 MB
FBX
Autodesk FBX<br />Version: 201<br />File Size: 56.2 MB
IGE
IGES<br />File Size: 401 MB
STP
STEP<br />File Size: 190 MB
MAX
Autodesk 3ds Max<br />Version: 2018<br />File Size: 52.1 MB
SLDPRT
SolidWorks<br />Version: 2016<br />File Size: 232 MB
