Automatic DC motor assembly production line

Automatic DC motor assembly production line 3D model

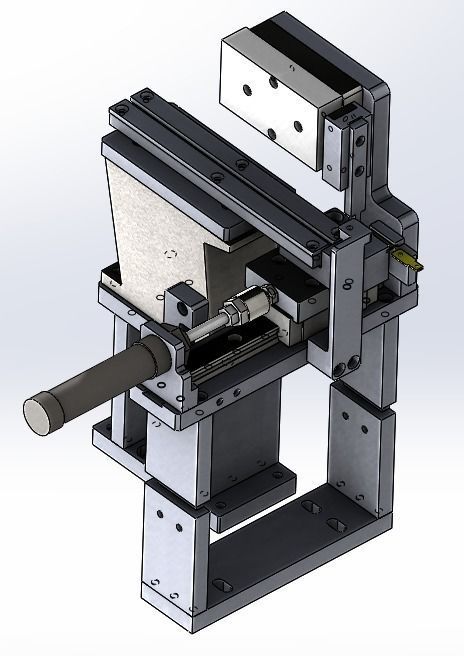

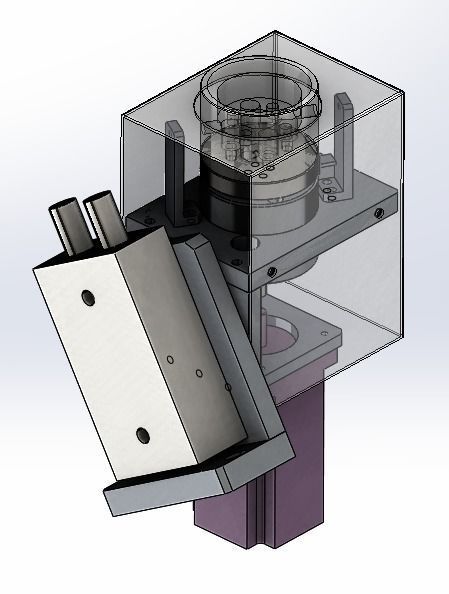

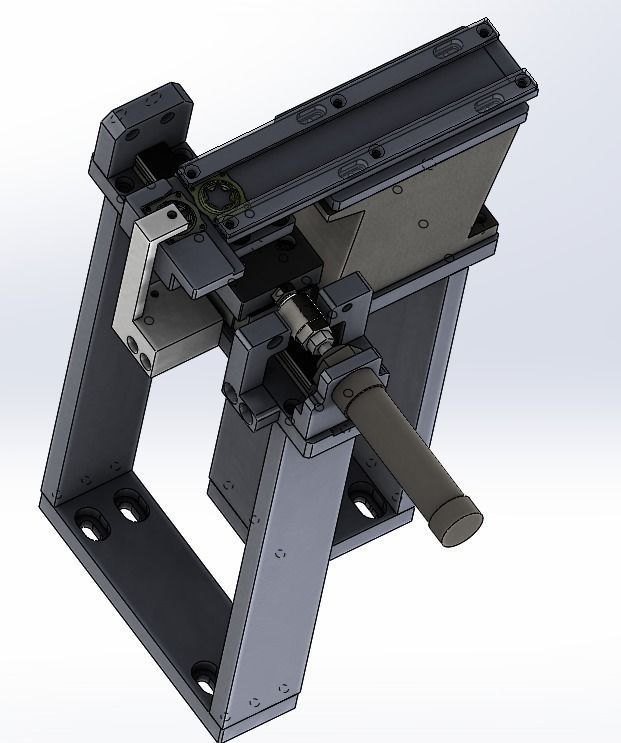

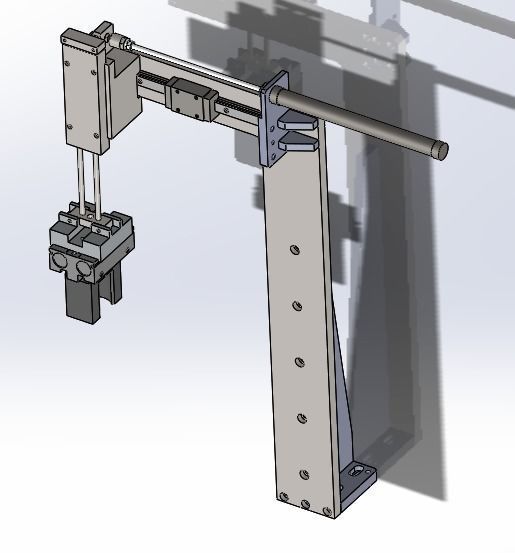

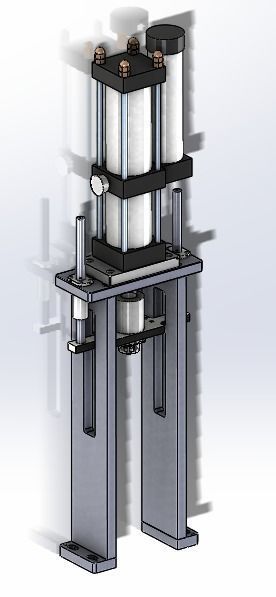

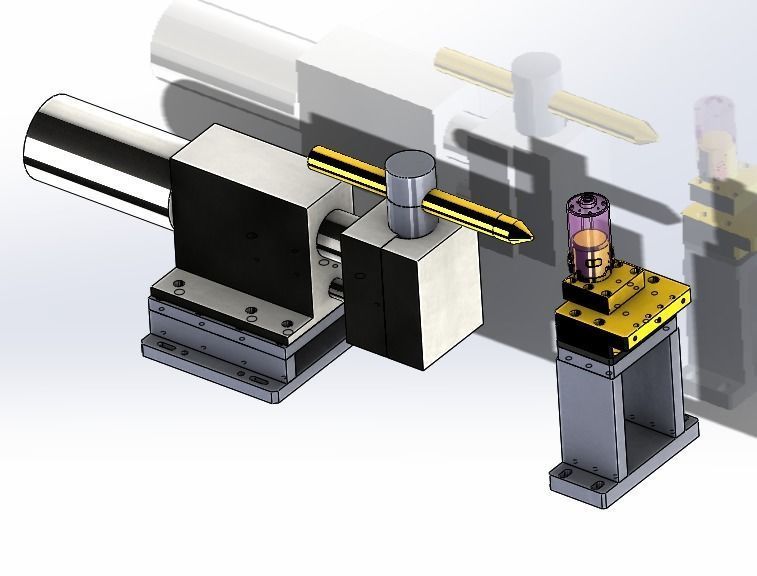

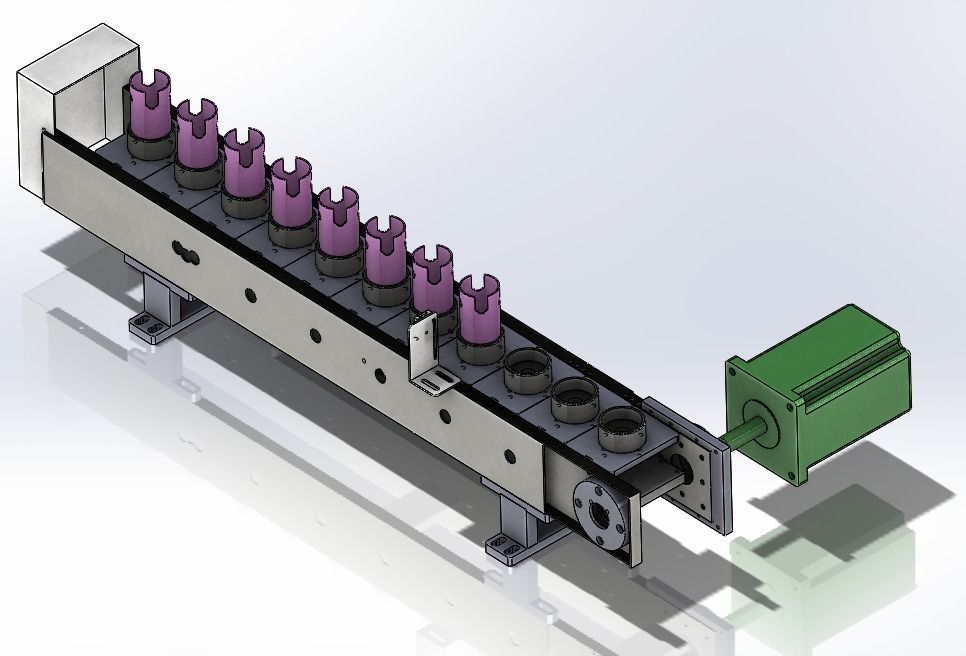

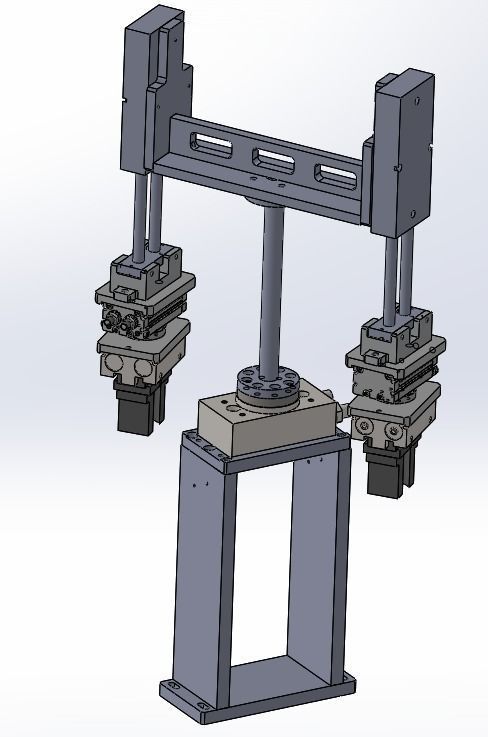

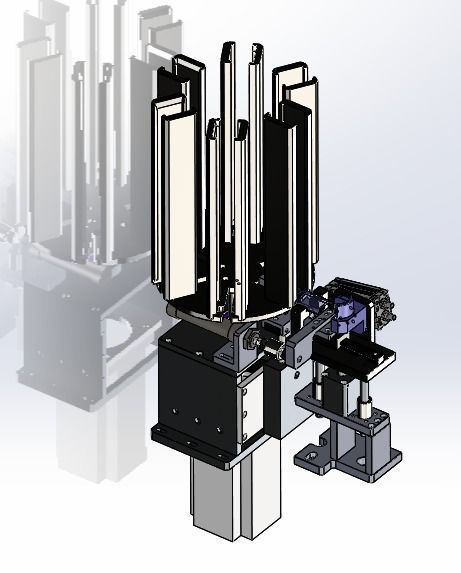

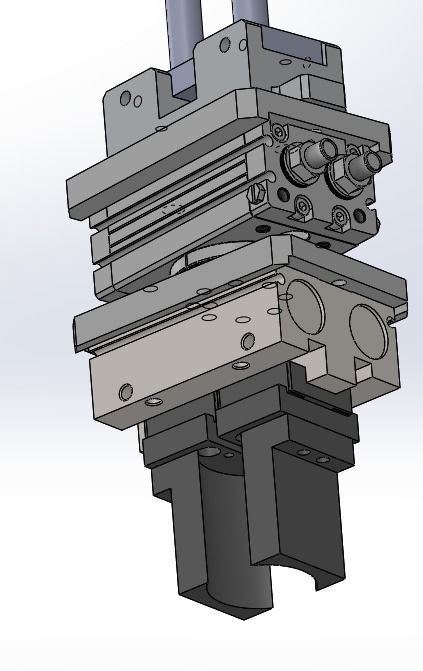

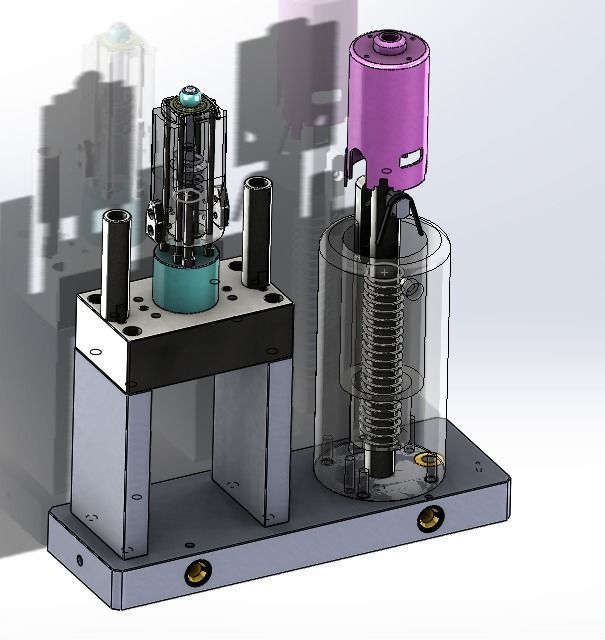

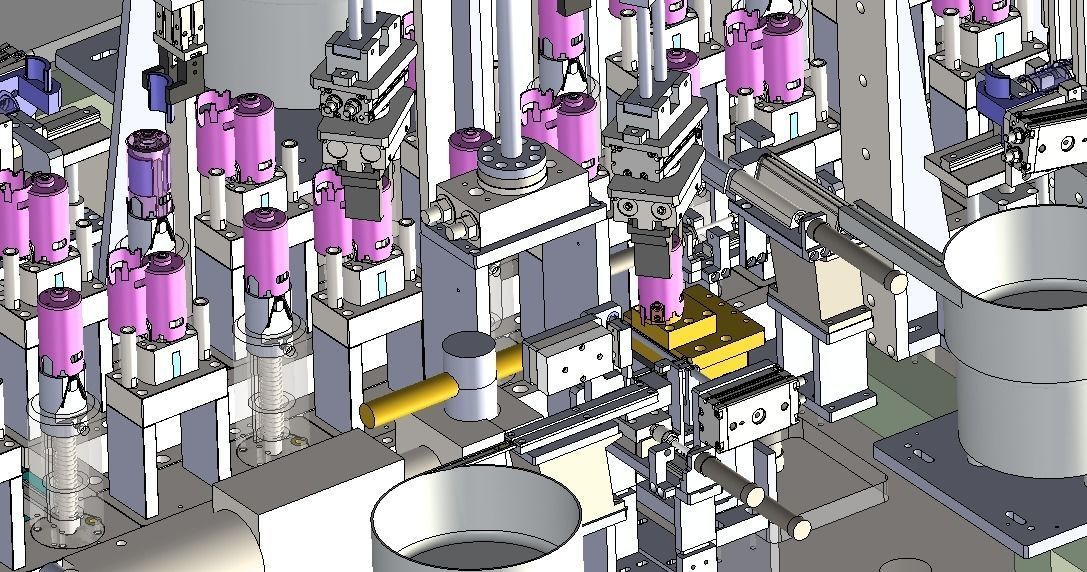

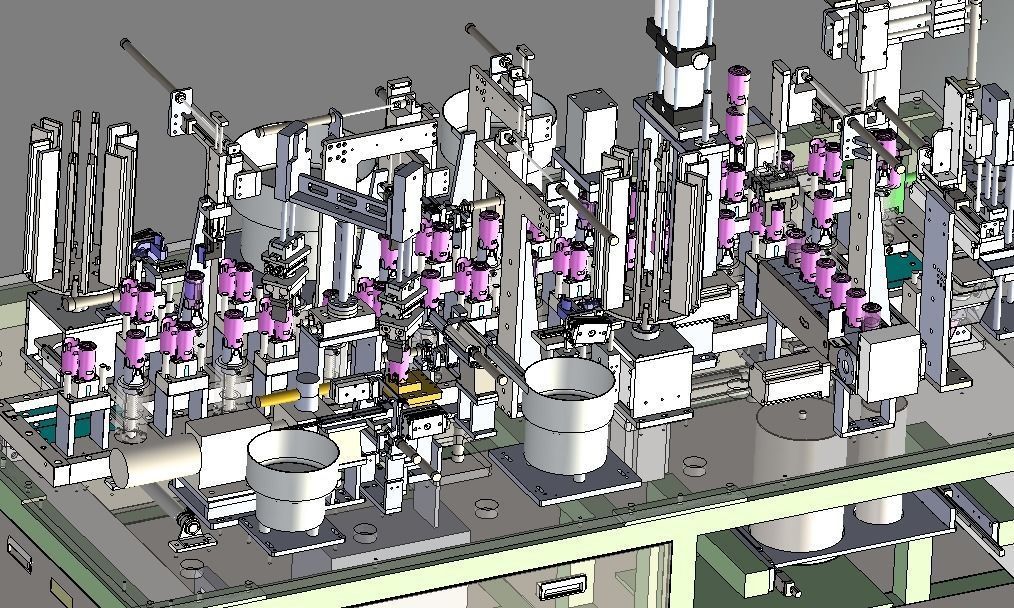

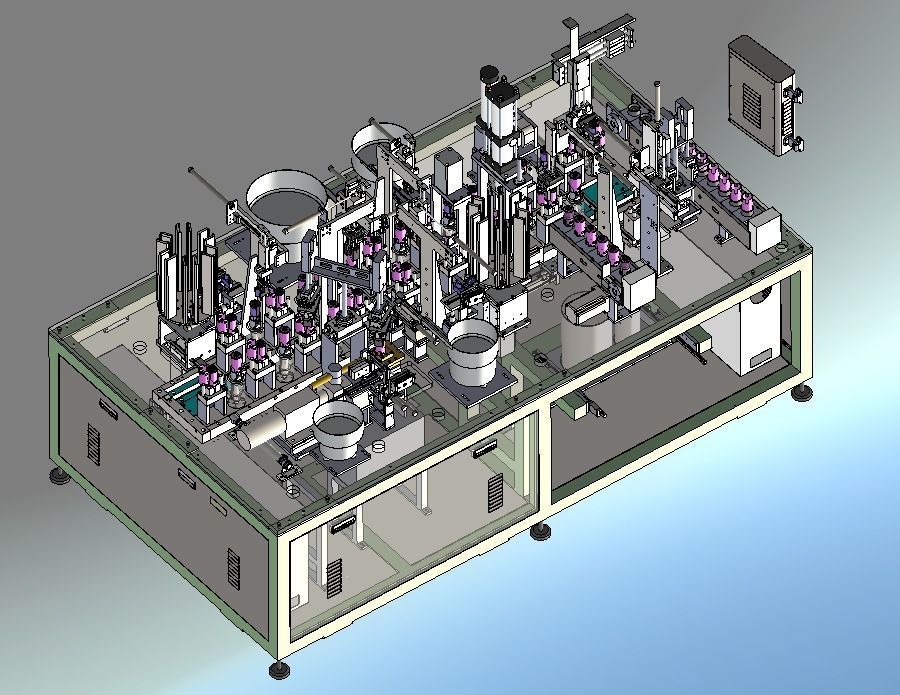

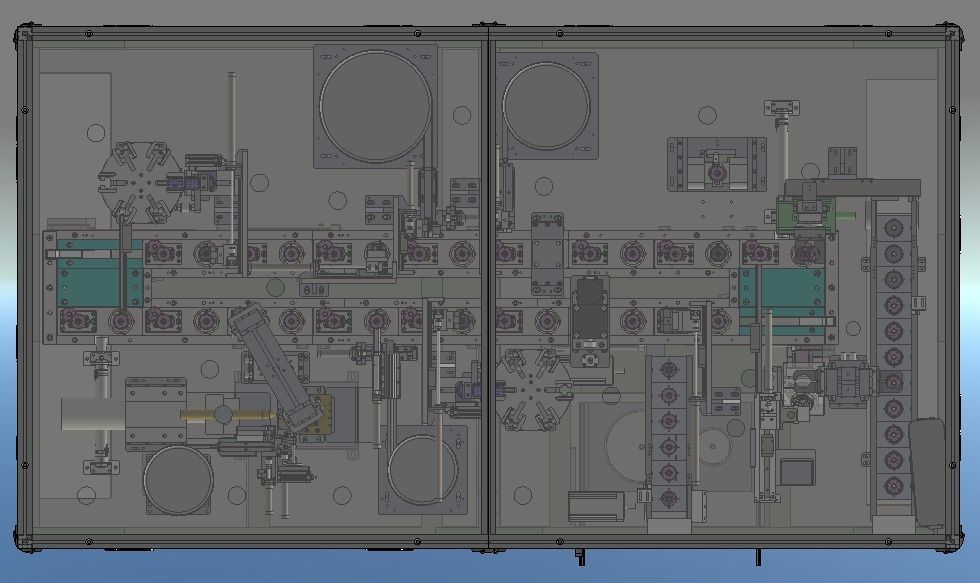

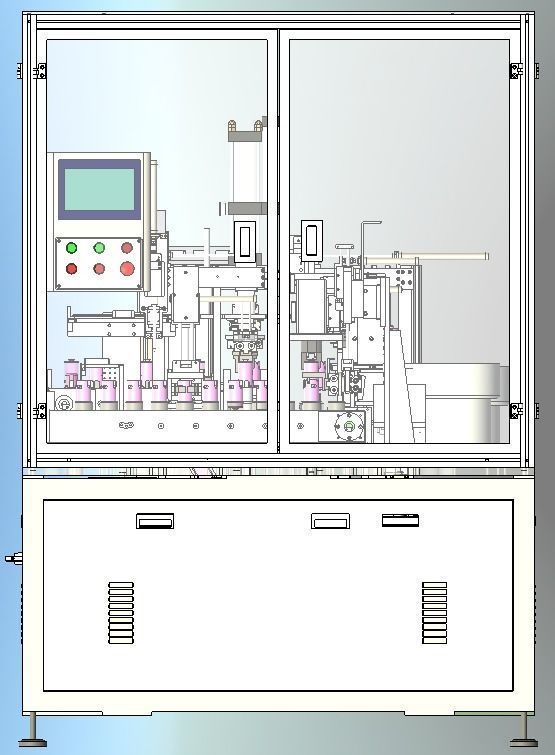

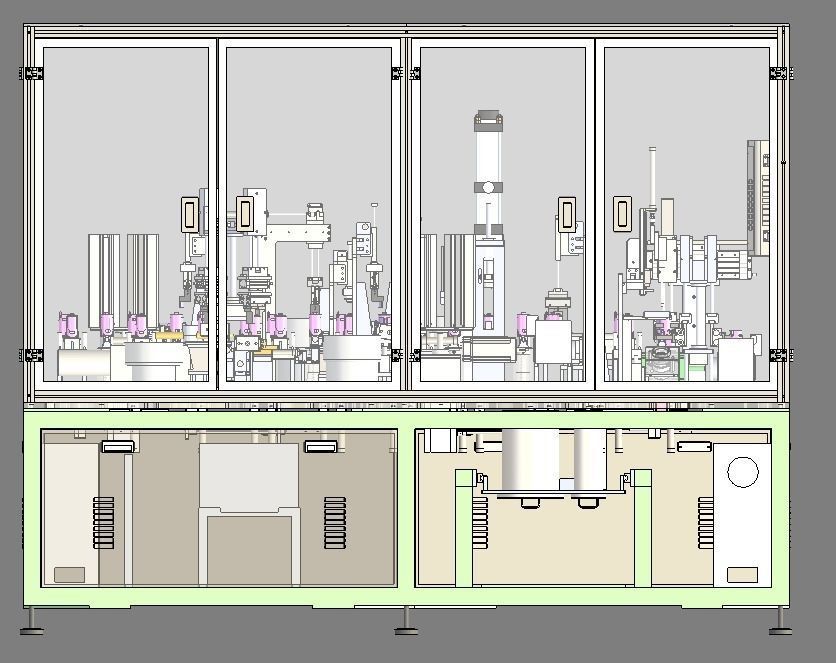

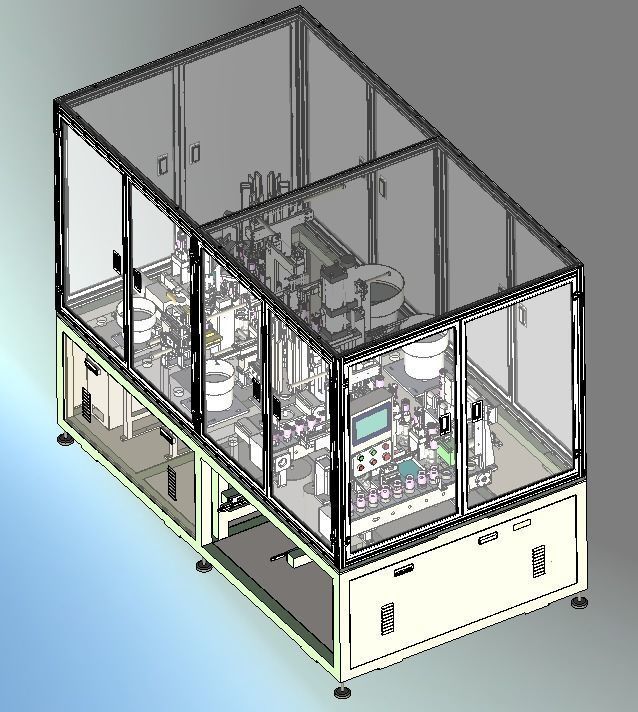

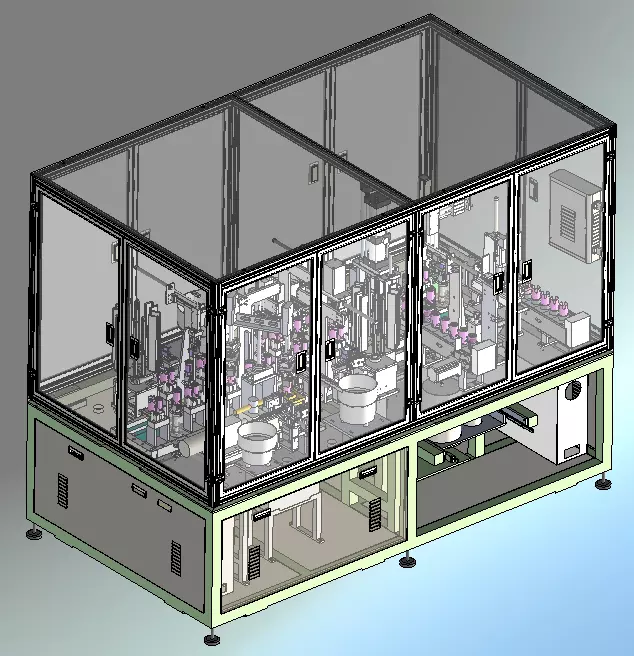

This set of fully automatic DC motor assembly production line drawings is an unmanned automatic line developed for the needle micro motor. The equipment is the back cover and the stator housing as a whole for one person to operate the loading and unloading, the cycle time is ≤ 5 seconds, and the single machine is converted to production Time ≤ 5 minutes; the machine is fully automatic operation, no manual intervention is required under normal circumstances, the loading and unloading manipulators have the functions of loading/unloading respectively, and the equipment can meet the requirements of automatic riveting bearings, inserting magnets, magnetizing, and welding terminals , Glue function, and automatic feeding of casing, bearing, bearing compression spring, magnetic tile, slingshot, terminal, glue (manual arrangement of casing), automatic detection of magnetic flux after magnetization of casing after magnetization, unqualified products Check out, there is a defective product detection deposit institution, continuous defective shutdown alarm function, and the glue adding machine A, B glue mixing and mixing; it is the most complete motor assembly line, welcome friends in need to download or enter Download other non-standard equipment drawings from the homepage, thank you!
