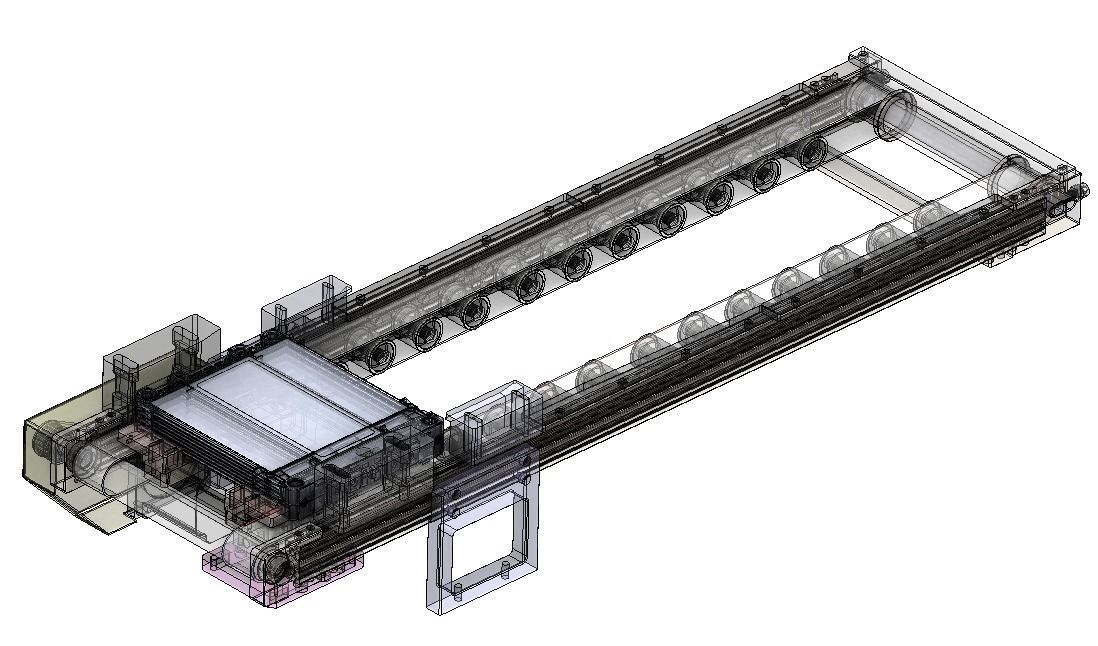

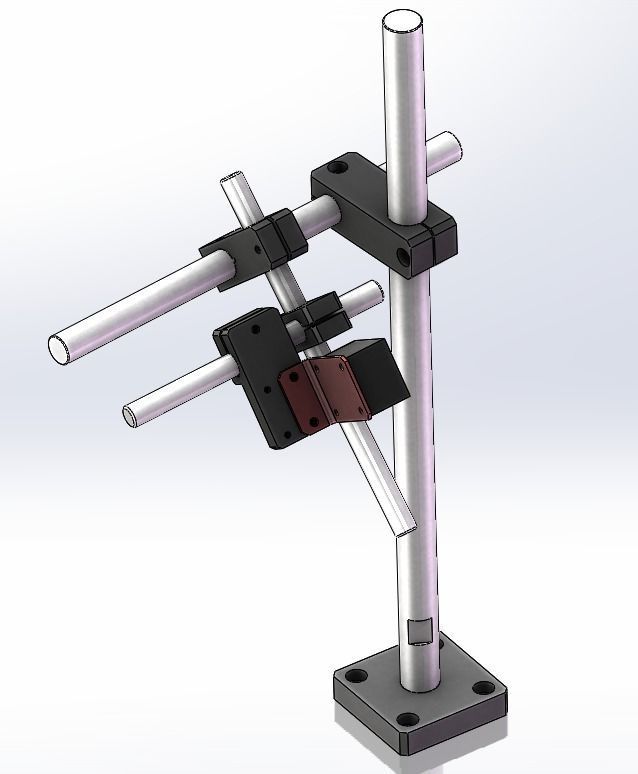

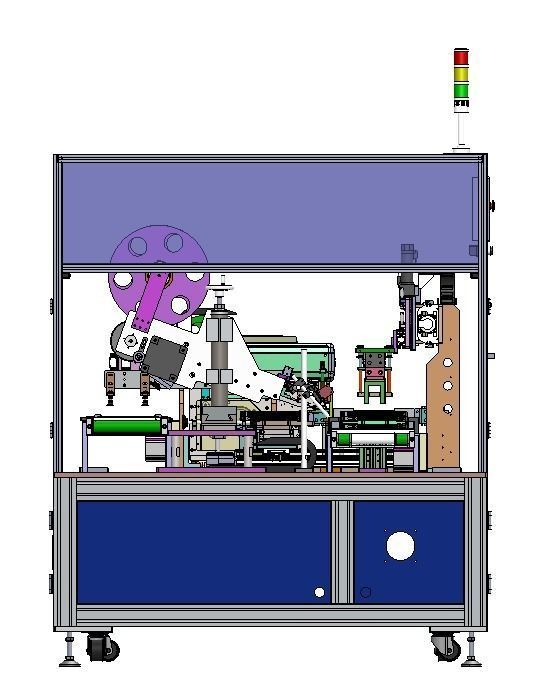

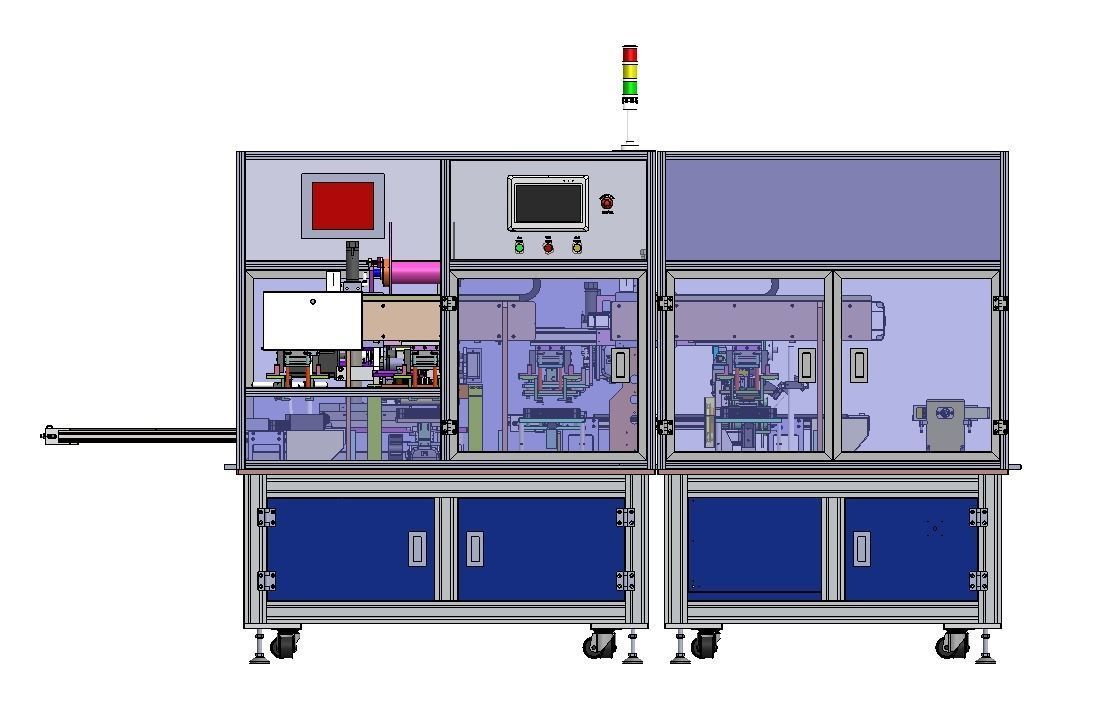

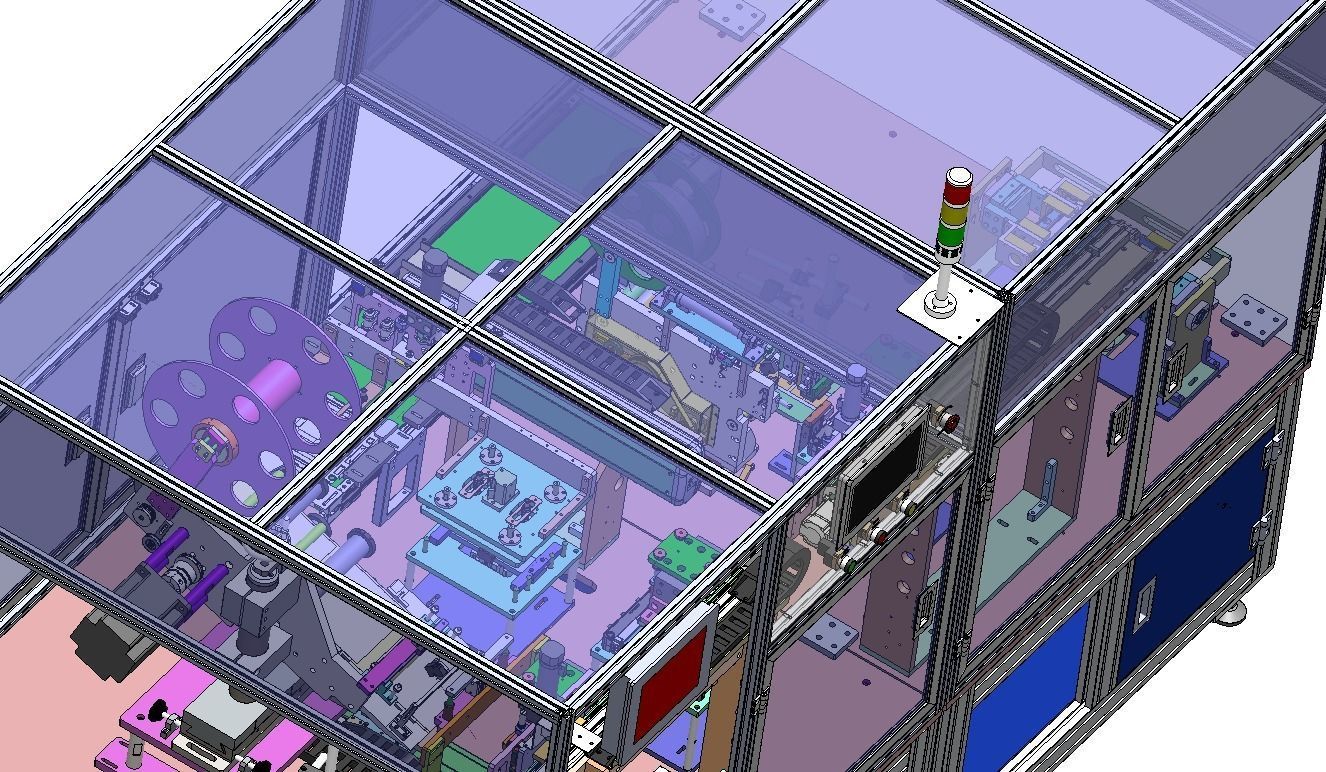

Soft pack lithium battery labeling machine 3D model

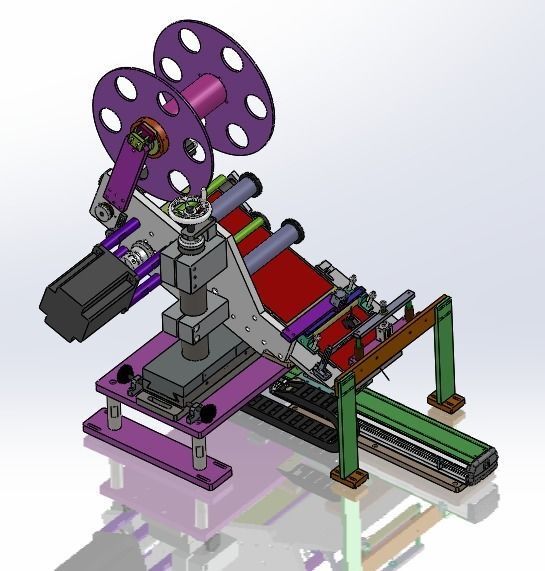

This equipment is an all-in-one equipment for power soft pack battery labeling PET tape dispenser labeling machine. The applicable products are: Lithium battery, polymer battery, all kinds of soft pack power battery film labeling labeling bar code, etc. The equipment is mainly through film labeling. The feeder sticks the film that needs to be attached to the surface of the battery. This set of film feeder can also be used in the packaging industry because it is a set of standard institutions and is very stable. When the battery comes in from the conveyor belt, the battery manipulator grabs the product and puts it on the secondary positioning sliding table of the filming station, and then the sliding table module at the bottom moves the battery to the filming position, and then starts to peel the film and film and slide the table mold The group walks out and rolls and presses it while sticking. This kind of film sticking machine basically does not have bubbles, the effect of sticking is very good, and the speed of sticking the film is fast. The sticking position is a rolling sticking film. Its action and principle are , The product is fixed on the positioning seat and moved to the filming position by the module manipulator, and then the film is first pasted to the battery surface by the filming machine, and then the film is moved out while the roll is applied. It is called a rolling filming machine, so this method is adopted. There will be no bubbles on the surface of the pasted film. After the film is pasted, the transport robot grabs the battery to another station for labeling and bar code labeling. Before pasting, an aluminum shell will be installed in the middle of the battery. The manipulator grabs and installs it, then the manipulator grabs the battery module for labeling, and then rotates and turns it over to assemble the battery module and other operations. The equipment can also be used in different industries for filming. Main technical parameters: Category Specifications The overall dimensions of the machine: 3850*1720*1700MM (L*W*H) Input voltage: AC—220V50Hz or AC—380V 50Hz optional Maximum power of the whole machine: 0.5KW (at 220V) Input air pressure: 0.4- 0.6 Mpa Air consumption: 1.5 L/min Production efficiency (C/T): ≤3.0 S/equipment load rate: ≥95% Processing method: automatic detection, automatic pressing, automatic discharging and refueling method: manual refueling Programming method: touch screen parameter modification, the above is the full introduction of the power battery sticker PET protection and labeling machine
