Pneumatic Cylinder for Mold Cavity SolidWorks Mold Design 3D model
play iconthumbnail
DESCRIPTION

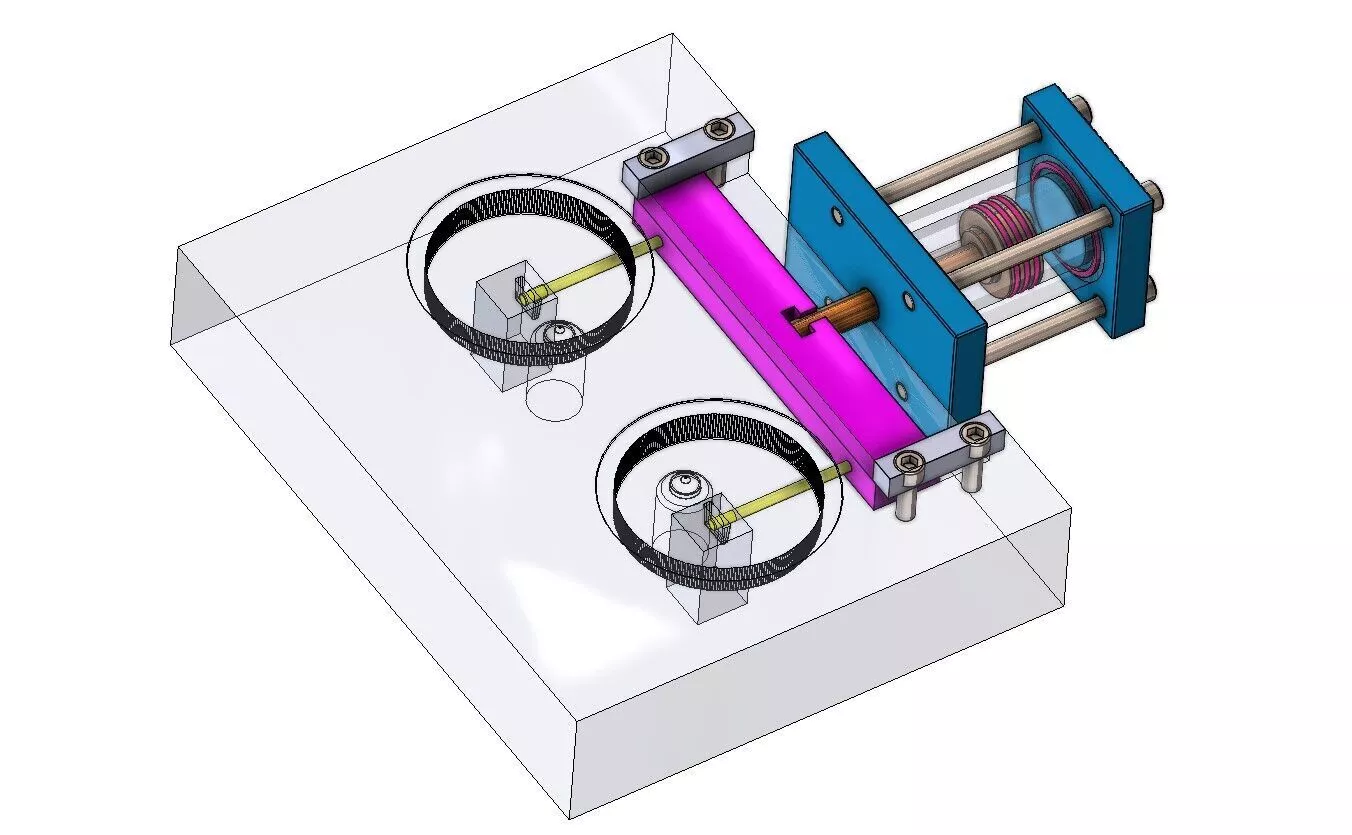

A custom pneumatic cylinder mechanism designed for injection mold cavity applications. The project demonstrates the integration of a pneumatic actuation system into a mold environment for controlled mechanical movement.

Key Features:

Pneumatic cylinder designed for mold applicationMold cavity integration conceptControlled linear actuationDetailed SolidWorks 3D modelingMechanical assembly designManufacturing-oriented approachSuitable for injection mold automation concepts

Software: SolidWorks
